2016 NISSAN SENTRA Owners Manual

Driver Assistance (if so equipped)
The driver assistance menu allows the user to
change the settings for driving, parking, and brak-
ing aids.
Menu itemResult
Driving Aids (if so equipped) Displays available Driving Aids
Blind Spot/RCTA Allows user to turn Blind Spot Warning (BSW)/Rear Cross Traffic Alert (RCTA) system ON/OFF. For additional information, refer
to “Blind Spot Warning (BSW)” in the “Starting and driving” section of this manual.
Clock
Menu item Result
Clock When selected, the following message appears: “Set Clock in Audio” (models without navigation) or “Set Clock in NAVI”
(models with navigation) . For additional information, refer to “Audio system” in the “Monitor, climate, audio, phone and voice
recognition systems” section of this manual (models without navigation) or the separate Navigation Owner’s Manual (if so
equipped) (models with navigation)
2-26Instruments and controls

Meter Settings
The meter settings allow the user to change the
settings for the vehicle information display
Menu itemResult
Main Menu Selection Displays the available options
Home Allows user to turn the Home screen ON/OFF in the vehicle information display
Average Speed Allows user to turn the Average Speed screen ON/OFF in the vehicle information display
Trip A Allows user to turn the Trip A ON/OFF in the vehicle information display
Trip B Allows user to turn the Trip B ON/OFF in the vehicle information display
Navigation (if so equipped) Allows user to turn the Navigation ON/OFF in the vehicle information display. For additional information, refer to the sepa-
rate “Navigation Owner’s Manual”.
Fuel Economy Allows user to turn the Fuel Economy ON/OFF in the vehicle information display
Audio Allows user to turn the Audio screen ON/OFF in the vehicle information display. For additional information, refer to “Audio
system” in the “Monitor, climate, audio, phone and voice recognition systems” section of this manual,
Driving Aids (if so equipped) Allows user to turn the Driving Aids ON/OFF in the vehicle information display. For additional information, refer to “Driver
Assistance” in this section.
ECO Mode Settings Displays the available options for ECO Mode Settings
ECO Indicator Allows the user to turn the ECO Indicator ON/OFF in the vehicle information display
DISP Mode Allows user to select how the ECO Mode in displayed
Pedal Select to have the ECO Mode shown as a pedal display
Inst.FE Select to have the ECO Mode shown as instant fuel economy
ECO Drive Report Displays the available options for the ECO Drive Report
Display Allows user to turn the ECO Drive Report ON/OFF
View History Allows user to view and reset ECO Drive report history
Welcome Effect Displays the available options for the Welcome Effect
Dial Effect Allows user to turn the Dial Effect ON/OFF
Display Effect Allows user to turn the Display Effect ON/OFF
Instruments and controls2-27

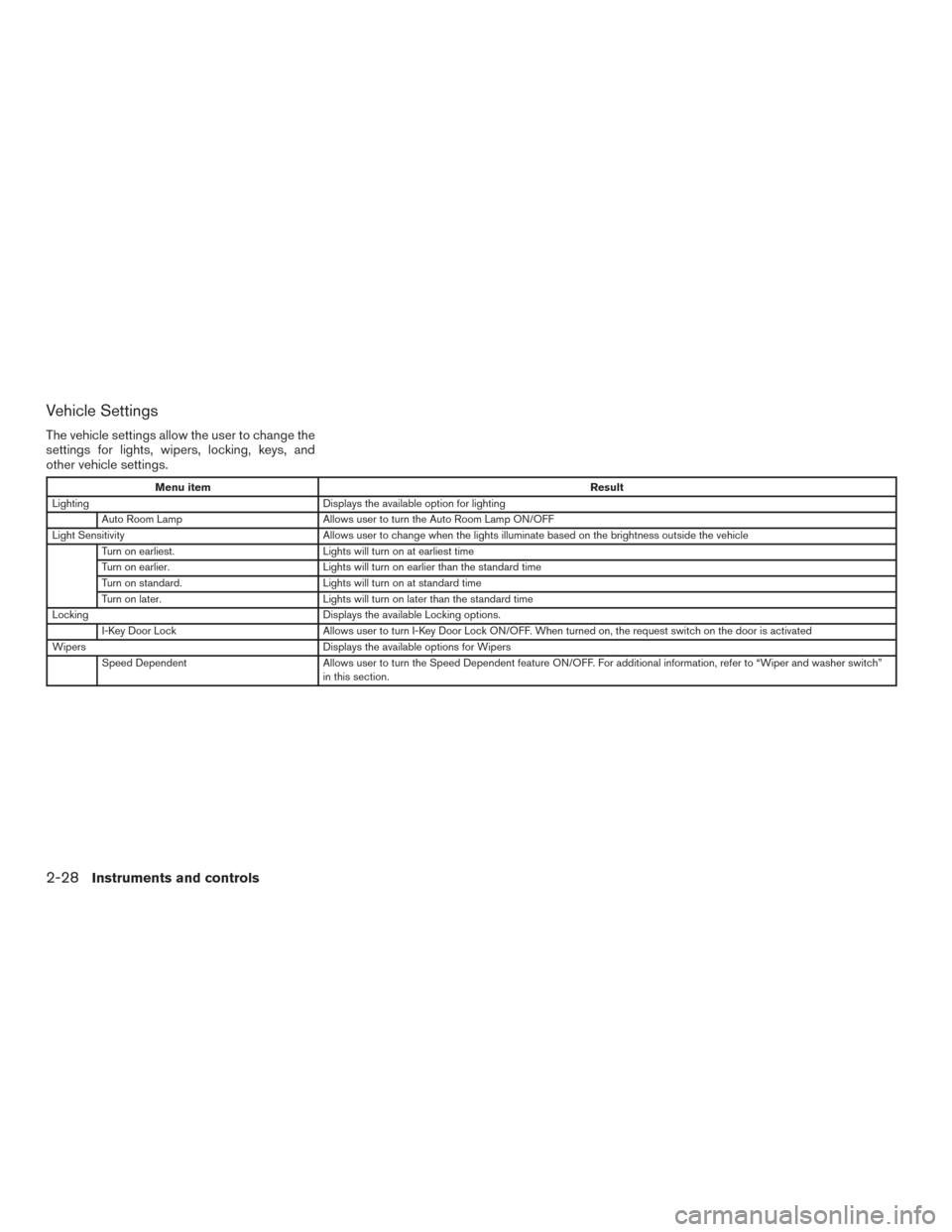

Vehicle Settings
The vehicle settings allow the user to change the
settings for lights, wipers, locking, keys, and
other vehicle settings.
Menu itemResult
Lighting Displays the available option for lighting
Auto Room Lamp Allows user to turn the Auto Room Lamp ON/OFF
Light Sensitivity Allows user to change when the lights illuminate based on the brightness outside the vehicle
Turn on earliest. Lights will turn on at earliest time
Turn on earlier. Lights will turn on earlier than the standard time
Turn on standard. Lights will turn on at standard time
Turn on later. Lights will turn on later than the standard time
Locking Displays the available Locking options.
I-Key Door Lock Allows user to turn I-Key Door Lock ON/OFF. When turned on, the request switch on the door is activated
Wipers Displays the available options for Wipers
Speed Dependent Allows user to turn the Speed Dependent feature ON/OFF. For additional information, refer to “Wiper and washer switch”
in this section.
2-28Instruments and controls

Maintenance
The maintenance menu allows the user to set
reminders for various vehicle maintenance items.
WARNING
The tire replacement indicator is not a
substitute for regular tire checks, includ-
ing tire pressure checks. For additional
information, refer to “Changing wheels
and tires” in the “Maintenance and do-it-
yourself” section of this manual. Many fac-
tors including tire inflation, alignment,
driving habits and road conditions affect
tire wear and when tires should be re-
placed. Setting the tire replacement indi-
cator for a certain driving distance doesnot mean your tires will last that long. Use
the tire replacement indicator as a guide
only and always perform regular tire
checks. Failure to perform regular tire
checks, including tire pressure checks
could result in tire failure. Serious vehicle
damage could occur and may lead to a
collision, which could result in serious
personal injury or death.
Menu item
Result
Maintenance Displays various Maintenance settings
Oil and Filter This indicator appears when the customer set distance is reached for checking or replacing the engine oil and oil filter. You
can set or reset the distance for checking or replacing the items. For scheduled maintenance items and intervals, refer to
the “NISSAN Service and Maintenance Guide.”
Tire This indicator appears when the customer set distance is reached for checking or replacing tires. You can set or reset the
distance for checking or replacing tires.
Other This indicator appears when the customer set distance is reached for checking or replacing maintenance items other than
the engine oil, oil filter and tires. Other maintenance items can include such things as air filter or tire rotation. The distance
for checking or replacing the items can be set or reset.
Instruments and controls2-29

Alarms
The Alarms menu allows the user to set various
alerts.
Menu itemResult
Outside Temp. Allows user to turn the Outside Temp. alarm ON/OFF
Timer Alert Allows user to set the Timer Alert for a specific interval
Navigation (if so equipped) Allows user to turn the Navigation alarm ON/OFF
Phone Allows user to turn the Phone alarm ON/OFF
Mail Allows user to turn the Mail alarm ON/OFF
Unit
The Unit menu allows the user to change the
units shown in the vehicle information display.
Menu item Result
Mileage Displays the available mileage display units
miles, MPG Allows the user to display the mileage in miles, MPG
km, km/l Allows the user to display the mileage in km, km/l
km, l/100lm Allows the user to display the mileage in km, l/100lm
Temperature Displays the available temperature display units
°F Select to display the temperature in degrees Fahrenheit
°C Select to display the temperature in degrees Celsius
2-30Instruments and controls

Language
The language menu allows the user to change the
languages displayed in the vehicle information
display.
Menu itemResult
Language Displays the available languages in which the vehicle information display will be shown
US English Select to display the vehicle information display in US English
Français Select to display the vehicle information display in French
Español Select to display the vehicle information display in Spanish
Factory Reset
The factory reset menu allows the user to restore
the vehicle information display settings to factory
status.
Menu item Result
Factory Reset Allows user to reset the vehicle information display settings to the original factory settings. Once selected, the user can
confirm or deny the reset
Instruments and controls2-31

VEHICLE INFORMATION DISPLAY
WARNINGS AND INDICATORS
1. Door Open
2. Trunk Open
3. Release Parking Brake4. Low Fuel
5. Low Washer Fluid
6. I-Key System Error: See Owner’s Manual (if
so equipped)
7. Low Oil Pressure: See Owner’s Manual 8. Headlight System Error: See Owner’s
Manual (if so equipped)
9. Loose Fuel Cap
10. Tire Pressure Low — Add Air
11. TPMS Error: See Owner’s Manual
LIC3472
2-32Instruments and controls

12. BSW/RCTA System Malfunction: SeeOwner’s Manual (if so equipped)
13. FEB System Malfunction: See Owner’s Manual (if so equipped)
14. Reminder: Turn OFF headlights
15. Shipping Mode On Push Storage Fuse
16. Push brake and start button to drive
17. Illumination indicator
18. Low Outside Temperature
19. Cruise control indicator (if so equipped)
20. Intelligent Cruise Control (ICC) system ON indicator (if so equipped)
21. Side Radar Obstruction (if so equipped)
Door Open
This warning illuminates when a door has been
opened.
Trunk Open
This warning illuminates when the trunk has been
opened when the engine is running.
Release Parking Brake
This warning illuminates in the message area of
the vehicle information display when the parking
brake is set and the vehicle is driven. Low Fuel
This warning illuminates when the fuel level in the
fuel tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches 0 (Empty) .
There will be a small re-
serve of fuel in the tank when the fuel
gauge needle reaches 0 (Empty) .
Low Washer Fluid
This warning illuminates when the windshield-
washer fluid is at a low level. Add windshield-
washer fluid as necessary. For additional informa-
tion, refer to “Windshield-washer fluid” in the
“Maintenance and do-it-yourself” section of this
manual.
I-Key System Error: See Owner’s Manual
(if so equipped)
After the ignition switch is pushed to the ON
position, this light comes on for a period of time
and then turns off.
The I-Key System Error message warns of a
malfunction with the Intelligent Key system. If the
light comes on while the engine is stopped, it may
be impossible to start the engine.
If the light comes on while the engine is running,
you can drive the vehicle. However in these
cases, it is recommended that you contact a
NISSAN dealer for service as soon as possible. Low Oil Pressure: See Owner’s Manual
This warning appears in the message area of the
vehicle information display if low oil pressure is
detected. This gauge is not designed to indicate
low oil level.
The low oil pressure warning is
not designed to indicate a low oil level. Use
the dipstick to check the oil level. For additional
information, refer to “Engine oil” in the “Mainte-
nance and do-it-yourself” section of this manual.
Headlight System Error: See Owner’s
Manual (if so equipped)
This warning appears when the LED headlights
are not functioning properly.
If this warning appears, have your system
checked. It is recommended that you visit a
NISSAN dealer for this service.
Loose Fuel Cap
This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has been
refueled. For additional information, refer to
“Fuel-filler cap” in the “Pre-driving checks and
adjustments” section of this manual.
Tire Pressure Low - Add Air
This warning appears when the low tire pressure
warning light in the meter illuminates and low tire
pressure is detected. The warning appears each
time the ignition switch is placed in the ON
Instruments and controls2-33
