2016 NISSAN ROGUE Owners Manual

The power windows operate when the ignition
switch is placed in the ON position, or for a
period of time after the ignition switch is placed in
the OFF position. If the driver’s or passenger’s
door is opened during this period of time, the
power to the windows is canceled.
Driver’s side power window switches
1. Window lock button
2. Power door lock switch
3. Front passenger side switch
4. Right rear passenger side switch
5. Left rear passenger side switch
6. Driver side automatic switchThe driver’s side control panel is equipped with
switches to open or close all of the windows.
To open a window, push the switch to the first
detent and continue to hold down until the de-
sired window position is reached. To close a
window, pull the switch to the first detent and
continue to hold up until the desired window
position is reached.
Locking passengers’ windows
When the window lock switch is depressed, only
the driver’s side window can be opened or
closed. Push it again to cancel the window lock
function.
LIC3208
2-58Instruments and controls

Front passenger’s power window
switch
The passenger’s window switch operates only
the corresponding passenger’s window. To open
the window partially, push the switch down
1
lightly until the desired window position is
reached. To close the window partially, pull the
switch up
2until the desired window position is
reached.
Rear power window switch
The rear power window switches open or close
only the corresponding windows. To open the
window, push the switch and hold it down
1.To
close the window, pull the switch up
2.
Automatic operation
To fully open a window equipped with automatic
operation, press the window switch down to the
second detent and release it; it need not be held.
The window automatically opens all the way. To
stop the window, lift the switch up while the
window is opening.
To fully close a window equipped with automatic
operation, pull the switch up to the second detent
and release it; it need not be held. To stop the
window, press the switch down while the window
is closing.
LIC2309LIC2663LIC0410
Instruments and controls2-59

Auto-reverse function
The auto-reverse function can be activated when
a window is closed by automatic operation.
Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the window oc-
curs.
WARNING
There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the window.
If the vehicle’s battery is disconnected, replaced,
or jump started, the power window auto-reverse
function may not operate properly. If this occurs,
please contact the dealer to re-initialize the
power window auto-reverse system.
If the control unit detects something caught in a
window equipped with automatic operation, as it
is closing, the window will be immediately low-
ered. The moonroof will only operate when the ignition
switch is placed in the ON position. The moon-
roof is operational for a period of time, even if the
ignition switch is placed in the ACC (if so
equipped) or OFF position. If the driver’s door or
the front passenger’s door is opened during this
period of time, the power to the moonroof is
canceled.
When operating the power moonroof or pan-
oramic sunshade, the switch need not be held
continuously. To stop the moonroof or sunshade
at any point while it is opening or closing, slide
the switch momentarily.
Sliding the moonroof
To fully open the moonroof, slide the switch to-
ward the open
1position to the second detent
and release it. If the switch is slid to the first
detent and released while the sunshade is closed
only the sunshade will open.
To fully close the moonroof, slide the switch to-
ward the close
2position to the second detent
and release it. If the switch is slid to the first
detent and released, the moonroof will close but
the sunshade will remain open.
Tilting the moonroof
To tilt the moonroof up, push and release the tilt
switch
3. If the moonroof is open, it will auto-
matically close and then tilt up.
To tilt the moonroof down but keep the sunshade
open, push and release the tilt switch
3or slide
the switch toward the close position
2to the
first detent.
To tilt the moonroof down and close the sun-
shade at the same time, slide the switch toward
the close position
2to the second detent.
LIC3477
POWER MOONROOF (if so equipped)
2-60Instruments and controls

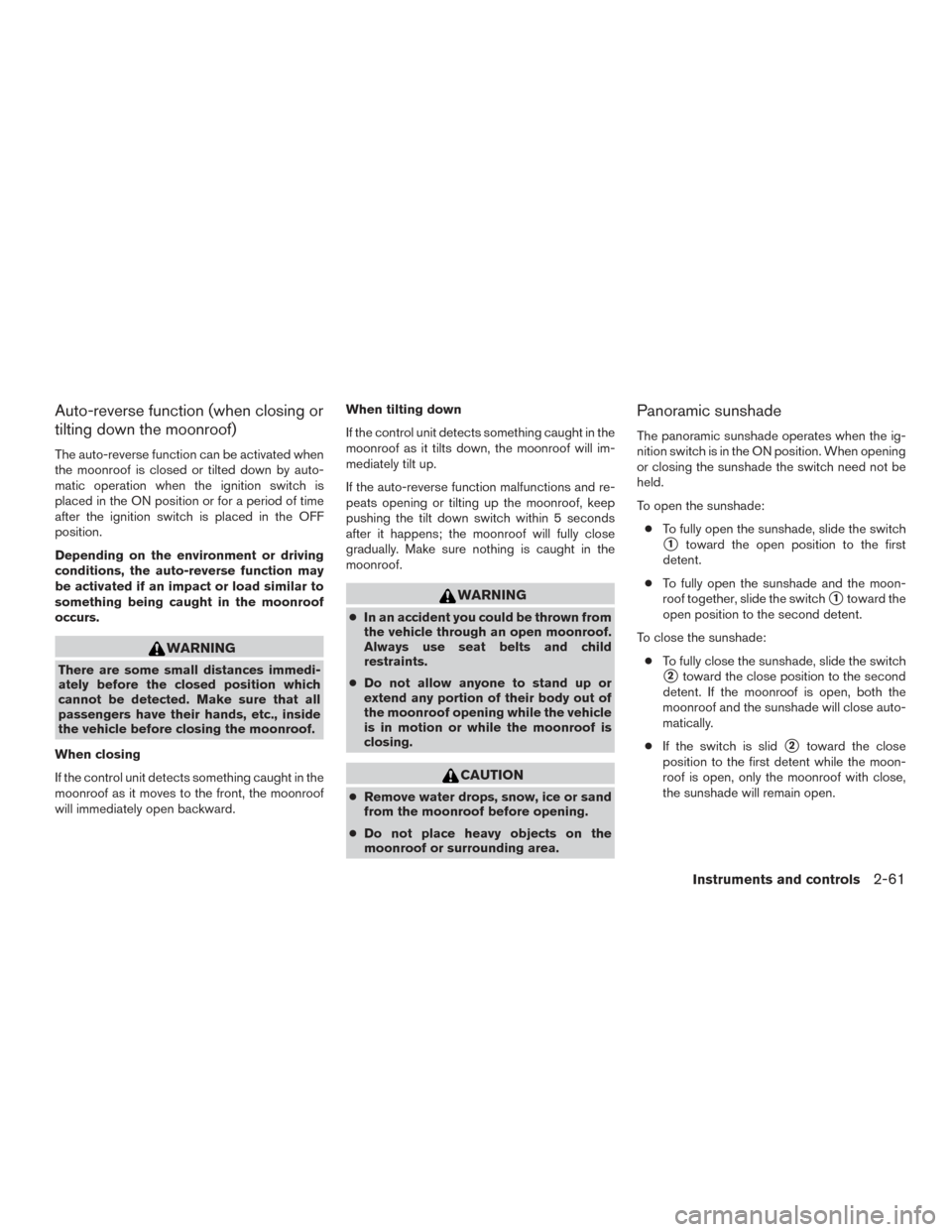

Auto-reverse function (when closing or
tilting down the moonroof)
The auto-reverse function can be activated when
the moonroof is closed or tilted down by auto-
matic operation when the ignition switch is
placed in the ON position or for a period of time
after the ignition switch is placed in the OFF
position.
Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the moonroof
occurs.
WARNING
There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the moonroof.
When closing
If the control unit detects something caught in the
moonroof as it moves to the front, the moonroof
will immediately open backward. When tilting down
If the control unit detects something caught in the
moonroof as it tilts down, the moonroof will im-
mediately tilt up.
If the auto-reverse function malfunctions and re-
peats opening or tilting up the moonroof, keep
pushing the tilt down switch within 5 seconds
after it happens; the moonroof will fully close
gradually. Make sure nothing is caught in the
moonroof.
WARNING
●
In an accident you could be thrown from
the vehicle through an open moonroof.
Always use seat belts and child
restraints.
● Do not allow anyone to stand up or
extend any portion of their body out of
the moonroof opening while the vehicle
is in motion or while the moonroof is
closing.
CAUTION
● Remove water drops, snow, ice or sand
from the moonroof before opening.
● Do not place heavy objects on the
moonroof or surrounding area.
Panoramic sunshade
The panoramic sunshade operates when the ig-
nition switch is in the ON position. When opening
or closing the sunshade the switch need not be
held.
To open the sunshade:
● To fully open the sunshade, slide the switch
1toward the open position to the first
detent.
● To fully open the sunshade and the moon-
roof together, slide the switch
1toward the
open position to the second detent.
To close the sunshade: ● To fully close the sunshade, slide the switch
2toward the close position to the second
detent. If the moonroof is open, both the
moonroof and the sunshade will close auto-
matically.
● If the switch is slid
2toward the close
position to the first detent while the moon-
roof is open, only the moonroof with close,
the sunshade will remain open.
Instruments and controls2-61

WARNING
●To avoid personal injury, keep your
hands, fingers and head away from the
sunshade arm, the arm rail and sun-
shade inlet port.
● Do not allow children near the rear sun-
shade system. They could be injured.
● Do not place objects on or near the rear
sunshade. This could cause improper
operation or damage it.
● Do not pull or push the rear sunshade.
This could cause improper operation or
damage it.
CAUTION
● Do not place objects (such as newspa-
pers, handkerchiefs, etc.) on the sun-
shade inlet port. Doing so may entangle
these objects in the sunshade when it is
extending or retracting, causing im-
proper operation or damage to the
sunshade.
● Do not push the sunshade arm with
your hands, etc., as this may deform it.
Improper operation or damage to the
sunshade may result. ●
Do not put any object into the sunshade
inlet port as this may result in improper
operation or damage the sunshade.
● Do not hang any object on the arm rail
as this may result in improper operation
or damage the sunshade.
● Do not forcefully pull the sunshade. Do-
ing so may elongate the sunshade. Im-
proper operation or damage to the sun-
shade may result.
If the moonroof does not close
Have your moonroof checked and repaired. It is
recommended you visit a NISSAN dealer for this
service. When the ON switch
1is pressed, the footwell
lights (if so equipped) , step lights (if so
equipped) , map lights and rear personal lights
will automatically turn on and stay on for a period
of time when:
● The doors are unlocked by the Intelligent
Key, a key or the request switch (if so
equipped) while all doors are closed and the
ignition switch is in the OFF position.
● When individually pushed.
When the OFF switch
2is pushed, the interior
lights do not illuminate even when pushed. When
the DOOR/OFF switch is pressed and the ON
switch is pressed, all of the lights will come on.
LIC2302
INTERIOR LIGHTS
2-62Instruments and controls

NOTE:
The footwell lights and step lights illumi-
nate when the driver and passenger doors
are open regardless of the interior light
switch position. These lights will turn off
automatically after a period of time while
doors are open to prevent the battery from
becoming discharged.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.
CONSOLE LIGHT
The console light will turn on whenever the park-
ing lights or headlights are illuminated.
The console light brightness can be adjusted
with the illumination brightness control.
MAP LIGHTS
Press the button to turn the map lights on. To turn
them off, press the button again.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.
LIC2303LIC2304
Instruments and controls2-63

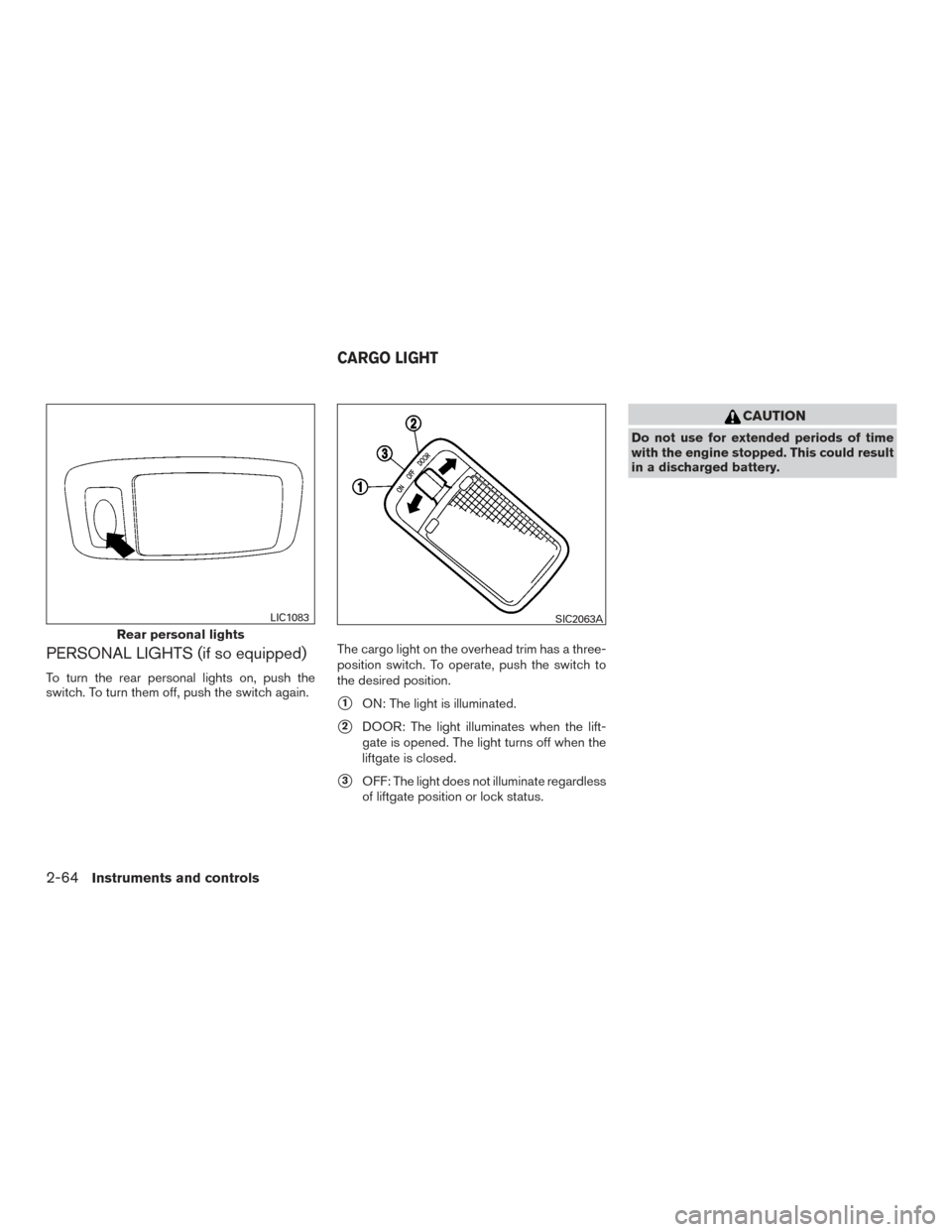

PERSONAL LIGHTS (if so equipped)
To turn the rear personal lights on, push the
switch. To turn them off, push the switch again.The cargo light on the overhead trim has a three-
position switch. To operate, push the switch to
the desired position.
1ON: The light is illuminated.
2DOOR: The light illuminates when the lift-
gate is opened. The light turns off when the
liftgate is closed.
3OFF: The light does not illuminate regardless
of liftgate position or lock status.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.
Rear personal lights
LIC1083SIC2063A
CARGO LIGHT
2-64Instruments and controls

3 Pre-driving checks and adjustments
Keys .............................................3-2Remote keyless entry (if so equipped) ............3-2
NISSAN Intelligent Key® (if so equipped) .........3-3
NISSAN Vehicle Immobilizer System keys .........3-5
Doors ............................................3-5
Locking with key ................................3-6
Locking with inside lock knob ....................3-6
Locking with power door lock switch . . . ..........3-7
Automatic door locks ...........................3-7
Child safety rear door lock .......................3-7
Remote keyless entry system (if so equipped) .........3-8
How to use remote keyless entry system ..........3-9
NISSAN Intelligent Key® (if so equipped) ...........3-12
Operating range ............................... 3-13
Door locks/unlocks precaution ..................3-14
NISSAN Intelligent Key® Operation .............3-15
How to use the remote keyless entry
function ...................................... 3-18
Warning signals ............................... 3-21
Troubleshooting guide ......................... 3-22
Hood ........................................... 3-23Liftgate
.......................................... 3-24
Operating the manual liftgate
(if so equipped) ............................... 3-24
Operating the power liftgate (if so equipped) .....3-25
Power liftgate main switch ......................3-28
Liftgate release ................................ 3-28
Liftgate position setting ........................ 3-29
Fuel-filler door ................................... 3-30
Opener operation .............................. 3-30
Fuel-filler cap ................................. 3-30
Steering wheel ................................... 3-32
Manual operation .............................. 3-32
Sun visors ....................................... 3-33
Vanity mirrors ................................. 3-33
Card holder (driver’s side only) ..................3-34
Mirrors .......................................... 3-34
Manual anti-glare rearview mirror
(if so equipped) ............................... 3-34
Automatic anti-glare rearview mirror
(if so equipped) ............................... 3-34
Outside

mirrors ............................... 3-35
