2016 NISSAN ROGUE Owners Manual

SPORT mode indicator light (ifso equipped)
This light illuminates and then turns off when the
ignition switch is placed into the ON position, and
when the overdrive off mode off is selected.
For additional information, refer to “Continuously
Variable Transmission (CVT)” in the “Starting and
driving” section of this manual.
Turn signal/hazard indicatorlights
The appropriate light flashes when the turn signal
switch is activated.
Both lights flash when the hazard switch is turned
on.
Vehicle Dynamic Control(VDC) OFF indicator light
This indicator light comes on when the VDC off
switch is pushed to OFF. This indicates the VDC
system is not operating.
Push the VDC off switch again or restart the
engine and the system will operate normally. For
additional information, refer to “Vehicle Dynamic
Control (VDC) system” in the “Starting and driv-
ing” section of this manual. The VDC light also comes on when you place the
ignition switch in the ON position. The light will
turn off after about 2 seconds if the system is
operational. If the light stays on or comes on
along with the
indicator light while you are
driving, have the VDC system checked. It is rec-
ommended you visit a NISSAN dealer for this
service.
While the VDC system is operating, you might
feel slight vibration or hear the system working
when starting the vehicle or accelerating, but this
is normal.
AUDIBLE REMINDERS
Brake pad wear warning
The disc brake pads have audible wear warnings.
When a disc brake pad requires replacement, it
makes a high pitched scraping sound when the
vehicle is in motion, whether or not the brake
pedal is depressed. Have the brakes checked as
soon as possible if the warning sound is heard.
Key left reminder chime
A chime sounds if the driver’s door is opened
while the ignition switch is placed in the ACC or
OFF position with the Intelligent Key left in the
vehicle. Make sure the ignition switch is placed in
the LOCK position, and take the Intelligent Key
with you when leaving the vehicle.
Light reminder chime
With the ignition switch placed in the OFF posi-
tion, a chime sounds when the driver’s door is
opened if the headlights or parking lights are on.
Turn the headlight control switch off before leav-
ing the vehicle.
NISSAN Intelligent Key® door buzzer
The Intelligent Key door buzzer sounds if the
Intelligent Key is left inside the vehicle when
locking the doors. When the buzzer sounds, be
sure to check both the vehicle and the Intelligent
Key. For additional information, refer to “NISSAN
Intelligent Key®” in the “Pre-driving checks and
adjustments” section of this manual.
2-18Instruments and controls

The vehicle information display is located to the
left of the speedometer. It displays such items as:● Vehicle settings
● Trip computer information
● Drive system warnings and settings
● Cruise control system information
● NISSAN Intelligent Key® operation informa-
tion
● Chassis Control
● Indicators and warnings
● Tire Pressure informationHOW TO USE THE VEHICLE
INFORMATION DISPLAY
The vehicle information display can be changed
using the buttons
and ENTER located on
the steering wheel.
1— navigate through the items in ve-
hicle information
ENTER — change or select an item in the
vehicle information display
2— select/enter the Vehicle informa-
tion menu items or to change from one dis-
play screen to the next (i.e. trip, TPMS, Fuel
economy)
3— go back to the previous menu
The ENTER andbuttons also control audio
and control panel functions. For additional informa-
tion, refer to “Steering wheel switch for audio con-
trol” in the “Monitor, climate, audio, phone and voice
recognition systems” section of this manual.
STARTUP DISPLAY
When the vehicle is placed in the ON or ACC (if
so equipped) position, the vehicle information
display may display the following screens:
● Home
● Range
● Average speed
● Trip
● Fuel Economy
● Compass
● Audio
● Driving Aids
● Tire Pressure
● 4x4–i
● Chassis Control
● Warnings
● Settings
LIC2630LIC2671
VEHICLE INFORMATION DISPLAY
Instruments and controls2-19

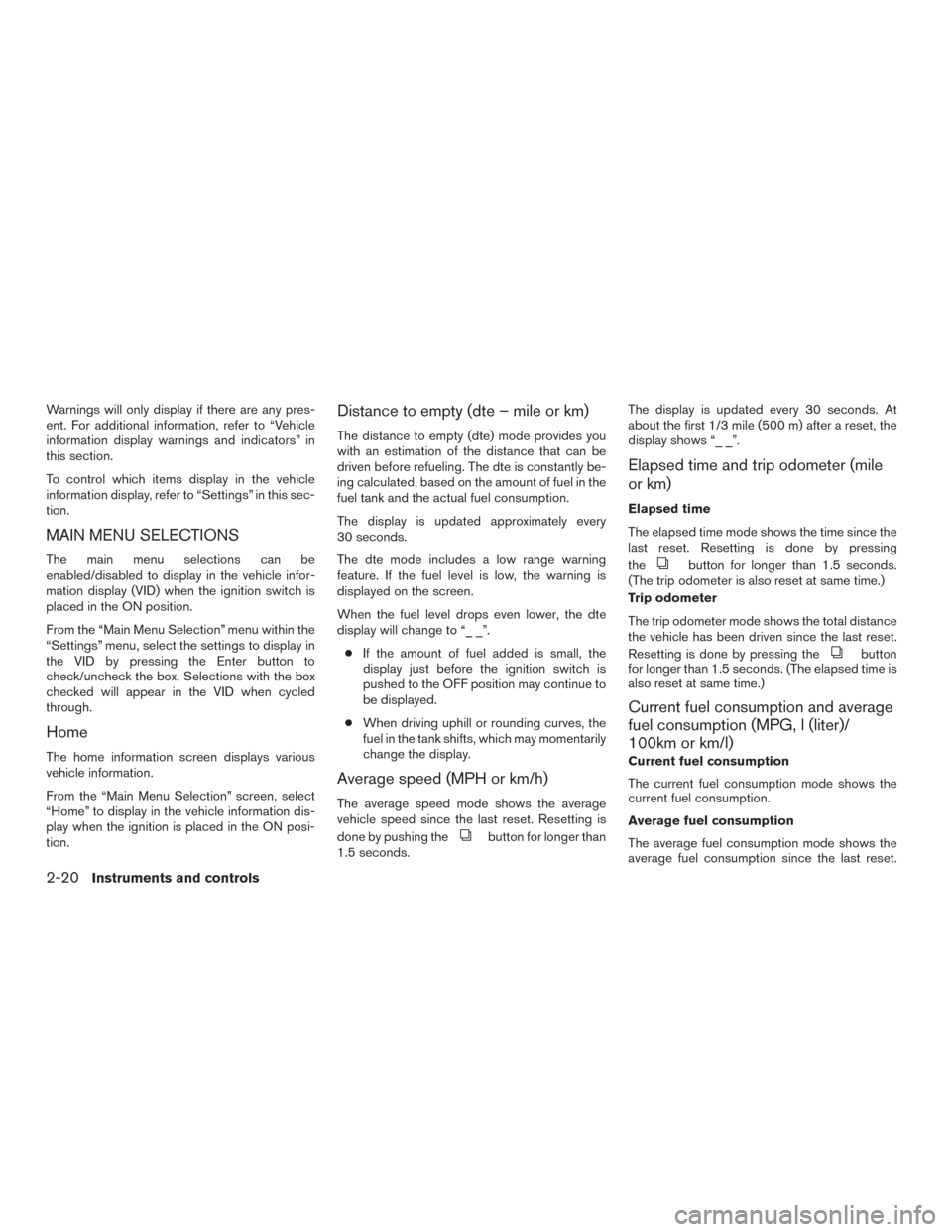

Warnings will only display if there are any pres-
ent. For additional information, refer to “Vehicle
information display warnings and indicators” in
this section.
To control which items display in the vehicle
information display, refer to “Settings” in this sec-
tion.
MAIN MENU SELECTIONS
The main menu selections can be
enabled/disabled to display in the vehicle infor-
mation display (VID) when the ignition switch is
placed in the ON position.
From the “Main Menu Selection” menu within the
“Settings” menu, select the settings to display in
the VID by pressing the Enter button to
check/uncheck the box. Selections with the box
checked will appear in the VID when cycled
through.
Home
The home information screen displays various
vehicle information.
From the “Main Menu Selection” screen, select
“Home” to display in the vehicle information dis-
play when the ignition is placed in the ON posi-
tion.
Distance to empty (dte – mile or km)
The distance to empty (dte) mode provides you
with an estimation of the distance that can be
driven before refueling. The dte is constantly be-
ing calculated, based on the amount of fuel in the
fuel tank and the actual fuel consumption.
The display is updated approximately every
30 seconds.
The dte mode includes a low range warning
feature. If the fuel level is low, the warning is
displayed on the screen.
When the fuel level drops even lower, the dte
display will change to “_ _”.● If the amount of fuel added is small, the
display just before the ignition switch is
pushed to the OFF position may continue to
be displayed.
● When driving uphill or rounding curves, the
fuel in the tank shifts, which may momentarily
change the display.
Average speed (MPH or km/h)
The average speed mode shows the average
vehicle speed since the last reset. Resetting is
done by pushing the
button for longer than
1.5 seconds. The display is updated every 30 seconds. At
about the first 1/3 mile (500 m) after a reset, the
display shows “_ _”.
Elapsed time and trip odometer (mile
or km)
Elapsed time
The elapsed time mode shows the time since the
last reset. Resetting is done by pressing
the
button for longer than 1.5 seconds.
(The trip odometer is also reset at same time.)
Trip odometer
The trip odometer mode shows the total distance
the vehicle has been driven since the last reset.
Resetting is done by pressing the
button
for longer than 1.5 seconds. (The elapsed time is
also reset at same time.)
Current fuel consumption and average
fuel consumption (MPG, l (liter)/
100km or km/l)
Current fuel consumption
The current fuel consumption mode shows the
current fuel consumption.
Average fuel consumption
The average fuel consumption mode shows the
average fuel consumption since the last reset.
2-20Instruments and controls

Resetting is done by pressing thebutton
for longer than 1.5 seconds.
The display is updated every 30 seconds. At
about the first 1/3 mile (500 m) after a reset, the
display shows “_ _”.
Navigation (if so equipped)
When the route guidance is set in the navigation
system, this item shows the navigation route in-
formation.
Audio
The audio mode shows the status of audio infor-
mation.
Driving aids (if so equipped)
The driving aids mode shows the operating con-
dition for the following systems.
● Blind Spot Warning (BSW)
● Forward Emergency Braking (FEB)
For additional information, refer to “Blind Spot
Warning (BSW)” and “Forward Emergency Brak-
ing (FEB) ” in the “Starting and driving” section of
this manual.
Tire pressure
The tire pressure mode shows the pressure of all
four tires while the vehicle is driven. The axle
between the tires will also display the recom-
mended tire pressure.
When the “Tire Pressure Low Add Air” or “Flat
Tire - Visit Dealer” (if so equipped) warning ap-
pears, the display can be switched to the tire
pressure mode by pushing the
button.
The tire pressure unit can be changed in the TPMS
setting under the Settings menu on the vehicle
information display. For additional information, refer
to “Vehicle information display” in this section.
4x4–i
The 4x4–i information display shows the distribu-
tion of torque amongst the wheels in the various
drive modes.
From the “Main Menu Selection” select “4x4–i to
display in the vehicle information display when
the ignition is placed in the ON position.
For additional information, refer to “All-wheel
drive (AWD)” in the “Starting and driving” section
of this manual.
Chassis control
When the Active Trace Control, Active Engine
Brake, or the Active Ride Control is operated, it
shows the operating condition. It also shows operating condition of hill start assist or hill de-
scent control. For additional information, refer to
“Active trace control, Active engine brake, Active
ride control, Hill start assist system or Hill De-
scent Control system” in the “Starting and driv-
ing” section of this manual.
RESETTING THE TRIP COMPUTER
1. Press thebutton until you reach the
trip computer mode.
2. Press the
button again for more than
1.5 seconds to reset average fuel consump-
tion, average speed, distance to empty, and
journey time.
SETTINGS
The setting mode allows you to change the infor-
mation displayed in the vehicle information display:
● Driver Assistance
● Clock
● Meter Settings
● Vehicle Settings
● Maintenance
● Alarm
● Tire Pressures
● Unit
● Language
● Factory Reset
Instruments and controls2-21

Driver Assistance
Menu itemResult
Driver Assistance Displays various Driver Assistance settings.
Driving Aids Displays available Driving Aids.
Blind Spot (BSW) Allows user to turn Blind Spot Warning ON/OFF. For additional information, refer to “Blind Spot Warning (BSW)” in the “Starting and driving” section of this manual.
Emergency Brake Allows user to turn Emergency Brake ON/OFF. For additional information, refer to “Forward Emergency Braking (FEB) (if so equipped)” in the “Starting and driving” section of this manual.
Parking Aids (if so equipped) Displays available Parking Aids. Moving Object Some vehicles include the option to allow the user to turn Moving Object Detection (MOD) ON/OFF. For additional information, refer to “Around View® Monitor” in the “Monitor, climate, audio, phone and voice recognition systems” section of this manual.
Chassis Control Displays available Chassis Controls.
Trace Control Allows user to turn Active Trace Control ON/OFF. For additional information, refer to “Active trace control” in the “Starting and
driving” section of this manual.
Engine Brake Allows user to turn Active Engine Brake ON/OFF. For additional information, refer to “Active engine brake” in the “Starting and
driving” section of this manual.
Clock
Menu item Result
Clock For additional information, refer to “How to use the APPS-i button” in the “Monitor, climate, audio, phone and voice recog-
nition systems” section of this manual
2-22Instruments and controls

Meter Settings
Menu itemResult
Meter Settings Displays various Meter Settings that can be adjusted
Main Menu Selection Displays the Main Menu Selections that can be displayed in the vehicle information display
Home Allows user to turn the Home display ON/OFF
Range Allows user to turn the Range display ON/OFF
Average Speed Allows user to turn the Average Speed display ON/OFF
Trip Allows user to turn the Trip display ON/OFF
Fuel Economy Allows user to turn the Fuel Economy display ON/OFF
Navigation Allows user to turn the Navigation display ON/OFF
Audio Allows user to turn the Audio display ON/OFF
Driving Aids Allows user to turn the Driving Aids display ON/OFF
Tire Pressure Allows user to turn the Tire Pressure display ON/OFF
4x4–i Allows user to turn the 4x4–i display ON/OFF
Chassis Control Allows user to turn the Chassis Control display ON/OFF
Body Color Allows user to select the color of the vehicle in the vehicle information display
ECO Mode Settings Displays various ECO mode settings that can be adjusted
ECO Indicator Allows users to turn the ECO Indicator ON/OFF
DISP Mode Displays the DISP Modes
Pedal Select to display the pedal in the vehicle information display
Inst.FE Select to display the instant fuel economy in the vehicle information display
ECO Drive Report Displays ECO Drive Report options
Display Allows user to turn the ECO Drive Report display ON/OFF
View History Allows user to view the ECO Drive Report history
Back Allows the user to return to the previous screen
Reset Allows the user to reset the ECO Drive Report history
Welcome Effect Displays Welcome Effect options
Dial Effect Allows user to turn the Dial Effect display ON/OFF
Display Effect Allows user to turn the Display Effect ON/OFF
Instruments and controls2-23

Vehicle Settings
Menu itemResult
Vehicle Settings Displays various Vehicle Settings that can be adjusted
Lighting Displays Lighting options
Welcome Light Allows user to turn the Welcome Light ON/OFF.
Auto Room Lamp Allows user to turn the Auto Room Lamp ON/OFF.
Light Sensitivity Displays options for Light Sensitivity
Turn on earliest Select to have the vehicle lighting turn on at the earliest time
Turn on earlier Select to have the vehicle lighting turn on at an earlier time
Turn on standard Select to have the vehicle lighting turn on at the standard time
Turn on later Select to have the vehicle lighting turn on at a later time
Light Off Delay Displays option for turning off the vehicle lighting
0 sec Select to have the vehicle lighting turn off immediately
30 sec Select to have the vehicle lighting turn off after 30 seconds
45 sec Select to have the vehicle lighting turn off after 45 seconds
60 sec Select to have the vehicle lighting turn off after 60 seconds
90 sec Select to have the vehicle lighting turn off after 90 seconds
120 sec Select to have the vehicle lighting turn off after 120 seconds
150 sec Select to have the vehicle lighting turn off after 150 seconds
180 sec Select to have the vehicle lighting turn off after 180 seconds
Turn indicator Displays Turn indicator options
3 Flash Pass Allows user to turn 3 Flash Pass ON/OFF.
Locking Displays Locking options
I-Key Door Lock Allows user to turn the I-Key Door Lock ON/OFF.
Selective Unlock Allows user to turn the Selective Unlock ON/OFF.
Answer Bk. Horn Allows user to turn the Answer Bk. Horn ON/OFF.
Wipers Displays Wipers options
Speed Dependent Allows user to turn the Speed Dependent option ON/OFF.
Reverse Link Allows user to turn the Reverse Link option ON/OFF.
Drip Wipe Allows user to turn the Drip Wipe option ON/OFF.
2-24Instruments and controls

Maintenance
Menu itemResult
Maintenance Displays various Maintenance reminders that can be adjusted
Oil and Filter Allows user to set a reminder to check the oil and filter
Tire Allows user to set a reminder to check the tires
Other Allows user to set a reminder to check other maintenance items
Alarm
Menu item Result
Alarm Displays various Alarm options that can be adjusted
Outside Temp. Allows user to turn the Outside Temp. alarm ON/OFF
Timer Alert Allows user to set an alarm at specific time intervals
Navigation Allows user to turn the Navigation alarm ON/OFF
Phone Allows user to turn the Phone alarm ON/OFF
Mail Allows user to turn the Mail alarm ON/OFF
Tire Pressures
Menu item Result
Tire Pressures Displays Tire Pressures options
Tire Pressure Unit Displays available units for tire pressure display
psi Select to display pressure units in psi
kPa Select to display pressure units in kPa
bar Select to display pressure units in bar
Kgf/cm
2Select to display pressure units in Kgf/cm2
Instruments and controls2-25
