2016 NISSAN PATHFINDER Owners Manual

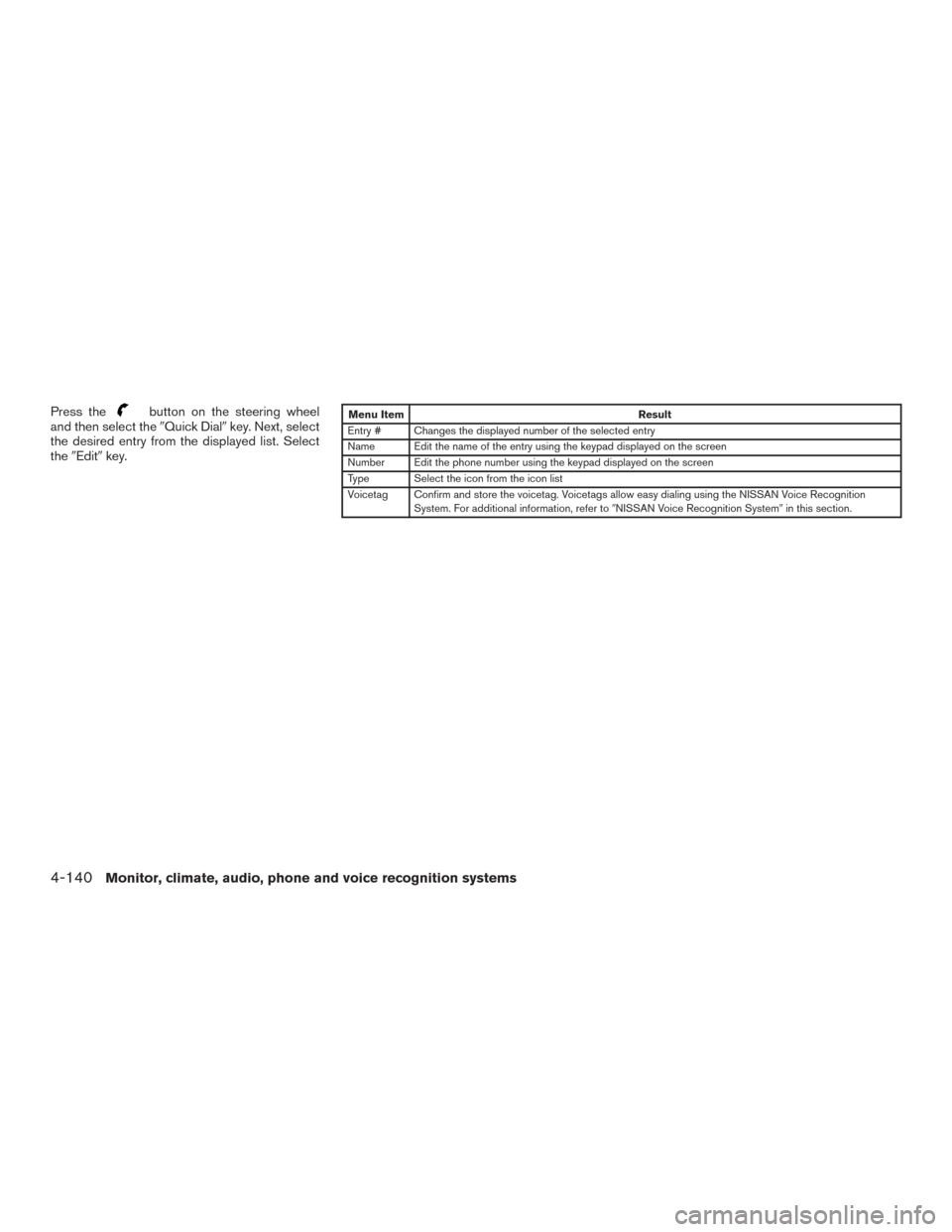

Press thebutton on the steering wheel
and then select the Quick Dialkey. Next, select
the desired entry from the displayed list. Select
the Edit key.Menu Item Result
Entry # Changes the displayed number of the selected entry
Name Edit the name of the entry using the keypad displayed on the screen
Number Edit the phone number using the keypad displayed on the screen
Type Select the icon from the icon list
Voicetag Confirm and store the voicetag. Voicetags allow easy dialing using the NISSAN Voice Recognition System. For additional information, refer to NISSAN Voice Recognition Systemin this section.
4-140Monitor, climate, audio, phone and voice recognition systems

PHONEBOOK
Many phones will support an automatic down-
load of the cellular phone’s phonebook. Up to
1,000 numbers to be stored.
Transferring the phonebook
If your cellular phone supports automatic down-
loading, the system transfers the phonebook au-
tomatically by default. To ensure that this feature
is activated, press the SETTING button on the
instrument panel and select the “Phone” key. The
“Auto Downloaded” selection should have the
amber indicator next to the word ON activated.
Select the “Auto Downloaded” key to toggle this
feature on or off.To transfer the phonebook to the vehicle manu-
ally, follow these steps:
1. Press the SETTING button on the control panel.
2. Select the “Phone” key.
3. Select the “Download Phonebook” key.
Once the phonebook is transferred to the vehicle,
it can be accessed by pressing the PHONE key
on the instrument panel or the
button on
the steering wheel, then selecting the “Phone-
book” key.
Whether the phonebook is transferred manually
or automatically, the process can take up to
5 minutes to complete, depending on the size of
the phonebook. For additional information, refer
to the cellular phone’s owner’s manual.
LHA3892
Monitor, climate, audio, phone and voice recognition systems4-141

MAKING A CALL
Press thebutton on the steering wheel.
The Phone screen will appear on the display.
Select one of the following options to make a call:
Menu Item Result
Quick Dial Select the name from an entry stored in the phonebook. Dialing commences immediately.
Call History Select the name from the incoming or outgoing call history. Dialing commences immediately.
Phonebook Select the name from an entry stored in the phonebook. Dialing commences immediately.
Dial Number Input the phone number manually using the keypad on the screen. It will be necessary to select OKwhen finished for dialing to commence. For
additional information on using the touch-screen, refer to How to use the touch-screenin this section.
LHA3893
4-142Monitor, climate, audio, phone and voice recognition systems

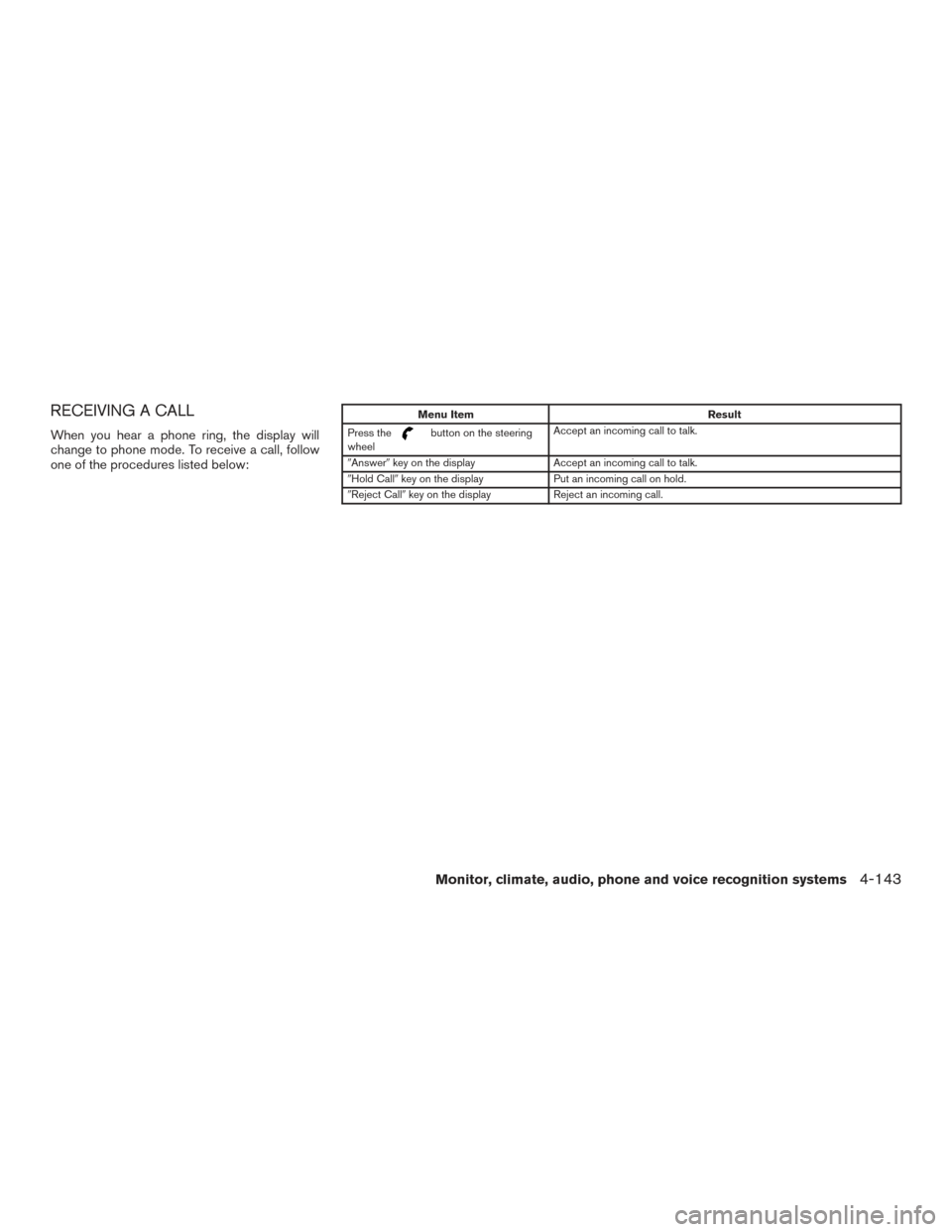

RECEIVING A CALL
When you hear a phone ring, the display will
change to phone mode. To receive a call, follow
one of the procedures listed below:
Menu ItemResult
Press the
button on the steering
wheel Accept an incoming call to talk.
Answer key on the display Accept an incoming call to talk.
Hold Call key on the display Put an incoming call on hold.
Reject Call key on the display Reject an incoming call.
Monitor, climate, audio, phone and voice recognition systems4-143

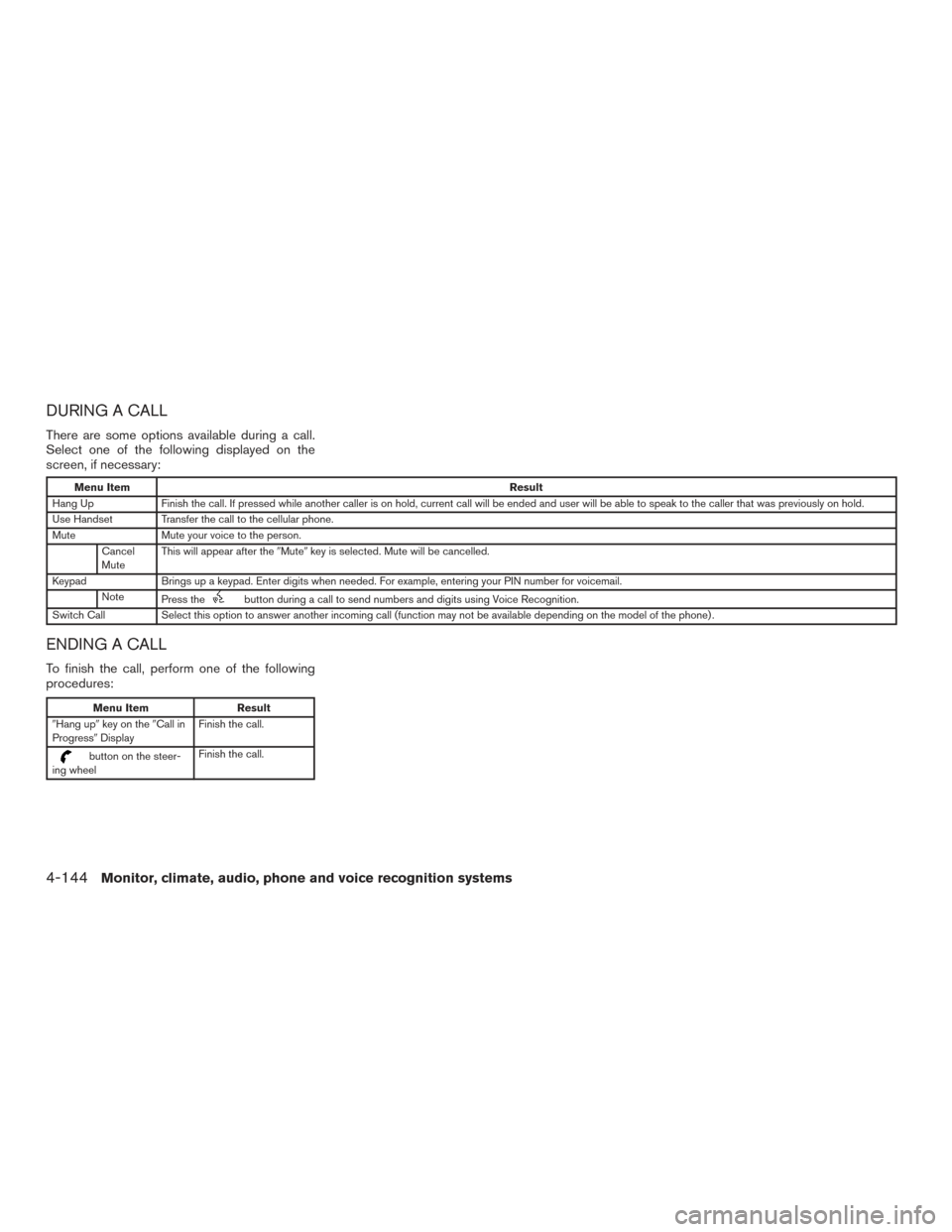

DURING A CALL
There are some options available during a call.
Select one of the following displayed on the
screen, if necessary:
Menu ItemResult
Hang Up Finish the call. If pressed while another caller is on hold, current call will be ended and user will be able to speak to the caller that was previously on hold.
Use Handset Transfer the call to the cellular phone.
Mute Mute your voice to the person.
Cancel
Mute This will appear after the
Mutekey is selected. Mute will be cancelled.
Keypad Brings up a keypad. Enter digits when needed. For example, entering your PIN number for voicemail.
Note Press the
button during a call to send numbers and digits using Voice Recognition.
Switch Call Select this option to answer another incoming call (function may not be available depending on the model of the phone) .
ENDING A CALL
To finish the call, perform one of the following
procedures:
Menu Item Result
Hang up key on the Call in
Progress Display Finish the call.
button on the steer-
ing wheel Finish the call.
4-144Monitor, climate, audio, phone and voice recognition systems

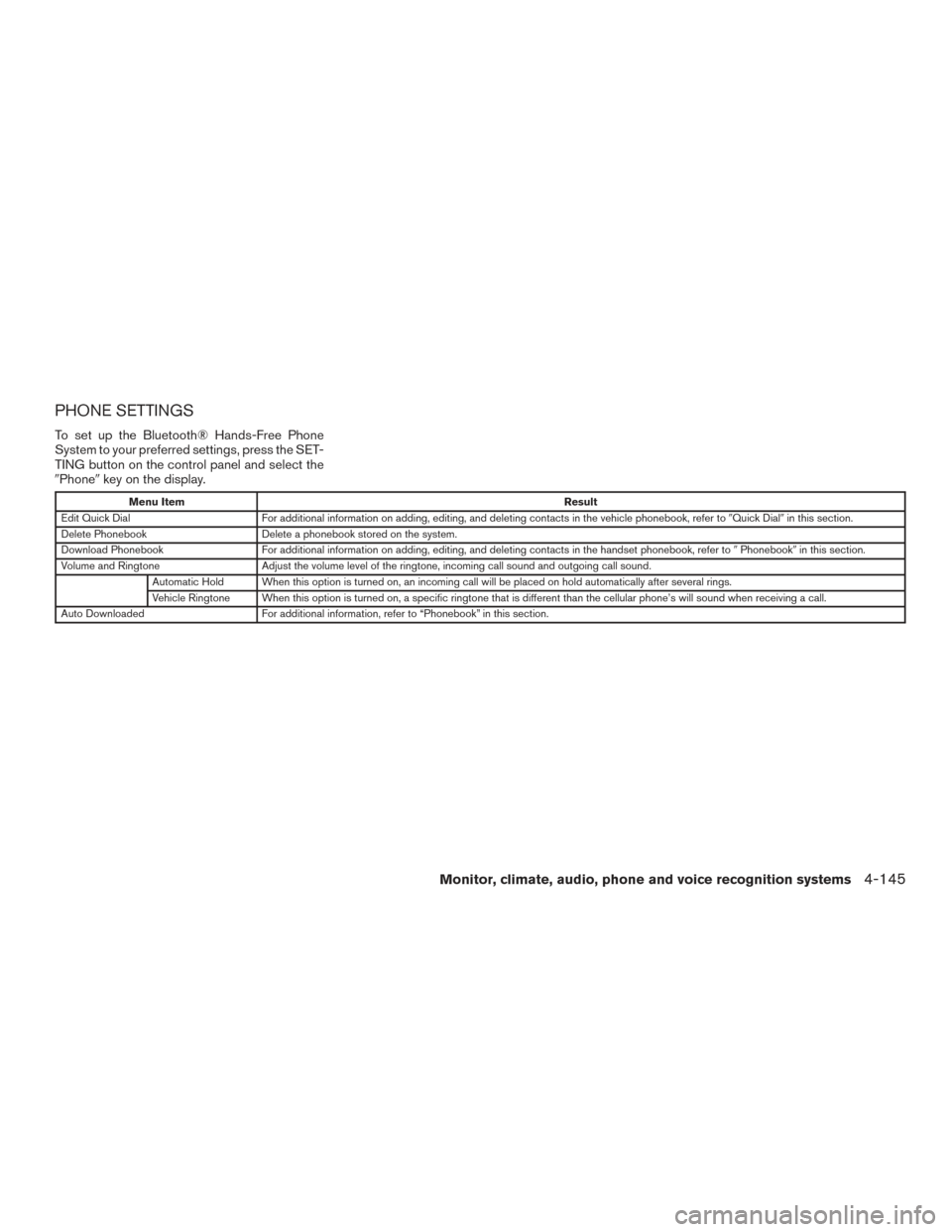

PHONE SETTINGS
To set up the Bluetooth® Hands-Free Phone
System to your preferred settings, press the SET-
TING button on the control panel and select the
Phonekey on the display.
Menu Item Result
Edit Quick Dial For additional information on adding, editing, and deleting contacts in the vehicle phonebook, refer to Quick Dialin this section.
Delete Phonebook Delete a phonebook stored on the system.
Download Phonebook For additional information on adding, editing, and deleting contacts in the handset phonebook, refer to Phonebook in this section.
Volume and Ringtone Adjust the volume level of the ringtone, incoming call sound and outgoing call sound.
Automatic Hold When this option is turned on, an incoming call will be placed on hold automatically after several rings.
Vehicle Ringtone When this option is turned on, a specific ringtone that is different than the cellular phone’s will sound when receiving a call.
Auto Downloaded For additional information, refer to “Phonebook” in this section.
Monitor, climate, audio, phone and voice recognition systems4-145

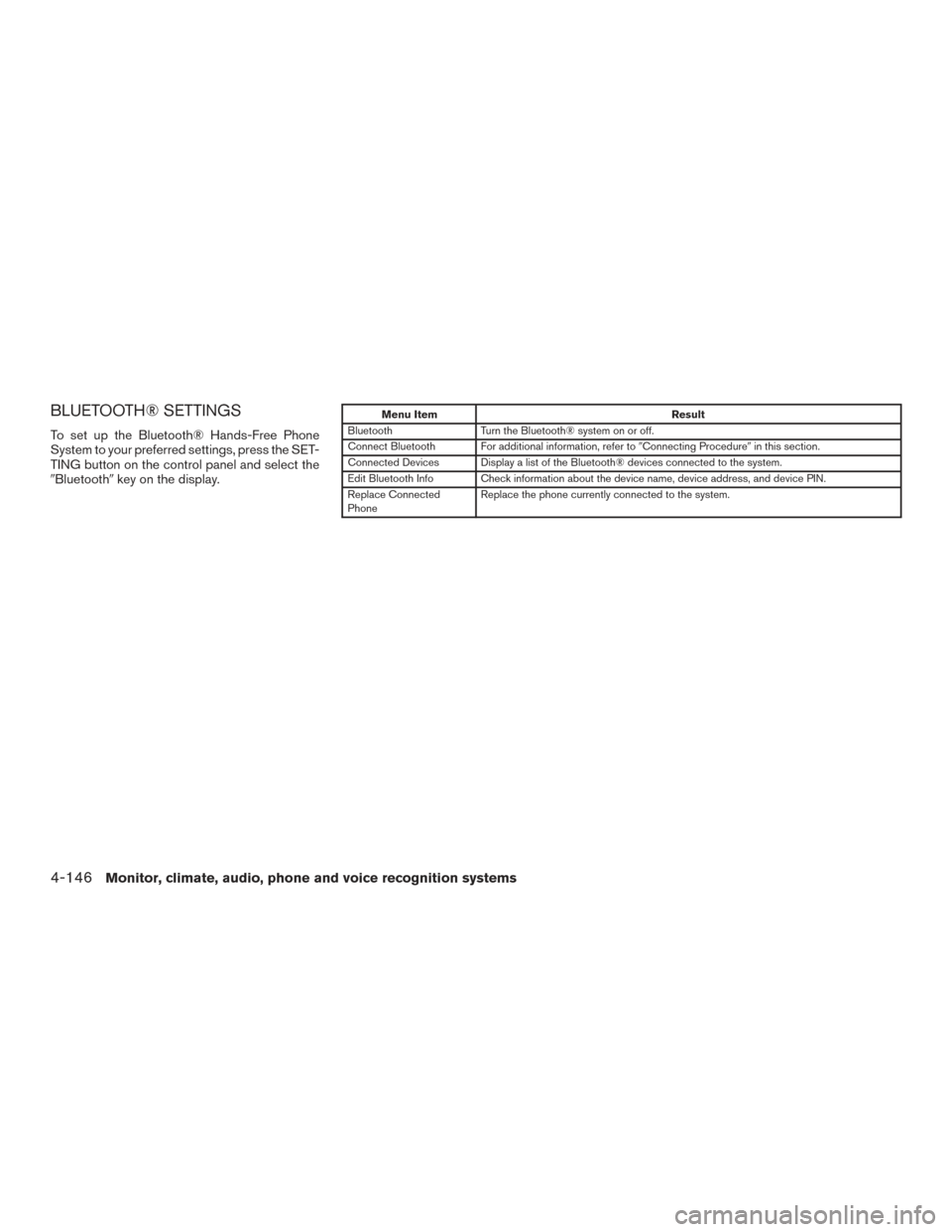

BLUETOOTH® SETTINGS
To set up the Bluetooth® Hands-Free Phone
System to your preferred settings, press the SET-
TING button on the control panel and select the
Bluetoothkey on the display.
Menu Item Result
Bluetooth Turn the Bluetooth® system on or off.
Connect Bluetooth For additional information, refer to Connecting Procedurein this section.
Connected Devices Display a list of the Bluetooth® devices connected to the system.
Edit Bluetooth Info Check information about the device name, device address, and device PIN.
Replace Connected
Phone Replace the phone currently connected to the system.
4-146Monitor, climate, audio, phone and voice recognition systems

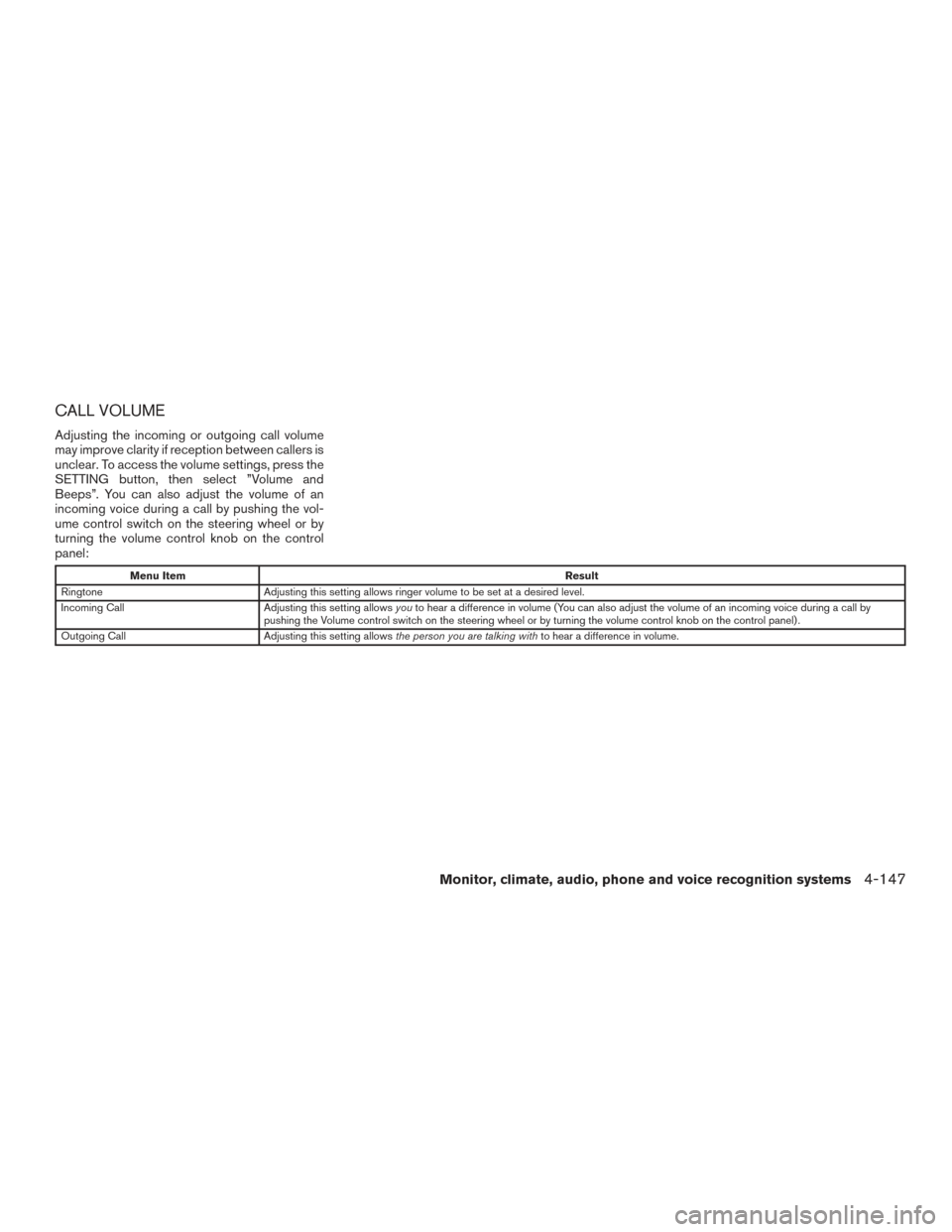

CALL VOLUME
Adjusting the incoming or outgoing call volume
may improve clarity if reception between callers is
unclear. To access the volume settings, press the
SETTING button, then select ”Volume and
Beeps”. You can also adjust the volume of an
incoming voice during a call by pushing the vol-
ume control switch on the steering wheel or by
turning the volume control knob on the control
panel:
Menu ItemResult
Ringtone Adjusting this setting allows ringer volume to be set at a desired level.
Incoming Call Adjusting this setting allowsyouto hear a difference in volume (You can also adjust the volume of an incoming voice during a call by
pushing the Volume control switch on the steering wheel or by turning the volume control knob on the control panel) .
Outgoing Call Adjusting this setting allowsthe person you are talking with to hear a difference in volume.
Monitor, climate, audio, phone and voice recognition systems4-147
