2016 NISSAN NV PASSENGER VAN tow

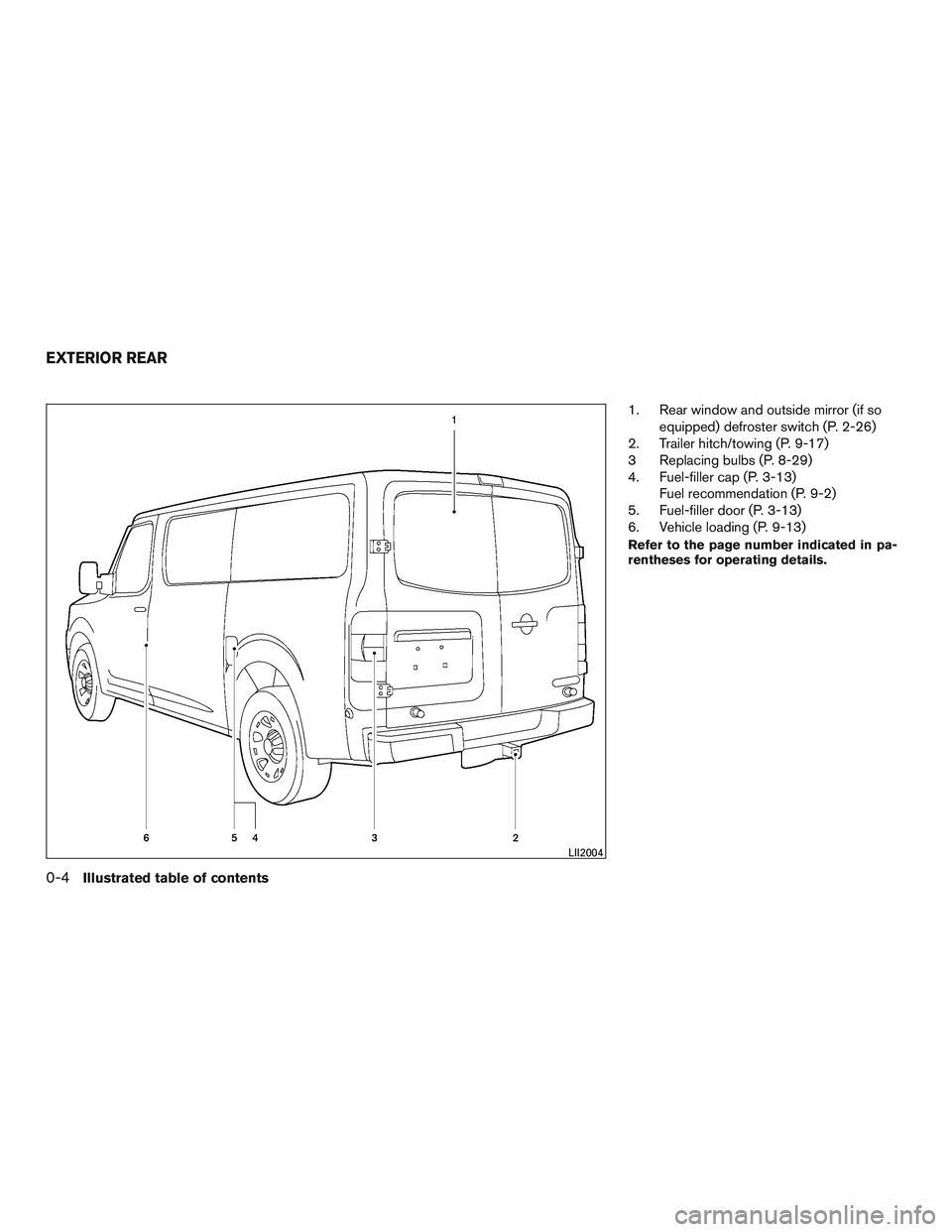

1. Rear window and outside mirror (if soequipped) defroster switch (P. 2-26)
2. Trailer hitch/towing (P. 9-17)
3 Replacing bulbs (P. 8-29)
4. Fuel-filler cap (P. 3-13) Fuel recommendation (P. 9-2)
5. Fuel-filler door (P. 3-13)
6. Vehicle loading (P. 9-13)
Refer to the page number indicated in pa-
rentheses for operating details.
LII2004
EXTERIOR REAR
0-4Illustrated table of contents

17. Rear sonar system OFF switch(if so equipped) (P. 2-32)
Tow mode ON switch (if so equipped)
(P. 2-33)
Front and rear sonar system OFF
switch (if so equipped) (P. 2-33)
Heated seat switch (if so equipped)
(P. 2-30)
Power inverter switch (if so equipped)
(P. 2-31)
18. 12v power outlet (P. 2-34)
19. Ignition switch (P. 5-8)
20. Tilt steering wheel control (P. 3-15)
21. Hood release switch (P. 3-12)
22. Fuse box (P. 8-24)
23. Outside power mirror switch (P. 3-18) Vehicle Dynamic Control (VDC) OFF
switch (P. 2-31)
*: Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
Refer to the page number indicated in pa-
rentheses for operating details.
Illustrated table of contents0-7

Indicatorlight Name Page
Tow mode ON indi-
cator light (if so
equipped) 2-17
Turn signal/hazard
indicator lights
2-17
Vehicle Dynamic
Control (VDC) OFF
indicator light2-17
Illustrated table of contents0-11

Seat lifter
Push the front or rear end of the switch up or
down to adjust the angle and height of the seat
cushion.
Lumbar support
The lumbar support feature provides adjustable
lower back support to the driver. Turn the knob
forward or backward to adjust the seat lumbar
area.
ARMRESTS (if so equipped)
To use the armrests, pull them down to the rest-
ing position.
AStowed position
BResting position
LRS2030LRS2040LRS2041
Safety—Seats, seat belts and supplemental restraint system1-5

2. Once the seatback is released, it will enableyou to fold the front passenger seatback flat
over the seat cushion.
3. To return the front passenger’s seat to a seating position, lift up on the seatback and
push it up to an upright position. Then pull up
on the recline lever and lean the seatback to
a proper seating position. Release the lever
to lock the seatback in position.
WARNING
●If you fold the front passenger’s seat-
back flat forward to carry longer ob-
jects, be sure this cargo is properly se-
cured and not near an air bag. In a crash,
an inflating air bag might force that
object toward a person. This could
cause severe injury or even death. Se-
cure objects away from the area in
which an air bag would inflate. For ad-
ditional information, refer to “Precau-
tions on SRS” in this section.
● Never allow anyone to ride in the cargo
area or on the front passenger’s seat
when it is in the fold-down position. Use
of these areas by passengers could re-
sult in serious injury or death in an ac-
cident or sudden stop.
CAUTION
Do not apply a load to the back of the
table if it is not fully horizontal. Doing so
may cause deformation/malfunction. NOTE:
The belt buckle must be in the forwardmost
position for the seat to be folded to avoid
premature aging.
REMOVING THE 2ND, 3RD AND
4TH ROW SEATS
WARNING
●
Do not remove or install the seats while
the vehicle is moving.
● Do not drive the vehicle unless all of the
seats are installed and locked in posi-
tion. Loose seats can become projec-
tiles in a sudden stop or collision and
cause serious personal injury or death.
● Do not sit in the seats that have been
removed from the vehicle. The seats
may tip over and cause personal injury.
LRS2034
Safety—Seats, seat belts and supplemental restraint system1-7

●When adjusting or moving the seats in
your vehicle, do not use any of the seat
belt buckles, tongues or webbing to
carry or move the seats. Lifting the
seats by any of the seat belts can dam-
age the seat belts. Damaged seat belts
should be replaced at a NISSAN dealer.
Failure to follow these instructions
could increase the chance or severity of
an injury in a collision or sudden stop.
CAUTION
● Do not drag the seats on the carpet to
prevent damage to the carpet.
● The seats are heavy. To prevent per-
sonal injury, two people should remove
or install the seat.
NOTE: ● When removing the 4th row seats, the driv-
er’s side seat should be removed before
removing the passenger’s side seat.
● Remove all necessary rail covers before re-
moving or adjusting the seat. 1. Remove the pull strap from the stowed po-
sition. 2. Stand directly behind the seat and pull up
and rearward on the straps to disengage the
seat.
LRS2102LRS2104
1-8Safety—Seats, seat belts and supplemental restraint system

8. Push and pull each seat to make sure theseat is properly engaged. Make sure that
the latch indicator does not show more
than 50% red. Pull the straps and relatch
the seats as necessary. 9. Stow the pull straps behind the storage clip.
WARNING
Failure to stow the pull straps correctly
may allow the straps to be accidently
pulled (by a person or cargo) releasing the
latch and potentially resulting in injury in a
crash.
SEAT RAIL COVERS
Your vehicle has eight factory installed small rail
covers. It also comes with a Large Seat Rail
Cover kit. The kit contains four large rail covers
that can be used to cover the seat tracks when
the single seats in the 2nd and/or 3rd rows have
been removed. If additional seats are removed
and you wish to cover the seat tracks, contact the
Parts Department at a NISSAN dealer for the
latest parts information.
Both the small and large seat rail covers can be
removed and installed the same way.
Latch indicator
LRS2151LRS2102LRS2123
Safety—Seats, seat belts and supplemental restraint system1-11

WARNING
Properly stow the rail covers when not in
use. They should be securely stored to
prevent them from causing injury to pas-
sengers or damage to the vehicle in case
of sudden braking or an accident.
Installation of rail covers
When installing the rail covers into the rail open-
ing, make sure that the Owner’s Manual symbol is
placed in the correct direction.● 2nd row towards front of the vehicle
● 3rd row towards rear of the vehicle To install the rail covers:
1. Remove the locking cap from the cover us- ing a suitable tool, such as a small screw-
driver or key, before installing the cover in the
rail opening.
LRS2124LRS2125
1-12Safety—Seats, seat belts and supplemental restraint system
