2016 NISSAN MURANO HYBRID Dismantling Guide

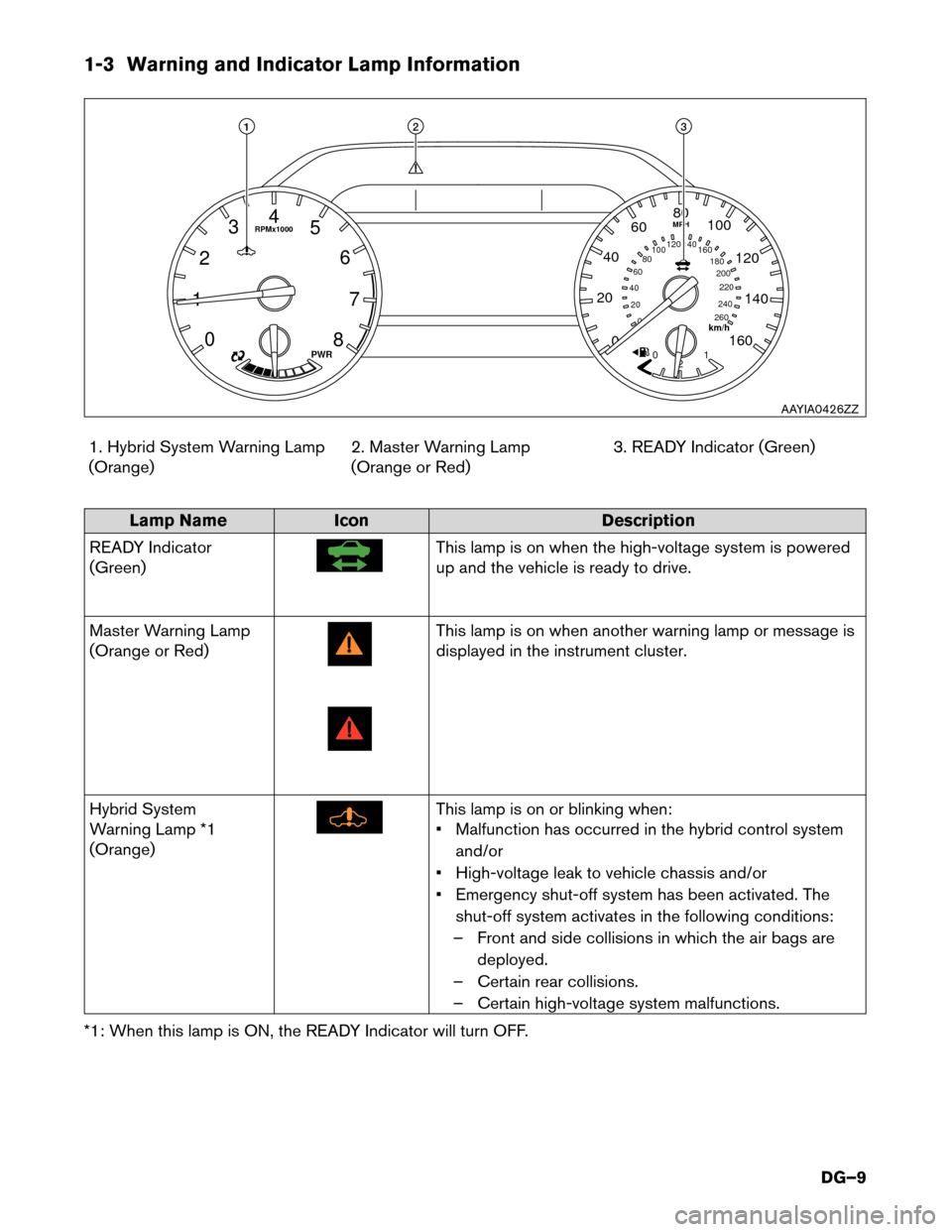

1-3 Warning and Indicator Lamp Information
1. Hybrid System Warning Lamp
(Orange) 2. Master Warning Lamp
(Orange or Red)3. READY Indicator (Green)Lamp Name
Icon Description
READ
Y Indicator
(Green) This lamp is on when the high-voltage system is powered
up

and the vehicle is ready to drive.
Master Warning Lamp
(Orange or Red) This lamp is on when another warning lamp or message is
displayed

in the instrument cluster.
Hybrid System
Warning Lamp *1
(Orange) This lamp is on or blinking when:
•

Malfunction has occurred in the hybrid control system
and/or
• High-voltage leak to vehicle chassis and/or
• Emergency shut-off system has been activated. The shut-off system activates in the following conditions:
– Front and side collisions in which the air bags are deployed.
– Certain rear collisions.
– Certain high-voltage system malfunctions.
*1: When this lamp is ON, the READY Indicator will turn OFF. 1
0
2
3
4
5
6
7
8
PWR km/h
MPH
RPMx1000 20
0 0
0
20
40
60
80
180
200
220
240
260
100

160
120 140
1
2
40
60
80
100
120
140
160 1 2 3
AAYIA0426ZZ
DG–9

2. Basic High-voltage System and 12-volt System Information
2-1
Battery Information
The Murano HYBRID utilizes two batteries in order to supply both high and low voltage.
2-1.1 12-Volt Battery • The Murano HYBRID contains a conventional lead-acid12-volt battery.
• The 12-volt battery is located in the front of the vehicle on the left side of the engine compartment.
• The 12-volt battery is charged by the high-voltage battery through the DC/DC converter. : Vehicle front
2-1.2
High-voltage Battery
• The Murano HYBRID contains a high-voltage battery.
• The high-voltage battery is mounted under the center console and enclosed in a metal case.
• The high-voltage battery stores approximately 144 volts DC.
• A vent hose is provided to exhaust gasses outside the vehicle, if necessary.
• Air for battery cooling is drawn in from the front of the center console, under the instrument panel, and is vented
into the RH side B-pillar with the use of a fan located
under the passenger seat.
The high-voltage battery supplies power to the following: • High-voltage harnesses
• DC/DC converter
• Traction motor inverter
• Traction motor AAYIA0465ZZ
AAYIA0444ZZ
DG–10

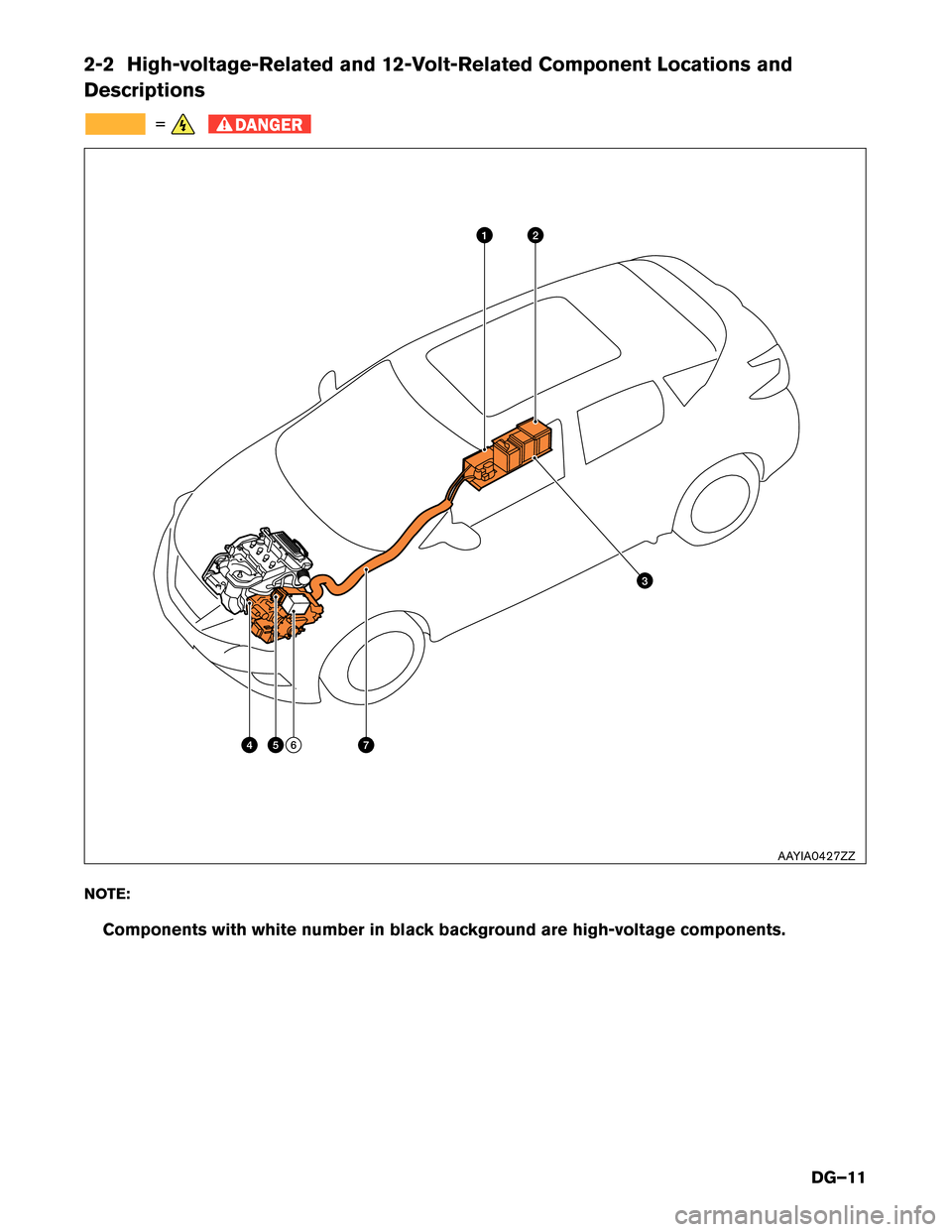

2-2 High-voltage-Related and 12-Volt-Related Component Locations and
Descriptions
=
DANGER
NOTE:
Components with white number in black background are high-voltage components. 5 74 6 2
31
AAYIA0427ZZ
DG–11

No. Component
LocationDescription
DC/DC
Converter Inside the centerconsole area
(mounted right of
high-voltage battery) The DC/DC converter reduces the voltage of
the high-voltage battery to provide power to
the 12-volt battery in order to operate the
vehicle’s electric components (headlights,
audio system, etc.) .
Service Plug Center console
(inside storage bin
under access door) This is used to disable the high-voltage system.
High-voltage
Battery
Inside the center
console area
(between the front
driver’s and
passenger’s seats)The high-voltage battery stores and outputs
DC power (Maximum voltage 144V) needed to
propel the vehicle.
Traction Motor
Engine compartment
(built-into the
transmission)Converts three-phase alternating current (AC)
power to drive power (torque) which propels
the vehicle.
Traction Motor
Inverter
Engine compartment
(front driver side)Converts the DC power stored in the high-
voltage battery to three-phase AC power and
controls motor torque (revolution) by regulating
the motor current. The inverter has a built in
high-voltage capacitor.
12-volt Battery
Front of the vehicle
on the left side of the
engine compartment.A lead-acid battery that supplies power to the
low voltage devices.
High-voltage
Harness Center console area
(on high-voltage
battery) , under floor,
engine compartment Orange-colored power cables carry high DC
voltage between each of the high-voltage
components.
2-3 High-voltage Battery Pack Specifications High-voltage Battery Specifications
High-voltage

battery voltage 144V
Number of high-voltage battery modules in the pack 3 modules (40 cells)
High-voltage battery module voltage 43.2V- 50.4V (depending on individual module)
High-voltage battery dimensions 27.91 L x 9.41 W x 16.65 H in.
(709.0 L x 239.0 W x 423.0 H mm)
High-voltage battery weight 70.60 lbs (32.0 kg)
DG–12

2-4 High-voltage Safety Measures
Circuit insulation
The high-voltage positive (+) and negative (-) circuits are insulated
from the metal chassis.
Reducing the risk of electrocution The high-voltage components and harnesses have insulated cases or orange-colored coverings which provide insulation and easy
identification.
The high-voltage battery case is electrically connected to the vehicle
ground. This connection helps protect the vehicle occupants and
vehicle dismantlers from high-voltage electrical shock.
Identification The high-voltage components are labeled “WARNING” similar to label
shown below. All high-voltage harnesses are coated in orange.
2-4.1 Warning Labels
The following warning label is applied to the high-voltage inverter located in the engine compartment.
The following warning label is applied to the service plug access cover located inside the passenger
compartment center console. AAYIA0454ZZ
AAYIA0455ZZ
DG–13

The following warning label is applied to the high-voltage battery located inside the passenger compartment
center
console.
2-5 High-voltage Safety System
The high-voltage safety system is intended to help keep vehicle occupants and emergency responders safe
from high-voltage electricity. • A high-voltage fuse provides short circuit protection inside the high-voltage battery.
• The high-voltage safety system is insulated from the metal chassis.
• Positive and negative high-voltage power cables are connected to the high-voltage battery and arecontrolled by normally open system main relays (SMR1 and SMR2) . When the vehicle is shut off,
the relays stop electrical flow from leaving the high-voltage battery. However, it can take
approximately ten (10) minutes for the high-voltage capacitor to fully discharge. AAYIA0456ZZ
DG–14

• The high-voltage system and high-voltage capacitor may remain powered for up to
approximately 10 minutes after the vehicle is shut off. Appropriate Personal Protective
Equipment (PPE) must always be worn when touching or working on high-voltage
components to avoid risk of electrical shock and severe personal injury or death.
• The high-voltage battery retains high-voltage at all times. Appropriate PPE must always be worn when touching or working on high-voltage components to avoid risk of electrical
shock and severe personal injury or death.
• A ground fault monitor continuously monitors for high-voltage leakage to the metal chassis while the vehicle is running. If a malfunction is detected, the HPCM (hybrid powertrain control module) will
illuminate the hybrid system warning lamp in the instrument cluster.
•

The high-voltage battery relays (SMR1 and SMR2) will automatically open to stop the electrical flow
in a front, side or certain rear collisions that are sufficient enough to activate the supplemental
restraint system (SRS) . Passenger Compartment
J

unction Box High-voltage Battery
System main relay 1
Service Plug (With Fuse)
System main relay 2
Transmission
Traction Motor Traction
Motor Inverter
(With built in high- voltage capacitor) DC/DC
Converter
HPCM
(Hybrid Powertrain Control Module)
Engine Compartment AAYIA0136GB
DG–15

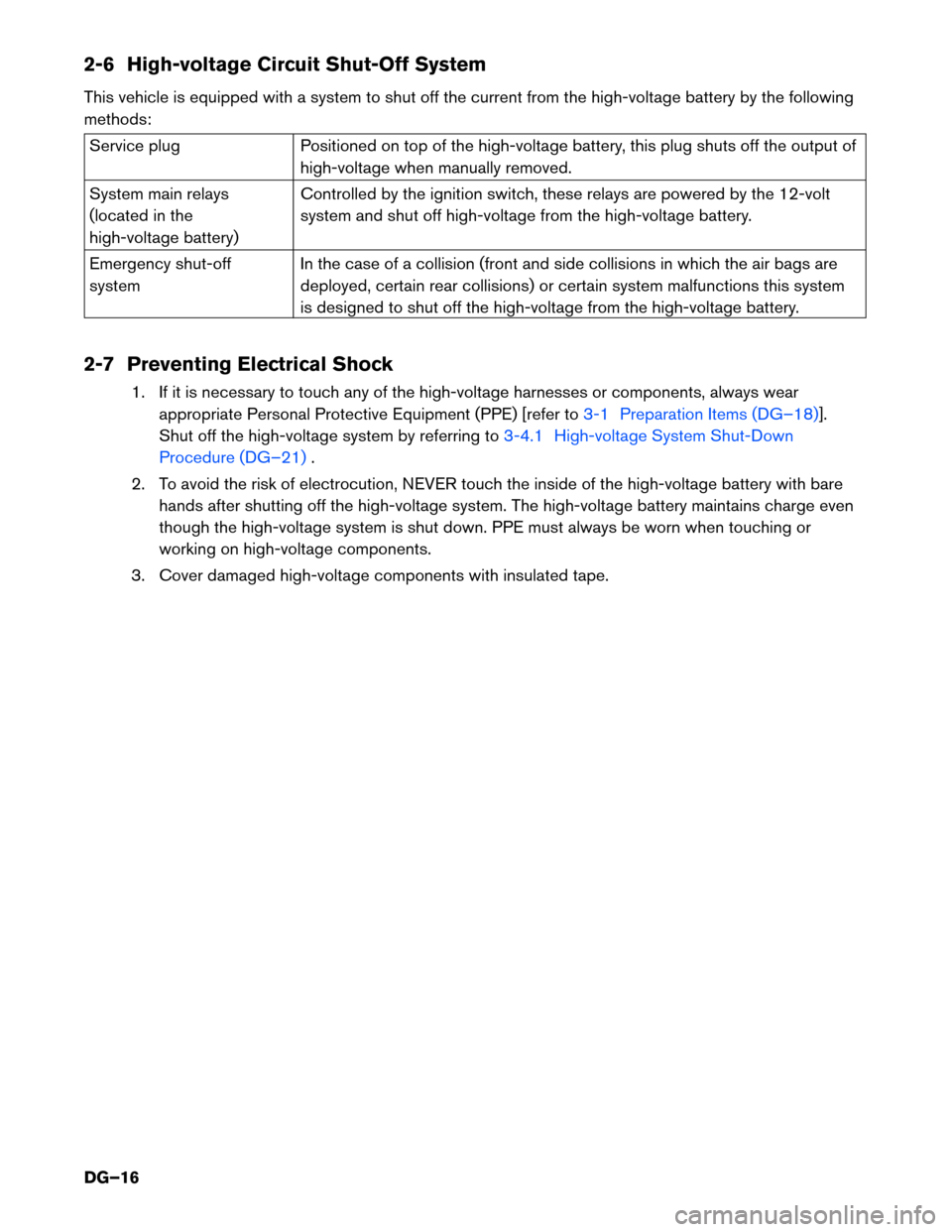

2-6 High-voltage Circuit Shut-Off System
This
vehicle is equipped with a system to shut off the current from the high-voltage battery by the following
methods: Service plug
Positioned on top of the high-voltage battery, this plug shuts off the output of
high-voltage
when manually removed.
System main relays
(located in the
high-voltage battery) Controlled by the ignition switch, these relays are powered by the 12-volt
system and shut off high-voltage from the high-voltage battery.
Emergency shut-off
system In the case of a collision (front and side collisions in which the air bags are
deployed, certain rear collisions) or certain system malfunctions this system
is designed to shut off the high-voltage from the high-voltage battery.
2-7 Preventing Electrical Shock 1. If it is necessary to touch any of the high-voltage harnesses or components, always wearappropriate Personal Protective Equipment (PPE) [refer to 3-1 Preparation Items (DG–18)].
Shut

off the high-voltage system by referring to 3-4.1 High-voltage System Shut-Down
Procedure

(DG–21) .
2.

To avoid the risk of electrocution, NEVER touch the inside of the high-voltage battery with bare
hands after shutting off the high-voltage system. The high-voltage battery maintains charge even
though the high-voltage system is shut down. PPE must always be worn when touching or
working on high-voltage components.
3. Cover damaged high-voltage components with insulated tape.
DG–16
