2016 NISSAN LEAF USB


> (GLW    0RGHO (1-1 (91$01&*. @
1st Command 2nd Command 3rd Command ActionCD Turns on the CD, selecting the last played mode.
USB Turns on the USB, selecting the last played mode.
iPod Turns on the iPod


> (GLW    0RGHO (1-1 (91$01&*. @
.When selecting ªYesº in the pop-up screen that displays after a new USB audio device is connected, the USB audio device is registered in the voice
recognition system and is selected automatically. One iPod


> (GLW    0RGHO (1-1 (91$01&*. @

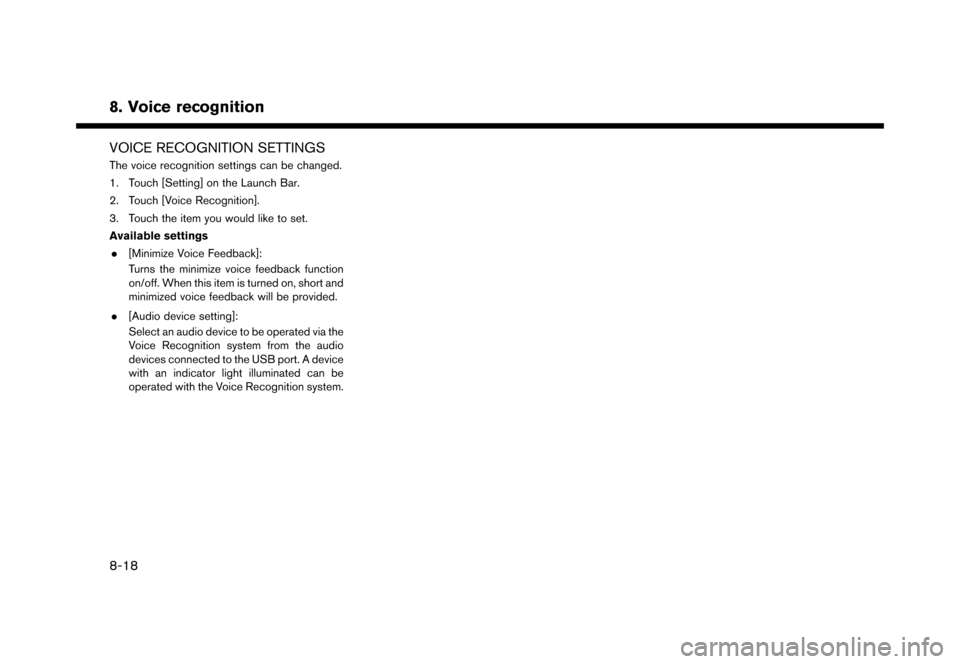

VOICE RECOGNITION SETTINGSENJN1502-120906-67D614E7-55A6-4EA8-BDE1-5FF2EFEB3D40The voice recognition settings can be changed.
1. Touch [Setting] on the Launch Bar.
2. Touch [Voice Recognition].
3. Touch the item you would like to set.
Available settings. [Minimize Voice Feedback]:
Turns the minimize voice feedback function
on/off. When this item is turned on, short and
minimized voice feedback will be provided.
. [Audio device setting]:
Select an audio device to be operated via the
Voice Recognition system from the audio
devices connected to the USB port. A device
with an indicator light illuminated can be
operated with the Voice Recognition system.
&RQGLWLRQ
8-18
8. Voice recognition


> (GLW    0RGHO (1-1 (91$01&*. @
9 General system information
Current vehicle location...
........................................................... 9-2
Display of current vehicle location ...
.................................. 9-2
What is GPS (Global Positioning System)? ...
................ 9-2
Incorrect display of vehicle position ...
............................... 9-3
Detailed Map Coverage Areas (MCA) for
navigation system ...
................................................................ 9-5
When gray/dark green road is displayed on map ...
....... 9-5
Route calculation ...
....................................................................... 9-6
Route guidance ...
........................................................................\
. 9-7
Repeating voice guidance ...
................................................. 9-7
Notes on voice guidance ...
................................................... 9-7 Map data
...
........................................................................\
............. 9-9
How to handle the Map SD card ...
.................................. 9-9
How to order map data updates ...
................................... 9-9
About map data ...
................................................................. 9-9
End-user terms ...
............................................................... 9-10
How to handle display ...
.......................................................... 9-13
Characteristics of liquid crystal display ...
.................... 9-13
Maintenance of display ...
................................................. 9-13
How to handle the SD card ...
................................................ 9-14
How to handle CD and USB memory ...
.............................. 9-14
CD ...
........................................................................\
............. 9-14
USB memory device ...
...................................................... 9-15
&RQGLWLRQ


> (GLW    0RGHO (1-1 (91$01&*. @
HOW TO HANDLE THE SD CARDENJN1502-120906-FDEBCDA1-7B04-49F0-B952-C1291DD04F39When handling the SD card, please be careful
and adhere to the following instructions:. Always follow the instructions described in
this manual and in the handbook attached to
the SD card when using an SD card in this
device.
. Do not handle an SD card with wet hands.
Doing so may cause electric shock or a
malfunction.
. Do not allow hands or metal objects to
contact the terminal area of SD cards.
. Do not place SD cards on the instrument
panel, on any place with direct sunlight or in
moist circumstances. Doing so may damage
or deform the SD card.
. Do not use any conventional cleaner, ben-
zine, thinner or antistatic spray.
. Do not use SD cards in any place where
static electricity or electric noise adversely
affects SD cards. This may cause data
corruption or data loss.
. SD card optimization must not be performed.
. Always place the SD card in its storage case
when not in use. .
If an SD card is disposed of when it is not
used, it is recommended not only to delete
the stored data but also to physically break
the card.
HOW TO HANDLE CD AND USB
MEMORY
ENJN1502-382E2C0C-F95D-4F32-83DB-7AC976003DF3
CDENJN1502-2435A350-AAE3-4957-A686-FFDF46B8AF14
SAA0451
.Handle a CD by its edges. Never touch the
surface of the disc. Do not bend the disc.
. Always place the discs in the storage case
when they are not being used.
. To clean a disc, wipe the surface from the
center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.
Do not use a conventional record cleaner or
alcohol intended for industrial use.
&RQGLWLRQ
9-14
9. General system information


> (GLW    0RGHO (1-1 (91$01&*. @
.A new disc may be rough on the inner and
outer edges. Remove the rough edges by
rubbing the inner and outer edges with the
side of a pen or pencil as illustrated.
USB MEMORY DEVICEENJN1502-F355BB54-6B69-4B59-B94F-C82FA1BFE34F.Never touch the terminal portion of the USB
memory device.
. Do not place heavy objects on the USB
memory device.
. Do not store the USB memory device in
highly humid locations.
. Do not expose the USB memory device to
direct sunlight.
. Do not spill any liquids on the USB memory
device.
Refer to the USB memory device Owner's
Manual for the details.
&RQGLWLRQ
9-15
9. General system information


> (GLW    0RGHO (1-1 (91$01&*. @

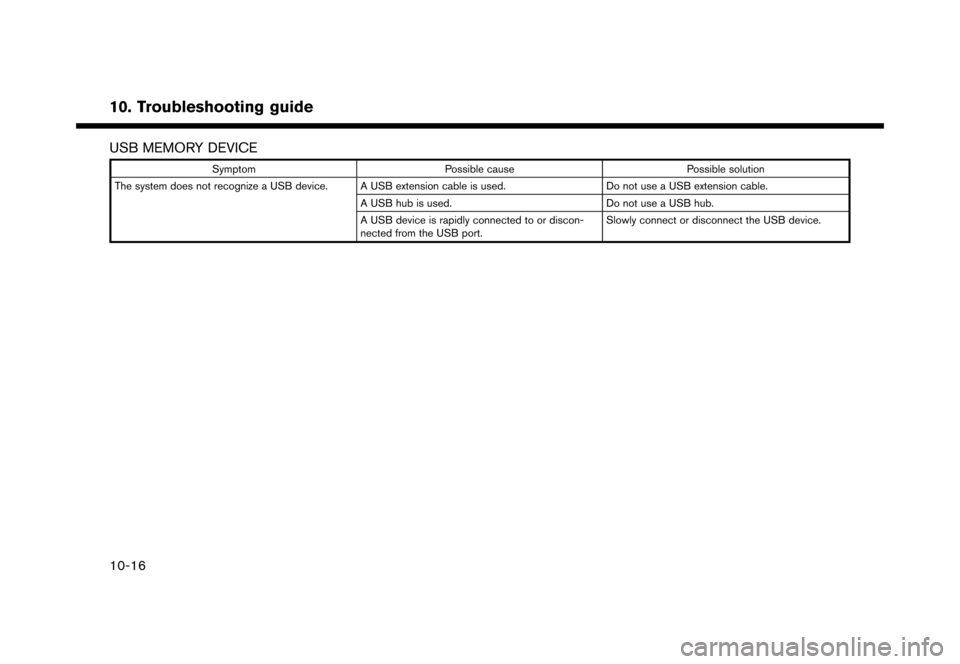

USB MEMORY DEVICEENJN1502-120906-9B58E82E-0419-4E45-A82E-F6C87CFB97F2
SymptomPossible cause Possible solution
The system does not recognize a USB device. A USB extension cable is used. Do not use a USB extension cable.
A USB hub is used. Do not use a USB hub.
A USB device is rapidly connected to or discon-
nected from the USB port. Slowly connect or disconnect the USB device.
&RQGLWLRQ
10-16
10. Troubleshooting guide


> (GLW    0RGHO (1-1 (91$01&*. @

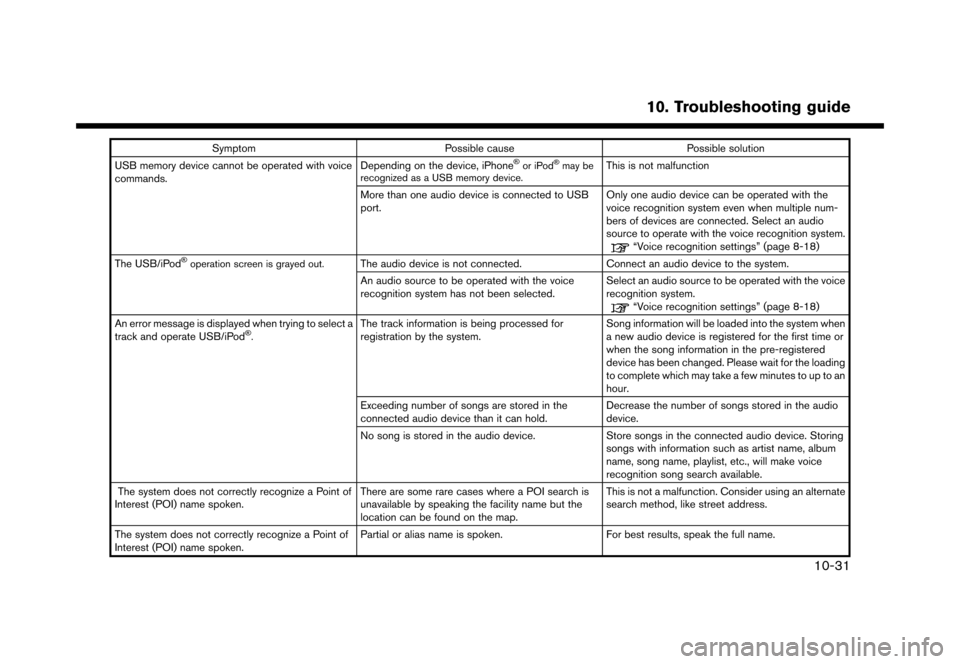

SymptomPossible cause Possible solution
USB memory device cannot be operated with voice
commands. Depending on the device, iPhone
