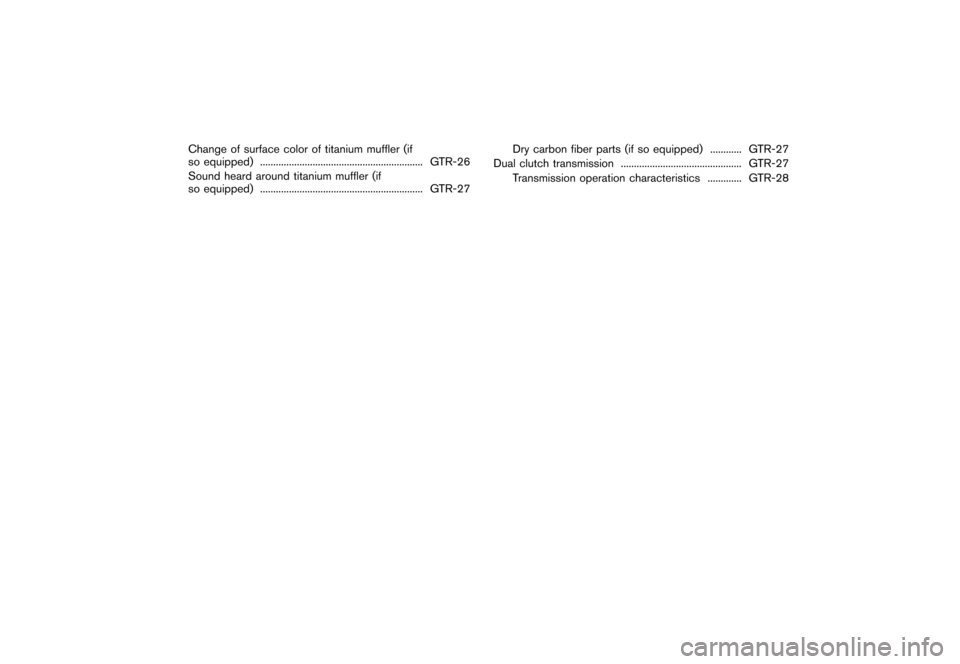

Change of surface color of titanium muffler (if
so equipped).............................................................. GTR-26
Sound heard around titanium muffler (if
so equipped) .............................................................. GTR-27 Dry carbon fiber parts (if so equipped) ............ GTR-27
Dual clutch transmission .............................................. GTR-27 Transmission operation characteristics ............. GTR-28


> (GLW    0RGHO 5' @

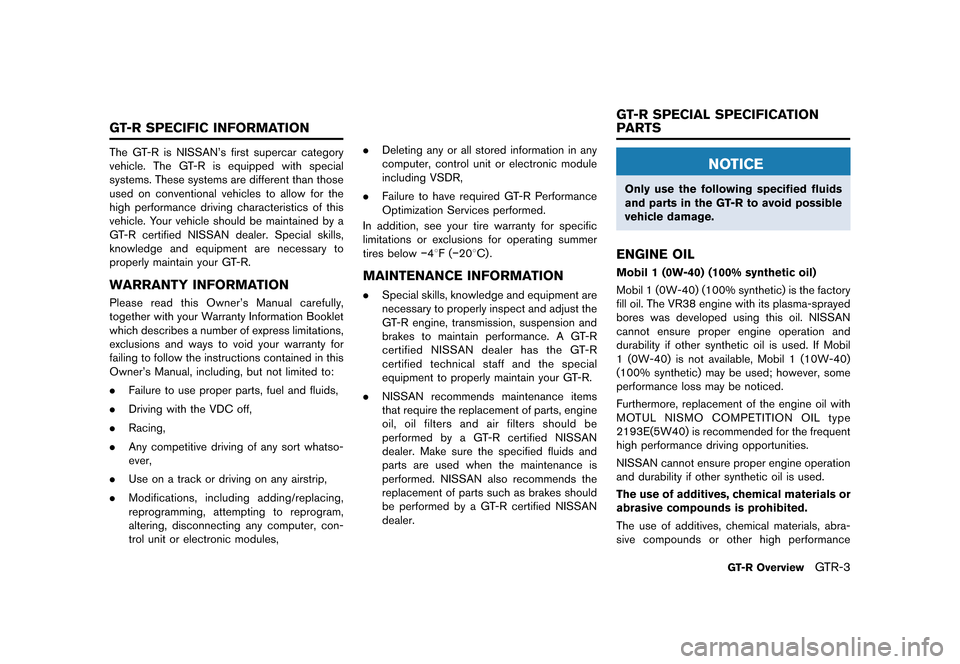

The GT-R is NISSAN's first supercar category
vehicle. The GT-R is equipped with special
systems. These systems are different than those
used on conventional vehicles to allow for the
high performance driving characteristics of this
vehicle. Your vehicle should be maintained by a
GT-R certified NISSAN dealer. Special skills,
knowledge and equipment are necessary to
properly maintain your GT-R.
WARRANTY INFORMATION
Please read this Owner's Manual carefully,
together with your Warranty Information Booklet
which describes a number of express limitations,
exclusions and ways to void your warranty for
failing to follow the instructions contained in this
Owner's Manual, including, but not limited to:
.Failure to use proper parts, fuel and fluids,
. Driving with the VDC off,
. Racing,
. Any competitive driving of any sort whatso-
ever,
. Use on a track or driving on any airstrip,
. Modifications, including adding/replacing,
reprogramming, attempting to reprogram,
altering, disconnecting any computer, con-
trol unit or electronic modules, .
Deleting any or all stored information in any
computer, control unit or electronic module
including VSDR,
. Failure to have required GT-R Performance
Optimization Services performed.
In addition, see your tire warranty for specific
limitations or exclusions for operating summer
tires below


> (GLW    0RGHO 5' @
GTR-4GT-R Overview
engine oils may cause internal engine damage.
Engine oil maintenance
.When the vehicle is delivered, the engine oil
level is 0.39 in (10 mm) below the H mark on
the engine oil dipstick for optimum high
performance driving. The engine oil can be
filled up to the H mark if not engaging in
performance driving.
. Because of the high performance character-
istics of the GT-R engine, more frequent oil
level inspections are necessary. Check the
oil level every 1,800 miles (3,000 km) and
adjust as necessary. Also, change the
engine oil based on the driving conditions.
For the information regarding oil replace-
ment intervals, refer to the 2016 NISSAN
GT-R Service and Maintenance Guide.
. Some amount of oil is consumed by your
engine under normal operating conditions,
and oil consumption by itself does not
necessarily indicate any malfunction. If your
rate of oil consumption increases suddenly
or without explanation, NISSAN recom-
mends that you have your vehicle inspected
by a GT-R certified NISSAN dealer.
. For information about the oil replacement
intervals for performance driving, refer to the
interval for replacing oil after high perfor- mance driving. (
ªAdditional mainte-
nance itemsº page GTR-12)
Make sure to replace the oil filter when the
engine oil is changed.
TRANSMISSION OIL
Genuine NISSAN Transmission Oil R35
Special (100% synthetic oil)
The GT-R uses a multiple-disc dual wet clutch
transmission. The specially developed transmis-
sion oil maximizes the friction characteristics of
the clutch and the lubrication of the gear
bearings.
The use of additives is prohibited.
The use of additives or other transmission oil
may cause internal transmission or clutch
damage.
DIFFERENTIAL OIL (front and rear)
Differential Oil R35 COMPETITION type
2189E
Use only the Differential Oil R35 COMPETITION
type 2189E that can keep the oil temperature
low in order to protect all parts of the differential
and maximize the performance of the Limited
Slip Differential (LSD) .
The use of additives is prohibited.
Using additives or any other than the specified differential oil may cause the oil temperature to
increase and the final drive to be damaged. Also
it may cause vibration and adversely the vehicle
handling characteristics.
BRAKE FLUID
Genuine NISSAN Brake Fluid R35 Special
II
Genuine NISSAN Brake Fluid R35 Special II is
the factory fill brake fluid. The Vehicle Dynamic
Control (VDC) unit and other related parts were
specially designed for this brake fluid. NISSAN
cannot ensure proper operation of the vehicle if
other brake fluid is used.


> (GLW    0RGHO 5' @
TIRES AND ROAD WHEELS
Tires
The GT-R uses specially designed run-flat tires
and matching road wheels. Use of these
specially developed tires and wheels provides
the greatest potential for maximum performance.
.Using non-genuine GT-R tires may cause
powertrain system damage if the vehicle is
driven in a flat tire situation, even if run-flat
tires are used. This may also prevent the
vehicle from being stopped safely.
. Using non-genuine GT-R tires may also
cause tire failure due to excessive heat
buildup caused by tire distortion while
driving.
. Using non-genuine GT-R tires may affect the
operation of the VDC system.
Tire replacement:
. When tire replacement is required, replacing
tires as a set of four with new tires is
recommended. However, if a tire is punctu-
red or damaged, it may be possible to
replace only the damaged tire. Determining
whether one tire or a complete set of tires
should be replaced is based on a number of
factors including tire wear and condition. Contact your GT-R certified NISSAN dealer.
They can recommend if an individual tire or a
complete set should be replaced.
. The GT-R uses specially designed run-flat
tires which have a rigid side wall. Special
equipment and procedures are required
when replacing these tires. NISSAN recom-
mends that tire replacement be performed at
a GT-R certified NISSAN dealer.
. Specific tire changing equipment must be
used to remove the GT-R tires from the
wheel and to install the GT-R tires onto the
wheel. It is only possible to reuse the tires
when they have no cracks and/or deforma-
tions on the bead portion of the tire. If the
incorrect equipment is used to remove the
GT-R tires from the wheel and to install the
GT-R tires onto the wheel, cracks and
deformation may occur on the bead portion
of the tires meaning that the tires cannot be
reused. Contact a GT-R certified NISSAN
dealer if the tires need to be removed from
the wheels.
. When reusing tires, contact a GT-R certified
NISSAN dealer.
Road wheels
Using non-genuine GT-R wheels may cause the
following:
.vehicle vibration
. the tire coming loose from the wheel during
a flat tire
. reduced wheel lug nut tightness
BRAKE PAD AND DISC ROTOR
This vehicle is equipped with cross-drilled
floating rotors and radial-mounted six-piston
monoblock calipers. This helps to achieve
excellent stopping performance and fade-resis-
tance.
Using non-genuine GT-R brake pads or rotors
can affect vehicle braking performance and the
operation of the ABS and VDC system.
Replacement of brake pads and disc
rotors
NISSAN generally recommends to replace all
four sets of brake pads and disc rotors at the
same time to maintain maximum brake perfor-
mance.
However, replacing only the brake pads may be
allowed in some cases (four wheels or only front
wheels depending on the conditions) . A GT-R
GT-R OverviewGTR-5
GT-R SPECIAL PRECAUTIONS


> (GLW    0RGHO 5' @
GTR-6GT-R Overview
certified technician must inspect the vehicle and
determine that only the brake pads need to be
replaced. In this case, replacing all brake pads
and disc rotors as a set is not necessary.
Note that the replacement of brake pads and the
disc rotors as a set on all four wheels should be
performed when a GT-R certified technician
determines that this is the correct repair.
If the inside of the disc rotors are cold during the
winter and the surface becomes hot due to a
heavy force being applied repeatedly to the
brakes, cracks may occur near the coolant hole
on the surface of the disc rotor. Cracks may also
occur due to a heavy force being repeatedly
applied to the brakes during high performance
driving. In these cases it may be necessary to
replace the disc rotors or brake pads depending
on the condition of the crack. Contact a GT-R
certified NISSAN dealer for replacement.
EXHAUST MUFFLER AND TRUNK
CARPET
The GT-R exhaust system is designed to provide
the maximum vehicle performance and to
protect the vehicle from high exhaust gas
temperatures.
If non-genuine GT-R exhaust system parts are
used it is possible that the muffler or other
exhaust system parts will deform and causedamage to the underbody. Non-genuine GT-R
exhaust system parts can also affect vehicle
performance and possibly lead to turbocharger,
engine or power train related parts including
transmission, damage.
Also, do not remove the trunk carpet from the
vehicle for any reason. The carpet insulates the
vehicle interior from the heat of the muffler and
from the noise of the transmission.
TITANIUM MUFFLER AND TRUNK
CARPET (if so equipped)
The vehicle is equipped with a label under the
console lid
*1that provides the body to the
titanium muffler clearance specification (for
example rear bumper to muffler tube clearance) .
Since the exhaust gas temperature of the high
performance engine reaches a high temperature
(1,8328F (1,0008C) or more) , the muffler may be
deformed or lowered due to the heat and then
the underbody or peripheral parts may be
damaged. Therefore, periodic inspections for
the clearance between the muffler and the
peripheral parts are required. Your GT-R has


> (GLW    0RGHO 5' @
been tested on a test circuit to ensure the
suspension components ªsettleº prior to ship-
ping. Following this circuit test the odometer
reading at the time of vehicle shipment is as
listed. Please note a small amount of additional
mileage may have been added in the subse-
quent onward transportation. In addition your
GT-R has been inspected and tested by the
factory test personnel. The titanium muffler
specifications are provided on a label under
the console lid should the muffler need to be
adjusted. Please do not remove the label from
the console lid. See a GT-R certified NISSAN
dealer for detailed information.
If a non-genuine titanium muffler is used, the
muffler may become deformed and damage the
underbody due to the high performance engine
reaching high exhaust gas temperatures
(1,8328F (1,0008C) or more) . The highest-class
titanium alloy is used for genuine parts to ensure
the resistance strength and creeping character-
istics against high exhaust gas temperature. In
addition, further cooling effects are secured by
adopting additional cooling fins and by applying
partial plate thickness reduction. Since genuine
titanium mufflers are made of titanium alloy, the
surface color will change depending on the
driving conditions, which is not unusual. Prior to
shipping from factory, all vehicles receivebalance aligning for engine, transmission, and
clutch, as well as quench driving of brake pads
and rotors. As a result, the muffler surface color
may differ depending on the vehicle.
Never remove the trunk carpet from the vehicle
for any reason. The carpet insulates the vehicle
interior from the heat of the muffler and from the
noise of the transmission.
Never Allow Oil or Grease to Adhere to the
Titanium Muffler.
If the muffler is heated when oil or grease adhere
to the muffler surface, the color of this area will
be different from that of the surrounding area. To
remove the oil or grease, check that the surface
temperature of the muffler has cooled, wash the
area with a neutral detergent, wipe it with a
brake cleaner-sprayed clean shop cloth and
gently tap it with a dry shop cloth to dry. Be
careful not to allow the brake cleaner to splatter
on rubber parts, bumper, etc.DRY CARBON FIBER PARTS (if so
equipped)
Because of the characteristics of the material,
the dry carbon fiber parts may turn yellow due to
exposure to ultraviolet rays. The surfaces of dry
carbon fiber parts are coated with a special
ultraviolet protection paint. To maintain the
appearance of these parts, it is important to
take proper care of them.
NOTICE
.
Do not use compound agents on
clear-coated dry carbon fiber parts
(such as the NISMO model's bum-
per, side sill protector, rear spoiler,
etc.) .
. Do not use any chemical agents
(wax, coating agent, compound
agent, etc.) on matte-painted dry
carbon fiber parts (such as the rear
diffuser, a rear spoiler that is of
specifications other than NISMO,
etc.) .
. When dry carbon fiber parts become
dirty, prepare a dilute cleaning solu-
tion by mixing one capful of mild
detergent in a bucket of water, and
GT-R OverviewGTR-7


> (GLW    0RGHO 5' @
GTR-8GT-R Overview
use that mixture to clean the parts.
NOTE:
The surfaces of the dry carbon fiber parts
are lightly coated like a race car so that
you can feel the proper texture of real
carbon, which may feel rough. This is
normal.
MATTE PAINT (if so equipped)
If your vehicle is equipped with matte paint,
special care is necessary to clean your vehicle to
maintain the appearance of the matte paint.
(
ªMatte paint careº page 7-2)
In addition to the regular maintenance recom-
mended by NISSAN, the GT-R requires the
following special inspections:
. Wheel alignment inspection and adjustment
(if necessary) (including tire pressure ad-
justment)
. Transmission settings
These inspections are required at the following
intervals:
. 1,000 miles
. 12 months
. 24 months
. 36 months
NOTE:
. These inspections will be performed
free of charge for labor at a GT-R
certified NISSAN dealer only. Inspec-
tions thereafter are recommended
every 12 months or 12,000 miles
(whichever comes first) at the custo-
mer's expense. See the 2016 NISSAN
GT-R Warranty Information Booklet for
details.
. Repairs and adjustments involving
parts replacement, etc. determined to
be necessary as a result of these inspections are performed at the cus-
tomer's expense.
. See the 2016 NISSAN GT-R Warranty
Information Booklet for significant lim-
itations, exclusions and possible void-
ing of your warranty resulting from
failure to have these necessary inspec-
tions, repairs and/or adjustments per-
formed.
. See the 2016 NISSAN GT-R Service and
Maintenance Guide for a detailed ex-
planation of the GT-R Performance
Optimization Services.
WHEEL ALIGNMENT INSPECTION
AND ADJUSTMENT (if necessary)
(including tire pressure adjustment)
This vehicle is equipped with a high perfor-
mance suspension. The vehicle's wheel align-
ment needs to be measured and adjusted (if
necessary) by a GT-R certified NISSAN dealer
as necessary as the vehicle is driven and the
suspension parts break-in.
The wheel alignment can be adjusted by a GT-R
certified NISSAN dealer in accordance with
specifications for city driving to high perfor-
mance driving.
The tires on the GT-R may have different wear
GT-R PERFORMANCE
OPTIMIZATION SERVICES


> (GLW    0RGHO 5' @
rates and wear patterns in comparison to
conventional passenger vehicles. Contact a
GT-R certified NISSAN dealer to confirm that
the alignment is within specifications.
Preventing toe-out:
Toe-out can cause uneven tire wear or
damage to areas inside the tires due to
high heat. Be sure to have the wheel
alignment toe-in setting checked and ad-
justed by your GT-R certified NISSAN
dealer before any performance driving on
closed circuit tracks. Obey all traffic laws
when on public roads.
Toe-in specification
Front \0240.059 in (1.5 mm)
Rear \024
0.079 in (2.0 mm)
TRANSMISSION SETTINGS
The design of the clutch and transmission
requires inspection and adjustment of the clutch
and shift forks by a GT-R certified NISSAN
dealer at the recommended intervals. If the
transmission setting is not complete, excessive
loads may be applied to the transmission and
power train system parts during starting and
shifting, which may result in a malfunction or
damage. Depending on the driving conditions,
more frequent adjustments may be necessary to
help maximize vehicle performance.NOTICE
Follow these recommendations to ob-
tain maximum engine performance and
ensure the future reliability and econo-
my of your new vehicle. Failure to
follow these recommendations may
result in shortened engine life and
reduced vehicle performance.
Please observe the following types of driving
until the mileage shown below has been
reached.
Until 300 miles (500 km):
. Do not depress the accelerator pedal more
than halfway and avoid rapid acceleration.
. Drive with the engine speed kept at less
than 3,500 RPM.
. Avoid unnecessary quick steering, abrupt
braking and driving on poor roads.
300 to 600 miles (500 to 1,000 km):
. Avoid rapid acceleration in a low gear (1st to
3rd gears) with the accelerator pedal fully
depressed. Depress the pedal slowly.
. Avoid unnecessary quick steering and
abrupt braking.
GT-R OverviewGTR-9
BREAK-IN SCHEDULE
