2016 NISSAN ALTIMA Quick Reference Guide

7
ESSE NTIAL I N FOR MATION
TIRE PRESSURE MONITORING SYSTEM (TPMS)
WITH EASY FILL TIRE ALERT
A Tire Pressure Low – Add Air warning
mess age will appear in the vehicle information
display
1 and the low tire pressure warning
light
2 will illuminate when one or
more tires are low in pressure and
air is needed.
• The tire pressures should be c

hecked when
the tires are cold. The tires are considered cold
after the vehicle has been parked for 3 hours or more or driven
less than 1 mi (1.6 km) at moderate speeds.
When adding air to an under-inflated tire, the TPMS with Easy Fill
T ire Alert provides visual and audible signals to help you inflate
the tire to the recommended COLD tire pressure.
To use the Easy Fill Tire Alert system:
1. Move the shift lever to the P (P

ARK) position and apply the parking brake.
2. Place the ignition switch in the O

N position. Do not start the engine.
3.


Add air to the under-inflated tire, and within a few seconds, the haza\
rd warning
lights will start flashing.
4.


When the designated tire pressure is reac
hed, the horn will beep once and the
hazard warning flashers will stop.
5.


Repeat this procedure for any additional under-inflated tires.
After tire pressures are adjusted, drive the vehicle at speeds above 16 \
mph (25 km/h).
The Tire Pressure Low – Add Air warning message and low tire pressure warning
light
2 will extinguish.
When the low tire pressure warning light 2 flashes for approximately 1 minute and
then remains on, the TPMS is not functioning properly. Have the system checked. It is
recommended that you visit a Nissan dealer for this service.
Tire pressure rises and falls depending on the heat caused by the vehicle\
’s operation
and the outside temperature. Low outside temperature can lower the tempe\
rature of
the air inside the tire, whic
h can cause a lower tire inflation pressure. This may cause
the low tire pressure warning light
2 to illuminate. If the warning light illuminates,
check the tire pressure in your tires.
• Check the tire pressure (including the spare tire) often and always prior \
to long
dist

ance trips.
The Tire and Loading Information label contains valuable information. Please refer to
the “T echnical and consumer information (section 9)” of your Owner’s Manual for the
location of the Tire and Loading Information label.
For more information, refer to the “Instruments and controls (section 2)”, the “Starting and driving (section 5)”
and the “Maintenance and do-it-yourself (section 8)” of your Owner’s Manual.
1
2
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

8
LOOSE FUEL CAP
A LOOSE FUEL CAP warning mess age will
display in the vehicle information display
1
when the fuel-filler cap is not tightened correctly.
To tighten, turn the cap clockwise until a single
clic k is heard.
The warning message will extinguish when the
vehicle detects the fuel-filler cap is properly
tightened and the reset button
2 on the
steering wheel is pressed for about 1 second.
If the cap is not properly tightened, the
Malfunction Indicator Light
may
also illuminate.
For more information, refer to the “Instruments and controls
(section 2)” and the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
2
1
FUEL-FILLER DOOR
To open the fuel-filler door, pull the release lever
1 located on the instrument panel to the left of
the steering wheel.
The fuel-filler door is located on the driver’s side
of the vehicle.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
1
CLOCK SET/ADJUSTMENT
FM/AM RADIO WITH COMPACT DISC (CD) PLAYER (Type A) (if so equipped)
1. Press the MENU button 1 repeatedly until
“Adjust Clock: NO” appears on the display.
2. Turn the

TUNE/FOLDER knob
2 to
change it to “Adjust Clock: Yes”.
3. Press the MENU button 1.
4. When “Change Hour

” appears, turn the
TUNE/FOLDER knob
2 to adjust the hours.
5. Press the MENU
button 1.
6. When “Change Minute” appears, turn the

TUNE/FOLDER knob
2 to
adjust the minutes.
7. Press the MENU button 1 to finish.
ESSE NTIAL I N FOR MATION
2
1
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

9
FM/AM RADIO WITH COMPACT DISC (CD) PLAYER (Type C) (if so equipped)
1. Press the EN
TER/SETTING button
3 to
highlight the hours or minutes.
2. Use the T

UNE/FOLDER knob
4 to adjust
the value.
3. Press the EN

TER/SETTING button
3
again to set the value.
FM/AM/SAT RADIO WITH COMPACT DISC (CD) PLAYER (Type A) (if so equipped)
1. Press the EN

TER/SETTING button
5 to
highlight the hours or minutes.
2. Use the TU

NE/SCROLL knob
6 to adjust
the value.
3. Press the EN

TER/SETTING button
5
again to set the value.
WITH NAVIGATION (if so equipped)
To adjust the time and the appearance of the
cloc k on the display:
1. Press the button 7.
2. Touc

h the “Settings” key.
3. Touc

h the “System” key.
4. Touc

h the “Clock/Date” key.
The following settings can be adjusted:
• Time F
ormat: The clock can be set to 12
hours or 24 hours.
• Date Format

: The date can be changed to one
of five different formats.
• Clock Mode

: From here, the clock mode
options are:
· Manual

: Allows for the option “Set Clock/Date Manually”. Touch this to begin
setting the clock manually using the “+” or “–” to adjust the hours, minu\
tes, day
and month up or down.



· Time Zone
: Touch the “Time Zone” key
8 to choose from the applicable
time zone list and/or touch “Daylight Savings Time” to switch between ON
and OFF.
· A

uto: Automatically sets the clock to the vehicle’s current location.
Press the BACK button 9 to return to the previous screen.
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (section 4) ” of
your Owner’s Manual.
7
9
8
4
6
3
5
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

10
NISSAN INTELLIGENT KEY® SYSTE M
The Nissan Intelligent Key® system allows you to lock or unlock
your vehicle, open your trunk and remotely start the engine. It is
important to make sure the Intelligent Key is with you (that is, in your
pocket or purse).
REMOTE ENGINE START* (if so equipped)
The remote start operating range is approximately 200 ft (60 m)
from the vehicle. T he remote engine start feature will not operate
if the Intelligent Key is inside the vehicle. The effective operating
range may be shorter if there are walls or other obstructions
between the key and the vehicle.
For remote start to function, the vehicle must be in the P (PARK)
position with the ignition off and all of the doors must be closed
and loc
ked. Please see your Owner’s Manual for additional information.
To start your vehicle remotely:
1. Press the button 1.
2.


Within 5 seconds, press and hold the engine st
art
button 2 for at least
2 seconds.
The engine will start, and the parking lights will turn on.
Automatic climate control will begin heating or cooling the vehicle depe\
nding on the
outside temperature.
The engine will run for 10 minutes and then turn off.
• You must wait at least 6 seconds before remotely st

arting the engine again.
Repeat steps 1 and 2 to extend the time for an additional 10-minute period.
• After two remote starts, the ignition switc
h must be cycled before remote start can
be used again.
To start driving, depress the brake pedal and press the ignition switch
ST ART/STOP button.
LOCKING AND UNLOCKING THE VEHICLE
The lock and unlock operating range of the
Intelligent K ey is within 31.5 in (80 cm) from
each request switch.
To lock the vehicle, push either door handle
request switc h
3 once or press the button
1 on the key fob.
1
2
4
5
6
*State laws may apply; review local laws before using.
3
FIRST DRIVE FEATURES
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

11
To unlock the vehicle, perform one of the following procedures:
• Push either door handle request switch 3 once; the corresponding door will
unlock. Push the door handle request switch
3 again within 60 seconds; all other
doors will unlock, or
• Press the button 4 on the key fob to unlock the driver’s side door. Press the
button
4 again; all other doors will unlock.
TRUNK LID RELEASE
To open the trunk, press the button 5 for more than 1 second.
The trunk lid release button will not operate when the ignition switch is in the
O N position.
PANIC ALARM
The Intelligent Key can also be used to activate the panic alarm by pressing and
holding the
button 6 for more than 0.5 seconds. Once activated, the panic alarm
and headlights will stay on for a period of time.
INTELLIGENT KEY BATTERY DISCHARGE
If the Key Battery Low indicator 7 appears
in the vehicle information display, replace the
battery as soon as possible.
If the battery of the Intelligent Key is disc harged,
the indicator
8 appears in the vehicle
information display or environmental conditions
interfere with the Intelligent Key operation, start
the engine according to the following procedure:
1. Move the shift lever to the P (P

ARK) position.
2. Firmly apply the foot brake.
3.


Touc

h the ignition switch with the Intelligent
Key, and a chime will sound.
4.


Within 1

0 seconds after the chime sounds,
press the ignition switch START/STOP
button while depressing the brake pedal and
the engine will start.
For more information, refer to the “Pre-driving checks and adjustments (section 3)”, the “Starting and driving
(section 5)” and the “Maintenance and do-it-yourself (section 8)” of your Owner’s Manual.
7
8
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

12
TRUNK LID RELEASE
Use one of the following methods to open the trunk:
Push the trunk opener request switch 1,
located under the trunk handle, for more than
1 second while carrying the Nissan Intelligent Key
® with
you (that is, in your pocket or purse).

Press the trunk release button 2 on the Intelligent Key
for more than 1 second.
From inside the vehicle, push the trunk lid release switch 3
located on the instrument panel to the left of the
steering wheel.
For more information, refer to the “Pre-driving checks and
adjustments (section 3)” of your Owner’s Manual.
1
23
FRONT POWER SEAT ADJUSTMENTS (if so equipped)
To slide the seat forward or backward, push the
switc h
1 forward or backward.
To adjust the angle of the seatback, push the
switch
2 forward or backward.
SEAT LIFTER (driver’s seat)
To adjust the angle and height of the seat
cushion, push the front or rear end of the switc h
1 up or down.
LUMBAR SUPPORT (driver’s seat)
To adjust the seat lumbar area, push the front or rear end of the switch 3.
For more information, refer to the “Safety – Seats, seat belts and supplemental restraint system (sectio\
n 1) ” of
your Owner’s Manual.
12
3
OUTSIDE MIRROR CONTROL SWITCH
To select the right or left side mirror, move the
control switc
h
1 right or left.
To adjust the mirror angle, push the control
switch
2 up, down, right or left.
To prevent accidentally moving the mirror, set
the control switc h
1 to the center
(neutral) position.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
2
1
FIRST DRIVE FEATURES
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

13
HEADLIGHT CONTROL SWITCH
HEADLIGHT CONTROL
Turn the headlight control switch to the
position 1 to turn on the front parking, tail,
license plate and instrument panel lights. Turn
the switch to the
position 2 to turn on
the headlights.
AUTOLIGHT SYSTEM (if so equipped)
The autolight system will automatically turn the headlights on when it is\
dark and off
when it is light. T he system will keep the headlights on for a period of time after you
turn the ignition off and all the doors are closed.
To activate the autolight system, turn the headlight control switch to the AUTO
position
3 then push the ignition switch to ON. To deactivate the autolight system,
turn the headlight control switch to the OFF position,
position 1 or
position 2.
HIGH BEAM SELECT
With the headlights ON (either in the AUTO or
position), push the headlight control switch
forward
4 to select the high beam function.
The blue indicator light
will illuminate in
the instrument panel. Pull the headlight control
switch back to the original position to select the
low beam. The blue indicator light will extinguish.
Pull and release the headlight control switch 5
to flash the headlight high beams on and off.
1
3
2
4
5
STARTING/STOPPING THE ENGINE
It is important to make sure the Niss an Intelligent
Key® is with you (that is, in your pocket or purse).
Depress the brake pedal.
• If the brake pedal is not depressed, pushing the
ignition switch once enters the A

CC mode.
• If the ignition switch is pushed a second time,
the vehicle will enter the O

N mode.
Move the shift lever to the P (P ARK) position.
Press the ignition switch START/STOP button
to start the engine.
TURNING THE ENGINE OFF
Move the shift lever to the P (P ARK) position and apply the parking brake.
Press the ignition switch START/STOP button to turn the engine off.
For more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

14

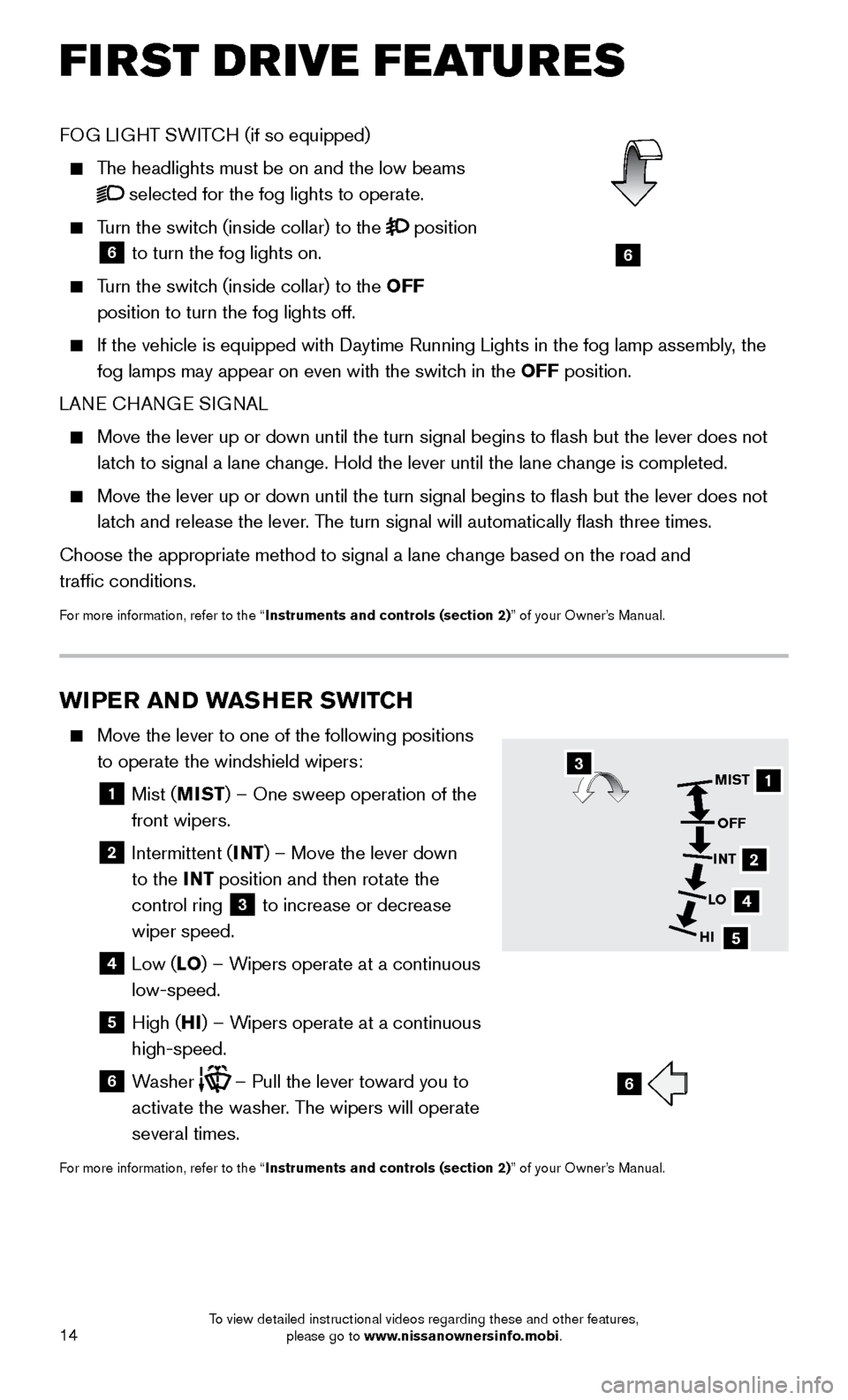

FOG LIGHT SWITCH (if so equipped)
The headlights must be on and the low beams
selected for the fog lights to operate.
Turn the switch (inside collar) to the position
6 to turn the fog lights on.
Turn the switch (inside collar) to the OFF
position to turn the fog lights off.
If the vehicle is equipped with Daytime Running Lights in the fog lamp a\
ssembly, the
fog lamps may appear on even with the switch in the OFF position.
LANE CHANGE SIGNAL
Move the lever up or down until the turn signal begins to flash but th\
e lever does not
latch to signal a lane c hange. Hold the lever until the lane change is completed.
Move the lever up or down until the turn signal begins to flash but th\
e lever does not
latch and release the lever . The turn signal will automatically flash three times.
Choose the appropriate method to signal a lane change based on the road and
traffic conditions.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
6
WIPER AND WASHER SWITCH
Move the lever to one of the following positions
to operate the windshield wipers:
1 Mist (MIST) – One sweep operation of the
front wipers.
2 Intermittent (I NT) – Move the lever down
to the INT position and then rotate the
control ring
3 to increase or decrease
wiper speed.
4 Low (LO ) – W ipers operate at a continuous
low-speed.
5 High (HI ) – W ipers operate at a continuous
high-speed.
6 Washer – Pull the lever toward you to
activate the washer. The wipers will operate
several times.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
1
2
4
5
MIST
OFF
INT
LO
HI
6
3
FIRST DRIVE FEATURES
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
