2016 NISSAN 370Z COUPE Quick Reference Guide

QUICK REFERENCE GUIDE
2 016
370
Z
1870658_16_370Z_QRG_012315.indd 31/23/15 12:08 PM

*See your Owner’s Manual for information.1 Enter / Next Switches*2 Instrument Brightness Control*3 Vehicle Information Display*4 Low Tire Pressure Warning Light5 Headlight and Turn Signal Switch
6 Paddle Shifters*7 Wiper and Washer Switch8 Vehicle Dynamic Control (VDC)
OFF Switch* 9 Steering Wheel Switches for
Audio* / Bluetooth
® / Navigation
10 Cruise Control11 Intelligent Key Port 12 Hood Release*13 Tilt Steering Column Adjustment*14 Control Panel Display*
15 Front Passenger Air Bag
Status Light*16 Audio System17 Automatic Heater and Air Conditioner18 Synchrorev Match
® Mode
(S-Mode) Switch* (if so equipped)
2
3
1
4
6
6
15
5
13
16
14
9
7
10
1718
81211
1870658_16_370Z_QRG_012315.indd 41/23/15 12:08 PM

NEW SYSTEM FEATURES
RearView Monitor (if so equipped) ........................................................................\
....................................2
Opening the Soft Top (Roadster models) ........................................................................\
........................ 2
USB (Universal Serial Bus) Connection Port/AUX Jack (if so equipped) and iPod
® Interface ... 2
NavTraffic and NavWeather (if so equipped) ........................................................................\
................... 3
ESSENTIAL INFORMATION
Tire Pressure Monitoring System (TPMS) ........................................................................\
....................... 4
Loose Fuel Cap ........................................................................\
...................................................................... 4
Fuel-filler Door ........................................................................\
........................................................................ 5
Clock Set/Adjustment ........................................................................\
........................................................... 5
Engine Oil Temperature Gauge ........................................................................\
.......................................... 6
Automatic Power Windows ........................................................................\
................................................. 6
FIRST DRIVE FEATURES
NISSAN Intelligent Key® System ........................................................................\
....................................... 7
Rear Hatch/Trunk Lid Release ........................................................................\
............................................ 8
Soft Top Operation (Roadster models) ........................................................................\
............................. 8
Power Seat Adjustments (if so equipped) ........................................................................\
....................... 9
Power Outside Mirror Control Switch ........................................................................\
............................... 9
Starting/Stopping the Engine ........................................................................\
........................................... 10
Headlight Control Switch ........................................................................\
................................................... 10

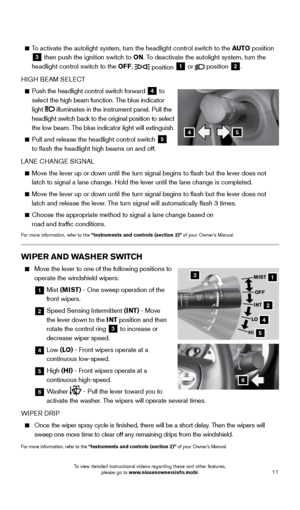

Wiper and Washer Switch ........................................................................\
................................................. 11
Automatic Heater and Air Conditioner ........................................................................\
............................ 12
FM/AM/SiriusXM
® Satellite Radio with CD/DVD Player (if so equipped) ......................................13
Cruise Control ........................................................................\
...................................................................... 14
SYSTEM GUIDE
Trip Computer ........................................................................\
.......................................................................15
Bluetooth® Streaming Audio with Navigation (if so equipped) ......................................................... 16
Bluetooth® Hands-free Phone System ........................................................................\
........................... 18

• System Operating Tips ........................................................................\
............................................... 18
Bluetooth® System with Navigation (if so equipped) ........................................................................\
.. 18
Bluetooth® System without Navigation (if so equipped) .................................................................... 20
Navigation System (if so equipped) ........................................................................\
................................. 21
HomeLink
® Universal Transceiver (if so equipped) ........................................................................\
...... 23
TAB LE OF CONTE NTS
Please see your Owner’s Manual for important safety information and system operation limitations.
• A cellular telephone should not be used for any purpose while driving
so full attention may be given to vehicle operation.
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
• Children 12 and under should always ride in the rear seat properly secur\
ed
in child restraints or seat belts according to their age and weight.
• Do not drink and drive.
For more information, refer to the “Safety –– Seats, seat belts and supplemental restraint system (section 1)”, the
“Center display, heater, air conditioner, audio, phone and voice recognition systems (section 4)” and the “Starting
and driving (section 5)” of your Owner’s Manual.
Additional information about your vehicle is also available in your Owne\
r’s Manual, Navigation System
Owner’s Manual and at www.nissanusa.com.
1870658_16_370Z_QRG_012315.indd 51/23/15 12:08 PM

2
OPENING THE SOFT TOP (Roadster models)
It is important to make sure the NISSAN Intelligent
Key® is with you (that is, in your pocket or purse).

The soft top can be opened from outside the
vehicle using the door handle request switch

1
as follows:
• The ignition switch must be in the OFF position.
• Push and hold the door handle request switch

1 until the soft top is fully opened.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
1
N EW SYSTE M FEATU R ES
REARVIEW MONITOR (if so equipped)

When the shift lever is shifted into the
R (REVERSE) position, the monitor display
shows a rearward view from the vehicle.

The colored guide lines on the display screen
indicate vehicle width and approximate distances
to objects with reference to the vehicle body line:
• Red 1.5 ft (0.5 m); Yellow 3 ft (1 m); Green 7 ft (2 m) and 10 ft (3 m).
For more information, refer to the “Center display, heater, air conditioner, audio, phone and voice recognition
systems (section 4)” of your Owner’s Manual.
USB (Universal Serial Bus) CONNECTION PORT/
AUX JACK (if so equipped) AND iPOD® INTERFACE
The USB port/AUX jack is located in the center console under the armrest.

When a compatible USB port device, iPod® or auxiliary device is plugged into the USB
port/AUX jack, compatible audio and video files stored on the device can be played\

through the vehicle’s audio system and front display.
For more information, refer to the “Center display, heater, air conditioner, audio, phone and voice recognition
systems (section 4)” of your Owner’s Manual.
1870658_16_370Z_QRG_012315.indd 21/23/15 12:08 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

3
NAVTRAFFIC* AND NAVWEATHER* (if so equipped)
Your vehicle’s Navigation System is equipped with
NavTraffic and NavWeather capabilities.

NavTraffic enables your vehicle’s Navigation
System to display real-time traffic conditions,
such as accidents or road construction, and may
provide a detour to help avoid congestion.

NavWeather tracks nationwide weather
information, provides real-time weather reports
and automatically alerts you to severe weather
conditions around the current vehicle location.
*SiriusXM® Satellite Radio, NavTraffic and NavWeather are only available
on vehicles equipped with an optional satellite radio subscription service.
For more information, refer to the “General system information
(section 10)” of your Navigation System Owner’s Manual”.
1870658_16_370Z_QRG_012315.indd 31/23/15 12:08 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

4
LOOSE FUEL CAP
A LOOSE FUEL CAP warning message will
appear in the vehicle information display
1 when
the fuel-filler cap is not tightened correctly.

To tighten, turn the cap clockwise until a single
click is heard.

The warning message will extinguish when the
vehicle detects the fuel-filler cap is properly
tightened and the reset button

2 is pressed for
about 1 second.

If the cap is not properly tightened, the Malfunction Indicator Light
may illuminate.
For more information, refer to the “Instruments and controls (section 2)” and the “Pre-driving checks and
adjustments (section 3)” of your Owner’s Manual.
2
1
TIRE PRESSURE MONITORING SYSTEM (TPMS)
A
CHECK TIRE PRESSURE warning message
will appear in the vehicle information display
1 and the low tire pressure warning light 2
will illuminate when one or more tires are low in
pressure and air is needed.
• The tire pressures should be checked when the
tires are cold. The tires are considered cold after
the vehicle has been parked for 3 hours or more
or driven less than 1 mi (1.6 km) at moderate speeds.

After tire pressures are adjusted, press the reset button 3 to turn
off the CHECK TIRE PRESSURE warning message. To turn off the
warning light, drive the vehicle at speeds above 16 mph (25 km/h).

When the low tire pressure warning light flashes for 1 minute and then \
remains on, the
TPMS is not functioning properly. Have the system checked by a NISSAN dealer.

Tire pressure rises and falls depending on the heat caused by the vehicle\
’s operation
and the outside temperature. Low outside temperature can lower the tempe\
rature of
the air inside the tire, which can cause a lower tire inflation pressure. This may cause
the low tire pressure warning light to illuminate. If the warning light \
illuminates, check
the tire pressure in your tires.
• Check the tire pressure (including the spare tire) often and always prior \
to long
distance trips.

The Tire and Loading Information label contains valuable information. Please refer to
the “Technical and consumer information (section 9)” in your Owner’s Manual for the
location of the Tire and Loading Information label.
For more information, refer to the “Instruments and controls (section 2)”, the “Starting and driving (section 5)”
and the “Maintenance and do-it-yourself (section 8)” of your Owner’s Manual.
3
1
2
ESSE NTIAL I N FOR MATION
1870658_16_370Z_QRG_012315.indd 41/23/15 12:08 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

5
CLOCK SET/ADJUSTMENT
WITHIN THE TRIPLE METER

Adjust the clock
1 using the trip computer’s

switch
2 and
switch
3:
1. Press the

button
until the
SETTING mode
appears in the vehicle information display.
2. Press the

switch
until “Clock” is highlighted.
3. Press the

button. The clock mode setting

menu appears.
4. Press the

button
to enter the

clock setting mode.
5. Press the

button
to begin setting the clock.
6. Press the

button
to select hours then press
. Hours is selected and minutes
is highlighted.
7. Press the

button
to set minutes then press

the
button to complete the

clock set procedure.
WITHIN THE NAVIGATION SYSTEM
Press the SETTING button
4, select the “Clock” key
using the Multi Function Controller and press the ENTER
button
5 to access the following clock settings:

On-screen Clock – When this feature is turned to
ON, a clock is always displayed in the upper right
corner of the Multi Function Display. The clock is
automatically adjusted by the GPS system.
1
2
3
FUEL-FILLER DOOR
The fuel-filler door is located on the passenger’s
side of the vehicle.

Unlock the fuel-filler door using one of the following
operations then push and release the left side
of the door to open:
• Push the door handle request switch while
carrying the NISSAN Intelligent Key
® with you.
• Press the

button on the Intelligent Key.
• Push the power door lock switch to the

position.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
54
1870658_16_370Z_QRG_012315.indd 51/23/15 12:08 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

6
Clock Format – Choose either the 12-hour clock display or the 24-hour clock display.

Offset (hour) – The time can be adjusted by increasing or decreasing per hour.

Offset (min) – The time can be adjusted by increasing or decreasing per minute.

Daylight Savings Time – Turn this item to ON for daylight savings time application.

Time Zone – Choose the time zone.
For more information, refer to the “Other settings (section 7)” of your Multi Function Display Owner’s Manual, the
“Instruments and controls (section 2)” and the “Center display, heater, air conditioner, audio, phone and voice
recognition systems (section 4)” of your Owner’s Manual.
ENGINE OIL TEMPERATURE GAUGE
Performance driving patterns or extended driving
at elevated ambient temperatures may result in
increased engine oil temperature during operation.

During normal vehicle operation, oil temperatures
will be below 280°F (138°C). If the engine oil
temperature gauge
1 indicates 280°F (138°C) or
above while driving, reduce engine speed (RPM) and drive at a reduced vehicle speed.

When the engine oil temperature is high, the engine protection mode, whic\
h helps reduce
the chance of engine damage, may activate and automatically decrease engine p\
ower.
For more information, refer to the “Instruments and controls (section 2)”, the “Maintenance and do-it-yourself
(section 8)” and the “Technical and consumer information (section 9)” of your Owner’s Manual.
1
AUTOMATIC POWER WINDOWS
Your power windows have an automatic adjusting
function to ensure windows close completely to
help seal against wind noise and weather leaks.

When the front doors are opened, the windows
automatically lower slightly to avoid contact
between the windows and the side roof panels.

If your vehicle’s battery has been discharged
or disconnected, the power window automatic
function will not operate.

Refer to your Owner’s Manual for information on how to initialize your power window system.

If the power window functions do not operate properly after initializing\
the system, have
your vehicle checked by a NISSAN dealer.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
ESSE NTIAL I N FOR MATION
1870658_16_370Z_QRG_012315.indd 61/23/15 12:08 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
