Interior 1-3 Overview
1
N00100302402

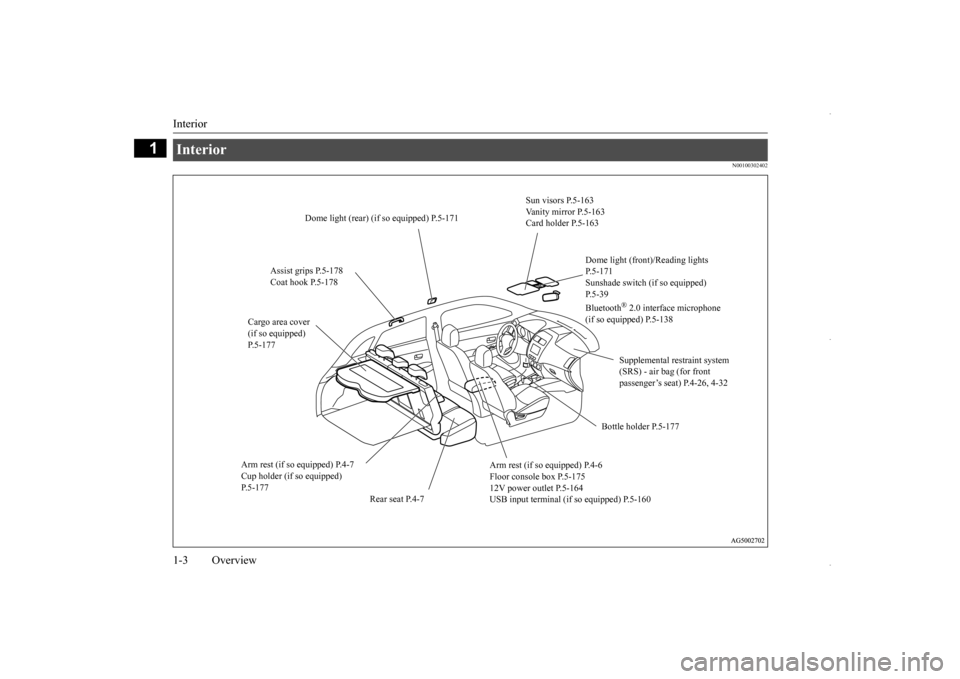

Interior
Sun visors P.5-163 Vanity mirror P.5-163 Card holder P.5-163
Dome light (rear) (if so equipped) P.5-171
Dome light (front)/Reading lights P.5-171Sunshade switch (if so equipped) P.5-39 Bluetooth
® 2.0 interface microphone
(if so equipped) P.5-138
Assist grips P.5-178 Coat hook P.5-178
Cargo area cover (if so equipped) P.5-177
Supplemental restraint system (SRS) - air bag (for front passenger’s seat) P.4-26, 4-32
Bottle holder P.5-177
Arm rest (if so equipped) P.4-7 Cup holder (if so equipped) P.5-177
Arm rest (if so equipped) P.4-6 Floor console box P.5-175 12V power outlet P.5-164 USB input terminal (i
f so equipped) P.5-160
Rear seat P.4-7
BK0229600US.bo
ok 3 ページ ２０１５年１０月１日　木曜日　午後２時２９分

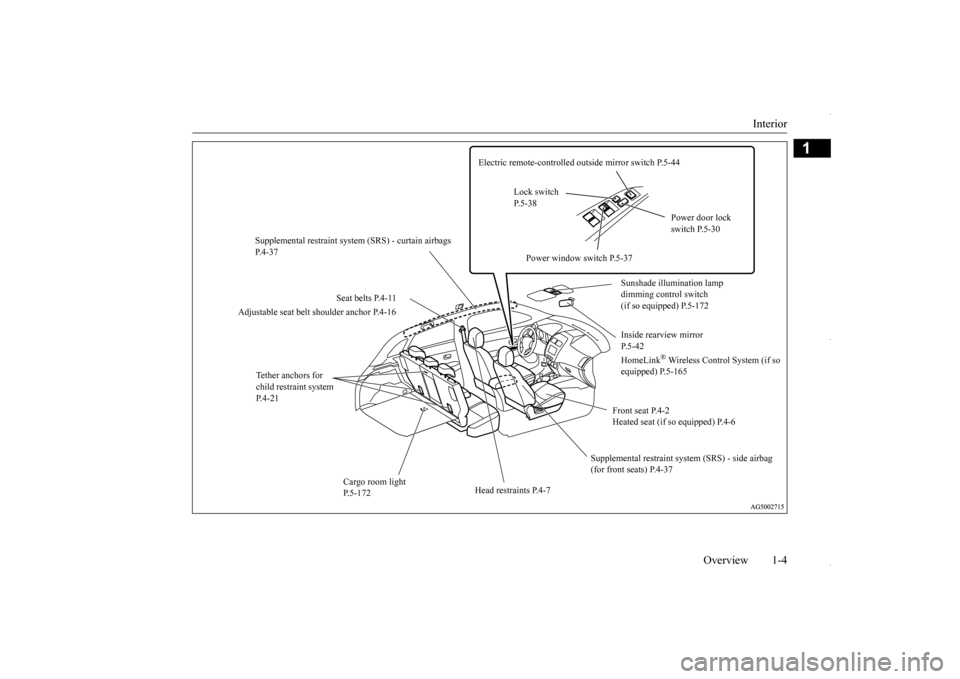

Interior
Overview 1-4
1
Electric remote-controlled outside mirror switch P.5-44
Lock switch P.5-38
Power door lock switch P.5-30
Supplemental restraint system (SRS) - curtain airbags P.4-37
Power window switch P.5-37
Sunshade illumination lamp dimming control switch (if so equipped) P.5-172
Seat belts P.4-11
Adjustable seat belt shoulder anchor P.4-16
Inside rearview mirror P.5-42 HomeLink
® Wireless Control System (if so
equipped) P.5-165
Tether anchors for child restraint system P.4-21
Front seat P.4-2 Heated seat (if so equipped) P.4-6
Supplemental restraint system (SRS) - side airbag (for front seats) P.4-37
Cargo room light P.5-172
Head restraints P.4-7
BK0229600US.bo
ok 4 ページ ２０１５年１０月１日　木曜日　午後２時２９分

Outside
Overview 1-6
1
N00100602610

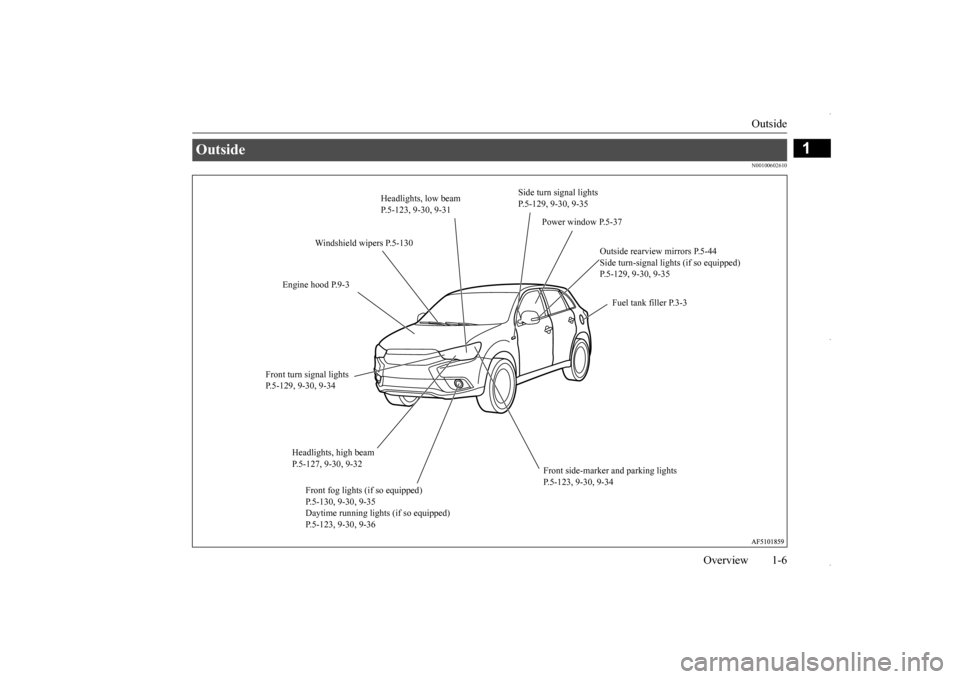

Outside
Power window P.5-37
Windshield wipers P.5-130
Engine hood P.9-3
Fuel tank filler P.3-3
Outside rearview mirrors P.5-44 Side turn-signal lights (if so equipped) P.5-129, 9-30, 9-35
Front turn signal lights P.5-129, 9-30, 9-34
Side turn signal lights P.5-129, 9-30, 9-35
Headlights, high beam P.5-127, 9-30, 9-32
Front side-marker and parking lights P.5-123, 9-30, 9-34
Front fog lights (if so equipped) P.5-130, 9-30, 9-35 Daytime running lights (if so equipped) P.5-123, 9-30, 9-36
Headlights, low beam P.5-123, 9-30, 9-31
BK0229600US.bo
ok 6 ページ ２０１５年１０月１日　木曜日　午後２時２９分

Free-hand Advanced Security Transmitt
er (F.A.S.T.-key) (if so equipped)
Features and controls 5-15
5
While carrying the F.A.S.T.-key within the operating range, you can unlock the doorsand the liftgate by using the F.A.S.T.-key.The dome light will turn on for 30 seconds. The turn signal lights will blink twice and the buzzer will sound twice. Also refer to “Door locks”, “Power door locks” and “Liftgate” on pages 5-28, 5-30 and 5-32 respectively. Press the driver’s door lock/unlock switch (A) to unlock only the driver’s door.Within about 2 seconds, press the driver’s door lock/unlock switch one more time to unlock all the doors and the liftgate.

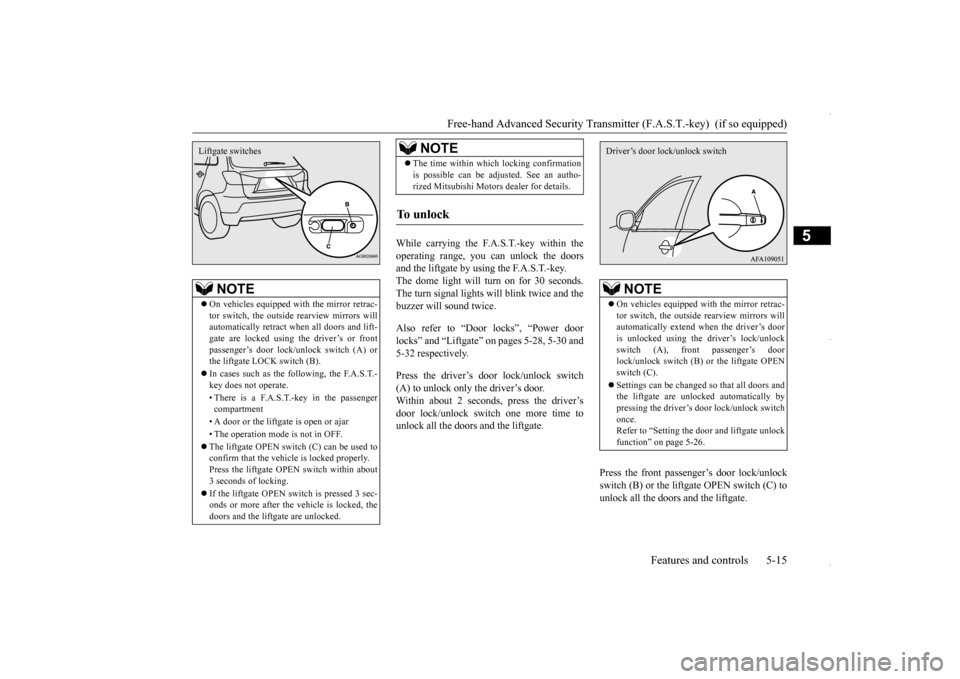

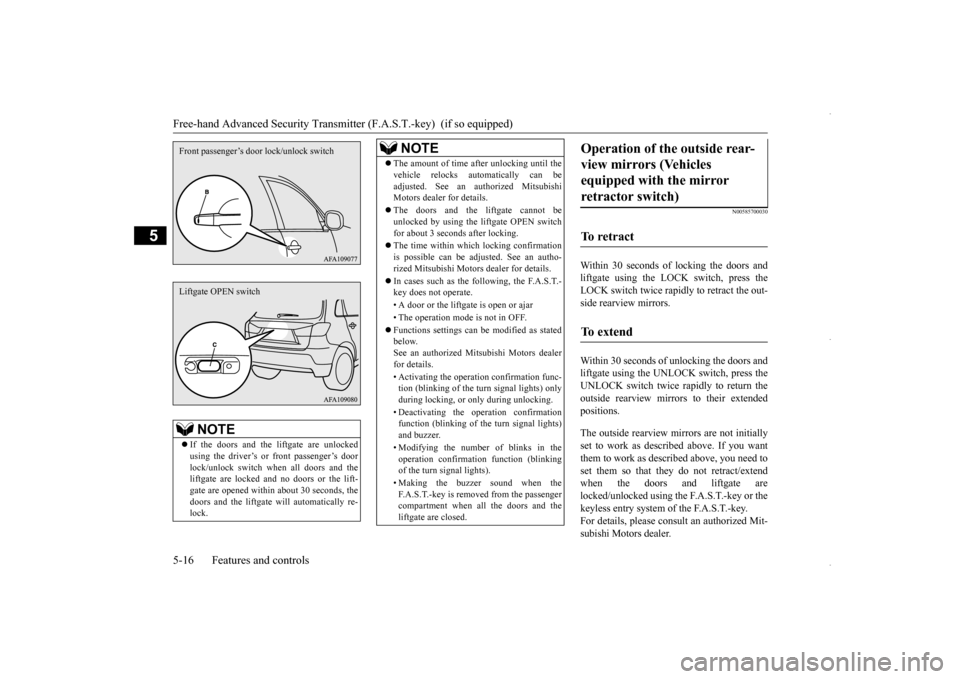

Press the front passenger’s door lock/unlock switch (B) or the liftgate OPEN switch (C) tounlock all the doors and the liftgate.
NOTE
 On vehicles equipped with the mirror retrac- tor switch, the outside rearview mirrors will automatically retract when all doors and lift-gate are locked using the driver’s or front passenger’s door lock/unlock switch (A) or the liftgate LOCK switch (B).  In cases such as the following, the F.A.S.T.- key does not operate. • There is a F.A.S.T.-key in the passenger compartment • A door or the liftga
te is open or ajar
• The operation mode is not in OFF.  The liftgate OPEN switch (C) can be used to confirm that the vehicle is locked properly. Press the liftgate OPEN switch within about 3 seconds of locking.  If the liftgate OPEN switch is pressed 3 sec- onds or more after the vehicle is locked, thedoors and the liftgate are unlocked.Liftgate switches
 The time within which locking confirmation is possible can be adjusted. See an autho- rized Mitsubishi Motors dealer for details.
To u n l o c k

NOTE
NOTE
 On vehicles equipped with the mirror retrac- tor switch, the outside rearview mirrors will automatically extend when the driver’s dooris unlocked using the driver’s lock/unlock switch (A), front passenger’s door lock/unlock switch (B) or the liftgate OPENswitch (C).  Settings can be changed so that all doors and the liftgate are unlocked automatically by pressing the driver’s door lock/unlock switch once.Refer to “Setting the door and liftgate unlock function” on page 5-26.Driver’s door lock/unlock switch
BK0229600US.bo
ok 15 ページ ２０１５年１０月１日　木曜日　午後２時２９分

Free-hand Advanced Security Transmitte
r (F.A.S.T.-key) (if so equipped)
5-16 Features and controls
5
N00585700030
Within 30 seconds of
locking the doors and
liftgate using the LOCK switch, press theLOCK switch twice rapidly to retract the out-side rearview mirrors. Within 30 seconds of unlocking the doors and liftgate using the UNLOCK switch, press the UNLOCK switch twice rapidly to return the outside rearview mirrors to their extendedpositions. The outside rearview mirrors are not initially set to work as described above. If you want them to work as described above, you need toset them so that they do not retract/extend when the doors and liftgate are locked/unlocked using the F.A.S.T.-key or thekeyless entry system of the F.A.S.T.-key. For details, please consult an authorized Mit- subishi Motors dealer.
NOTE
 If the doors and the liftgate are unlocked using the driver’s or front passenger’s door lock/unlock switch when all doors and the liftgate are locked and no doors or the lift-gate are opened within about 30 seconds, the doors and the liftgate will automatically re- lock.Front passenger’s door
lock/unlock switch
Liftgate OPEN switch
 The amount of time after unlocking until the vehicle relocks automatically can be adjusted. See an au
thorized Mitsubishi
Motors dealer for details.  The doors and the liftgate cannot be unlocked by using the liftgate OPEN switch for about 3 seconds after locking.  The time within which locking confirmation is possible can be adjusted. See an autho-rized Mitsubishi Motors dealer for details.  In cases such as the following, the F.A.S.T.- key does not operate. • A door or the liftgate is open or ajar• The operation mode is not in OFF.  Functions settings can be modified as stated below. See an authorized Mitsubishi Motors dealerfor details. • Activating the operation confirmation func- tion (blinking of the turn signal lights) only during locking, or only during unlocking. • Deactivating the operation confirmation function (blinking of the turn signal lights) and buzzer. • Modifying the number of blinks in the operation confirmation function (blinking of the turn signal lights). • Making the buzzer sound when the F.A.S.T.-key is removed from the passenger compartment when all the doors and theliftgate are closed.NOTE
Operation of the outside rear- view mirrors (Vehicles equipped with the mirror retractor switch)

To retract

To e x t e n d

BK0229600US.bo
ok 16 ページ ２０１５年１０月１日　木曜日　午後２時２９分

Free-hand Advanced Security Transmitt
er (F.A.S.T.-key) (if so equipped)
Features and controls 5-17
5
N00513500075
To prevent vehicle theft, no F.A.S.T.-keys other than those registered in advance can be used to start the engine. (Electronic immobi- lizer function)While carrying the F.A.S.T.-key, the engine switch can be used to start the engine.
The indicator light on the engine switch turns off.On vehicles equipped with continuously vari- able transmission (CVT), the operation mode
cannot be put in OFF when the selector lever is in any position other than the “P” (PARK) position. Allows operation of electrical accessories. The indicator light on the engine switch illu-minates orange. All electrical accessories can be used. The indicator light on the engine switch illu- minates green. The indicator light turn
s off when the engine
is running.
N00568000025
If you press the engine switch without press- ing the brake pedal {continuously variable transmission (CVT)} or the clutch pedal
NOTE
 On vehicles equipped with the mirror retrac- tor switch, the outside rearview mirrors will automatically retract or extend when all the doors and liftgate are locked or unlocked using the remote control transmitter buttonsor the F.A.S.T.-key. Refer to “Features and controls: Outside rearview mirrors” on page 5-44.

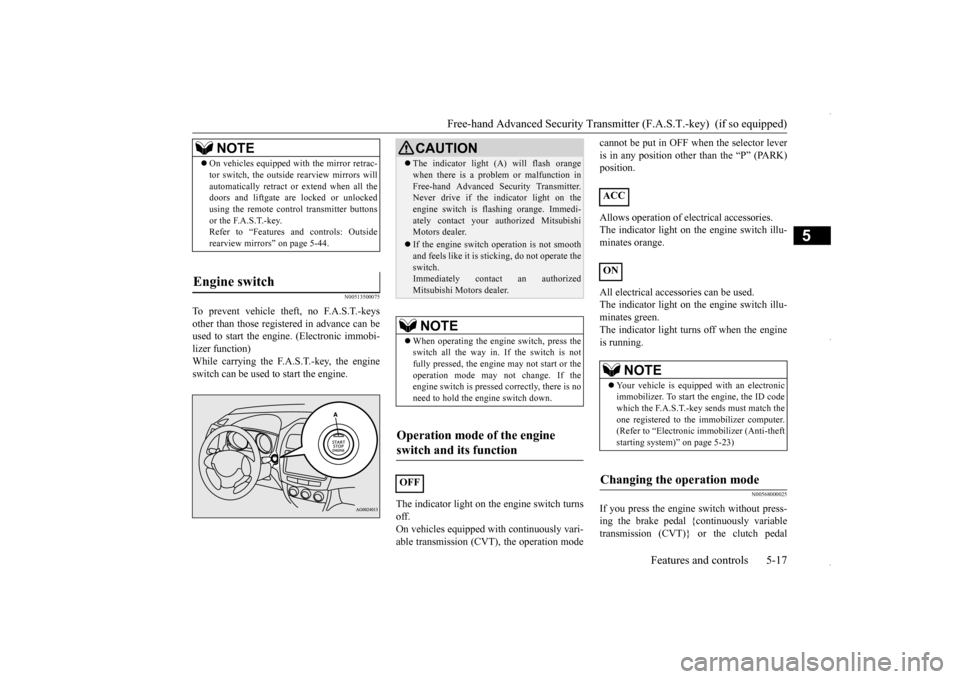

Engine switch

CAUTION The indicator light (A) will flash orange when there is a problem or malfunction in Free-hand Advanced Security Transmitter. Never drive if the indicator light on the engine switch is flashing orange. Immedi-ately contact your authorized Mitsubishi Motors dealer. If the engine switch operation is not smooth and feels like it is sticking, do not operate the switch.Immediately contact an authorized Mitsubishi Motors dealer.NOTE
 When operating the engine switch, press the switch all the way in. If the switch is not fully pressed, the engine may not start or the operation mode may not change. If theengine switch is pressed correctly, there is no need to hold the engine switch down.
Operation mode of the engine switch and its function

OFF
ACC ON
NOTE
 Your vehicle is equipped with an electronic immobilizer. To start the engine, the ID code which the F.A.S.T.-key sends must match the one registered to the immobilizer computer.(Refer to “Electronic immobilizer (Anti-theft starting system)” on page 5-23)
Changing the operation mode

BK0229600US.bo
ok 17 ページ ２０１５年１０月１日　木曜日　午後２時２９分

Free-hand Advanced Security Transmitt
er (F.A.S.T.-key) (if so equipped)
Features and controls 5-25
5
When registration of ID code is complete, the buzzer will sound 3 times and the immobilizer display will come on for 30 seconds.If an error occurs, F.A.S.T.-key program-ming will be terminated and the buzzer will sound for 3 seconds. 8. If you wish to register another F.A.S.T.- key, repeat the process from step 1 after the operation mode is put in OFF.
N00515501252
Press the remote control transmitter buttonsto lock or unlock the doors and the liftgate.It can also help you signal for attention bysetting off the panic alarm.
Press the LOCK button (1) to lock all the doors and the liftgate. The turn signal lights will also blink once. Press the UNLOCK button (2) to unlock the driver’s door only.To unlock all doors and the liftgate, press the UNLOCK button two times within a 2 second time period.
NOTE
 F.A.S.T.-key programming will be termi- nated if the operation mode is put in OFF before the immobilizer display starts blink- ing.NOTE
 The immobilizer display will go off immedi- ately if the operation mode is put in OFF.  Perform the operation when the interrupt dis- play screen is not showing. The interrupt dis- play screen may prevent you from seeing the immobilizer display.
 It is not possible to register a F.A.S.T.-key if the immobilizer display goes off during the procedure.

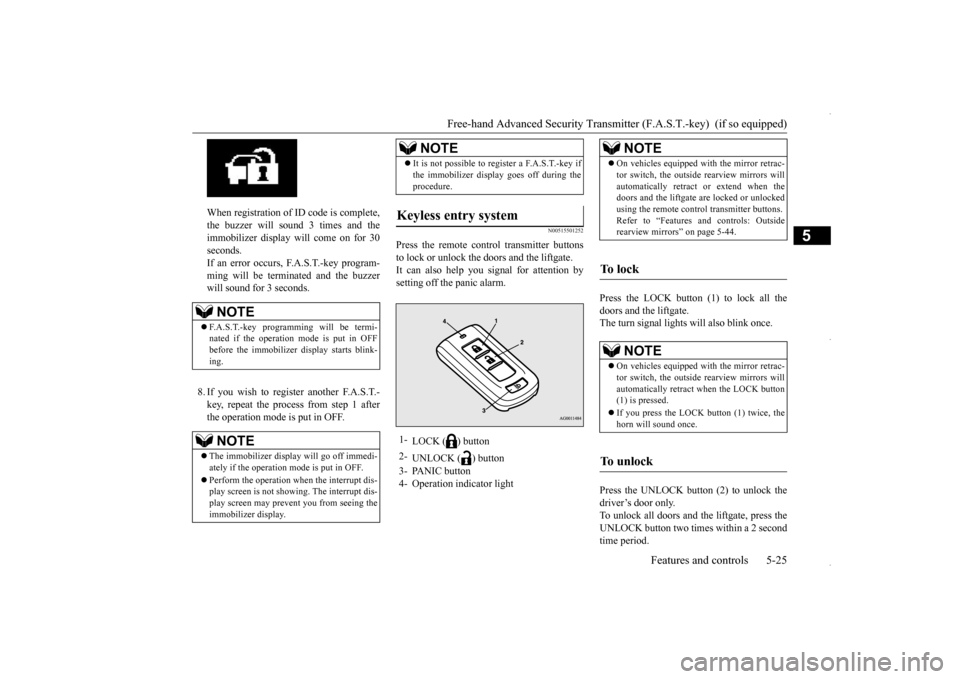

Keyless entry system

1-
LOCK ( ) button
2-
UNLOCK ( ) button
3- PANIC button 4- Operation indicator light
NOTE
NOTE
 On vehicles equipped with the mirror retrac- tor switch, the outside rearview mirrors will automatically retract or extend when the doors and the liftgate are locked or unlocked using the remote control transmitter buttons.Refer to “Features and controls: Outside rearview mirrors” on page 5-44.
To l o c k

NOTE
 On vehicles equipped with the mirror retrac- tor switch, the outside rearview mirrors will automatically retract when the LOCK button(1) is pressed.  If you press the LOCK
button (1) twice, the
horn will sound once.
To u n l o c k

BK0229600US.bo
ok 25 ページ ２０１５年１０月１日　木曜日　午後２時２９分

Free-hand Advanced Security Transmitte
r (F.A.S.T.-key) (if so equipped)
5-26 Features and controls
5
The dome light will turn on for 30 seconds. The turn signal lights will also blink twice. The front side-marker and parking lights will also turn on for about 30 seconds. Refer to“Welcome light” on page 5-127. The horn and turn signal lights of the keyless entry system answerback function can be changed as required. The answerback function can be set in the following three ways.
1. Put the operation mode in OFF. 2. Open the driver’s door and turn the com- bination headlights and dimmer switch tothe “OFF” position. 3. Press and hold the LOCK button (1) for 4 to 10 seconds and then press and hold theUNLOCK button (2) during this time.4. Within 10 seconds of pressing the UNLOCK button in step 3, release the UNLOCK button first, and then releasethe LOCK button.
The answerback function from the turn signal lights can be turned ON or OFF separately. 1. Put the operation mode in OFF. 2. Open the driver’s door and turn the com- bination headlights and dimmer switch to the “OFF” position.3. Press and hold the UNLOCK button (2) for 4 to 10 seconds and then press and hold the LOCK button (1) during thistime.
4. Within 10 seconds of pressing the LOCK button in step 3, release the UNLOCK button first, and then release the LOCK button.
The buzzer answerback function can be turned ON or OFF as required.
N00544601109
The door and liftgate unlock function can be set to the following two conditions. Each time the door and liftgate unlock func-tion is set, a chime will sound to tell you the
NOTE
 On vehicles equipped with the mirror retrac- tor switch, the outside rearview mirrors will automatically extend when the UNLOCKbutton (2) is pressed.  The door and liftgate unlock function can be set so that all doors and the liftgate unlock when the UNLOCK button (2) is pressed once.Refer to “Setting the door and liftgate unlock function” on page 5-26.
Answerback function

Horn deactivation/reactivation One chime:
The horn will not sound.
Tw o chimes:
The horn will sound.
Four chimes:
The horn will sound if the LOCK button is pressed twice within 1 sec- ond.
Turn signal light deactivation/reactiva- tion
Number of chimes
To l o c k
To u n l o c k
One chime One flash Two flashes Two chimes One flash No flashThree chimes No flash Two flashesFour chimes Two flashes One flashFive chimes No flash One flashSix chimes Two flashes No flashSeven chimes
No flash No flash
Buzzer deactivation/reactivationSetting the door and liftgate unlock function
