Replacement of light bulbs
Vehicle care and maintenance 9-35
9
N00943501147 N00943601845
1. Insert a straight blade (or minus) screw- driver with a cloth over its tip at the pointsindicated by arrows
and pry gently to
remove the cover (A).
2. Remove the 3 screws (B) and remove the light unit.
3. While holding down the tab (D), pull out the socket (E). 4. Turn the bulb (F) counterclockwise to remove it. 5. To install the bulb, perform the removal steps in reverse.
N00943701556
1. Open the liftgate.
Side turn signal lights
(if so
equipped)
NOTE
 The side turn signal lights uses an LED instead of the bulb. Check with an authorized Mitsubishi Motors dealer or a repair facility of your choicewhen the light needs to be repaired or replaced.
Front fog lights
(if so equipped)
NOTE
 When unfastening the screws or the fog light, be careful not to
move the beam posi-
tion adjustment screw (C).
Rear combination lights
BK0223400US.book 35 ページ ２０１５年２月１３日　金曜日　午後１２時１５分

Replacement of light bulbs 9-36 Vehicle care and maintenance
9
2. Remove the screws
(A), and then move
the light unit toward the rear of the vehi-cle to unfix the notch (B) and pins (C).
3. Turn the socket counterclockwise and remove it, and then pull the bulb out ofthe socket. 4. To install the bulb, perform the removal steps in reverse.
N00929101080
1. Push the light unit upward to remove it.
D- Rear turn signal light E- Tail light and stop light (LED) - cannot
be replacedNOTE
 The rear side-marker light, tail light and stop light use an LED instead of the bulb. Check with an authorized Mitsubishi Motorsdealer or a repair facility of your choice when the light needs to be repaired or replaced.
NOTE
 When mounting the light unit, align the notch (F) and pin (G)
on the light unit with
the clip (H) and hole (I) in the body.
Back-up lights
NOTE
 Wrap a cloth around the tip of the screw- driver to keep from scratching the lens.
BK0223400US.book 36 ページ ２０１５年２月１３日　金曜日　午後１２時１５分

Replacement of light bulbs
Vehicle care and maintenance 9-37
9
2. Turn the socket (A
) counterclockwise to
remove it, and then pull the bulb out ofthe socket. 3. To install the bulb, perform the removal steps in reverse.
N00944000360
1. When removing the li
ght unit (A), push it
toward the left side of the vehicle body. 2. Use a screw driver to gently pry up the tab (B) and remove the lens.
3. Pull the bulb out of the socket. 4. To install the bulb, perform the removal steps in reverse.
NOTE
 When installing the light unit, first insert the notch (B) into the hole on the body, and thenpush on the light unit to fit it into place.
License plate lights
NOTE
 Wrap a cloth around the tip of the screw- driver to keep from scratching the lens.
NOTE
 When mounting the light unit, insert tab (C) first then align tab (D) with its hole.
BK0223400US.book 37 ページ ２０１５年２月１３日　金曜日　午後１２時１５分

Vehicle care precautions 9-38 Vehicle care and maintenance
9
N00943900102 N00945100166
In order to maintain the value of your vehicle, perform regular maintenance using the proper materials and procedures
. Be sure to use only
those materials and proc
edures that meet your
local environmental pollution control regula- tions. Choose the material
s you will use care-
fully, to be sure that they do not contain corrosives. If you are not sure, contact an authorized Mitsubishi Mo
tors dealer for help
in choosing these materials.
These can all be danger
ous, and they all can
damage your vehicle.
N00945200095
After washing the inside
of your vehicle with
any cleaner, wipe it dry in a shady, well venti- lated area.
N00945300155
1. Lightly wipe these off with a soft clothsoaked in a 3% solution of gentle soap and water. 2. To rinse, dip the cloth in fresh water,wring it out well, a
nd wipe off all the
soap.
High-mounted stop light
NOTE
 The high-mounted stop light uses an LED instead of the bulb. Check with an authorizedMitsubishi Motors dealer
or a repair facility
of your choice when the light needs to be repaired or replaced.

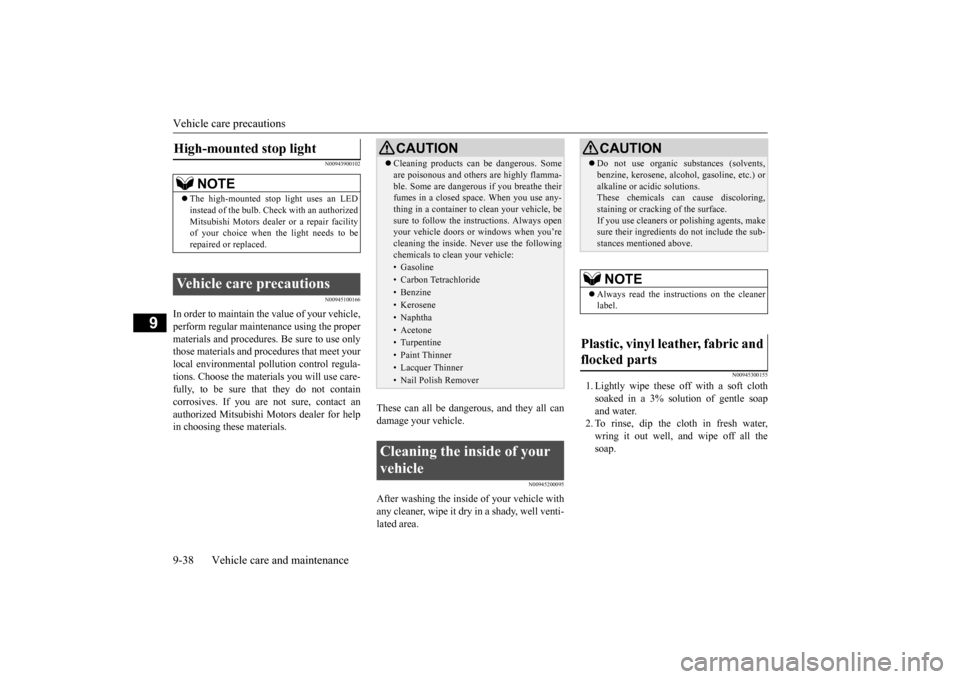

Vehicle care precautions
CAUTION Cleaning products can be dangerous. Some are poisonous and others
are highly flamma-
ble. Some are dangerous if you breathe theirfumes in a closed sp
ace. When you use any-
thing in a container to
clean your vehicle, be
sure to follow the in
structions. Always open
your vehicle doors or windows when you’re cleaning the inside. Never use the following chemicals to clean your vehicle:• Gasoline• Carbon Tetrachloride• Benzine• Kerosene• Naphtha• Acetone• Turpentine• Paint Thinner• Lacquer Thinner• Nail Polish Remover
Cleaning the inside of your vehicle
CAUTION Do not use organic substances (solvents, benzine, kerosene, alc
ohol, gasoline, etc.) or
alkaline or acidic solutions.These chemicals can cause discoloring, staining or cracking of the surface. If you use cleaners or polishing agents, makesure their ingredients do not include the sub- stances mentioned above.NOTE
 Always read the instru
ctions on the cleaner
label.
Plastic, vinyl leather, fabric and flocked parts
BK0223400US.book 38 ページ ２０１５年２月１３日　金曜日　午後１２時１５分

Vehicle labeling
Specifications 11-3
11
The engine serial num
ber is stamped on the
cylinder block as shown
in the illustrations.
N01148101613
The tire and loading information placard is located on the driver’s door sill. Ty p e 1
Ty p e 2
N01148201249
The certification label is located on the driver’s door sill.
Engine serial number * - Front of the vehicle2.4 liter models3.0 liter models
Tire and loading information placard
Certification label
BK0223400US.book 3 ページ ２０１５年２月１３日　金曜日　午後１２時１５分

Capacity 11-8 Specifications
11
Transfer oil .50 qt (0.47 L)
Mitsubishi Motors Genuine Supe
r Hypoid Gear Oil API classi-
fication GL-5 SAE 80
Differential
Rear axle .42 qt (0.4 L)
Mitsubishi Motors Genuine Supe
r Hypoid Gear Oil API classi-
fication GL-5 SAE 80
Brake As required Conforming to Brake fluid DOT3 or DOT4Hood lock release mechanism and safety catch A
s required Multipurpose type
grease NLGI Grade 2
Engine coolant {Includes .69 qt (0.65 L) in reserve tank}
2.4 liter models 6.3 qt (6.0 L)
Mitsubishi Motors Genuine
Super Long Life Coolant
Premium or equivalent
*
3.0 liter models 9.5 qt (9.0 L)
Washer fluid 4.8 qt (4.5 L) —Refrigerant (air conditioning)
Refer to the “Air con- ditioning label” on
page 11-2.
HFC-134a
* :similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrate
and non-borate coolant with long life hybrid o
rganic acid tech-
nology
Item
Capacity
Lubricants
BK0223400US.book 8 ページ ２０１５年２月１３日　金曜日　午後１２時１５分
