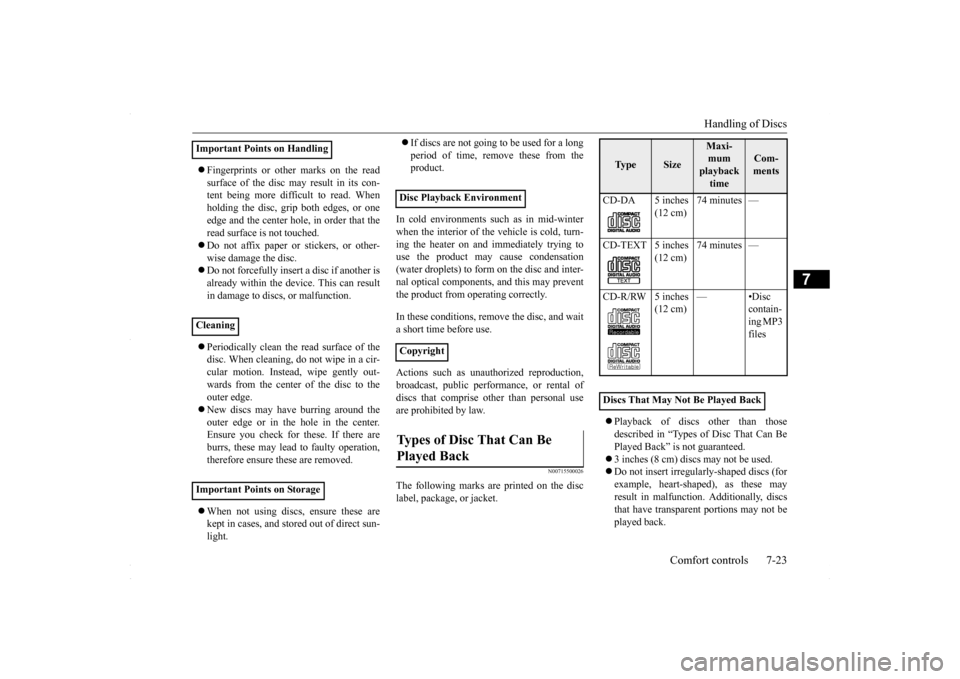

Handling of Discs
Comfort controls 7-23
7
 Fingerprints or other marks on the read surface of the disc may result in its con- tent being more difficult to read. When holding the disc, grip both edges, or oneedge and the center hole, in order that the read surface is not touched.  Do not affix paper or stickers, or other- wise damage the disc.  Do not forcefully insert a disc if another is already within the device. This can resultin damage to discs, or malfunction.  Periodically clean the read surface of the disc. When cleaning, do not wipe in a cir- cular motion. Instead, wipe gently out- wards from the center of the disc to theouter edge.  New discs may have burring around the outer edge or in the hole in the center.Ensure you check for these. If there are burrs, these may lead to faulty operation, therefore ensure these are removed.  When not using discs, ensure these are kept in cases, and stored out of direct sun- light.
 If discs are not going to be used for a long period of time, remove these from the product.
In cold environments such as in mid-winter when the interior of the vehicle is cold, turn-ing the heater on and immediately trying to use the product may cause condensation (water droplets) to form on the disc and inter-nal optical components, and this may preventthe product from operating correctly. In these conditions, remove the disc, and wait a short time before use. Actions such as unauthorized reproduction, broadcast, public performance, or rental of discs that comprise other than personal use are prohibited by law.
N00715500026
The following marks are printed on the disclabel, package, or jacket.
 Playback of discs other than those described in “Types of Disc That Can Be Played Back” is not guaranteed.  3 inches (8 cm) discs may not be used.  Do not insert irregularly-shaped discs (for example, heart-shaped), as these may result in malfunction. Additionally, discsthat have transparent portions may not be played back.
Important Points on Handling Cleaning Important Points on Storage
Disc Playback Environment CopyrightTypes of Disc That Can Be Played Back
Ty p e
Size
Maxi- mum playback time
Com-ments
CD-DA 5 inches
(12 cm)
74 minutes —
(12 cm)
74 minutes —
(12 cm)
—•Disc
contain- ing MP3 files
Discs That May Not Be Played Back
BK0230300US.bo
ok 23 ページ ２０１５年７月３０日　木曜日　午後８時３８分

How to change a tire 8-8 For emergencies
8
2. To remove the spare tire, remove the installation clamp (C) by turning it coun-terclockwise.
N00849801486
1. On vehicles with wheel covers, firstremove the covers (refer to “Wheel cov-ers” on page 8-11). Then loosen the wheel nuts with the wheel nut wrench. Do not remove the wheel nuts yet.
2. Place the jack under
one of the jacking
points (A) shown in the illustration. Use the jacking point closest to the tire you wish to change. 3. Rotate the jack by hand until the flange portion (B) fits in the groove (C) at the top of the jack.
NOTE
 The clamp cannot be used for a normal size tire. Store a normal size tire under the lug-gage floor board.  Put the spare tire under the vehicle body near the jack. This makes it safer if the jack slips out of position.
To change a tire
WA R N I N G Set the jack only at the positions shown here. If the jack is set at a wrong position,it could dent your vehicle or the jack might fall over and cause personal injury.  Do not use the jack on a tilted or soft sur- face. Otherwise, the jack might slip and causepersonal injury. Always use the jack on a flat, hard surface. Before setting the jack, make sure there are no sand or pebblesunder the jack base.
BK0230300US.bo
ok 8 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Alphabetical index
12-3
12
Bulb capacity
................
.................
9-30
Replacement
.................
.................
9-34
Fuel
Fuel economy
...................
................
6-2
Fuel hoses
.....................
.................
9-22
Modification/alterations to the electrical or fuel systems
...................
................
3-6
Tank capacity
..........................
3-4
, 11-6
Fuel Pump Shut-off System
.................
8-15
Fuel selection
....................
...................
3-2
Fuses
.........................
........................
9-25
Fusible links
..................
.....................
9-24
G
General maintenance
...........................
9-23
General vehicle data
............................
11-4
Genuine parts
....................
...................
3-6
Glove compartment
...........................
5-169
H
Hazard warning flasher switch
...........
5-133
Hazard warning lights
.......................
5-123
Head restraints
...................
...................
4-6
Headlight leveling switch
..................
5-132
Headlights
Bulb capacity
................
.................
9-30
Dimmer
....................
...................
5-130
Headlight flasher
...........................
5-131
Leveling switch
.............................
5-132
Replacement
...................
...............
9-32
Switch
.....................
.....................
5-127
Heater without air conditioning function
.7-4
High beam indicator
..........................
5-123
Hood lock release mechanism and safety catch
.........................
......................
9-24
Horn switch
.....................
.................
5-139
I
If the vehicle breaks down
.....................
8-2
Ignition switch
...........................
5-16
, 5-52
Important facts to know in case of an accident 10-4 Indicators
....................
.....................
5-123
Information screen display
.................
5-125
Inside day/night rearview mirror
..........
5-50
Inside emergency trunk lid release
.......
5-40
Interior lights
...................
.................
5-167
J
Jack
............................
........................
8-5
Storage
........................
....................
8-5
Jump-starting the engine
.......................
8-2
K
Key reminder buzzer
...........................
5-36
Keyless entry system
.............................
5-7
Keys
..........................
..........................
5-3
L
Labeling
........................
.....................
11-2
License plate light
Bulb capacity
................
.................
9-30
Replacement
..................
.................
9-39
Link System
..................
...................
5-139
Loading information
..............................
6-6
Lubricants
.....................
.....................
11-6
M
Malfunction indicator
........................
5-124
Manual transaxle
................
.................
5-57
Oil
.....................
.....................
9-9
, 11-6
Shift points (recommended speed)
....
5-57
Mirror
Inside day/night rearview mirror
......
5-50
Outside rearview mirrors
.................
5-51
Modifications to and racing of your vehicle
..
3-5 Multi-information display
....................
5-91
