2016 MERCEDES-BENZ GLA display

X
Press v again to confirm.X
Press the d or c button to set Off ,
Standard
or Adaptive .X
Press the v button to save the setting.
When Lane Keeping Assist is activated, the
multifunction display shows the lane mark-
ings as bright lines in the assistance
graphic.
For further information about Lane Keeping
Assist, see ( Y
page 215).
Service menu
Depending on the equipment installed in the
vehicle, you have the following options in the
Serv.
menu: R
Calling up display messages in message
memory ( Y
page 235)R
Restarting the tire pressure loss warning
system (Canada only) ( Y
page 347)R
Checking the tire pressure electronically
(USA only) ( Y
page 348)R
Calling up the service due date
( Y
page 313)
Settings menu
Introduction Depending on the equipment installed in the
vehicle, in the Sett.
menu you have the fol-
lowing options: R
Changing the instrument cluster settings R
Changing the light settings R
Changing the vehicle settings R
Changing the convenience settings R
Restoring the factory settings
Instrument cluster Selecting the distance unit
The Display Unit Speed-/Odometer:
function allows you to choose whether cer-
tain displays appear in kilometers or miles in
the multifunction display. X
Press the Y or e button on the steer-
ing wheel to select the Sett.
menu.X
Press the d or c button to select the
Instrument Cluster
submenu.X
Press v to confirm. X
Press the d or c button to select the
Display Unit Speed-/Odometer
func-
tion.
You will see the selected setting: km
or
miles
. X
Press the v button to save the setting.
The selected unit of measurement for dis-
tance applies to: R
digital speedometer in the Trip menuR
Odometer and the trip odometer R
Trip computer R
current fuel consumption and approximate
range R
Navigation instructions in the Navi menuR
Cruise Control R
DISTRONIC PLUS R
ASSYST PLUS service interval display
Switching the additional speedometer
on/off
If the additional speedometer is switched on,
the speed is shown in the status area of theMenus and submenus 229
On-board computer and displays Z

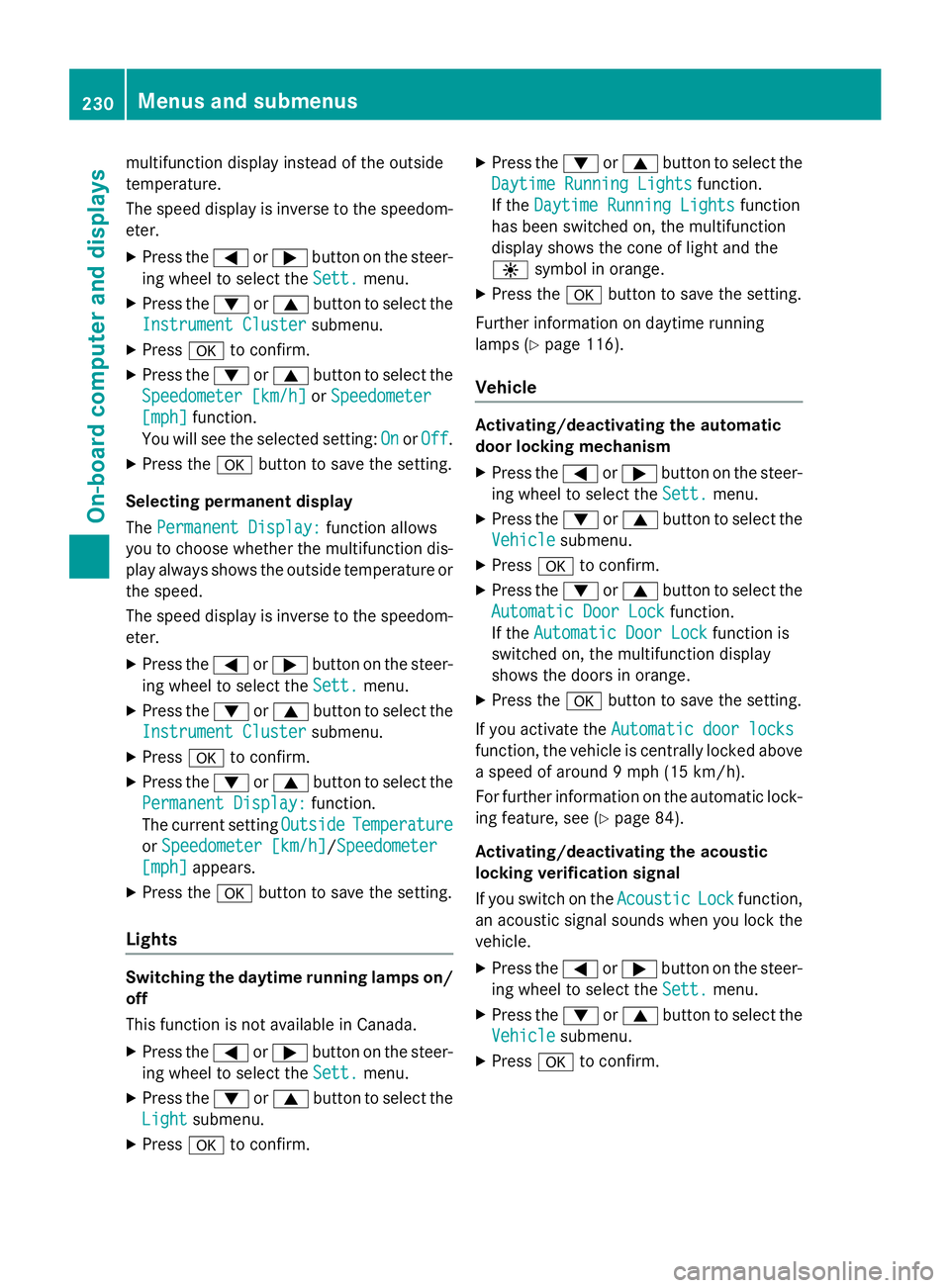

multifunction display instead of the outside
temperature.
The speed display is inverse to the speedom-
eter. X
Press the Y or e button on the steer-
ing wheel to select the Sett.
menu.X
Press the d or c button to select the
Instrument Cluster
submenu.X
Press v to confirm.X
Press the d or c button to select the
Speedometer [km/h]
or Speedometer
[mph] function.
You will see the selected setting: On
or Off .X
Press the v button to save the setting.
Selecting permanent display
The Permanent Display:
function allows
you to choose whether the multifunction dis-
play always shows the outside temperature or
the speed.
The speed display is inverse to the speedom-
eter. X
Press the Y or e button on the steer-
ing wheel to select the Sett.
menu.X
Press the d or c button to select the
Instrument Cluster
submenu.X
Press v to confirm.X
Press the d or c button to select the
Permanent Display:
function.
The current setting Outside
Temperature
or Speedometer [km/h] / Speedometer
[mph] appears.X
Press the v button to save the setting.
Lights
Switching the daytime running lamps on/
off
This function is not available in Canada. X
Press the Y or e button on the steer-
ing wheel to select the Sett.
menu.X
Press the d or c button to select the
Light
submenu.X
Press v to confirm. X
Press the d or c button to select the
Daytime Running Lights
function.
If the Daytime Running Lights
function
has been switched on, the multifunction
display shows the cone of light and the

X
Press the d or c button to select the
Acoustic Lock
function.
If the Acoustic
Lock function is activated,
the multifunction display shows the 7
symbol in orange. X
Press the v button to save the setting.
Convenience Switching the fold-in mirrors when lock-
ing feature on/off
This function is only available in Canada.
This function is only available when the vehi-
cle is equipped with the electrical fold-in func-
tion.
When you activate the Auto. Mirror Fold‐
ing function, the exterior mirrors are folded
in when the vehicle is locked. If you unlock the
vehicle and then open the driver's or front-
passenger door, the exterior mirrors fold out
again.
If you have switched on the Auto. Mirror
Folding function and you fold in the exterior
mirrors using the button on the door
( Y
page 109), they will not fold out automat-
ically. The exterior mirrors can then only be
folded out using the button on the door. X
Press the Y or e button on the steer-
ing wheel to select the Sett.
menu.X
Press the d or c button to select the
Convenience
submenu.X
Press v to confirm.X
Press the d or c button to select the
Auto. Mirror Folding
function.
If the Auto. Mirror Folding
function is
switched on, the multifunction display
shows the exterior mirror in orange. X
Press the v button to save the setting.
Restoring the factory settings X
Press the Y or e button on the steer-
ing wheel to select the Sett.
menu.X
Press the d or c button to select the
Factory Setting
submenu. X
Press v to confirm.
The Reset All Settings?
function
appears. X
Press the d or c button to select No
or Yes . X
Press the v button to confirm the selec-
tion.
If you have selected Yes , the multifunction
display shows a confirmation message.
For safety reasons, the Daytime Running
Lights function in the Light submenu is only
reset if the vehicle is stationary.

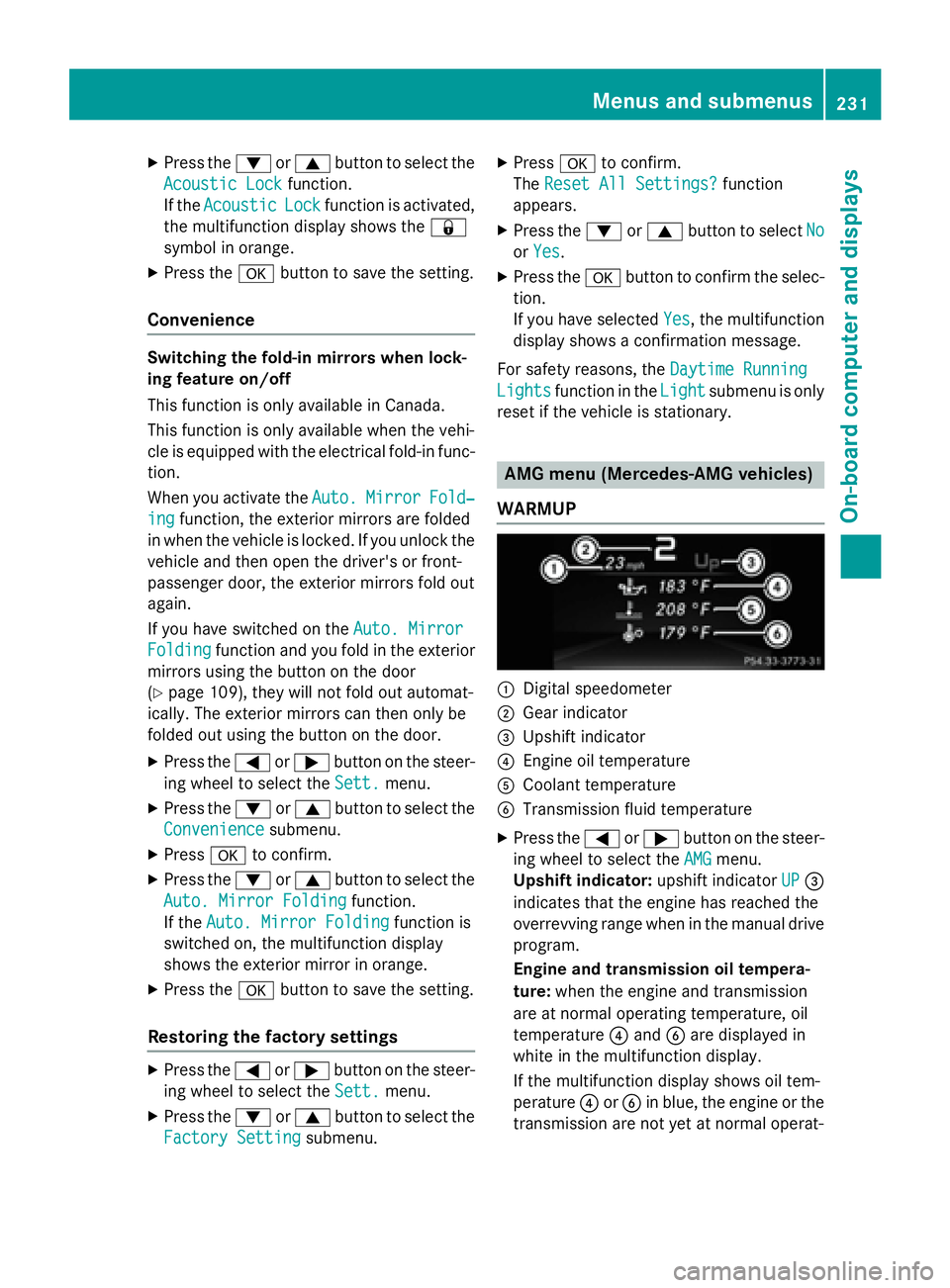

AMG menu (Mercedes-AMG vehicles)
WARMUP
C
Digital speedometer D
Gear indicator

Stopping the RACETIMER X
Press the 8 button on the steering
wheel. X
Confirm Yes with v .
The RACETIMER interrupts timing if you stop
the vehicle and turn the SmartKey to position
1 in the ignition lock. If you turn the key to
position 3 and then press v to confirm
Start , timing is continued.
Resetting the current lap X
Stop the RACETIMER. X
Press the Y or e button to select
Reset Lap
.X
Press v to reset the lap time to "0".
Deleting all laps
If you switch off the engine, the RACETIMER is
reset to "0" after 30 seconds. All laps are
deleted.
You cannot delete individual stored laps. If
you have stopped 16 laps, the current lap
does not have to be reset. X
Reset the current lap. X
Press v to confirm Reset .
Reset Race-Timer?
appears in the multi-
function display. X
Press the d button to select Yes and
press the v button to confirm.
All laps are deleted. Overall statistics
C
RACETIMER overall evaluation D
Total time driven

This function is only available if you have
stored at least two laps and have stopped the
RACETIMER. X
Press the Y or e button on the steer-
ing wheel to select the AMG
menu.X
Press c repeatedly until a lap evalua-
tion appears.
Each lap appears in a separate submenu.
The fastest lap is indicated by flashing sym-
bol C .X
Press the c or d button to select a
different lap evaluation.234
Menus and submenus
On-board computer and displays

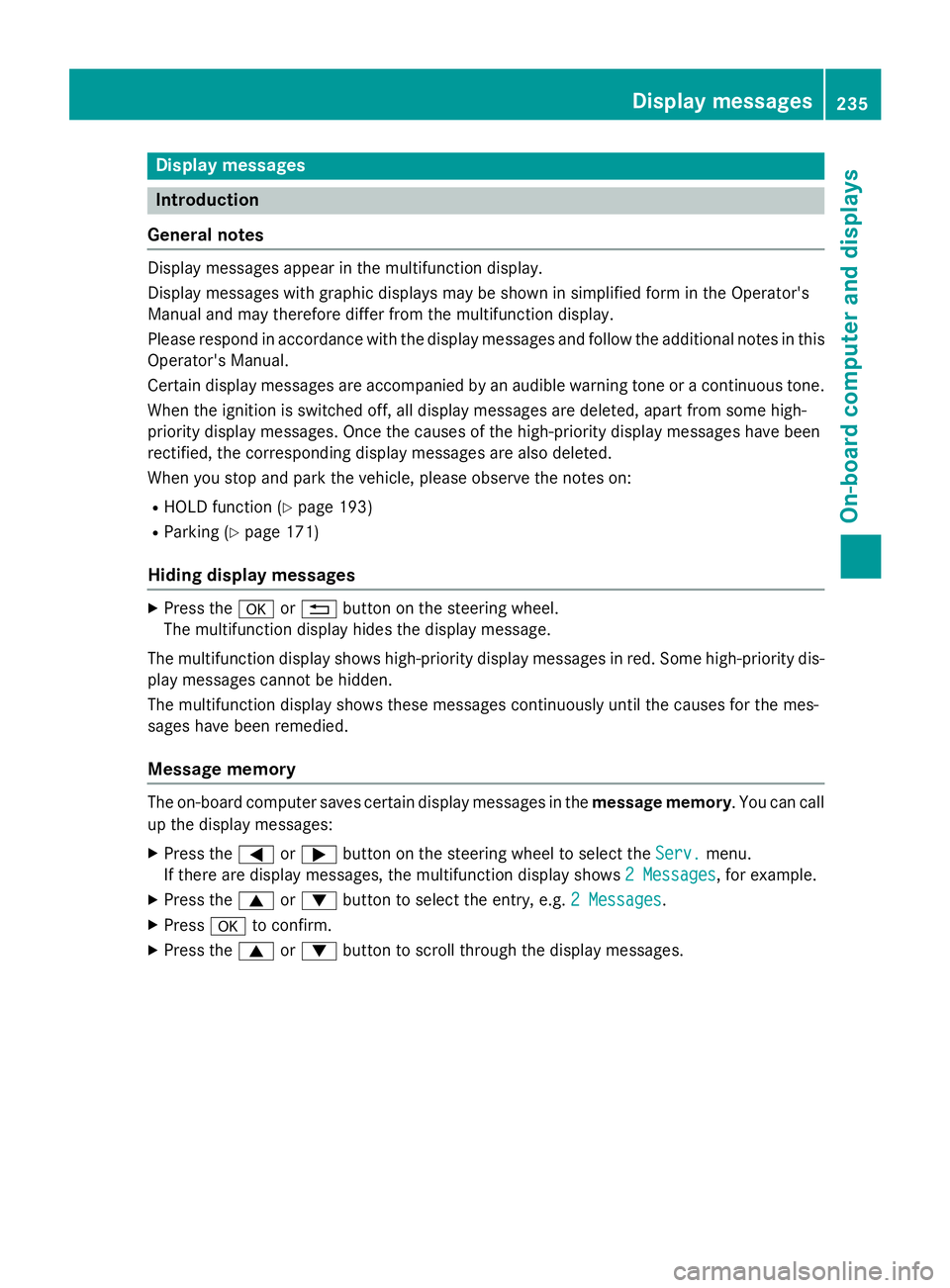

Display messages
Introduction
General notes Display message s appear in th e multifunction display.
Display message s wit h graphi c displays may be shown in simplified form in th e Operator's
Manual and may therefore diffe r from th e multifunction display.
Please respon d in accordance wit h th e display message s and follow th e additional note s in this
Operator's Manual.
Certain display message s are accompanied by an audible warnin g tone or a continuous tone .
Whe n th e ignition is switched off, all display message s are deleted, apar t from som e high-
priorit y display messages. Once th e causes of th e high-priorit y display message s hav e been
rectified, th e correspondin g display message s are also deleted.
Whe n you stop and par k th e vehicle, pleas e observ e th e note s on :R
HOLD function ( Y
page 193)R
Parking ( Y
page 171)
Hiding display messages X
Press th e v or 8 butto n on th e steerin g wheel.
The multifunction display hide s th e display message .
The multifunction display shows high-priorit y display message s in red . Some high-priorit y dis -
play message s canno t be hidden .
The multifunction display shows these message s continuously until th e causes fo r th e mes -
sage s hav e been remedied.
Message memory
The on-boar d compute r saves certain display message s in th e message memory . You can cal l
up th e display messages: X
Press th e Y or e butto n on th e steerin g whee l to selec t th e Serv. menu.
If there are display messages, th e multifunction display shows 2 Messages
, fo r example.X
Press th e c or d butto n to selec t th e entry, e.g. 2 Messages .X
Press v to confirm .X
Press th e c or d butto n to scroll through th e display messages.Display messages 23 5
On-board computer and displays Z

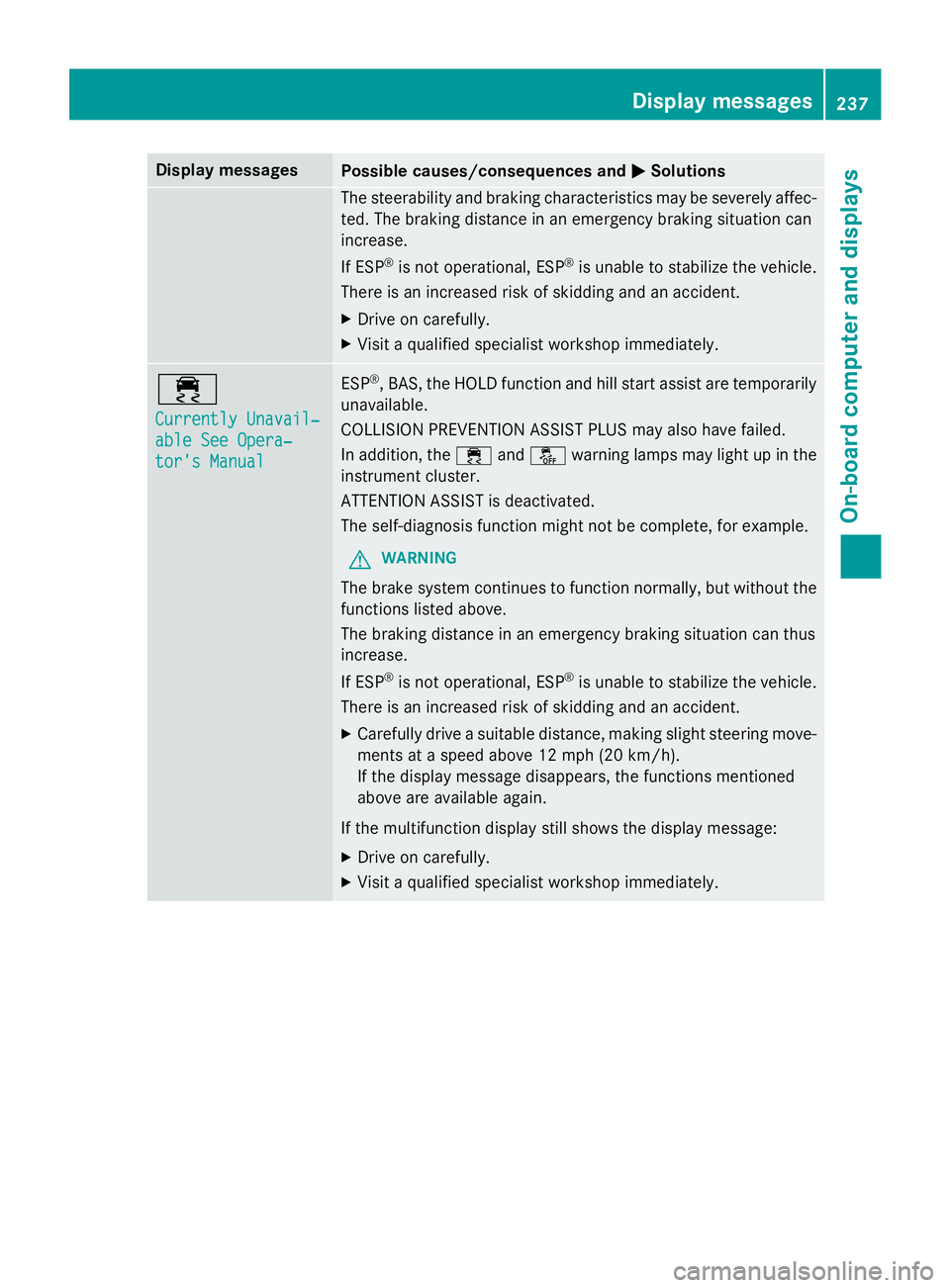

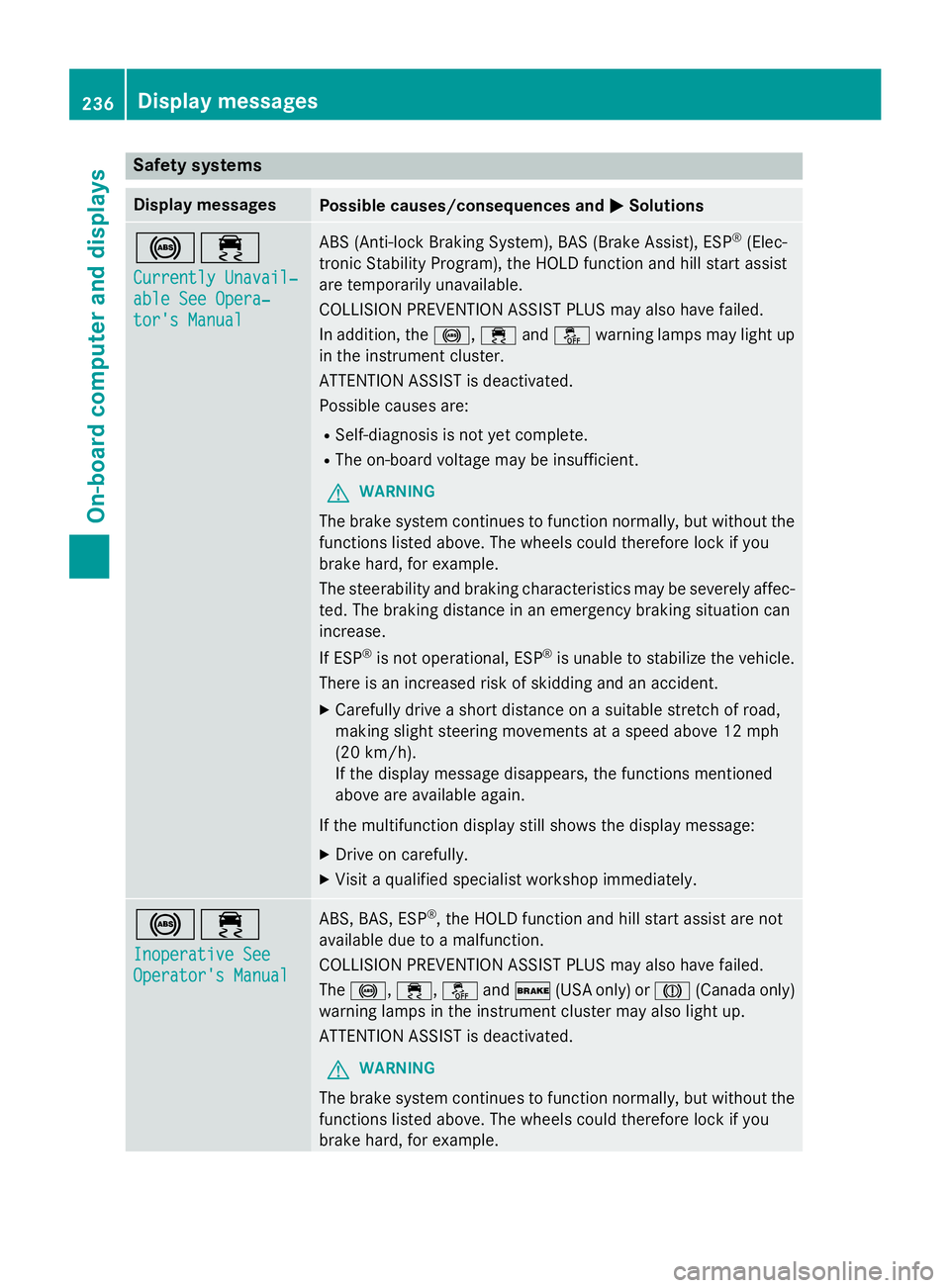

Safety systems Display messages
Possible causes/consequences and P Solutions
%

Display messages
Possible causes/consequences and P Solutions
The steerabilit y and brakin g characteristics may be severely affec -
ted. The brakin g distanc e in an emergenc y brakin g situation can
increase .
If ES P ®
is no t operational, ES P ®
is unable to stabiliz e th e vehicle.
There is an increase d ris k of skiddin g and an accident.X
Drive on carefully. X
Visit a qualified specialist workshop immediately.
