2016 MERCEDES-BENZ GL wiper fluid

BAS PLUS (Brake Assist System
PLUS) .................................................... 69
Battery (SmartKey)
Checking .......................................... 85
Important safety notes .................... 85
Replacing ......................................... 85
Battery (vehicle)
Charging ........................................ 394
Display message ............................ 307
Important safety notes .................. 391
Jump starting ................................. 395
Overview ........................................ 391
Belt
see Seat belts
Blind Spot Assist
Activating/deactivating ................. 282
Display message ............................ 314
Notes/function .............................. 244
Trailer towing ................................. 246
see Active Blind Spot Assist
BlueTEC
Adding DEF .................................... 186
BlueTEC (DEF) .................................... 450
Brake Assist
see BAS (Brake Assist System)
Brake fluid
Display message ............................ 297
Notes ............................................. 451
Brake force distribution
see EBD (electronic brake force
distribution)
Brake lamps
Changing bulbs .............................. 139
Display message ............................ 304
Brakes
ABS .................................................. 68
Adaptive Brake Assist ...................... 72
BAS .................................................. 69
BAS PLUS ........................................ 69
Brake fluid (notes) ......................... 451
Display message ............................ 291
High-performance brake system .... 196
Important safety notes .................. 194
Maintenance .................................. 195
Parking brake ................................ 190
Riding tips ...................................... 194
Warning lamp ................................. 326 Breakdown
Where will I find...? ........................ 386
see Flat tire
see Towing away
Brightness control (instrument
cluster lighting) ................................... 35
Bulbs
see Replacing bulbs
C California
Important notice for retail cus-
tomers and lessees .......................... 26
Calling up a malfunction
see Display messages
Car
see Vehicle
Car key
see SmartKey
Care
360° camera ................................. 380
Car wash ........................................ 376
Carpets .......................................... 384
Display ........................................... 381
Exhaust pipe .................................. 381
Exterior lights ................................ 379
Gear or selector lever .................... 382
Interior ........................................... 381
Matte finish ................................... 378
Night View Assist Plus ................... 382
Notes ............................................. 375
Paint .............................................. 378
Plastic trim .................................... 382
Power washer ................................ 377
Rear view camera .......................... 380
Roof lining ...................................... 384
Seat belt ........................................ 383
Seat cover ..................................... 383
Sensors ......................................... 380
Side running board ........................ 380
Steering wheel ............................... 382
Trim pieces .................................... 382
Washing by hand ........................... 377
Wheels ........................................... 379
Windows ........................................ 379
Wiper blades .................................. 379
Wooden trim .................................. 3826

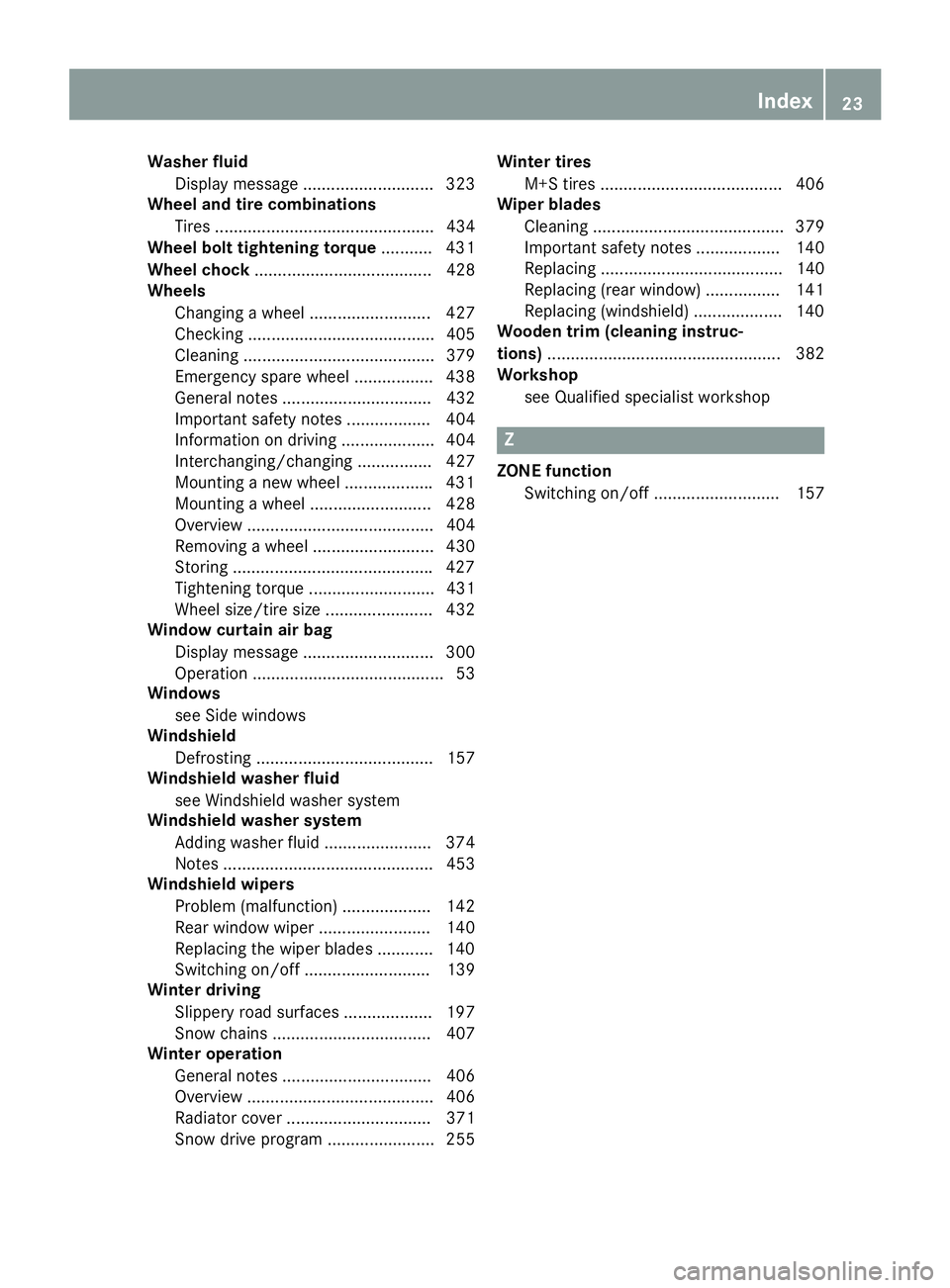

Index

Washer fluid
Display message ............................ 323
Wheel and tire combinations
Tires ............................................... 434
Wheel bolt tightening torque ........... 431
Wheel chock ...................................... 428
Wheels
Changing a wheel .......................... 427
Checking ........................................ 405
Cleaning ......................................... 379
Emergency spare wheel ................. 438
General notes ................................ 432
Important safety notes .................. 404
Information on driving .................... 404
Interchanging/changing ................ 427
Mounting a new wheel .................. .4 31
Mounting a wheel .......................... 428
Overview ........................................ 404
Removing a wheel .......................... 430
Storing .......................................... .4 27
Tightening torque ........................... 431
Wheel size/tire size ....................... 432
Window curtain air bag
Display message ............................ 300
Operation ......................................... 53
Windows
see Side windows
Windshield
Defrosting ...................................... 157
Windshield washer fluid
see Windshield washer system
Windshield washer system
Adding washer fluid ....................... 374
Notes ............................................. 453
Windshield wipers
Problem (malfunction) ................... 142
Rear window wiper ........................ 140
Replacing the wiper blades ............ 140
Switching on/off ........................... 139
Winter driving
Slippery road surfaces ................... 197
Snow chains .................................. 407
Winter operation
General notes ................................ 406
Overview ........................................ 406
Radiator cover ............................... 371
Snow drive program ....................... 255 Winter tires
M+S tires ....................................... 406
Wiper blades
Cleaning .............. ........................... 379
Important safe ty
notes .................. 140
Replacing ....................................... 140
Replacing (rear window) ................ 141
Replacing (windshield) ................... 140
Wooden trim (cleaning instruc-
tions) .................................................. 382
Workshop
see Qualified specialist workshop
Z ZONE function
Switching on/off ........................... 157 Index 23

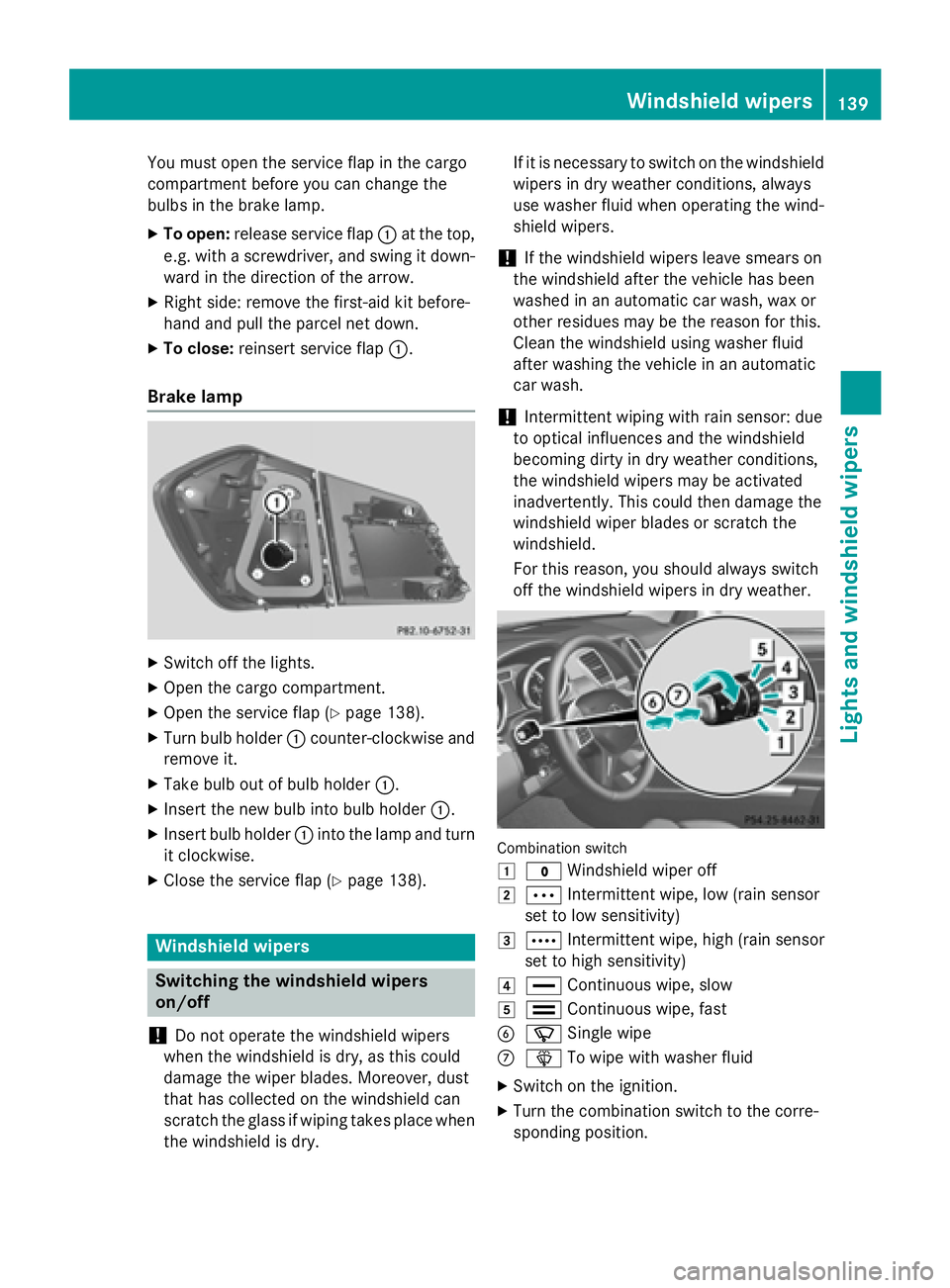

You must open the service flap in the cargo
compartment before you can change the
bulbs in the brake lamp. X
To open: release service flap C at the top,
e.g. with a screwdriver, and swing it down-
ward in the direction of the arrow. X
Right side: remove the first-aid kit before-
hand and pull the parcel net down. X
To close: reinsert service flap C .
Brake lamp X
Switch off the lights. X
Open the cargo compartment. X
Open the service flap ( Y
page 138).X
Turn bulb holder C counter-clockwise and
remove it. X
Take bulb out of bulb holder C .X
Insert the new bulb into bulb holder C .X
Insert bulb holder C into the lamp and turn
it clockwise. X
Close the service flap ( Y
page 138).
Windshield wipers
Switching the windshield wipers
on/off
! Do not operate the windshield wipers
when the windshield is dry, as this could
damage the wiper blades. Moreover, dust
that has collected on the windshield can
scratch the glass if wiping takes place when
the windshield is dry. If it is necessary to switch on the windshield
wipers in dry weather conditions, always
use washer fluid when operating the wind-
shield wipers.
! If the windshield wipers leave smears on
the windshield after the vehicle has been
washed in an automatic car wash, wax or
other residues may be the reason for this.
Clean the windshield using washer fluid
after washing the vehicle in an automatic
car wash.
! Intermittent wiping with rain sensor: due
to optical influences and the windshield
becoming dirty in dry weather conditions,
the windshield wipers may be activated
inadvertently. This could then damage the
windshield wiper blades or scratch the
windshield.
For this reason, you should always switch
off the windshield wipers in dry weather.
Combination switch
G
? Windshield wiper offH
b Intermittent wipe, low (rain sensor
set to low sensitivity) I
c Intermittent wipe, high (rain sensor
set to high sensitivity) J
