2016 MERCEDES-BENZ GL seat memory

The last position of the steering column is
stored when you: R
switch off the ignition. R
save the setting with the memory function
( Y
page 127).
Crash-responsive EASY-EXIT feature If the crash-responsive EASY-EXIT feature is
triggered in an accident, the steering column
will move upwards when the driver's door is
opened. This occurs irrespective of the posi-
tion of the SmartKey in the ignition lock. This
makes it easier to exit the vehicle and rescue
the occupants.
The crash-responsive EASY-EXIT feature is
only operational if the EASY-EXIT/ENTRY fea-
ture is activated in the on-board computer
( Y
page 285).
Mirrors
Rear-view mirror
X
Anti-glare mode: flick anti-glare lever C
forwards or back. Exterior mirrors
Adjusting the exterior mirrors
G WARNING
You could lose control of your vehicle if you do
the following while driving: R
adjust the driver's seat, head restraint,
steering wheel or mirrors R
fasten the seat belt
There is a risk of an accident.
Adjust the driver's seat, head restraint, steer-
ing wheel and mirror and fasten your seat belt
before starting the engine.
G WARNING
The exterior mirror on the front-passenger
side reduces the size of the image. Visible
objects are actually closer than they appear.
This means that you could misjudge the dis-
tance from road users traveling behind, e.g.
when changing lane. There is a risk of an acci-
dent.
For this reason, always make sure of the
actual distance from the road users traveling
behind by glancing over your shoulder.
X
Turn the SmartKey to position 1 or 2 in the
ignition lock ( Y
page 165). X
Press button C for the left-hand exterior
mirror or button D for the right-hand exte-
rior mirror.
The indicator lamp in the corresponding
button lights up in red.124
Mirrors
Seats, steering wheel and mirrors

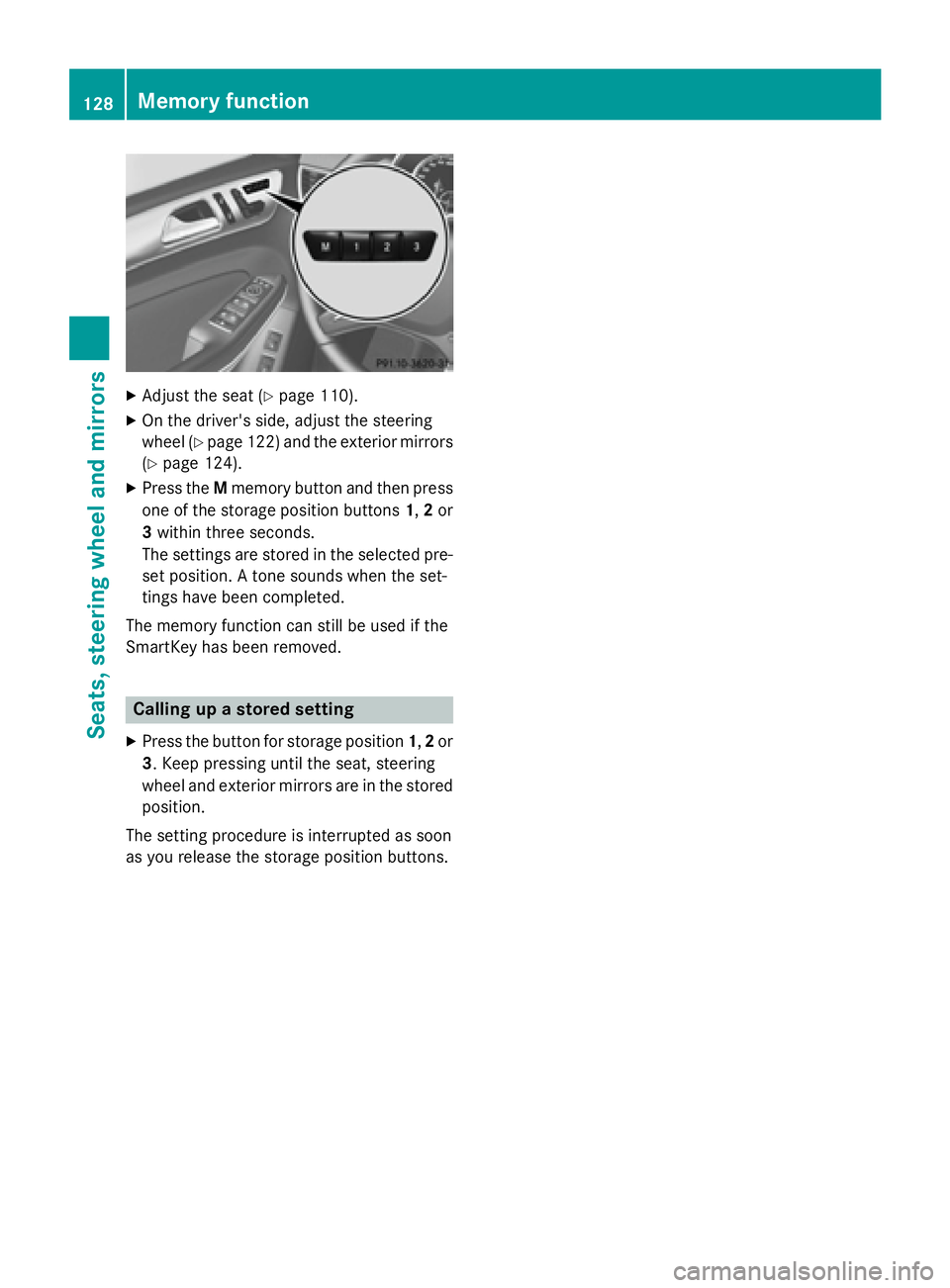

X
Adjust the seat ( Y
page 110).X
On the driver's side, adjust the steering
wheel ( Y
page 122 )a nd the exterior mirrors
( Y
page 124). X
Press the M memory button and then press
one of the storage position buttons 1 , 2 or
3 within three seconds.
The settings are stored in the selected pre-
set position. A tone sounds when the set-
tings have been completed.
The memory function can still be used if the
SmartKey has been removed.
Calling up a stored setting X
Press the button for storage position 1 , 2 or
3 . Keep pressing until the seat, steering
wheel and exterior mirrors are in the stored
position.
The setting procedure is interrupted as soon
as you release the storage position buttons.128
Memory function
Seats, steering wheel an d mirrors

occupants – particularly children – could
become trapped. There is a risk of injury.
While the EASY-ENTRY/EXIT feature is mak-
ing adjustments, make sure that no one has
any body parts in the sweep of the steering
wheel.
If somebody becomes trapped: R
press one of the memory function position
buttons, or R
move the switch for steering wheel adjust-
ment in the opposite direction to that in
which the steering wheel is moving.
The adjustment process is stopped. X
Press the Y or e button on the steer-
ing wheel to select the Sett
menu.X
Press the d or c button to select the
Convenience
submenu.X
Press v to confirm.X
Press the d or c button to select the
Easy Entry/Exit:
function.
If the Easy Entry/Exit
function is activa-
ted, the vehicle steering wheel is displayed
in orange in the multifunction display. X
Press the v button to save the setting.
Further information on the EASY-ENTRY/EXIT
feature ( Y
page 123).
Switching the belt adjustment on/off X
Press the Y or e button on the steer-
ing wheel to select the Sett.
menu.X
Press the d or c button to select the
Convenience
submenu.X
Press v to confirm.X
Press the d or c button to select the
Belt Adjustment
function.
If the Belt Adjustment
function is activa-
ted, the vehicle seat belt is shown in orange
in the multifunction display. X
Press the v button to save the setting.
For further information on belt adjustment,
see ( Y
page 49). Switching the fold-in mirrors when lock-
ing feature on/off
This function is only available when the vehi-
cle is equipped with the electrical fold-in func-
tion.
When you activate the Auto. Mirror Fold‐
ing function, the exterior mirrors are folded
in when the vehicle is locked. The exterior
mirrors fold out automatically again as soon
as you unlock the vehicle. X
Press the Y or e button on the steer-
ing wheel to select the Sett.
menu.X
Press the d or c button to select the
Convenience
submenu. X
Press v to confirm. X
Press the d or c button to select the
Auto. Mirror Folding
function.
If the Auto.
fold-in mirrors function is
switched on, the multifunction display
shows the exterior mirror in orange. X
Press the v button to save the setting.
If you have switched the Auto. Mirror
Folding on and you fold the exterior mirrors
in using button C , they will not fold out auto-
matically ( Y
page 125).
You can then only fold out the exterior mirrors
using button C .
Restoring the factory settings X
Press the Y or e button on the steer-
ing wheel to select the Sett.
menu.X
Press the d or c button to select the
Factory Setting
submenu.286
Menus and submenus
On-board computer and displays
