2016 MERCEDES-BENZ GL climate control

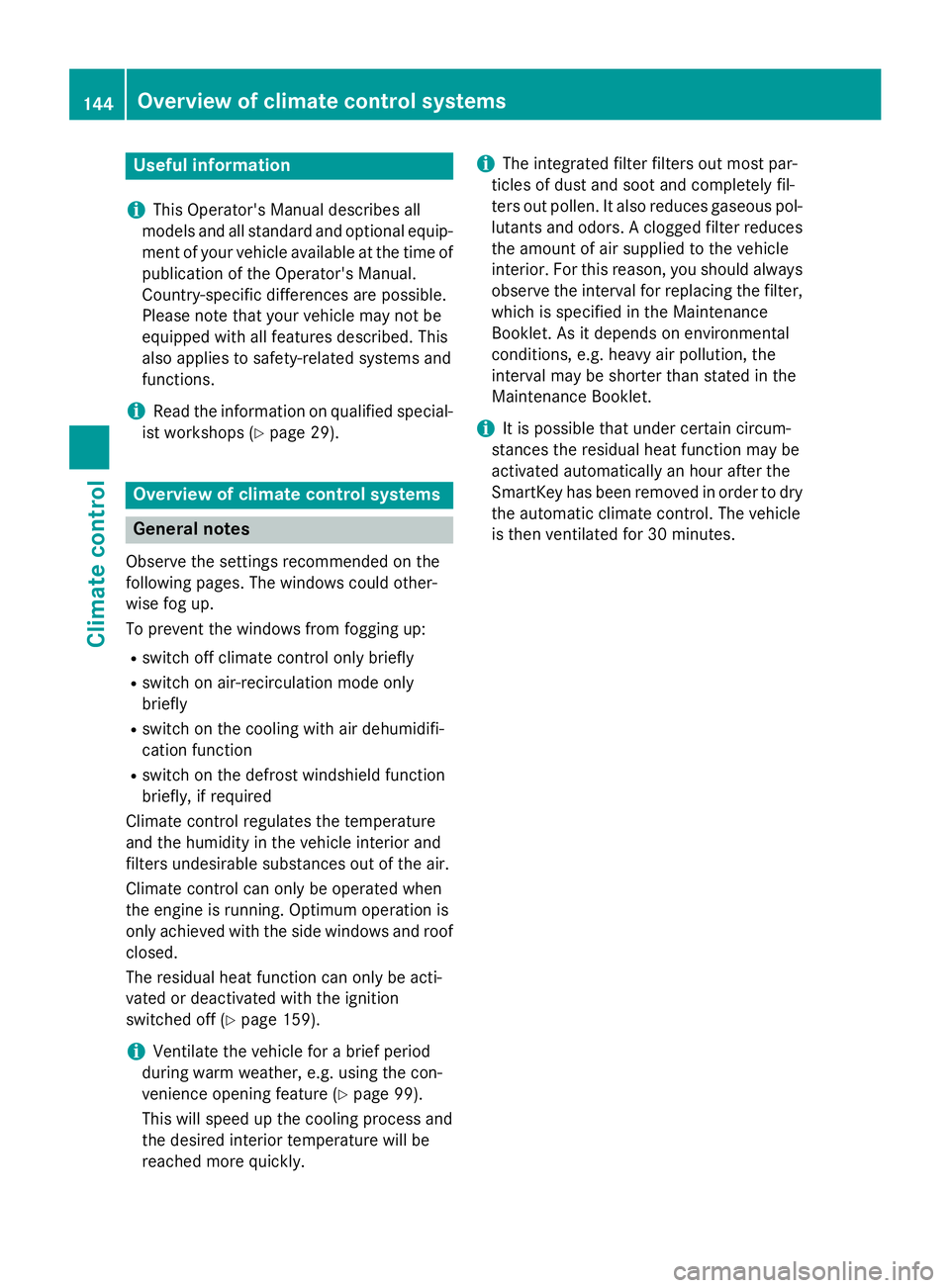

Useful information
i This Operator's Manual describes all
models and all standard and optional equip-
ment of your vehicle available at the time of
publication of the Operator's Manual.
Country-specific differences are possible.
Please note that your vehicle may not be
equipped with all features described. This
also applies to safety-related systems and
functions.
i Read the information on qualified special-
ist workshops ( Y
page 29).
Overview of climate control systems
General notesObserve the settings recommended on the
following pages. The windows could other-
wise fog up.
To prevent the windows from fogging up: R
switch off climate control only briefly R
switch on air-recirculation mode only
briefly R
switch on the cooling with air dehumidifi-
cation function R
switch on the defrost windshield function
briefly, if required
Climate control regulates the temperature
and the humidity in the vehicle interior and
filters undesirable substances out of the air.
Climate control can only be operated when
the engine is running. Optimum operation is
only achieved with the side windows and roof
closed.
The residual heat function can only be acti-
vated or deactivated with the ignition
switched off ( Y
page 159).
i Ventilate the vehicle for a brief period
during warm weather, e.g. using the con-
venience opening feature ( Y
page 99).
This will speed up the cooling process and
the desired interior temperature will be
reached more quickly. i The integrated filter filters out most par-
ticles of dust and soot and completely fil-
ters out pollen. It also reduces gaseous pol-
lutants and odors. A clogged filter reduces
the amount of air supplied to the vehicle
interior. For this reason, you should always
observe the interval for replacing the filter,
which is specified in the Maintenance
Booklet. As it depends on environmental
conditions, e.g. heavy air pollution, the
interval may be shorter than stated in the
Maintenance Booklet.
i It is possible that under certain circum-
stances the residual heat function may be
activated automatically an hour after the
SmartKey has been removed in order to dry
the automatic climate control. The vehicle
is then ventilated for 30 minutes.144
Overview of climate control systems
Climate control

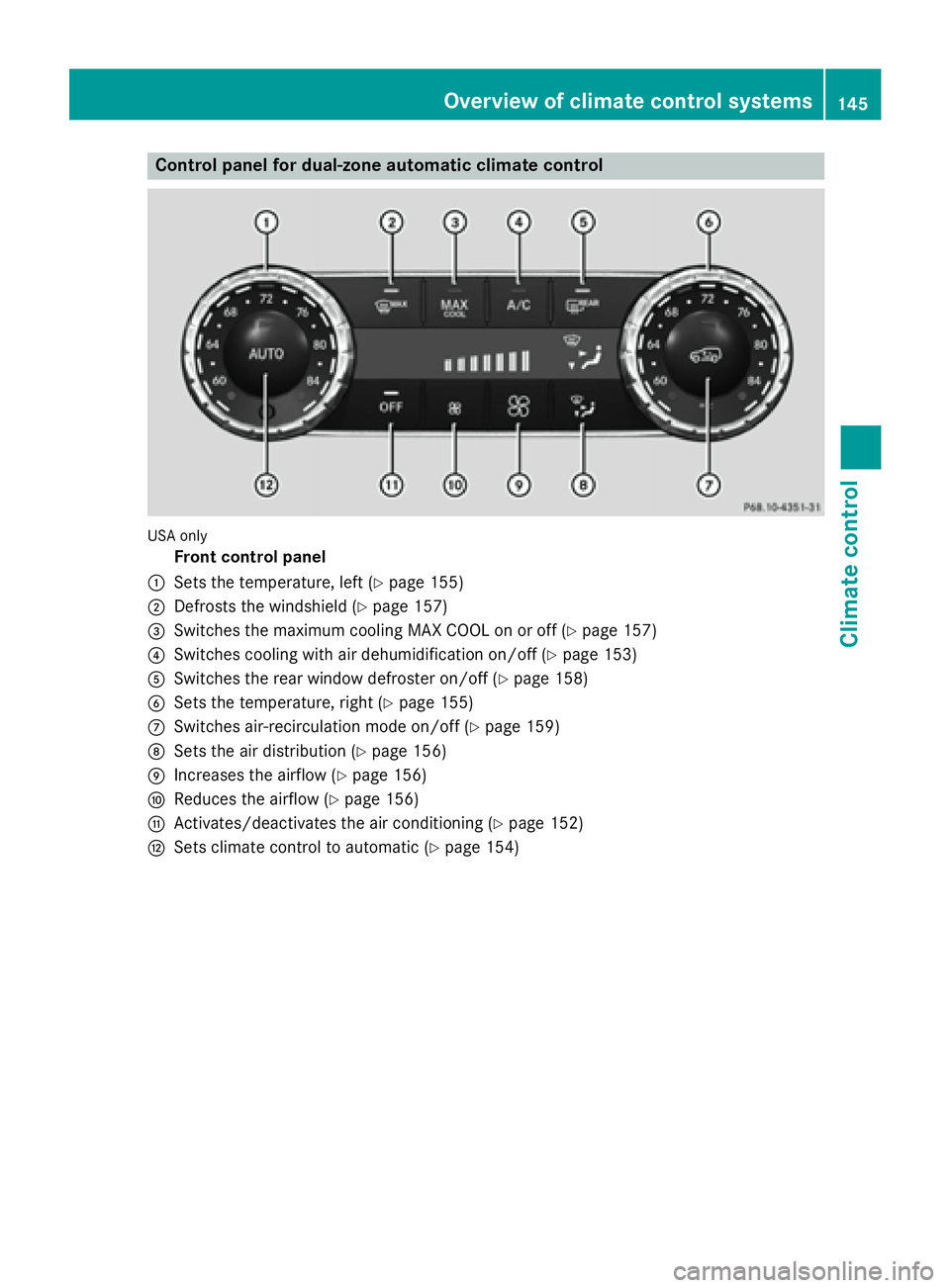

Control panel for dual-zone automatic climate control
US A only
Front control panelC
Sets the temperature, left ( Y
page 155)D
Defrosts the windshield ( Y
page 157)

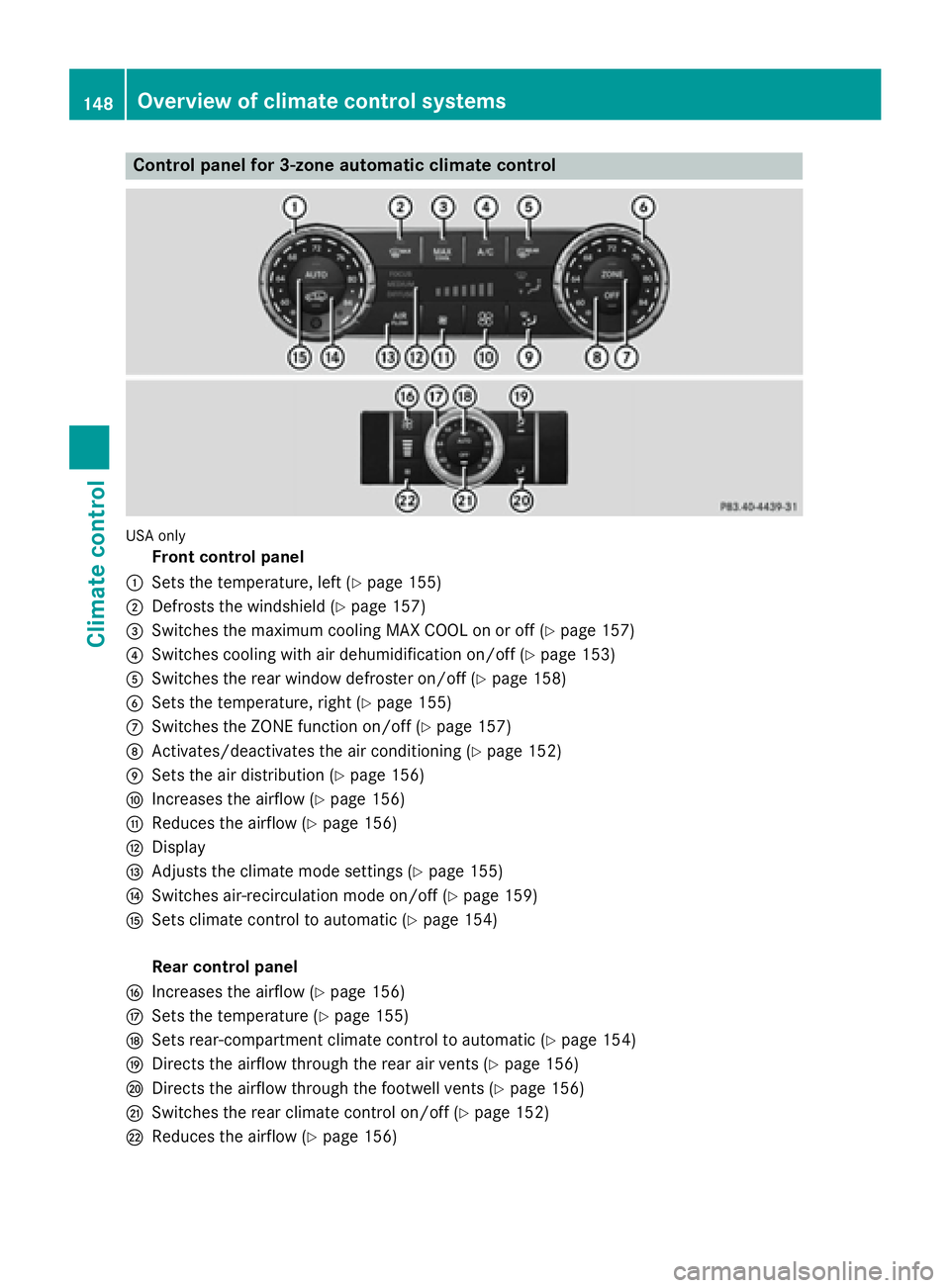

Control panel for 3-zone automatic climate control
US A only
Front control panelC
Sets the temperature, left ( Y
page 155)D
Defrosts the windshield ( Y
page 157)

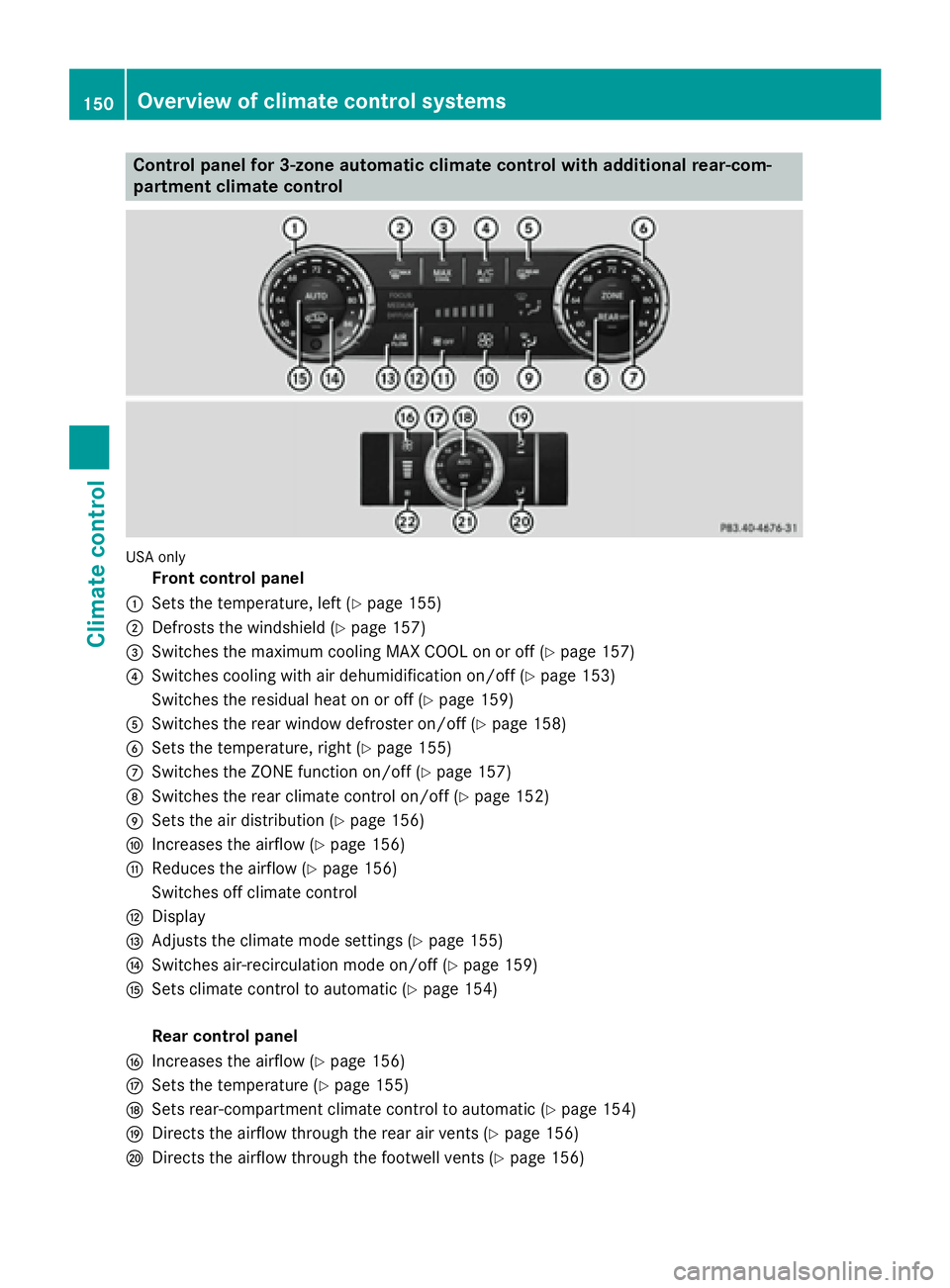

Control panel for 3-zone automatic climate control with additional rear-com-
partment climate control
US A only
Front control panelC
Sets the temperature, left ( Y
page 155)D
Defrosts the windshield ( Y
page 157)

y
Switches the rear climate control on/off ( Y
page 152)z
Reduces the airflow ( Y
page 156)
Canada only
Front control panelC
Sets the temperature, left ( Y
page 155)D
Defrosts the windshield ( Y
page 157)

y
Switches the rear climate control on/off ( Y
page 152)z
Reduces the airflow ( Y
page 156)

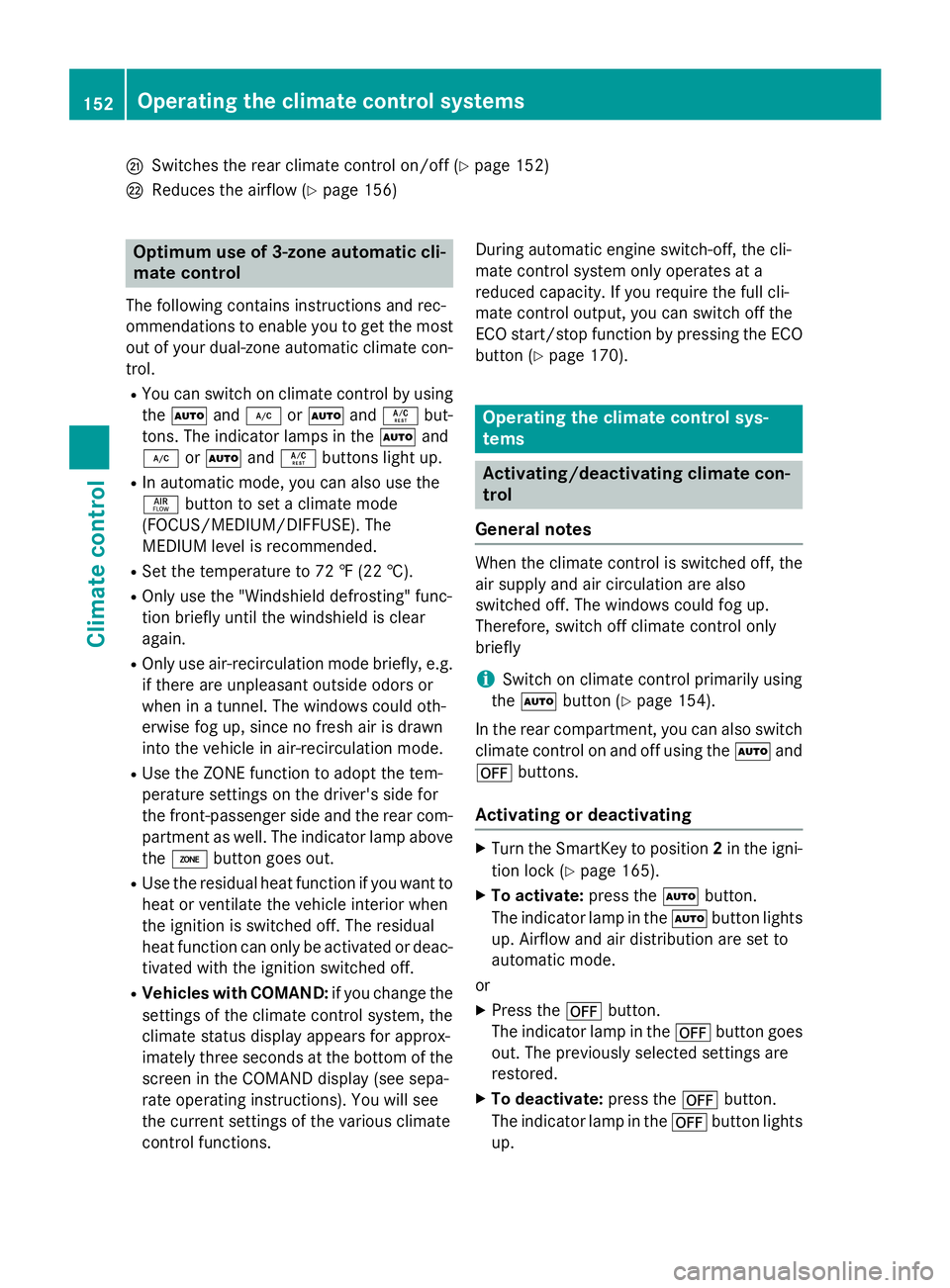

Optimum use of 3-zone automatic cli-
mate controlThe following contains instructions and rec-
ommendations to enable you to get the most
out of your dual-zone automatic climate con-
trol. R
You can switch on climate control by using
the X and Z or X and V but-
tons. The indicator lamps in the X and
Z or X and V buttons light up.R
In automatic mode, you can also use the

Switching cooling with air dehumidi-
fication on/off
General notes If you deactivate the "Cooling with air-dehu-
midification" function, the air inside the vehi-
cle will not be cooled. The air inside the vehi-
cle will also not be dehumidified. The win-
dows can fog up more quickly. Therefore, only
deactivate the "Cooling with air-dehumidifi-
cation" function briefly.
The "Cooling with air dehumidification" func-
tion is only available when the engine is run-
ning. The air inside the vehicle is cooled and
dehumidified according to the temperature
selected.
Condensation may drip from the underside of
the vehicle when it is in cooling mode. This is
normal and not a sign that there is a malfunc-
tion.
Activating or deactivating
Example: Z buttonX
To activate: press the Z or V but-
ton.
The indicator lamp in the Z or V
button lights up. X
To deactivate: press the Z or V
button.
The indicator lamp in the Z or V
button goes out. The "Cooling with air dehu-
midification" function has a delayed switch-
off feature. Operating the climate control systems 153
Climate control

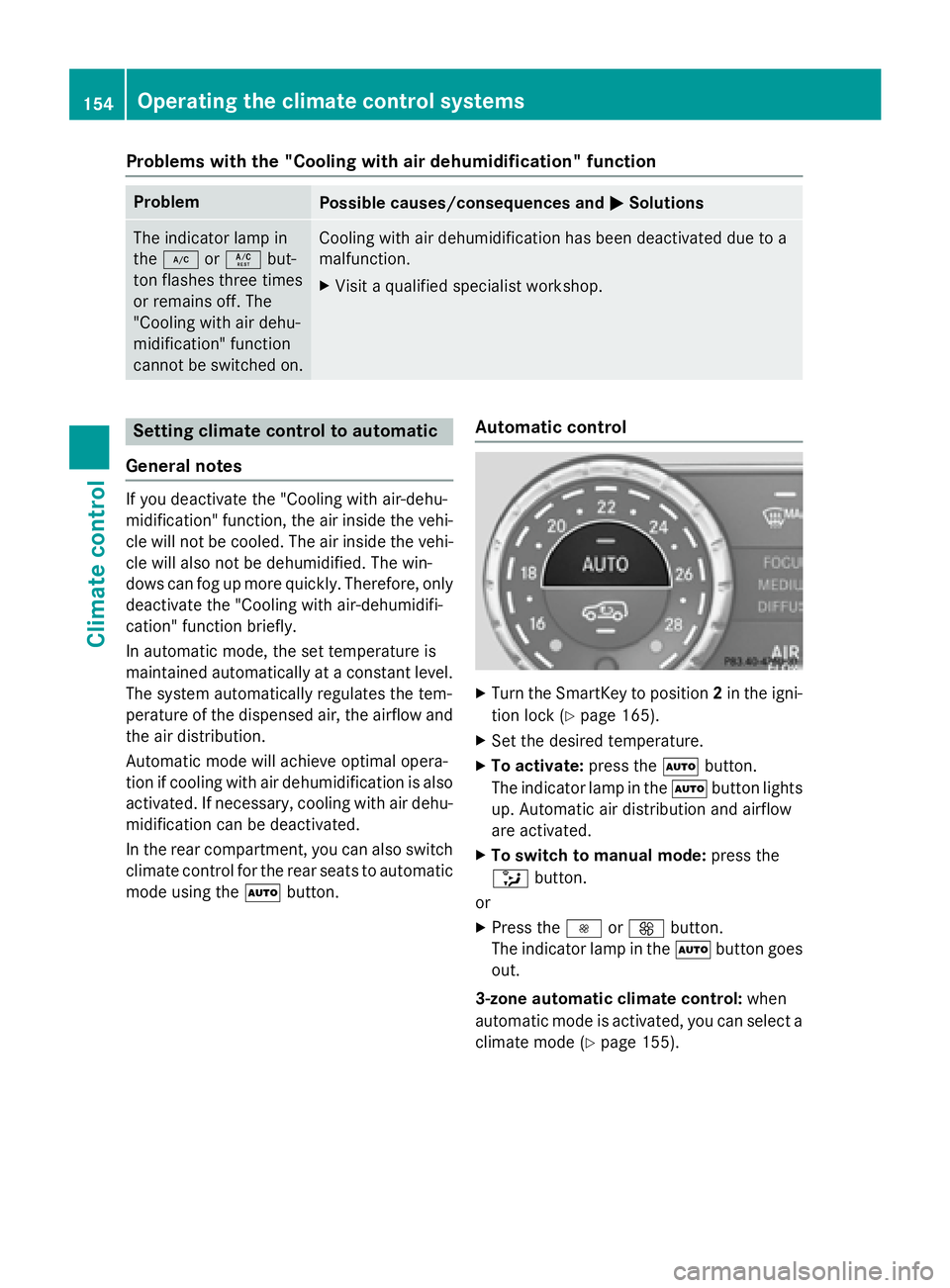

Problems with the "Cooling with air dehumidification" function Problem
Possible causes/consequences and P Solutions
The indicator lamp in
the Z or V but-
ton flashes three times
or remains off. The
"Cooling with air dehu-
midification" function
cannot be switched on. Cooling with air dehumidification has been deactivated due to a
malfunction. X
Visit a qualified specialist workshop.
Setting climate control to automatic
General notes If you deactivate the "Cooling with air-dehu-
midification" function, the air inside the vehi-
cle will not be cooled. The air inside the vehi-
cle will also not be dehumidified. The win-
dows can fog up more quickly. Therefore, only
deactivate the "Cooling with air-dehumidifi-
cation" function briefly.
In automatic mode, the set temperature is
maintained automatically at a constant level.
The system automatically regulates the tem-
perature of the dispensed air, the airflow and
the air distribution.
Automatic mode will achieve optimal opera-
tion if cooling with air dehumidification is also
activated. If necessary, cooling with air dehu-
midification can be deactivated.
In the rear compartment, you can also switch
climate control for the rear seats to automatic
mode using the X button. Automatic control
X
Turn the SmartKey to position 2 in the igni-
tion lock ( Y
page 165). X
Set the desired temperature. X
To activate: press the X button.
The indicator lamp in the X button lights
up. Automatic air distribution and airflow
are activated. X
To switch to manual mode: press the
