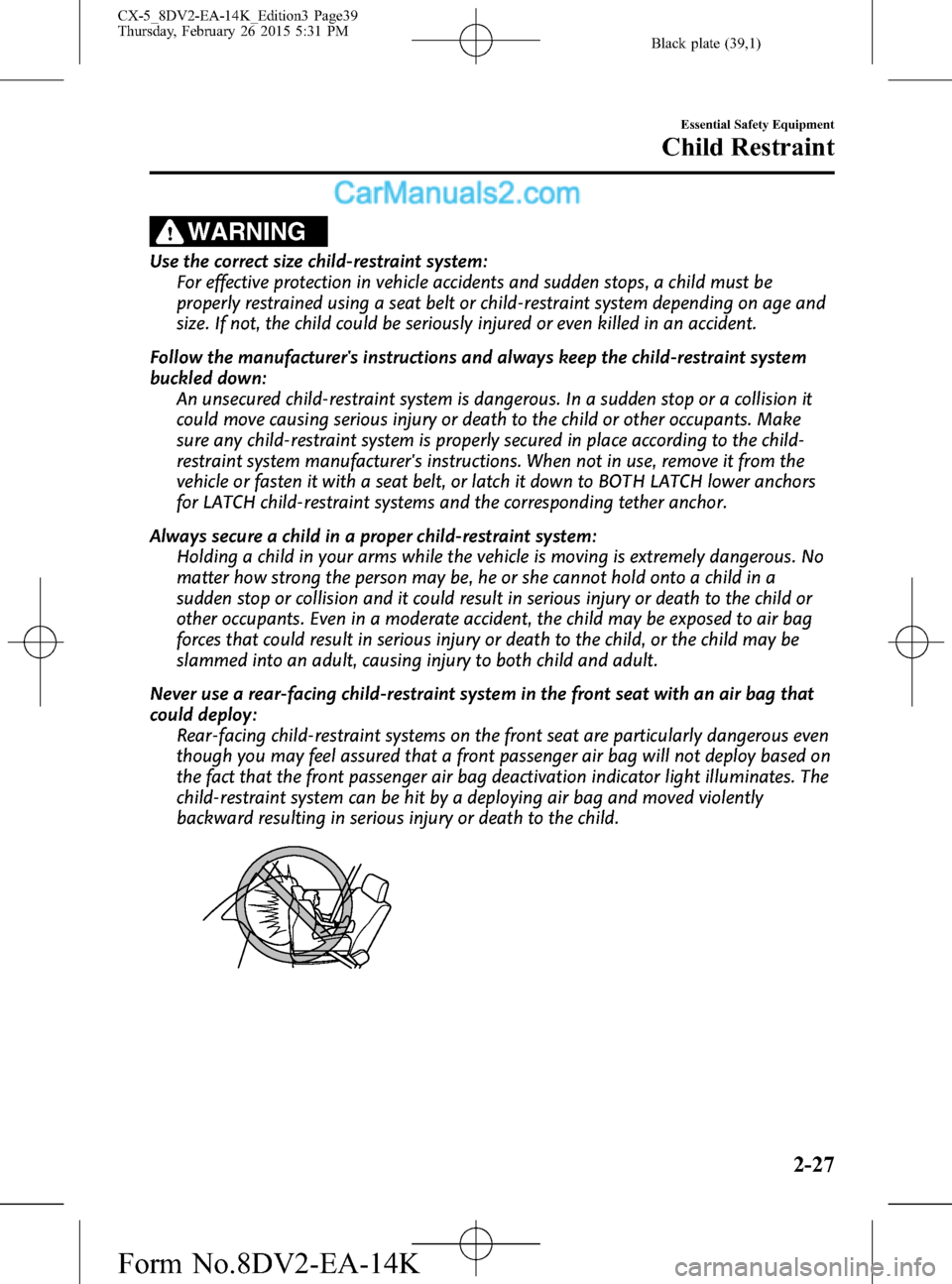

2016 MAZDA MODEL CX-5 ESP

Black plate (39,1)
WARNING
Use the correct size child-restraint system:
For effective protection in vehicle accidents and sudden stops, a child must be
properly restrained using a seat belt or child-restraint system depending on age and
size. If not, the child could be seriously injured or even killed in an accident.
Follow the manufacturer's instructions and always keep the child-restraint system
buckled down:
An unsecured child-restraint system is dangerous. In a sudden stop or a collision it
could move causing serious injury or death to the child or other occupants. Make
sure any child-restraint system is properly secured in place according to the child-
restraint system manufacturer's instructions. When not in use, remove it from the
vehicle or fasten it with a seat belt, or latch it down to BOTH LATCH lower anchors
for LATCH child-restraint systems and the corresponding tether anchor.
Always secure a child in a proper child-restraint system:
Holding a child in your arms while the vehicle is moving is extremely dangerous. No
matter how strong the person may be, he or she cannot hold onto a child in a
sudden stop or collision and it could result in serious injury or death to the child or
other occupants. Even in a moderate accident, the child may be exposed to air bag
forces that could result in serious injury or death to the child, or the child may be
slammed into an adult, causing injury to both child and adult.
Never use a rear-facing child-restraint system in the front seat with an air bag that
could deploy:
Rear-facing child-restraint systems on the front seat are particularly dangerous even
though you may feel assured that a front passenger air bag will not deploy based on
the fact that the front passenger air bag deactivation indicator light illuminates. The
child-restraint system can be hit by a deploying air bag and moved violently
backward resulting in serious injury or death to the child.
Essential Safety Equipment
Child Restraint
2-27
CX-5_8DV2-EA-14K_Edition3 Page39
Thursday, February 26 2015 5:31 PM
Form No.8DV2-EA-14K

Black plate (68,1)
(With Front Passenger Occupant Classification System)
In a roll-over:
In response to a vehicle roll-over, both curtain air bags inflate.
Both curtain air bags will deploy after
the roll-over accident is detected.
qWarning Light/Beep
A system malfunction or operation conditions are indicated by a warning.
Refer to Warning/Indicator Lights on page 4-20.
Refer to Air Bag/Front Seat Belt Pretensioner System Warning Beep on page 7-35.
2-56
Essential Safety Equipment
SRS Air Bags
CX-5_8DV2-EA-14K_Edition3 Page68
Thursday, February 26 2015 5:31 PM
Form No.8DV2-EA-14K

Black plate (82,1)
Keyless Entry System
This system uses the key buttons to
remotely lock and unlock the doors and
the liftgate.
The system can start the engine without
having to take the key out of your purse
or pocket.
It can also help you signal for attention.
Operating the theft-deterrent system is
also possible on theft-deterrent system-
equipped vehicles.
Press the buttons slowly and carefully.
System malfunctions or warnings are
indicated by the following warning lights
or beeps.
For vehicles with the type A instrument
cluster, check the displayed message for
more information and, if necessary, have
the vehicle inspected at an Authorized
Mazda Dealer, according to the indication.
lKEY Warning Light (Red)
Refer to Warning/Indicator Lights on
page 4-20.
lIgnition Not Switched Off (STOP)
Warning Beep
Refer to Ignition Not Switched Off
(STOP) Warning Beep on page 7-36.
lKey Removed from Vehicle Warning
Beep
Refer to Key Removed from Vehicle
Warning Beep on page 7-36.
If you have a problem with the key,
consult an Authorized Mazda Dealer.
If your key is lost or stolen, consult an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen key inoperative.
CAUTION
Radio equipment like this is governed
by laws.
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
NOTE
lThe keyless entry system operation may
vary due to local conditions.
lThe keyless entry system is fully operational
(door/liftgate lock/unlock) when the push
button start is switched off. The system does
not operate if the push button start is
switched to any position other than off.
lIf the key does not operate when pressing a
button or the operational range becomes
too small, the battery may be dead. To
install a new battery, refer to Replace
Electrical Battery(page 6-39).
lBattery life is about one year. Replace the
battery with a new one if the KEY indicator
light (green) flashes in the instrument
cluster. Replacing the battery about once a
year is recommended because the KEY
warning light/indicator light may not
illuminate or flash depending on the rate of
battery depletion.
lAdditional keys can be obtained at an
Authorized Mazda Dealer. Up to 6 keys can
be used with the keyless functions per
vehicle. Bring all keys to an Authorized
Mazda Dealer when additional keys are
required.
3-4
Before Driving
Keys
CX-5_8DV2-EA-14K_Edition3 Page82
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (89,1)
Door Locks
WARNING
Always take all children and pets with
you or leave a responsible person with
them:
Leaving a child or a pet unattended
in a parked vehicle is dangerous. In
hot weather, temperatures inside a
vehicle can become high enough to
cause brain damage or even death.
Do not leave the key in your vehicle
with children and keep them in a place
where your children will not find or
play with them:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed.
Keep all doors locked when driving:
Unlocked doors in a moving vehicle
are dangerous. Passengers can fall
out if a door is accidentally opened
and can more easily be thrown out in
an accident.
Always close all the windows and
moonroof, lock the doors and take the
key with you when leaving your vehicle
unattended:
Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle
left unlocked becomes an easy target
for thieves and intruders.After closing the doors, always verify
that they are securely closed:
Doors not securely closed are
dangerous, if the vehicle is driven
with a door not securely closed, the
door could open unexpectedly
resulting in an accident.
Always confirm the safety around the
vehicle before opening a door:
Suddenly opening a door is
dangerous. A passing vehicle or a
pedestrian could be hit and cause an
accident.
CAUTION
Always confirm the conditions
around the vehicle before opening/
closing the doors and use caution
during strong winds or when parked
on an incline. Not being aware of the
conditions around the vehicle is
dangerous because fingers could get
caught in the door or a passing
pedestrian could be hit, resulting in
an unexpected accident or injury.
Before Driving
Doors and Locks
3-11
CX-5_8DV2-EA-14K_Edition3 Page89
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (99,1)
NOTE
(With the advanced keyless function)lA locked liftgate can also be opened while
the key is being carried.
lWhen opening the liftgate with the doors
and the liftgate locked, it may require a few
seconds for the liftgate latch to release after
the electric liftgate opener is pressed.
lThe liftgate can be closed when the doors
are locked with the key left in the vehicle.
However, to prevent leaving the key in the
vehicle, the liftgate can be opened by
pressing the electric liftgate opener. If the
liftgate cannot be opened despite doing this
procedure, press the electric liftgate opener
to fully open the liftgate after pushing the
liftgate completely closed.
lWhen the liftgate latch is released by
pressing the electric liftgate opener, the
liftgate raises slightly to allow it to be
opened. If the liftgate is not operated for a
certain period of time after the electric
liftgate opener has been pressed, the
liftgate cannot be raised any more from its
slightly raised position. Press the electric
liftgate opener again to fully open the
liftgate. To close the liftgate from its slightly
raised position, open it first by pressing the
electric liftgate opener, and waiting for 1
second or longer then close it.
If the liftgate is not fully closed, the driver
is notified by a warning indicated in the
instrument cluster.
lIf the vehicle battery is dead or there is a
malfunction in the electrical system and the
liftgate cannot be unlocked, the liftgate can
be opened by performing the emergency
procedure.
Refer to When Liftgate Cannot be Opened
on page 7-39.
Closing the liftgate
To close, lower the liftgate slowly using
the liftgate grip recess, and then push the
liftgate closed using both hands.
Do not slam it. Pull up on the liftgate to
make sure it is secure.
Liftgate griprecess
qLuggage Compartment
Loading golf bags
Golf bags can be carried in the luggage
compartment.
Up to four golf bags can be carried in the
luggage compartment.
Place each of the first three golf bags into
the luggage compartment with the bottom
of each bag pointed to the right, and then
set the top of each bag so that it is pointed
to the left.
Before Driving
Doors and Locks
3-21
CX-5_8DV2-EA-14K_Edition3 Page99
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (110,1)
Power Windows
The ignition must be switched ON for the
power windows to operate.
WARNING
Make sure the opening is clear before
closing a window:
Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death. This warning applies
especially to children.
Never allow children to play with
power window switches:
Power window switches that are not
locked with the power window lock
switch would allow children to
operate power windows
unintentionally which could result in
serious injury if a child's hands, head
or neck becomes caught by the
window.
CAUTION
To prevent burning out the fuse and
damaging the power window system,
do not open or close more than three
windows at once.
NOTE
A power window may no longer open/close if
you continue to press the switch after fully
opening/closing the power window. If the
power window does not open/close, wait a
moment and then operate the switch again.
qOperating the Driver's Side
Power Window
Normal opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Driver's window
Open Close Master control switches
Auto-opening/closing
To fully open the window automatically,
press the switch completely down, then
release. The window will fully open
automatically.
To fully close the window automatically,
pull the switch completely up, then
release. The window will fully close
automatically.
To stop the window partway, pull or press
the switch in the opposite direction and
then release it.
3-32
Before Driving
Windows
CX-5_8DV2-EA-14K_Edition3 Page110
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (113,1)
Moonroofí
The moonroof can be opened or closed
electrically only when the ignition is
switched ON.
Tilt/Slide switch
WARNING
Do not let passengers stand up or
extend part of the body through the
open moonroof while the vehicle is
moving:
Extending the head, arms, or other
parts of the body through the
moonroof is dangerous. The head or
arms could hit something while the
vehicle is moving. This could cause
serious injury or death.
Make sure the opening is clear before
closing the moonroof:
A closing moonroof is dangerous. The
hands, head, or even neck of a
person, especially a child, could be
caught in it as it closes, causing
serious injury or even death.NOTE
Before washing your Mazda, make sure the
moonroof is completely closed so that water
does not get inside the cabin area. After
washing your Mazda or after it rains, wipe the
water off the moonroof before operating it to
avoid water penetration which could cause
rust and water damage to your headliner.
qTilt Operation
The rear of the moonroof can be tilted
open to provide more ventilation.
To fully tilt automatically, momentarily
press the tilt/slide switch.
To stop tilting partway, press the tilt/slide
switch.
To close to the desired position, press the
tilt/slide switch in the forward direction.
Close (Tilt down)
Tilt up
qSlide Operation
To fully open automatically, momentarily
press the tilt/slide switch in the backward
direction.
To stop sliding partway, press the tilt/slide
switch.
Before Driving
Windows
3-35íSome models. CX-5_8DV2-EA-14K_Edition3 Page113
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (115,1)
Modification and Add-On
Equipment
Mazda cannot guarantee the immobilizer
and the theft-deterrent systems' operation
if the system have been modified or if any
add-on equipment has been installed.
CAUTION
To avoid damage to your vehicle, do
not modify the system or install any
add-on equipment to the immobilizer
and the theft-deterrent systems or
the vehicle.
Immobilizer System
The immobilizer system allows the engine
to start only with a key the system
recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
CAUTION
ØRadio equipment like this is
governed by laws.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to
operate the equipment.
ØTo avoid damage to the key, do
not:
ØDrop the key.
ØGet the key wet.
ØExpose the key to any kind of
magnetic field.
ØExpose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
ØIf the engine does not start with
the correct key, and the security
indicator light keeps illuminating
or flashing, the system may have
a malfunction. Consult an
Authorized Mazda Dealer.
Before Driving
Security System
3-37
CX-5_8DV2-EA-14K_Edition3 Page115
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K
