Automatic Climate Control
NOTE: A/C indicator
will illuminate when
AUTO ON is active.
The air conditioning
cycles on/off as
necessary to maintain
the set temperature.
The A /C may operate
even while heating
is desired - this is
to prevent excess
humidity and
fogging while the
system operates.DRIVER TEMPERATURE
CONTROL DIAL
Push to defrost
the rear window.PASSENGER
TEMPERATURE
CONTROL DIAL
Push to turn DUAL
mode ON/OFF.
• With DUAL mode
ON (indicator on),
rotate the dial to
set passenger
side temperature
separate from
the driver’s side
(shown above).
• With DUAL mode
OFF (indicator off),
driver controls the
temperature setting
on both sides.
Push to select the
following airflow mode:
Dashboard vents
Dashboard
and floor vents
Floor vents
Defroster and
floor vents
Push to defrost
the windshield.
Push to
manually turn
air conditioning
on or off.
NOTE: Automatic
temperature control
always works even
if the AUTO indicator
turns off by changing
the fan speed or
airflow mode.
Fan Control
• Push the fan (+) and (-)
buttons to select the
desired fan speed.
• Push OFF to turn climate
control system off.
Push to recirculate
cabin air to reduce
outside odors and
improve cooling.
Push for fresh
air circulation.
AUTO ON: Push dial
to turn automatic air
conditioning system
on (AUTO ON and A /C
indicator on). The airflow
mode, fan speed and
air conditioning will be
automatically controlled
in accordance with the
set temperature.
1945220_16d_Mazda6_SSG_061815.indd 326/18/15 11:57 AM

33
SHIFT POSITION INDICATOR TACHOMETER
Instrument Cluster
ODOMETER/

TRIP METER
IMPORTANT: When your
Mazda Connect display setting
is set on “AUTO”, the instrument
cluster and display may become
dimmer when the headlights are
on. If the display and instrument
cluster become too dim or too
bright when the headlights are on,
simply rotate the dimmer knob
located on your instrument cluster
to adjust the brightness.
GLOSSARY OF WARNING AND INDICATOR LIGHTS
Type A cluster is shown. Type B
cluster is similar, but with warning
lights in different locations.
*TPMS NOTE: Low ambient temperature and/or high altitude causes tire pressures to drop
and may turn the TPMS warning light on. If the warning light comes on, check the tire pressure
and fill the tires as soon as possible, preferably before moving the vehicle and warming up
the tires. Initialize system (p. 6). Tire pressure should be checked when the tires are cold.
NOTE: See Owner’s Manual for more details and explanations.
Low Engine Oil Pressure Traction Control System (TCS)/
Dynamic Stability Control (DSC)

On: TCS/DSC malfunction
Flashing: TCS/DSC operating
Shift Position Indicator Power Steering Malfunction Air Bag/Front Seat Belt
Pretensioner System Malfunction
Turn Signals/
Hazard Warning Indicator
Check Engine Master Warning
Tire Pressure Monitoring System
(TPMS) Warning* (p. 6) On/ Warning Beep: Low tire pressure in one

or more tires. Flashing: TPMS Malfunction
Security Indicator Cruise Main Indicator
ON ( AMBER )/Cruise Set
Indicator ON ( GREEN)
Lights ON (Exterior) (p. 25)
Seat Belt Unbuckled/Malfunction
Headlight High Beams On
Brake Warning
Parking brake on/low brake fluid/malfunction
Charging System Malfunction
Antilock Brake System
(ABS) Malfunction
Low Fuel Level
Smart City Brake Support

(SCBS) OFF Indicator
Smart Brake Support (SBS)

Warning Indication High Beam Control ON (p. 28)
Mazda Radar Cruise Control
Warning ON ( AMBER)
Set Indicator ( GREEN)
( p p . 17-18 )
Headlight Warning
OFF Dynamic Stability Control

(DSC) OFF
1945220_16d_Mazda6_SSG_061815.indd 336/18/15 11:57 AM

34
TYPE B INSTRUMENT CLUSTER
WARNING LIGHTS ONLY. These warnings are displayed as text in the
Type A Information display.
Automatic Transaxle Warning
Blind Spot Monitoring OFF
(BSM) (p. 23)
KEY Warning RED
KEY Indicator GREEN
Door Ajar
Trunk Lid Ajar
Low Washer Fluid Level
Warning
Check Fuel Cap
Perform Maintenance
SPORT Mode On
Lane Departure Warning
System (LDWS) ON ( AMBER)
Lane Detected ( GREEN)
3 ( p. 21)
Lane Departure Warning
System (LDWS) OFF
(
AMBER )3 Brake Pedal Operation
Demand
DASHBOARD ILLUMINATION/
DIMMER1/TRIP METER2
1 • Rotate the knob to adjust the brightness of the
instrument cluster and other dashboard illuminations.
2 • Push to toggle between trip meter (A & B).
• When a trip meter is selected, push and hold to
reset to zero.
3 • Indicator is also displayed in Type A Cluster
Information Display.
FUEL
GAUGE
SPEEDOMETER
ENGINE COOLANT TEMP LIGHTS
Since this vehicle does not use an
engine coolant temperature gauge, red
and blue engine coolant temperature
lights are used to indicate high
and low coolant temperature.
Red Coolant Temp Light
Flashing : Engine is starting
to run hot. Drive slowly to
reduce engine load.
On: Engine is overheating. Safely pull
over to the side of the road and turn
the engine off. Refer to the Owner’s
Manual for more information.
Blue Coolant Temp Light On: Engine coolant is cold
and no warm air is available
for heater/defroster.
Off: Engine coolant is warm and
warm air is available for heater/
defroster. The light may stay on for a
few minutes after start-up when the
engine is cold, but the vehicle can
be driven with the light on or off.
INFORMATION D I S P L AY
TYPE B CLUSTER
INFORMATION D I S P L AYSee page 7 or the
Owner’s Manual for
further information.
1945220_16d_Mazda6_SSG_061815.indd 346/18/15 11:57 AM
www.MazdaUSA.com

35
Active Driving Display
The Active Driving Display displays the following information:• Vehicle Speed Setting
using cruise control
• Navigation Turn-by-Turn
(TBT) direction, distance
and lane guidance

•
Lane Departure Warning
System (LDWS) operation
conditions and warnings
• Smart Brake
Support (SBS)
warnings
• Vehicle Speed Setting
using cruise control
(if equipped)
To change the settings/adjustments for the Active Driving Display:
1 Select the Settings icon on the
Home screen.
2 Select the AD-Disp tab.
3 Select the desired item to change.
• Height: Adjust the position of the
virtual image of the Active Driving
Display up or down.
• Brightness Control: Method
for adjusting screen brightness
(Automatically with instrument
cluster illumination or manually). •
Calibration: Brightness
initialization setting (when
selecting automatic adjustment).
• Brightness: Brightness
adjustment (when selecting
manual adjustment).
• Navigation: On/O f f.
• Active Driving Display:
On/O f f.
• Reset: Reset to
default settings.
50 mph
0 MPH
NOTE:• If the display does not operate, switch the ignition off and then switch it back
on. If it still does not operate even with the ignition switched ON, have the
vehicle inspected at an Authorized Mazda Dealer.
• It may be difficult to view the display when wearing sunglasses. Take off your
sunglasses or adjust the luminosity.
• If the battery has been removed and re-installed or the battery voltage is low,
the adjusted position may deviate.
• The display may be difficult to view or temporarily affected by weather
conditions such as rain, snow, light, and temperature.
ACTIVE DRIVING DISPLAY (if equipped)
CAUTION: Always adjust the display
using the Settings screen (AD-Disp
tab). Do not try to adjust the angle
or open/close the display by hand.
Fingerprints on the display will
make it difficult to view and manual
operation could cause damage.
1945220_16d_Mazda6_SSG_061815.indd 356/18/15 11:57 AM

36
NOTE: The HL A system will hold the vehicle for a maximum of 2.0 seconds
while the driver is changing from the brake pedal to the accelerator pedal.
HILL LAUNCH ASSIST (HLA)
HL A helps assist you when accelerating the vehicle from a stop while on
a hill or slope.
When the brake pedal is released and the accelerator pedal is pushed,
HL A prevents the vehicle from rolling forward or backward. It operates on
a downward slope when the shift lever is in the reverse (R) position, and on
an upward slope when the shift lever is in a position other than the reverse
(R) position.

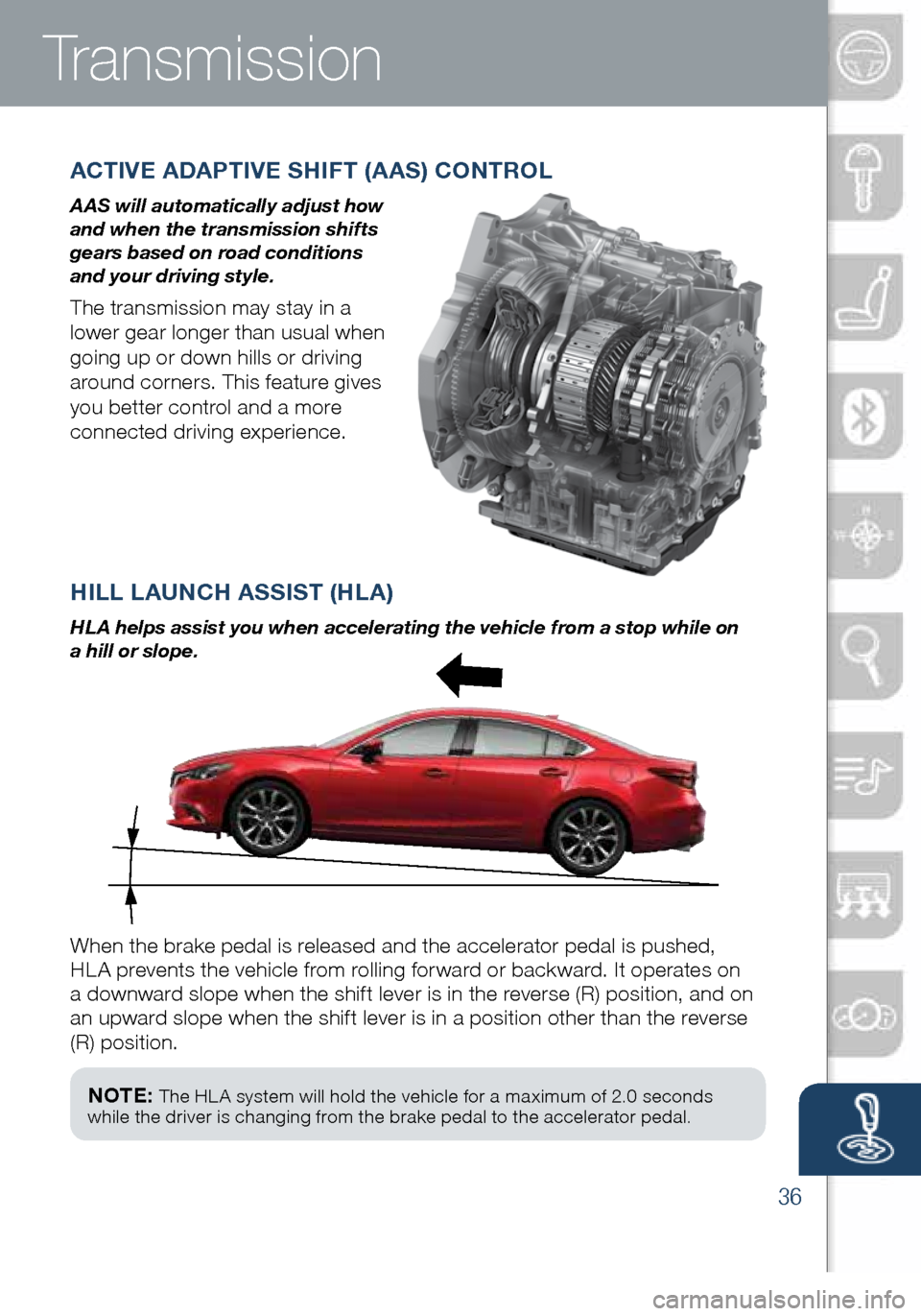

Transmission
ACTIVE ADAPTIVE SHIFT (AAS) CONTROL
AAS will automatically adjust how
and when the transmission shifts
gears based on road conditions
and your driving style.
The transmission may stay in a
lower gear longer than usual when
going up or down hills or driving
around corners. This feature gives
you better control and a more
connected driving experience.
1945220_16d_Mazda6_SSG_061815.indd 366/18/15 11:57 AM
www.MazdaUSA.com

37
i-ELOOP
NOTE: • If the vehicle is jump started, leave the jumper cables connected until the
warning message is no longer displayed.
• If the vehicle is driven while the warning screen is displayed, a warning sound
will be heard and power steering assist will be limited.
i-ELOOP (if equipped)
The Mazda-unique regenerative braking system (i-ELOOP) generates
and stores electrical energy in a capacitor during deceleration. Through
efficient energy regeneration, storage, and usage, fuel economy is
improved. To view i-ELOOP information, select Applications from
the Home screen, then scroll down to Fuel Economy Monitor.
i-ELOOP Pre-Charge Mode
If the capacitor is discharged because of vehicle storage (the vehicle \
is
parked for long periods of time), the i-ELOOP indicator in the instrume\
nt
cluster will flash and a
warning screen appears
on the screen of the
infotainment system.
When this warning screen appears, do not drive the
vehicle. Allow the engine to idle until the warning
screen disappears. This time is needed for normal
generator operation.
In Pre-charge modeDriving in Pre-charge mode
Capacitor charge level
Regeneration level
Capacitor discharge
Average fuel consumption since reset
60-minute Fuel Economy
0-10 min.: Every 1 min.
10-60 min.: Every 10 min.
Average Current Fuel Histor y:
Average since reset 2nd to 6th history Average fuel consumption for this drive
1945220_16d_Mazda6_SSG_061815.indd 376/18/15 11:57 AM

www.MyMazda.com—The Official Site
for M{zd{ Owners
Register today on www.MyMazda.com—the ultimate destination for Mazda
Owners. Once registered, you’ll be able to take advantage of benefits
exclusively for Mazda Owners:
• Insider access to exclusive events and promotions
• Personalized maintenance schedules
• Zoom-Zoom Owner Magazine
• Warranty information and on-line Owner’s Manuals
• Wallpaper, videos and other fun stuff
• Accessories specifically designed for your vehicle
• Car Care Discount Coupons available from your Authorized Mazda Dealer
Visit and register at www.MyMazda.com today!
MAZDA MOBILE
The following apps are available for iPhone® and Android smartphones:
• Mazda Assist app - Provides roadside assistance 24 hours a day,
365 days a year. Toll free number 1-800-866-1998 can also be used
for roadside assistance.
• MyMazda app - Keep track of your Mazda from the palm of your hand
with these features:
The apps can be downloaded, free of charge, from the App store for the iPhone
®
and Google Play (Android Market) for Android powered devices. After downloading
app, customer name, email, smartphone number and VIN are required.
Maintenance schedule Service coupons Promotional alerts Service history Recall information Parked car locator

Scan VIN barcode capability
when registering a vehicle
Mazda Dealer locator Update owner profile Link to Mazda Assist
Free MyMazda app
iPhone and AndroidFree Mazda Assist app
iPhone and Android www.MazdaUSA.com
i-ELOOP
1945220_16d_Mazda6_SSG_061815.indd 386/18/15 11:57 AM

Customer Delivery Checklist
SCHEDULED MAINTENANCE:
When replacing or topping off engine oil, use Mazda Genuine oil. For optimal engine performance,
use SAE 0W-20 engine oil. Please consult an Authorized Mazda Dealer for additional information.
Driver’s View ........................ 1
• Location of Switches and Control
Advanced Keyless Entry* .......... 3
• Door Request Switch*
Starting the Engine ................. 4
• Accelerated Warm-Up System (AWS)
• Emergency Engine Stop
Electric Parking Brake ............. 5
Fuel Economy ....................... 5
Tire Pressure Monitor System ....6
• Initialize TPMS before delivery
Information Display ................ 7
Seats and Mirrors .................. 8
Mazda Connect* .................... 9
Mazda Connect Settings* ........10
Commander / Voice Control* ....11
Bluetooth®* ......................... 13
• Pair Phone
• Make/Receive Call
• Toll-Free Customer
Service 800-430-0153
Navigation System* ............... 15
• SD Card
• Planning a Route
*if equipped
SALES CONSULTANT DAT ECUSTOMER DAT E
All items in the Customer Deliver y Checklist have been reviewed with the
customer and the first maintenance appointment has been scheduled:
Signed copy must be placed in dealer jacket.
VEHICLE PRESENTATION:
Refer to the Smart Start Guide during presentation
ESSENTIAL INFORMATION
SAFETY & TECHNOLOGY INFORMATION
GENERAL INFORMATION
Mazda Radar Cruise Control* ... 17
Smart City Brake Support
(SCBS)* ............................. 19
Smart Brake Support (SBS)* .....20
Lane Departure
Warning System (LDWS)* ........ 21
Distance Recognition
Support System (DRSS)* ......... 22
Blind Spot Monitoring (BSM)* ... 23
Rear Cross Traffic Alert* ......... 24
Lights ............................... 25
Wiper/Washer ......................26
Adaptive Front
Lighting System (AFS)* ........... 27
High Beam Control* ............... 28
Audio Controls ..................... 29 • Bluetooth Audio
Audio USB & AUX Inputs ......... 31
Automatic Climate Control* ......32
Instrument Cluster ................ 33 • Review of Warning and Indicator
Light Function and Location
Active Driving Display ............ 35
Transmission ....................... 36
i-ELOOP ............................. 37
1945220_16d_Mazda6_SSG_061815.indd 396/18/15 11:57 AM
