24Pictorial index
LS460/LS460L_GE (OM50G06E)
■Front interior (Left-hand drive vehicles)
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 225
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 46
Assist grips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 497
Inside lock buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 187
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 51
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 455
Power outlet*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 473
Cigarette lighter*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 471
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 457
Power outlet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 4 73
AUX port*2
USB ports*2
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 42
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 198
1
2
3
4
5
6
7
8
9

32Pictorial index
LS460/LS460L_GE (OM50G06E)
■Front Interior (Right-hand drive vehicles)
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 457
Power outlet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 4 73
AUX port*2
USB ports*2
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 455
Power outlet*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 473
Cigarette lighter*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 471
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 51
Inside lock buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 187
Assist grips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 497
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 46
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 22 5
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 198
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 42
1
2
3
4
5
6
7
8
9

891-1. For safe use
1
For safety and security
LS460/LS460L_GE (OM50G06E)
Installation with a seat belt
ISOFIX rigid anchors (ISOFIX child
restraint system)
Lower anchors are provided for the
outer rear seats. (Buttons displaying
the location of the anchors are
attached to the seats.)
5-seat models
Anchor brackets (for top strap)
An anchor bracket is provided for
each rear seat.
Installing child restraints
Follow the child restraint system manufacturer’s instructions. Firmly
secure child restraints to the outer rear seats using a seat belt or
ISOFIX rigid anchors. Attach the top strap when installing a child
restraint.

1473-1. Key information
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
■If you lose your mechanical keys
New genuine mechanical keys can be made by your Lexus dealer using the other
mechanical key and the key number stamped on your key number plate. Keep the
plate in a safe place such as your wallet, not in the vehicle.
■When riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not press any
buttons on the electronic key while inside the aircraft cabin. If you are carrying an
electronic key in your bag etc., ensure that the buttons are not likely to be pressed
accidentally. Pressing a button may cause the electronic key to emit radio waves that
could interfere with the operation of the aircraft.
■Certification for the card key
For vehicles sold in Korea

1613-2. Opening, closing and locking the doors
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
■Switching the door unlock function
It is possible to set which doors the entry function unlocks using the wireless remote
control.
Turn the engine switch off.
Cancel the intrusion sensor and tilt sensor of the alarm system to prevent unin-
tended triggering of the alarm during the setting change. (if equipped) ( P. 115)
Press and hold , or for approximately 5 seconds while pressing
and holding .
The setting changes each time an operation is performed, as shown below. (When
changing the setting continuously, release the buttons, wait for at least 5 seconds,
and repeat step .)
To prevent unintended triggering of the alarm, unlock the doors using the wireless
remote control and open and close a door once after the settings have been
changed. (If a door is not opened within 30 seconds after is pressed, the
doors will be locked again and the alarm will automatically be set.)
In case that the alarm is triggered, immediately stop the alarm. ( P. 113)
1
2
3
3
Multi-information
displayUnlocking functionBeep
Hold a door handle to unlock
all doors
Exterior: Beeps twice
Interior: Rings once
Hold the driver’s door handle
to unlock only the driver’s doorExterior: Beeps 3 times
Interior: Rings onceHold a passenger’s door han-
dle to unlock all the doors
Hold the door handle to
unlock the front and rear doors
on your side
Exterior: Beeps 4 times
Interior: Rings once
Hold the door handle to
unlock the door
Exterior: Beeps once
Interior: Rings once

1873-2. Opening, closing and locking the doors
3
Operation of each component
LS460/LS460L_GE (OM50G06E)

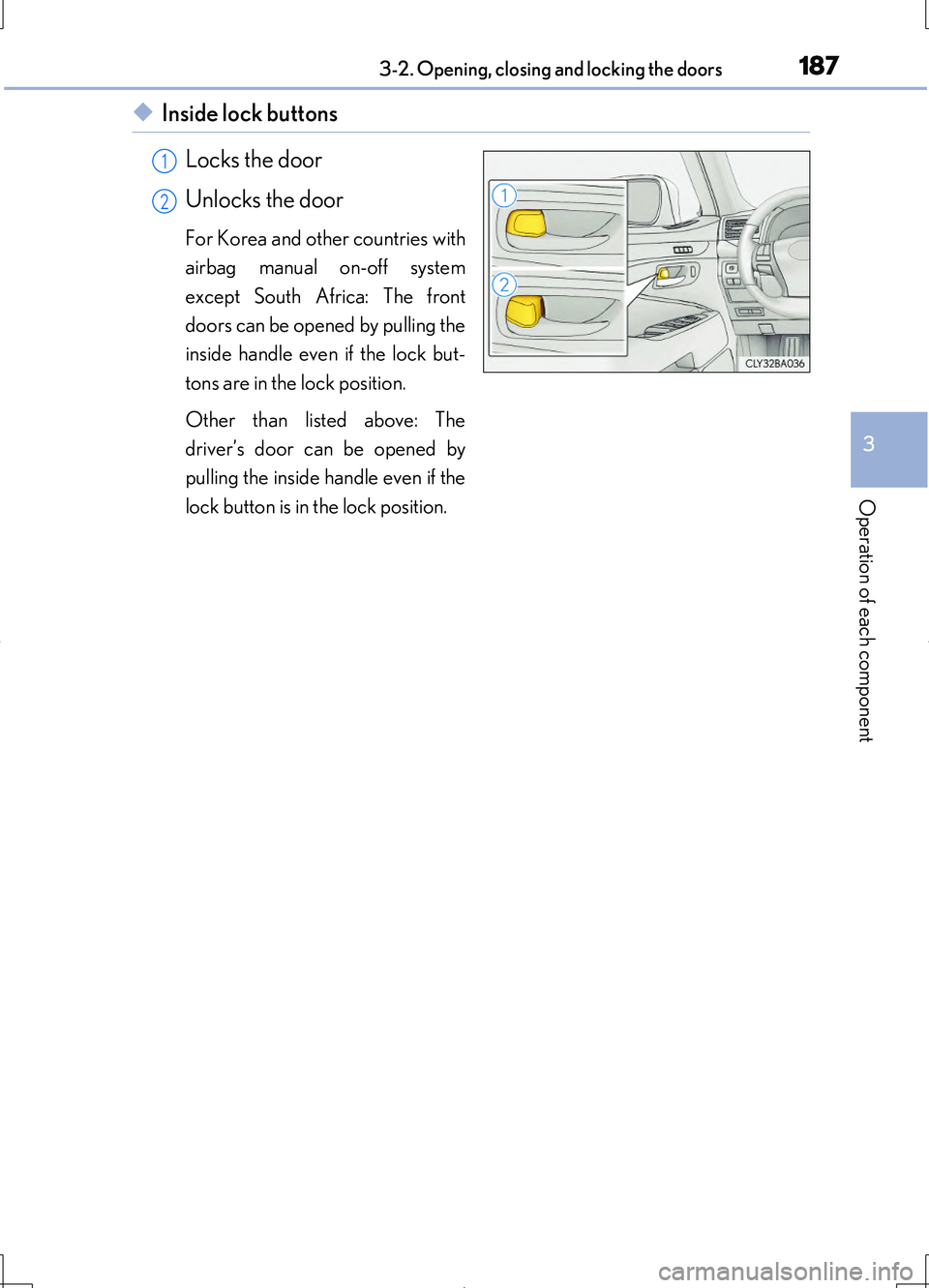

◆Inside lock buttons
Locks the door
Unlocks the door
For Korea and other countries with
airbag manual on-off system
except South Africa: The front
doors can be opened by pulling the
inside handle even if the lock but-
tons are in the lock position.
Other than listed above: The
driver’s door can be opened by
pulling the inside handle even if the
lock button is in the lock position.
1
2

1903-2. Opening, closing and locking the doors
LS460/LS460L_GE (OM50G06E)
■Customization
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features P. 667)
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant throwing out of the
vehicle, resulting in death or serious injury.
●Ensure that all doors are properly closed and locked.
●Do not pull the inside handle of the doors while driving.
For Korea and other countries with airbag manual on-off system except South
Africa
Be especially careful for the front doors, as the doors may be opened even if the
inside lock buttons are in locked position.
Other than listed above
Be especially careful for the driver’s door, as the door may be opened even if the
inside lock button is in locked position.
●Set the rear door child-protector locks when children are seated in the rear seats.
■ Door closer
In the event that a door is left slightly open, the door closer will automatically close
it to the fully closed position.
If the child-protector lock is set, the door closer will not stop during operation even
if an attempt is made to open the door from inside the vehicle. Be careful not to
catch fingers or anything else in the door. Failure to do so may result in serious
injury.
NOTICE
■ To prevent door closer malfunction
Do not frequently repeat opening and closing of doors, or apply excessive force to
a door while the door closer is operating.

2123-3. Adjusting the seats
LS460/LS460L_GE (OM50G06E)
Pneumatic chambers built into the right-hand rear seat (left-hand drive
vehicles) or the left-hand rear seat (right-hand drive vehicles) provide the
occupant with pressure of different speeds and intensities.
5-seat models
Rear seat relaxation system (vehicles with relaxation seat)
Turns the system on and off
If no buttons are selected within
approximately 3 minutes of operating
this switch, the system will automati-
cally turn off.
Starts the program
Partial pressure for the whole back
Starts the program
Stretches and relaxes the lower back
Starts operation for the upper
back
Starts operation for the lower
back
Adjusts the intensity of the air
pressure
3 intensity levels are available.
Adjusts the speed of the air unit
3 speed levels are available.
1
2
3
4
5
6
7
