1853-2. Opening, closing and locking the doors
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
CAUTION
Observe the following precautions.
Failing to do so may result in death or serious injury.
■When using the wireless remote cont rol and operating the power windows or
moon roof
Operate the power window or moon roof after checking to make sure that there is
no possibility of any passenger having any of their body parts caught in the window
or moon roof. Also, do not allow children to operate the wireless remote control. It
is possible for children and other passengers to get caught in the power window or
moon roof.
■Jam protection function
●Never try jamming any part of your body to activate the jam protection function
intentionally.
●The jam protection function may not work if something gets caught just before
the window or moon roof fully closes.

2343-4. Adjusting the steering wheel and mirrors
LS460/LS460L_GE (OM50G06E)
When the mirror select switch is in the “L” or “R” position, the outside rear
view mirrors will automatically angle downwards when the vehicle is
reversing in order to give a better view of the ground.
To disable this function, move the mirror select switch to the neutral posi-
tion (between “L” and “R”).
■Adjusting the mirror angle when the vehicle is reversing
With the shift lever in R, adjust the mirror angle at a desired position.
The adjusted angle will be memorized and the mirror will automatically
tilt to the memorized angle whenever the shift lever is shifted to R from
next time.
The memorized downward tilt position of the mirror is linked to the normal
position (angle adjusted with the shift lever in other than R). Therefore, if the
normal position is changed after adjustment, the tilt position will also change.
When the normal position is changed, readjust the angle in reversing.
■Mirror angle can be adjusted when
The engine switch is in ACCE SSORY or IGNITION ON mode.
■When the mirrors are fogged up
The outside rear view mirrors can be cleared using the mirror defoggers. Turn on the
rear window defogger to turn on the outside rear view mirror defoggers. ( P. 445)
■Automatic adjustment of the mirror angle
A desired mirror face angle can be entered to memory and recalled automatically
by the driving position memory. ( P. 218)
■Auto anti-glare function
When the anti-glare inside rear view mirror is set to automatic mode, the outside
rear view mirrors will activate in conjunction with the anti-glare inside rear view mir-
ror to reduce reflected light. ( P. 230)
■Using automatic mode in cold weather
When automatic mode is used in cold weather, the door mirror could freeze up and
automatic stowing and return may not be possible. In this event, remove any ice and
snow from the door mirror, then either operate the mirror using manual mode or
move the mirror by hand.
Linked mirror function when reversing

236
LS460/LS460L_GE (OM50G06E)
3-5. Opening, closing the windows and moon roof
The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:
Closing
One-touch closing*
Opening
One-touch opening*
*: To stop the window partway, operate
the switch in the opposite direction.
Press the switch down to lock the
passenger window switches.
Use this switch to prevent children
from accidentally opening or closing a
passenger window.
■The power windows can be operated when
The engine switch is in IGNITION ON mode.
■Operating the power windows after turning the engine off
The power windows can be operated for approximately 45 seconds even after the
engine switch is turned to ACCESSORY mode or turned off. They cannot, however,
be operated once either front door is opened.
Power windows
Opening and closing procedures
1
2
3
4
Window lock switch

2373-5. Opening, closing the windows and moon roof
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
■Jam protection function
If an object becomes jammed between the window and the window frame while the
window is closing, window movement is stopped and the window is opened slightly.
■Catch protection function
If an object becomes caught between the door and window while the window is
opening, window movement is stopped.
■When the window cannot be opened or closed
When the jam protection function or catch protection function operates unusually and
the door window cannot be opened or closed , perform the following operations with the power window switch of that door.
●Stop the vehicle. With the engine switch in IGNITION ON mode, within 4 seconds of
the jam protection function or catch protecti on function activating, continuously oper- ate the power window switch in the one-to uch closing direction or one-touch opening direction so that the door window can be opened and closed.
●If the door window cannot be opened and closed even when performing the above operations, perform the following pr ocedure for function initialization.
Turn the engine switch to IGNITION ON mode.
Pull and hold the power window switch in the one-touch closing direction and com- pletely close the door window.
Release the power window switch for a moment, resume pulling the switch in the
one-touch closing direction, and hold it there for approximately 6 seconds or more.
Press and hold the power window switch in the one-touch opening direction. After the door window is completely opened, cont inue holding the switch for an additional
1 second or more.
Release the power window switch for a moment, resume pressing the switch in the
one-touch opening direction, and hold it there for approximately 4 seconds or more.
Pull and hold the power window switch in the one-touch closing direction again.
After the door window is completely clos ed, continue holding the switch for a fur- ther 1 second or more.
If you release the switch while the window is moving, start again from the beginning.
If the window reverses and cannot be fully closed or opened, have the vehicle inspected by your Lexus dealer.
1
2
3
4
5
6

2383-5. Opening, closing the windows and moon roof
LS460/LS460L_GE (OM50G06E)
■Door lock linked window operation
●The power windows can be closed using the entry function. (P. 155)
●The power windows can be opened and closed using the mechanical key.
( P. 631)
■Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features P. 667)
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
■Closing the windows
●The driver is responsible for all the power window operations, including the oper-
ation for the passengers. In order to prevent accidental operation, especially by a
child, do not let a child operate the power windows. It is possible for children and
other passengers to have body parts caug ht in the power window. Also, when rid-
ing with a child, it is recommended to use the window lock switch. ( P. 236)
●Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when a window is being operated.
●When using the smart entry & start system, wireless remote control or mechani-
cal key and operating the power windows, operate the power window after
checking to make sure that there is no possibility of any passenger having any of
their body parts caught in the window. Also do not let a child operate window by
the smart entry & start system, wireless remote control or mechanical key. It is
possible for children and other passengers to get caught in the power window.
●When exiting the vehicle, turn the engine switch off, carry the key and exit the
vehicle along with the child. There may be accidental operation, due to mischief,
etc., that may possibly lead to an accident.

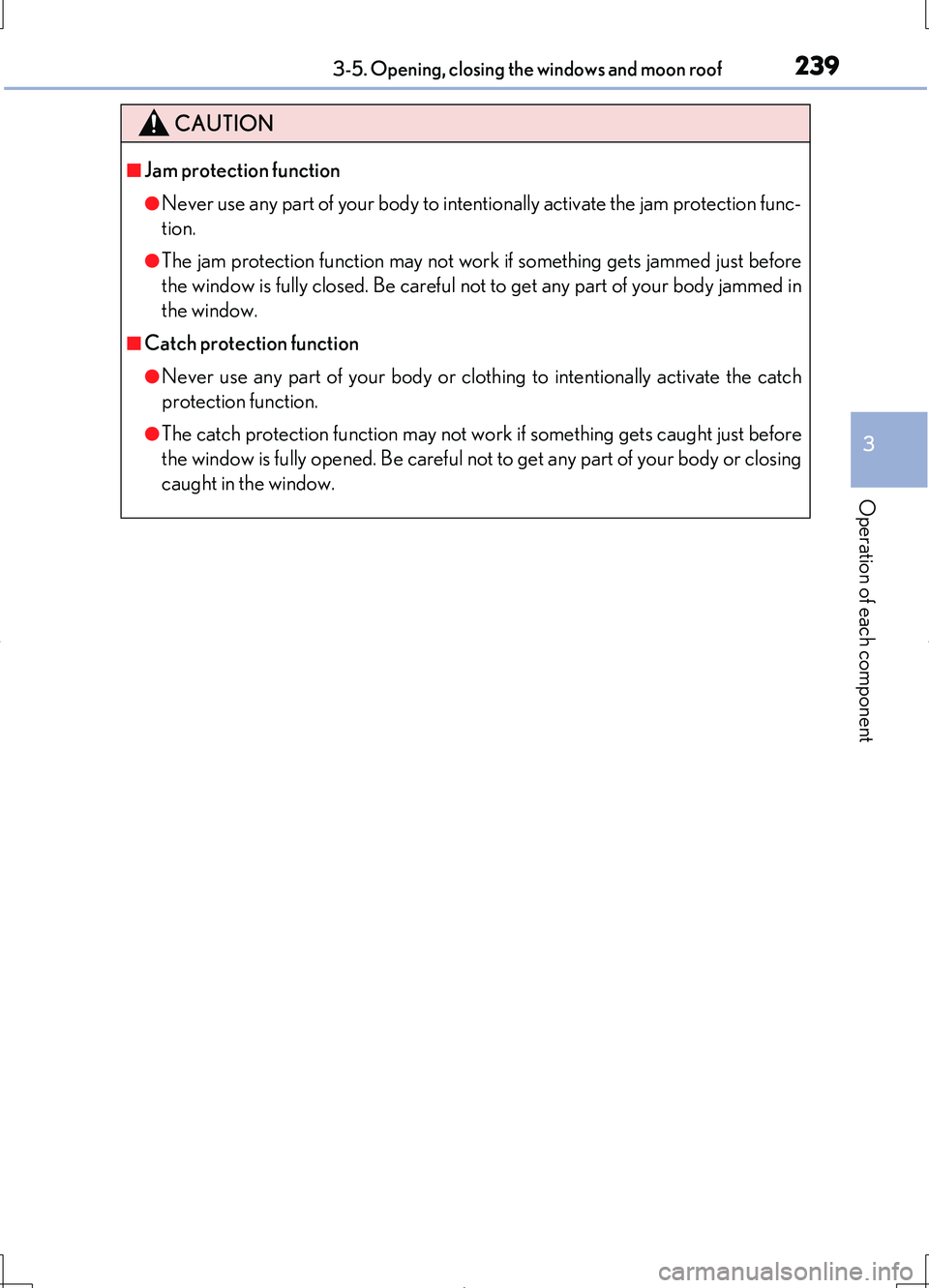

2393-5. Opening, closing the windows and moon roof
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
CAUTION
■Jam protection function
●Never use any part of your body to intentionally activate the jam protection func-
tion.
●The jam protection function may not work if something gets jammed just before
the window is fully closed. Be careful not to get any part of your body jammed in
the window.
■Catch protection function
●Never use any part of your body or clothing to intentionally activate the catch
protection function.
●The catch protection function may not work if something gets caught just before
the window is fully opened. Be careful not to get any part of your body or closing
caught in the window.

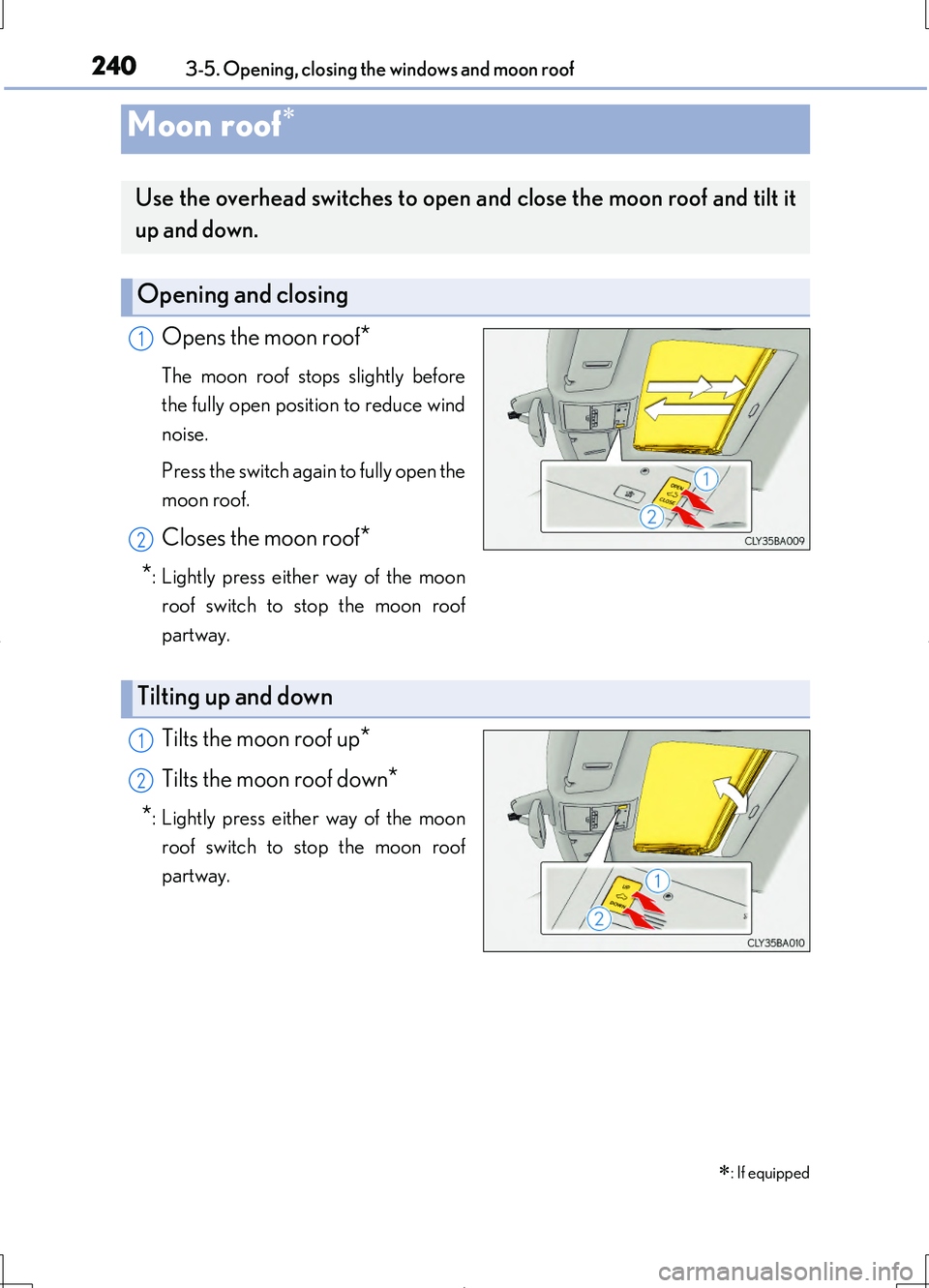

2403-5. Opening, closing the windows and moon roof
LS460/LS460L_GE (OM50G06E)
Opens the moon roof*
The moon roof stops slightly before
the fully open position to reduce wind
noise.
Press the switch again to fully open the
moon roof.
Closes the moon roof*
*: Lightly press either way of the moon
roof switch to stop the moon roof
partway.
Tilts the moon roof up*
Tilts the moon roof down*
*: Lightly press either way of the moon
roof switch to stop the moon roof
partway.
Moon roof
: If equipped
Use the overhead switches to open and close the moon roof and tilt it
up and down.
Opening and closing
1
2
Tilting up and down
1
2

2413-5. Opening, closing the windows and moon roof
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
■The moon roof can be operated when
The engine switch is in IGNITION ON mode.
■Operating the moon roof after turning the engine off
The moon roof can be operated for approximately 45 seconds after the engine
switch is turned to ACCESSORY mode or turned off. It cannot, however, be oper-
ated once either front door is opened.
■Jam protection function
If an object is detected between the moon roof and the frame while the moon roof is
closing or tilting down, travel is stop ped and the moon roof opens slightly.
■Sunshade
The sunshade can be opened and closed manually. However, the sunshade will open
automatically when the moon roof is opened.
■Door lock linked moon roof operation
●The moon roof can be closed using the entry function. ( P. 155)
●The moon roof can be opened and closed using the mechanical key. (P. 631)
