2016 LEXUS LS460L window

4004-6. Driving tips
LS460/LS460L_GE (OM50G06E)
Perform the following according to the driving conditions:
●Do not try to forcibly open a window or move a wiper that is frozen.
Pour warm water over the frozen area to melt the ice. Wipe away the
water immediately to prevent it from freezing.
●To ensure proper operation of the climate control system fan, remove
any snow that has accumulated on the air inlet vents in front of the wind-
shield.
●Check for and remove any excess ice or snow that may have accumu-
lated on the exterior lights, vehicle’s roof, chassis, around the tires or on
the brakes.
●Remove any snow or mud from the bottom of your shoes before getting
in the vehicle.
Accelerate the vehicle slowly, keep a safe distance between you and the
vehicle ahead, and drive at a reduced speed suitable to road conditions.
●Park the vehicle and move the shift lever to P without setting the park-
ing brake. The parking brake may free ze up, preventing it from being
released. If the vehicle is parked without setting the parking brake,
make sure to block the wheels.
Failure to do so may be dangerous because it may cause the vehicle to
move unexpectedly, possibly leading to an accident.
●If the vehicle is parked without setting the parking brake, confirm that
the shift lever cannot be moved out of P*.
*: The shift lever will be locked if it is attempted to be shifted from P to any other
position without depressing the brake pedal. If the shift lever can be shifted
from P, there may be a problem with the shift lock system. Have the vehicle
inspected by your Lexus dealer immediately.
Before driving the vehicle
When driving the vehicle
When parking the vehicle

405
5Interior features
LS460/LS460L_GE (OM50G06E)
5-1. Remote Touch screen
Remote Touch .............................406
12.3-inch display.......................... 413
5-2. Lexus Climate Concierge
Lexus Climate
Concierge ....................................417
5-3. Using the air conditioning
system and defogger
Front automatic air
conditioning system ................ 418
Rear air conditioning
system ......................................... 438
Rear window and outside
rear view mirror
defoggers ...................................445
Windshield wiper de-icer ....... 446
5-4. Using the interior lights
Interior lights list.......................... 447
• Interior lights ..........................448
• Personal lights ....................... 449
5-5. Using the storage features
List of storage features ............. 451
• Glove box ...............................453
• Coin holder ............................454
• Door pockets .........................454
• Cup holders ...........................455
• Console box........................... 457
• Cool box/auxiliary
box .............................................459
• Auxiliary boxes ..................... 462
Trunk features..............................465
5-6. Other interior features
Sun visors and vanity
mirrors ......................................... 467
Clock .............................................. 469
Ashtrays ......................................... 470
Cigarette lighters.........................471
Power outlets............................... 473
Heated steering wheel ............ 476
Climate control seats/seat
heaters......................................... 478
Armrest..........................................483
Retractable table........................ 484
Rear sunshade ............................486
Rear door sunshades ...............490
Trunk storage extension ......... 494
Coat hooks ................................... 496
Assist grips.................................... 497
Garage door opener ...............498
ERA-GLONASS ......................504

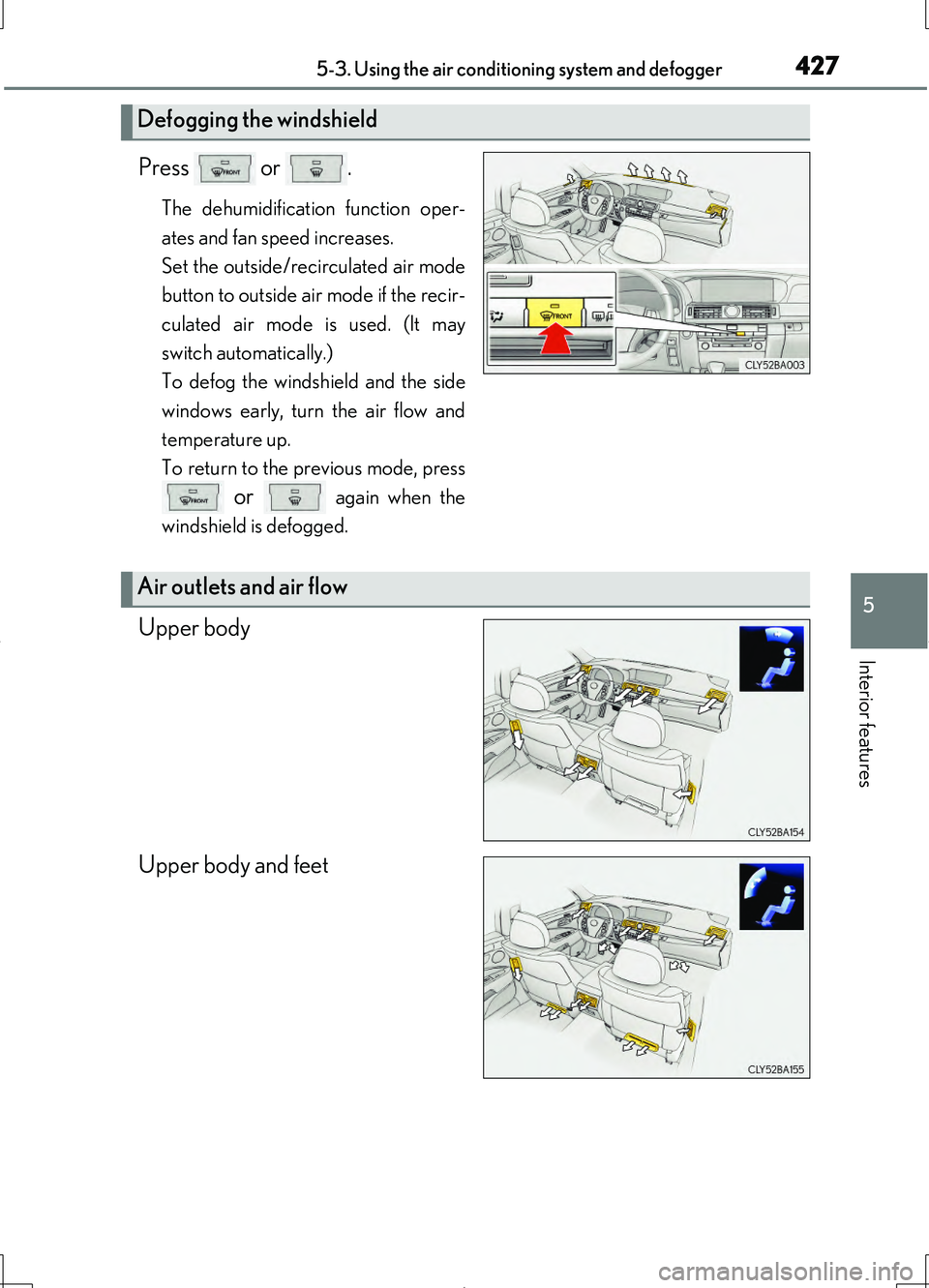

4275-3. Using the air conditioning system and defogger
5
Interior features
LS460/LS460L_GE (OM50G06E)
Press or .
The dehumidification function oper-
ates and fan speed increases.
Set the outside/recirculated air mode
button to outside air mode if the recir-
culated air mode is used. (It may
switch automatically.)
To defog the windshield and the side
windows early, turn the air flow and
temperature up.
To return to the previous mode, press
or again when the
windshield is defogged.
Upper body
Upper body and feet
Defogging the windshield
Air outlets and air flow

4345-3. Using the air conditioning system and defogger
LS460/LS460L_GE (OM50G06E)
■Operation of the air conditioning system in Eco drive mode
●In the Eco drive mode, the air conditioning system is controlled as follows to priori-
tize fuel efficiency
• Engine speed and compressor operation controlled to restrict heating/cooling
capacity
• Fan speed restricted when automatic mode is selected
●To improve air conditioning performance, perform the following operations
• Adjust the fan speed
• Turn off Eco drive mode
■Using the automatic mode
Fan speed is adjusted automatically in accordance with the temperature setting and
ambient conditions. As a result, the following may occur:
●Immediately after the “AUTO” switch is pressed, the fan may stop for a while until
warm or cool air is ready to flow.
●Cool air may flow to the area around the upper body when the heater is on.
■Fogging up of the windows
●The windows will easily fog up when the humidity in the vehicle is high. Selecting
“A/C” on will dehumidify the air from the outlets and defog the windshield effec-
tively.
●If you turn “A/C” off, the windows may fog up more easily.
●The windows may fog up if the recirculated air mode is used.
■Outside/recirculated air mode
●When driving on dusty roads such as tunnels or in heavy traffic, set the outside/
recirculated air mode button to the recirculated air mode. This is effective in pre-
venting outside air from entering the vehicle interior. During cooling operation, set-
ting the recirculated air mode will also cool the vehicle interior effectively.
●Outside/recirculated air mode may automatically switch depending on the tem-
perature setting or the inside temperature.

4355-3. Using the air conditioning system and defogger
5
Interior features
LS460/LS460L_GE (OM50G06E)
■Automatic mode for air intake control (type B)
In automatic mode, the system detects exhaust gas and other pollutants and auto-
matically switches between outside air and recirculated air modes.
When the dehumidification function is off, and the fan is operating, turning automatic
mode on will activate the dehumidification function.
■Pollen removal mode
●In order to prevent the windshield from fogging up when the outside air is cold, the
following may occur:
• Outside air mode does not switch to (recirculated air) mode.
• The dehumidification function operates.
• The operation cancels after approximately 1 minute.
●In rainy weather, the windows may fog up. Press or .
●In extremely humid weather, the windows may fog up.
●The pollens are filtered out even if the pollen removal mode is turned off.
■Air purifier (with rear air conditioning system)
The air purifier will turn on when turning the rear air conditioning system on.
■When the outside temperature falls to nearly 0 C (32F)
The dehumidification function may not operate even when “A/C” is selected.

4455-3. Using the air conditioning system and defogger
5
Interior features
LS460/LS460L_GE (OM50G06E)
On/off
The defoggers will automatically turn
off after approximately 15 minutes.
■Operating conditions
The engine switch must be in the IGNITION ON mode.
Rear window and outside rear view mirror
defoggers
These features are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Type A
Type B
CAUTION
■When the outside rear view mirror defoggers are on
Do not touch the rear view mirror surfaces, as they can become very hot and burn
you.
NOTICE
■To prevent battery discharge
Turn the defoggers off when the engine is off.

4925-6. Other interior features
LS460/LS460L_GE (OM50G06E)
■Operating conditions
●The engine switch is in IGNITION ON mode.
●The rear windows are fully closed.
The rear door sunshades automatically retract when the rear windows are opened.
■Operating the rear door sunshades after turning the engine switch off
The rear door sunshades can be operated for approximately 60 seconds even after
the engine switch is switched to ACCESSORY mode or turned off.
■Jam protection function
If an object becomes caught between a rear door sunshade and the window frame,
the jam protection function will cause the sunshade to detach from its drive mecha-
nism and retract.
If the jam protection function operates when extending the rear door sunshades
Pressing the button will reconnect the sunshade.
Pressing the button again will allow the sunshades to be operated.
If the sunshade does not operate after the button is pressed, press the button again.
If the jam protection function operates when retracting the rear door sunshades
Press and hold the button to re-extend the rear door sunshades, and continue press-
ing for more than 5 seconds after the sunshades have fully extended and stopped.
■Button lock function
To prevent inadvertent operation, some buttons on the rear controller can be locked.
( P. 444)
■When reconnecting the battery
The rear door sunshades will always be retracted the first time the button is pressed.

5116-1. Maintenance and care
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)
■Automatic car washes
●Fold the mirrors before washing the vehicle. Start washing from the front of the
vehicle. Make sure to extend the mirrors before driving.
●Brushes used in automatic car washes may scratch the vehicle surface and harm
your vehicle’s paint.
■High pressure car washes
●Do not allow the nozzles of the car wash to come within close proximity of the win-
dows and the air suspension unit (if equipped).
●Before using the car wash, check that the fuel filler door on your vehicle is closed
properly.
■Aluminum wheels
●Remove any dirt immediately by using a neutral detergent. Do not use hard
brushes or abrasive cleaners. Do not use strong or harsh chemical cleaners.
Use the same mild detergent and wax as used on the paint.
●Do not use detergent on the wheels when they are hot, for example after driving for
long distance in the hot weather.
●Wash detergent from the wheels immediately after use.
■Bumpers and side moldings
Do not scrub with abrasive cleaners.
■Front side windows water-repellent coating
●The following precautions can extend the effectiveness of the water-repellent coat-
ing.
• Remove any dirt, etc. from the front side windows regularly.
• Do not allow dirt and dust to accumulate on the windows for a long period.
Clean the windows with a soft, damp cloth as soon as possible.
• Do not use wax or glass cleaners that contain abrasives when cleaning the win-
dows.
• Do not use any metallic objects to remove condensation build up.
●When the water-repellent performance has become insufficient, the coating can
be repaired. Contact your Lexus dealer.
