2016 LEXUS LS460L engine coolant

5346-3. Do-it-yourself maintenance
LS460/LS460L_GE (OM50G06E)
Tire inflation pressure (P. 568)• Tire pressure gauge
• Compressed air source
Washer fluid ( P. 553)
• Water or washer fluid containing anti-
freeze (for winter use)
• Funnel (used only for adding water or
washer fluid)
CAUTION
The engine compartment contains many mechanisms and fluids that may move sud-
denly, become hot, or become electrically energized. To avoid death or serious
injury, observe the following precautions.
■When working on the engine compartment
●Keep hands, clothing and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, radiator, exhaust manifold, etc. right after driv-
ing as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper and rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel
and battery fumes are flammable.
●Be extremely cautious when working on the battery. It contains poisonous and
corrosive sulfuric acid.
●Take care because brake fluid can harm your hands or eyes and damage painted
surfaces. If fluid gets on your hands or in your eyes, flush the affected area with
clean water immediately.
If you still experience disc omfort, consult a doctor.
■When working near the electric cooling fans or radiator grille
Be sure the engine switch is off.
With the engine switch in IGNITION ON mode, the electric cooling fans may
automatically start to run if the air conditioning is on and/or the coolant tempera-
ture is high. ( P. 549)
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from get-
ting in your eyes.
ItemsParts and tools

5396-3. Do-it-yourself maintenance
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)
2WD models
For right-hand drive vehicles:
The battery and the fuse box in front of the battery are located on the opposite side
of the engine compartment.
Engine compartment
Battery ( P. 549)
Engine oil level dipstick
( P. 544)
Air cleaners ( P. 554)
Engine oil filler cap ( P. 545)
Washer fluid tank ( P. 553)
Electric cooling fans
Condenser ( P. 549)
Radiator ( P. 549)
Engine coolant reservoir
( P. 547)
Fuse boxes ( P. 579)
1
2
3
4
5
6
7
8
9
10

5406-3. Do-it-yourself maintenance
LS460/LS460L_GE (OM50G06E)
AWD models
Battery (P. 549)
Engine oil level dipstick
( P. 544)
Air cleaners ( P. 554)
Engine oil filler cap ( P. 545)
Washer fluid tank ( P. 553)
Electric cooling fans
Condenser ( P. 549)
Radiator ( P. 549)
Engine coolant reservoir
( P. 547)
Fuse boxes ( P. 579)
1
2
3
4
5
6
7
8
9
10

5476-3. Do-it-yourself maintenance
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)
The coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when the engine is cold.
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the “LOW”
line, add coolant up to the “FULL” line.
( P. 641)
Engine coolant
1
2
3

5486-3. Do-it-yourself maintenance
LS460/LS460L_GE (OM50G06E)
■Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene glycol
based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life
hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deionized
water. (Minimum temperature: -35 C [-31F])
For more details about engine coolant, contact your Lexus dealer.
■If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine coolant reservoir caps, drain cock and
water pump.
If you cannot find a leak, have your Lexus dealer test the cap and check for leaks in
the cooling system.
CAUTION
■When the engine is hot
Do not remove the engine coolant reservoir cap. ( P. 644)
The cooling system may be under pressure and may spray hot coolant if the cap is
removed, causing serious injuries, such as burns.
NOTICE
■When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of water
and antifreeze must be used to provide proper lubrication, corrosion protection
and cooling. Be sure to read the antifreeze or coolant label.
■If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.

6037-2. Steps to take in an emergency
7
When trouble arises
LS460/LS460L_GE (OM50G06E)
●Fluid leaks under the vehicle.
(Water dripping from the air conditioning after use is normal.)
●Flat-looking tires or uneven tire wear
●Engine coolant temperature gauge needle continually points higher
than normal.
●Changes in exhaust sound
●Excessive tire squeal when cornering
●Strange noises related to the suspension system
●Pinging or other noises related to the engine
●Engine missing, stumbling or running roughly
●Appreciable loss of power
●Vehicle pulls heavily to one side when braking
●Vehicle pulls heavily to one side when driving on a level road
●Loss of brake effectiveness, spongy feeling, pedal almost touches the
floor
If you think something is wrong
If you notice any of the followin g symptoms, your vehicle probably
needs adjustment or repair. Contact your Lexus dealer as soon as pos-
sible.
Visible symptoms
Audible symptoms
Operational symptoms

6167-2. Steps to take in an emergency
LS460/LS460L_GE (OM50G06E)
■Warning message in radar cruise mode (if equipped)
In the following cases, the warning message may not be displayed even if vehicle-to-
vehicle distance decreases:
●When your vehicle and the vehicle ahead are traveling at the same speed or the
vehicle ahead is traveling more quickly than your vehicle
●When the vehicle ahead is traveling at a very low speed
●Immediately after cruise control speed is set
●At the instant the accelerator pedal is depressed
■The LKA (Lane-Keeping Assist) lane de parture warning function (if equipped)
In the following cases, the warning message will not be displayed even if a lane line is
crossed.
●When the vehicle speed deviates from the operating range of the LKA system
functions
●When the lane lines cannot be recognized
●When the steering wheel is turned as far as necessary to cause the vehicle to
change lanes
■System warning lights
The master warning light does not come on or flash in the following cases. Instead, a
separate system warning light will come on or flash along with the message shown
on the multi-information display.
●Malfunction of the brake system
The brake system warning light (red indicator) comes on. ( P. 605)
●Malfunction of the electronically controlled brake system or electric parking brake
The brake system warning light (yellow indicator) comes on. ( P. 607)
●Malfunction of the ABS
The ABS warning light comes on. ( P. 606)
●Malfunction of the charging system
The charging system warning light comes on. ( P. 606)
●Indicates that a door or the trunk is not fully closed
The open door warning light comes on. ( P. 608)
●High engine coolant temperature
The needle of the engine coolant temperature gauge enters the red zone.
( P. 641)

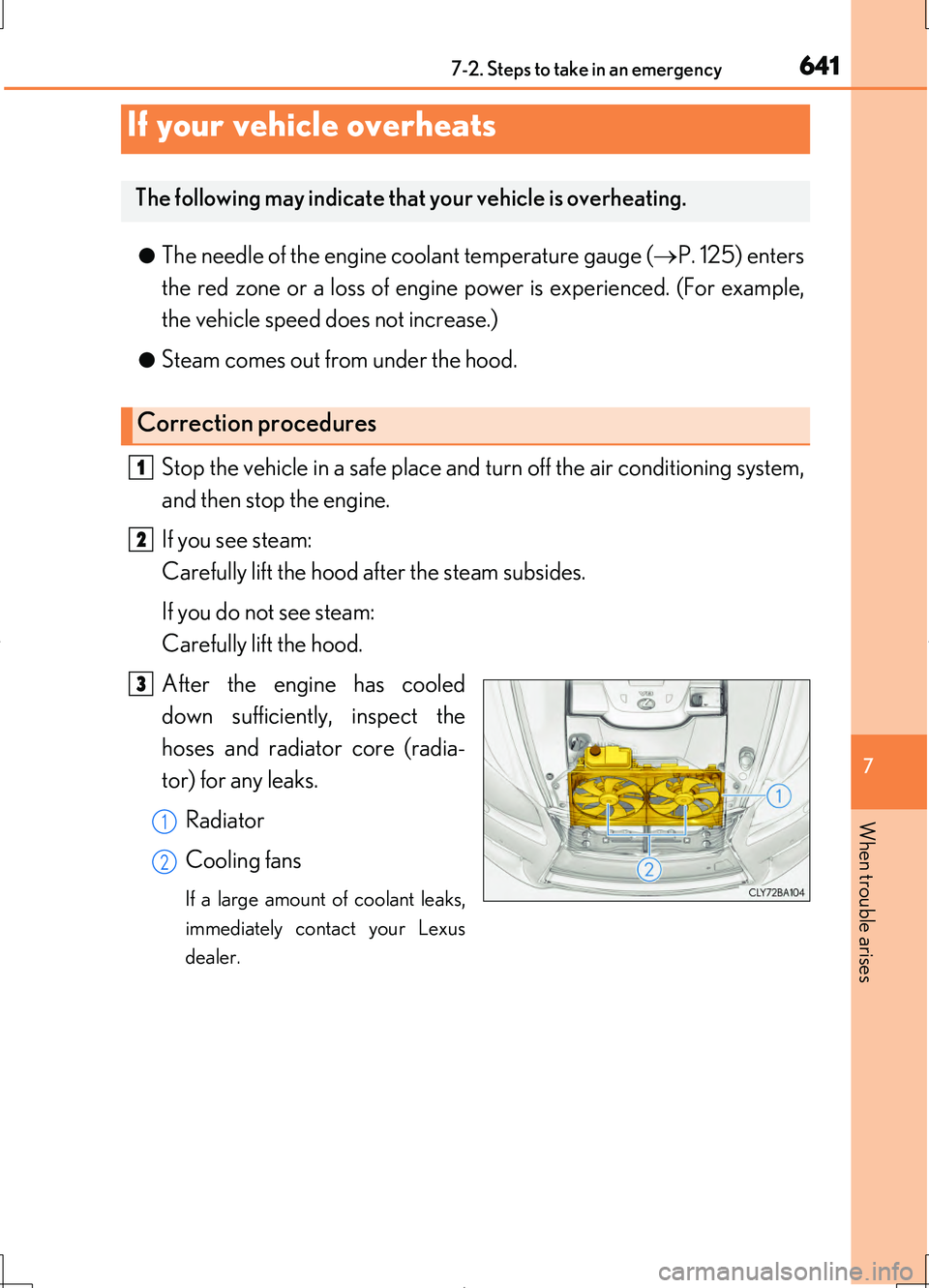

6417-2. Steps to take in an emergency
7
When trouble arises
LS460/LS460L_GE (OM50G06E)
●The needle of the engine coolant temperature gauge ( P. 125) enters
the red zone or a loss of engine po wer is experienced. (For example,
the vehicle speed does not increase.)
●Steam comes out from under the hood.
Stop the vehicle in a safe place and turn off the air conditioning system,
and then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the engine has cooled
down sufficiently, inspect the
hoses and radiator core (radia-
tor) for any leaks.
Radiator
Cooling fans
If a large amount of coolant leaks,
immediately contact your Lexus
dealer.
If your vehicle overheats
The following may indicate that your vehicle is overheating.
Correction procedures
1
2
3
1
2
