5698-1. Specifications
8
Vehicle specifications
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50 kgf)while the engine is running
*2: Parking brake lever travel when pulled up with a force of 44.1 lbf (196 N, 20.0 kgf)
Brakes
Pe d a l c l e a r a n c e*13.4 in. (86 mm) Min.
Pedal free play0.04  0.24 in. (1  6 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake lever travel*25  7 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
Chassis lubrication (Propeller shafts)
SpiderLithium base chassis grease, NLGI No.2
Slide yokeMolybdenum-disulfide lith ium base chassis grease,
NLGI No.2 or lithium base chassis grease, NLGI No.2

570
GX460_OM_OM60M73U_(U)8-1. Specifications
Steering
Free playLess than 1.18 in. (30 mm)
Power steering fluid typeAutomatic transmission fluid DEXRON® II or III
Tires and wheels
Ti r e s i z eP265/60R18 109H
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front tire
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Rear tire
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Spare tire
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Wheel size18
 7 1 /2J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

GX460_OM_OM60M73U_(U)
5718-1. Specifications
8
Vehicle specifications
Light bulbs
Light bulbsBulb No.WTy p e
Exterior
Headlights (High beam)970365A
Front turn signal lights21B
Rear turn signal lights21B
Back-up lights92116C
Rear side marker lights5C
Running board lights5C
Interior
Pe r s o n a l /
Interior lightsFront5C
Rear5C
Va n i t y l i g h t s8C
Door courtesy lights5C
A: H9 halogen bulbsB: Wedge base bulb (amber) C: Wedge base bulb (clear)

572
GX460_OM_OM60M73U_(U)8-1. Specifications
Fuel information
■Gasoline quality
In very few cases, driveability problems may be caused by
the brand of gasoline you are
using. If driveability problems persist, try changing the brand of gasoline. If this does not
correct the problem, consult your Lexus dealer.
■Gasoline quality standards
●Automotive manufacturers in the U.S.A., Eu rope and Japan have developed a specifi-
cation for fuel quality called the World-Wi de Fuel Charter (WWFC), which is expected
to be applied worldwide.
●The WWFC consists of four cat egories that are based on required emission levels. In
the U.S., category 4 has been adopted.
●The WWFC improves air quality by lowering emissions in vehicle fleets, and improves
customer satisfaction through better performance.
You must only use unleaded gasoline.
Select premium unleaded gasoline with an octane rating of 91 (Research
Octane Number 96) or higher required for optimum engine performance. If
91 octane cannot be obtained, you may use unleaded gasoline with an octane
rating as low as 87 (Research Octane Number 91). Use of unleaded gasoline
with an octane rating lower than 91 ma y result in engine knocking. Persistent
knocking can lead to engine damage and should be corrected by refueling
with higher octane unleaded gasoline.
At minimum, the gasoline you use should meet the specifications of ASTM
D4814 in the U.S.A..

GX460_OM_OM60M73U_(U)
5738-1. Specifications
8
Vehicle specifications
■Recommendation of the use of gasoline containing detergent additives
●Lexus recommends the use of gasoline that contains detergent additives to avoid the
build-up of engine deposits.
●All gasoline sold in the U.S.A. contains minimum detergent additives to clean and/or
keep clean intake systems, per EPA’s lowest additives concentration program.
●Lexus strongly recommends the use of Top Ti er Detergent Gasoline. For more informa-
tion on Top Tier Detergent Gasoline and a list of marketers, please go to the official
website www.toptiergas.com.
■Recommendation of the use of low emissions gasoline
Gasolines containing oxygenates such as et hers and ethanol, as well as reformulated
gasolines, are available in some cities. These fuels are typically acceptable for use, pro-
viding they meet other fuel requirements.
Lexus recommends these fuels, since the fo rmulations allow for reduced vehicle emis-
sions.
■Non-recommendation of the use of blended gasoline
●If you use gasohol in your Lexus, be sure that it has an octane rating no lower than 87.
●Lexus does not recommend the use of gasoline containing methanol.
■Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT (Methylcy clopenta-
dienyl Manganese Tricarbonyl).
Lexus does not recommend the use of gasolin e that contains MMT. If fuel containing
MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the instru ment cluster may come on. If this happens,
contact your Lexus dealer for service.
●Use only gasoline containing up to 15% etha-
nol.
DO NOT use any flex-fuel or gasoline that
could contain more than 15% ethanol, includ-
ing from any pump labeled E30, E50, E85
(which are only some examples of fuel con-
taining more than 15% ethanol).DO NOT use gasoline
containing more than 15%
ethanol.
(30% ethanol)
(50% ethanol)
(85% ethanol)

574
GX460_OM_OM60M73U_(U)8-1. Specifications
■If your engine knocks
●Consult your Lexus dealer.
●You may occasionally notice light knocking fo
r a short time while accelerating or driv-
ing uphill. This is normal and there is no need for concern.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used, the engine will be damaged.
●Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic converters
causing the emission control system to malfunction.
●Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system da mage or vehicle performance problems.
●Using unleaded gasoline with an octane number or rating lower than the level previ-
ously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■Fuel-related poor driveability
If poor driveability (poor hot starting, vaporization, engine knocking, etc.) is encoun-
tered after using a different type of fuel, discontinue the use of that type of fuel.
■When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.

575
GX460_OM_OM60M73U_(U)8-1. Specifications
8
Vehicle specifications
Tire information
Ti r e s i z e
( P. 5 7 7 )
DOT and Tire Identification Number (TIN) ( P. 5 76 )
Location of treadwear indicators (P. 4 6 8 )
Tire ply composition and materials
Plies are layers of rubber-coated parallel co rds. Cords are the strands which form the
plies in a tire.
Radial tires or bias-ply tires
A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a bias-ply
tire.
TUBELESS or TUBE TYPE
A tubeless tire does not have a tube and air is directly put into the tire. A tube type tire
has a tube inside the tire and the tube maintains the air pressure.
Load limit at maximum cold tire inflation pressure (P. 5 8 1 )
Maximum cold tire inflation pressure ( P. 5 8 1 )
This means the pressure to which a tire may be inflated.
Uniform tire quality grading
For details, see “Uniform Tire Quality Grading” that follows.
Summer tires or all season tires ( P. 4 7 1 )
An all season tire has “M+S” on the sidewall. A tire not marked “M+S” is a summer
tire.

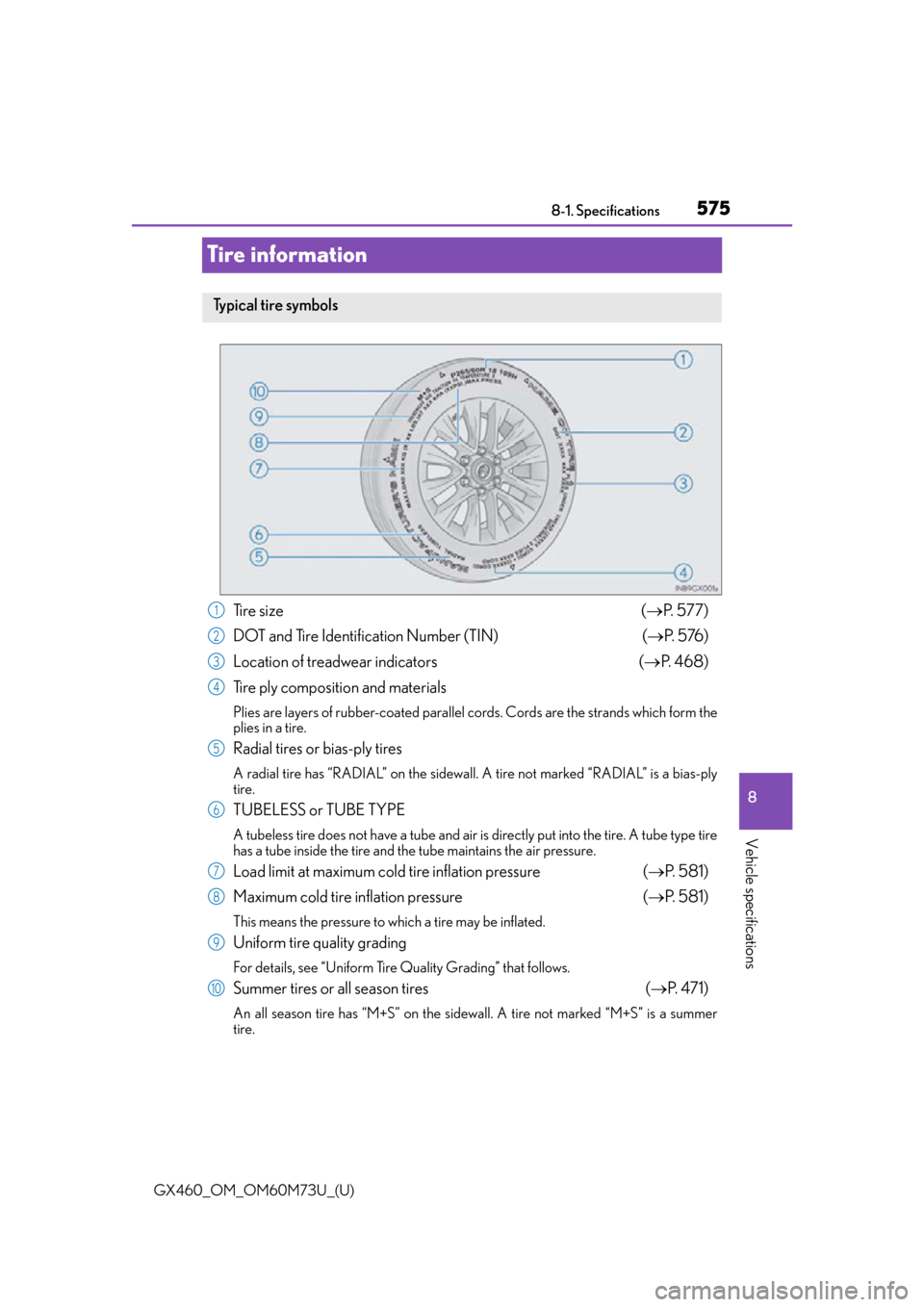

Ty p i c a l t i r e s y m b o l s
1
2
3
4
5
6
7
8
9
10

576
GX460_OM_OM60M73U_(U)8-1. Specifications
DOT symbol*
Tire Identification Number (TIN)
Tire manufacturer’s identification
mark
Ti r e s i z e c o d e
Manufacturer’s optional tire type
code (3 or 4 letters)
Manufacturing week
Manufacturing year
*: The DOT symbol certifies that the tire
conforms to applicable Federal Motor
Vehicle Safety Standards.
Typical DOT and Tire Identification Number (TIN)
1
2
3
4
5
6
7
