562
GX460_OM_OM60M73U_(U)8-1. Specifications
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicles
*2: Vehicles without roof ra
ils and shark fin antenna
*3: Vehicles with roof rails and without shark fin antenna
*4: Vehicles with shark fin antenna
*5: Vehicles without rear height control air suspension
*6: Vehicles with rear height control air suspension
Dimensions and weights
Overall length189.2 in. (4880 mm)
Overall width74.2 in. (1885 mm)
Overall height*1
71.7 in. (1820 mm)*2, 6
72.0 in. (1830 mm)*2, 5
72.2 in. (1835 mm)*3, 6
72.6 in. (1845 mm)*3, 5
73.8 in. (1875 mm)*4, 6
74.2 in. (1885 mm)*4, 5
Wheelbase109.8 in. (2790 mm)
Front and rear tread62.4 in. (1585 mm)
Vehicle capacity weight
(Occupants + luggage)1280 lb. (580 kg)*6
1315 lb. (595 kg)*5
TWR (trailer weight +
cargo weight) (With
towing hitch)With brake6500 lb. (2948 kg)
Without brake1000 lb. (453 kg)

GX460_OM_OM60M73U_(U)
5638-1. Specifications
8
Vehicle specifications
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number fo r your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the front
right frame.
This number is also stamped on the
top left of the instrument panel.
This number is also on the Certifica-
tion Regulation label on the left-
hand side center pillar.
Vehicle identification

564
GX460_OM_OM60M73U_(U)8-1. Specifications
■Engine number
The engine number is stamped on the engine block as shown.
*: The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.
Engine
Model4.6 L 8-cylinder (1UR-FE)
Ty p e8-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70  3.27 in. (94.0  83.0 mm)
Displacement281.2 cu.in. (4608 cm3)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane rating91 (Research Octane Number 96) or higher
Fuel tank capacity (Reference)23.0 gal. (87 L, 19.1 Imp.gal.)
Lubrication system
Oil capacity
(Drain and refill — reference*)
With filter
Without filter8.2 qt. (7.8 L, 6.9 Imp.qt.)
7.8 qt. (7.4 L, 6.5 Imp.qt.)

GX460_OM_OM60M73U_(U)
5658-1. Specifications
8
Vehicle specifications
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20
at the next oil change.
Oil viscosity (0W-20 is explained here as an example): • The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscos ity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container label:
The International Lubricant Specifi-
cation Advisory Committee (ILSAC)
Certification Mark is added to some
oil containers to help you select the
oil you should use.
Outside temperature

566
GX460_OM_OM60M73U_(U)8-1. Specifications
Cooling system
Capacity
(reference)With rear heater16.3 qt. (15.4 L, 13.6 Imp.qt.)
Without rear heater14.5 qt. (13.7 L, 12.1 Imp.qt.)
Coolant typeUse either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-basednon-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Ignition system (spark plug)
MakeDENSO SK20HR11
Gap0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

GX460_OM_OM60M73U_(U)
5678-1. Specifications
8
Vehicle specifications
*: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory.Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of
matching quality to satisfy the above specif ication. Please contact your Lexus dealer
for further details.
*: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory. Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of
matching quality to satisfy the above specif ication. Please contact your Lexus dealer
for further details.
Electrical system (battery)
Specific gravity reading at
68 F (20 C):12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11.8  12.0 V Discharged
(*: Voltage is checked 20 minutes after the engine
and all the lights are turned off.)
Charging rates5 A max.
Front differential
Oil capacity1.48 qt. (1.40 L, 1.23 Imp.qt.)
Oil type and viscosity*Toyota Genuine Differential Gear Oil LT 75W-85
GL-5 or equivalent
Rear differential
Oil capacity2.85 qt. (2.70 L, 2.38 Imp.qt.)
Oil type and viscosity*Toyota Genuine Differential Gear Oil LT 75W-85
GL-5 or equivalent

568
GX460_OM_OM60M73U_(U)8-1. Specifications
*: The fluid capacity is a reference quantity. If replacement is necessary, contact your
Lexus dealer.
*: Your Lexus vehicle is filled with “Toyota Ge nuine Transfer Gear oil LF” at the factory.
Use Lexus approved “Toyota Genuine Transfer Gear oil LF” or an equivalent of
matching quality to satisfy the above specif ication. Please contact your Lexus dealer
for further details.

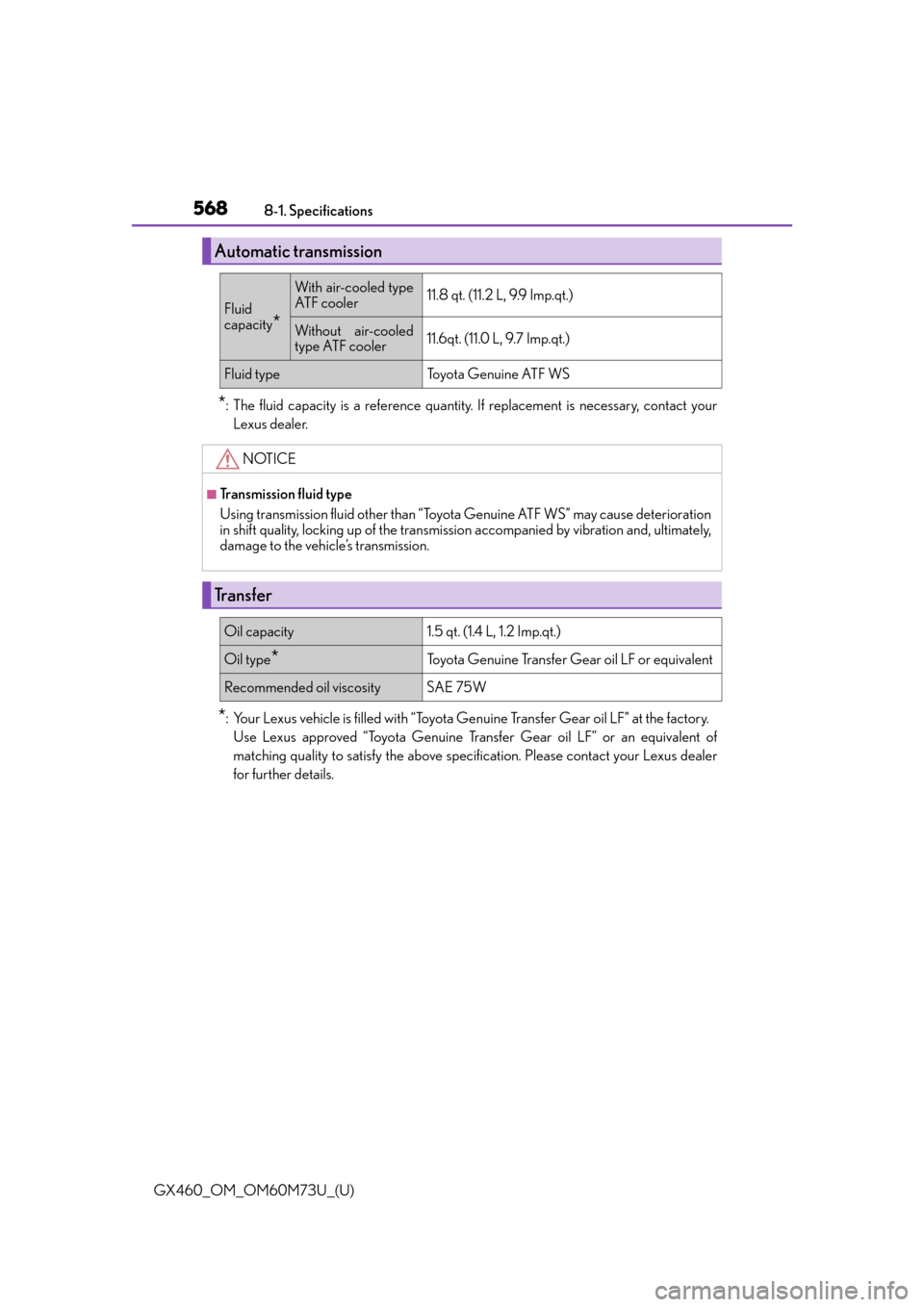

Automatic transmission
Fluid
capacity
*
With air-cooled type
ATF cooler11.8 qt. (11.2 L, 9.9 Imp.qt.)
Without air-cooled
type ATF cooler11.6qt. (11.0 L, 9.7 Imp.qt.)
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration
in shift quality, locking up of the transmissi on accompanied by vibration and, ultimately,
damage to the vehicle’s transmission.
Transfer
Oil capacity1.5 qt. (1.4 L, 1.2 Imp.qt.)
Oil type*Toyota Genuine Transfer Gear oil LF or equivalent
Recommended oil viscositySAE 75W
