1. LEXUS PARKING ASSIST MONITOR
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
6. THINGS YOU SHOULD KNOW
If you notice any of the following symptoms, refer to the likely cause and the solution,
and re-check.
If the symptom is not resolved by the solution, have the vehicle inspected by any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped professional.
IF YOU NOTICE ANY SYMPTOMS
SymptomLikely causeSolution
The image is difficult to see•The vehicle is in a dark area
• The temperature around
the lens is either high or low
• The outside temperature is
low
• There are water droplets on
the camera
• It is raining or humid
• Foreign matter (mud etc.) is
adhering to the camera
• Sunlight or headlights are
shining directly into the
camera
• The vehicle is under fluo-
rescent lights, sodium lights,
mercury lights etc.Back up while visually check-
ing the vehicle’s surroundings.
(Use the monitor again once
conditions have been im-
proved.)
The procedure for adjusting
the picture quality of the park-
ing assist monitor is the same
as the procedure for adjusting
the screen display. ( →P.42)
The image is blurryDirt or foreign matter (such as
water droplets, snow, mud
etc.) is adhering to the cam-
era.Flush the camera with a large
quantity of water and wipe the
camera lens clean with a soft
and wet cloth.
The image is out of alignmentThe camera or surrounding
area has received a strong im-
pact.Have the vehicle inspected by
any authorized Lexus dealer
or repairer, or another duly
qualified and equipped pro-
fessional.

277
1. LEXUS PARKING ASSIST MONITOR
PERIPHERAL MONITORING SYSTEM
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
6
The guide lines are very far
out of alignmentThe camera position is out of
alignment.Have the vehicle inspected by
any authorized Lexus dealer
or repairer, or another duly
qualified and equipped pro-
fessional.
•The vehicle is tilted (there is
a heavy load on the vehicle,
tyre pressure is low due to a
tyre puncture, etc.)
• The vehicle is used on an
incline.If this happens due to these
causes, it does not indicate a
malfunction.
Back up while visually check-
ing the vehicle’s surroundings.
The estimated course lines
move even though the steer-
ing wheel is straightThere is a malfunction in the
signals being output by the
steering sensor.Have the vehicle inspected by
any authorized Lexus dealer
or repairer, or another duly
qualified and equipped pro-
fessional.
Guide lines are not displayedThe trunk is open.Close the trunk.
If this does not resolve the
symptom, have the vehicle in-
spected by any authorized
Lexus dealer or repairer, or
another duly qualified and
equipped professional.
SymptomLikely causeSolution

279
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
PERIPHERAL MONITORING SYSTEM
6
2. LEXUS PARKING ASSIST-SENSOR
1. LEXUS PARKING ASSIST-SENSOR*1
Front corner sensors
Front centre sensors*
2
Rear corner sensors
Rear centre sensors
1Turns the Lexus parking assist-sensor
on/off.
zWhen on, the indicato r light comes on to
inform the driver that the system is opera-
tional.
The distance from your vehicle to near-
by obstacles when parallel parking or
maneuvering into a garage is measured
by the sensors and communicated via
the multi-information display, Remote
Touch screen and a buzzer. Always
check the surrounding area when using
this system.
TYPES OF SENSORS
*1: If equipped
*2: Except for GS F
LEXUS PARKING ASSIST-
SENSOR SWITCH

280
2. LEXUS PARKING ASSIST-SENSOR
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
■MULTI-INFORMATION DISPLAY
Front corner sensor detection
Front centre sensor detection*
Rear corner sensor detection
Rear centre sensor detection
■Remote Touch SCREEN
X With 8-inch display
zWhen the parking assist monitor system is
not displayed.
A graphic is automatically displayed when
an obstacle is detected. The screen can be
set so that the graphic is not displayed.
(→ P.291)
: Select to mute the buzzer sounds.
z When the rear view monitor system is dis-
played. (insert display)
A simplified image is displayed on the right
upper corner of the Remote Touch screen
when an obstacle is detected.
DISPLAY
When the sensors detect an obstacle, a
graphic is shown on the multi-informa-
tion display and Remote Touch screen
depending on the position and distance
to the obstacle.
*: Except for GS F

281
2. LEXUS PARKING ASSIST-SENSOR
PERIPHERAL MONITORING SYSTEM
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
6
XWith 12.3-inch display
zA graphic will be shown on the side display.
A graphic is automatically displayed when
an obstacle is detected. The screen can be
set so that the graphic is not displayed.
(→ P.291)
: Select to mute the buzzer sounds.

282
2. LEXUS PARKING ASSIST-SENSOR
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
■FRONT CENTRE SENSOR*
SENSOR DETECTION DISPLAY, OBSTACLE DISTANCE
Approximate
distance to obstacleMulti-
information displayRemote Touch screen
8-inch display8-inch display
(insert display)12.3-inch display
100 cm (3.3 ft.) to
50 cm (1.6 ft.)
(continuous)(continuous)(blinking slowly)(continuous)
50 cm (1.6 ft.) to
40 cm (1.3 ft.)
(continuous)(continuous)(blinking)(continuous)
40 cm (1.3 ft.) to
30 cm (1.0 ft.)
(continuous)(continuous)(blinking rapidly)(continuous)
Less than
30 cm (1.0 ft.)
(blinking)(continuous)(continuous)(continuous)
*: Except for GS F

283
2. LEXUS PARKING ASSIST-SENSOR
PERIPHERAL MONITORING SYSTEM
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
6
■CORNER SENSORS
Approximate
distance to obstacleMulti-
information displayRemote Touch screen
8-inch display8-inch display
(insert display)12.3-inch display
60 cm (2.0 ft.) to
45 cm (1.5 ft.)
(continuous)(continuous)(blinking)(continuous)
45 cm (1.5 ft.) to
30 cm (1.0 ft.)
(continuous)(continuous)(blinking rapidly)(continuous)
Less than
30 cm (1.0 ft.)
(blinking)(continuous)(continuous)(continuous)

284
2. LEXUS PARKING ASSIST-SENSOR
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54

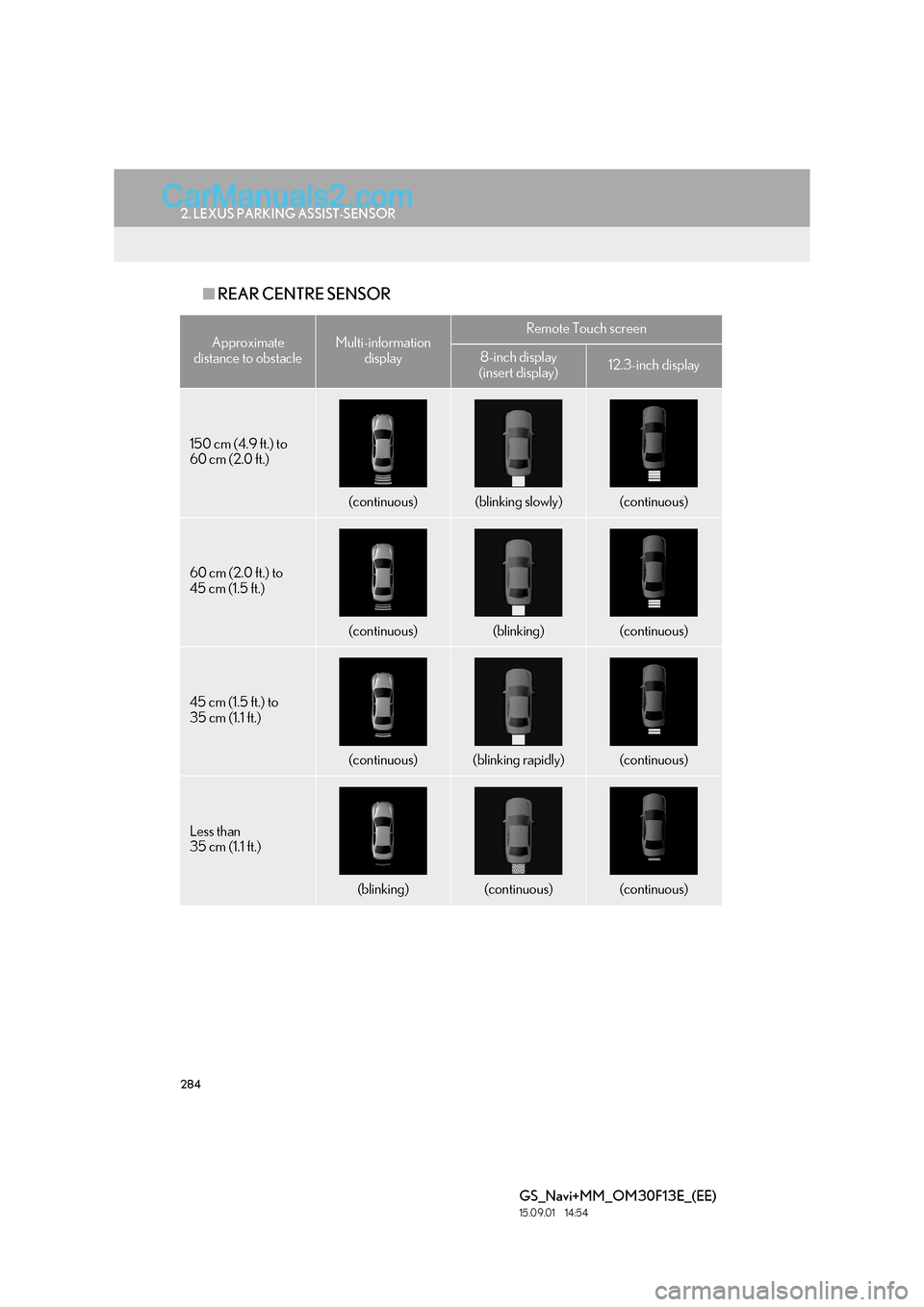

■REAR CENTRE SENSOR
Approximate
distance to obstacleMulti-information displayRemote Touch screen
8-inch display
(insert display)12.3-inch display
150 cm (4.9 ft.) to
60 cm (2.0 ft.)
(continuous)(blinking slowly)(continuous)
60 cm (2.0 ft.) to
45 cm (1.5 ft.)
(continuous)(blinking)(continuous)
45 cm (1.5 ft.) to
35 cm (1.1 ft.)
(continuous)(blinking rapidly)(continuous)
Less than
35 cm (1.1 ft.)
(blinking)(continuous)(continuous)
