2016 KIA Optima Hybrid Owner's Manual

769
Maintenance
Description Fuse RatingProtected Component
INVERTER 50A O_P_INVERTER
EPB 2 30A EPB UNIT BATT2
EPB 1 30A EPB UNIT BATT1
ECU 2 40A EMS BOX (B+)
ECU 4 10A ENGINE ECU
TCU 2 15A SPEED SNSR, POSITION SW, O_P_INVERTER
AHB 3 10A ESC UNIT IGN1
B/UP LAMP10AELECTRO CHROMIC MIRROR, BCM, REAR COMBINATION LAMP (IN) LH/RH
EWP10AWATER PUMP MTR B+

Maintenance
70
7
LIGHT BULBS
Use only the bulbs of the specified
wattage.
If you don’t have necessary tools, the
correct bulbs and the expertise, con-
sult an authorized Kia dealer. In
many cases, it is difficult to replace
vehicle light bulbs because other
parts of the vehicle must be removed
before you can get to the bulb. This is
especially true if you have to remove
the headlight assembly to get to the
bulb(s). Removing/installing the
headlight assembly can result in
damage to the vehicle.Headlight, position light, turn
signal light, side marker light,
and front fog light bulb
replacementWARNING - Lights
Prior to working on the light,
firmly apply the parking brake,
ensure that the ignition switch
is turned to the “LOCK” position
and turn off the lights to avoid
burning your fingers or receiv-
ing an electric shock.
CAUTION - Light replacement
Be sure to replace the burned-out bulb with one of the samewattage rating. Otherwise, itmay cause damage to the fuseor electric wiring system.
OTFH074027N
OTFH074090N

771
Maintenance
(1) Headlight (High)
(2) Headlight (Low)
(3) Side marker
(4) Front turn signal light (and Front position light*)
(5) Front position light*
(6) Front fog light*
* : if equippedHeadlight bulbAlways handle them carefully, and
avoid scratches and abrasions. If the
bulbs are lit, avoid contact with liq-
uids. Never touch the glass with bare
hands. Residual oil may cause the
bulb to overheat and burst when lit. A
bulb should be operated only when
installed in a headlight.
If a bulb becomes damaged or
cracked, replace it immediately and
carefully dispose of it.
Wear eye protection when changing
a bulb. Allow the bulb to cool down
before handling it.
OHD076046
WARNING- Halogen
bulbs
Handle halogen bulbs with care.
Halogen bulbs contain pressur-
ized gas that will produce flying
pieces of glass if broken.
WARNING- HID Headlight
low beam (if equipped)
Do not attempt to replace or
inspect the low beam (XENON
bulb) due to electric shock dan-
ger. If the low beam (XENON
bulb) is not working, have your
vehicle checked by an author-
ized Kia dealer.

Maintenance
72
7

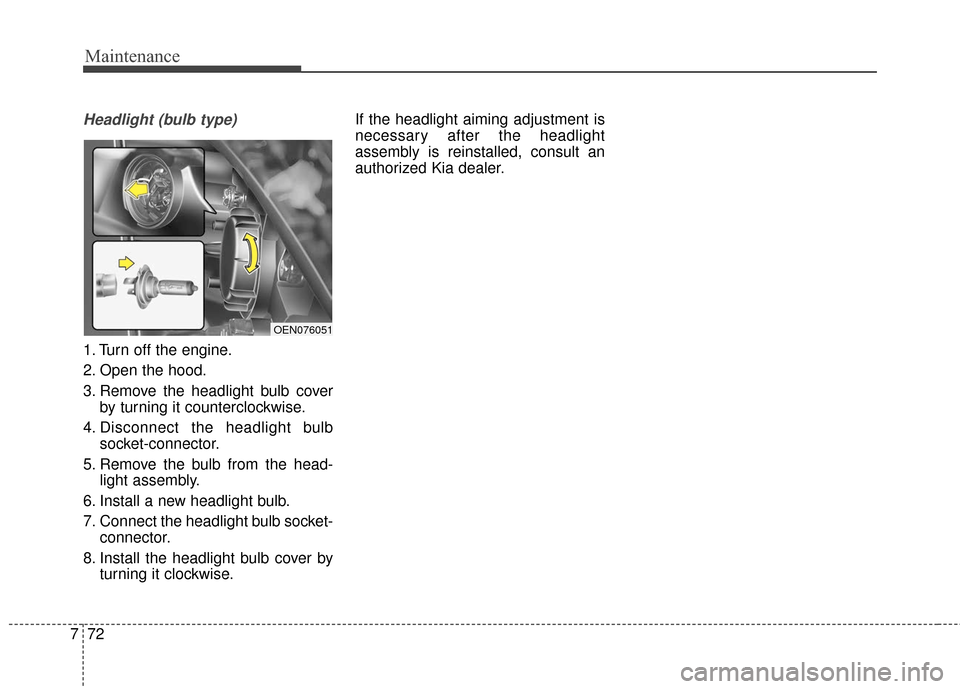

Headlight (bulb type)
1. Turn off the engine.
2. Open the hood.
3. Remove the headlight bulb cover
by turning it counterclockwise.
4. Disconnect the headlight bulb socket-connector.
5. Remove the bulb from the head- light assembly.
6. Install a new headlight bulb.
7. Connect the headlight bulb socket- connector.
8. Install the headlight bulb cover by turning it clockwise. If the headlight aiming adjustment is
necessary after the headlight
assembly is reinstalled, consult an
authorized Kia dealer.
OEN076051

773
Maintenance
Front side marker/Front turn sig-nal light
Front side marker
1.Turn off the engine.
2.Open the hood
3.Remove the intake folder and screws.
4.Remove the bumper cover and under pad by rotating the screw.
5.Remove the nuts of headlamp assembly.
6.Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
7.Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
8.Insert a new bulb by inserting it into the socket and rotating it until it
locks into place.
OTF070065/OTF074066N/OTF074069OTF070068/OTF070050N/OTF070051N
Front side marker
Front turn signal light

Maintenance
74
7
9.Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into assembly and
turn the socket clockwise.
10. Reinstall the headlamp assem- bly, under pad and bumper to the
body of the vehicle. Front turn signal light
1.Turn off the engine.
2.Open the hood
3.Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4.Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
5.Insert a new bulb by inserting it into the socket and rotating it until it
locks into place.
6.Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into assembly and
turn the socket clockwise.Side repeater light bulb
replacement
If the light bulb does not operate,
have the vehicle checked by an
authorized Kia dealer.
OTF070029

775
Maintenance
Front fog light
1.Turn off the engine.
2.Remove the under cover by rotat-ing the screws.
3.Reach your hand into the back of the front bumper.
4.Disconnect the power connector.
5.Remove the bulb-socket from the housing by turning the socket
counter clockwise until the tabs on
the socket align with the slots on
the housing. 6.Install the new bulb-socket into the
housing by aligning the tabs on the
socket with the slots in the hous-
ing.
Push the socket into the housing
and turn the socket clockwise.
7.Connect the power connector.
8.Reinstall the front under cover.
Rear combination light bulb
replacement
(1) Stop and tail light
(2) Tail light
(3) Rear turn signal light
(4) Back-up light
(5) Rear side marker
OTF074067N
OTF074030

Maintenance
76
7
If the light (LED) does not operate,
have the vehicle checked by an
authorized Kia dealer.Rear turn signal light
1.Turn off the engine.
2.Open the trunk.
3.Open the service cover. 4.Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
5.Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
6.Insert a new bulb by inserting it into the socket and rotating it until it
locks into place.
7.Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
8.Install the service cover by pulling it into the service hole.
OTF070031
OTFH074032N
