2016 INFINITI QX50 CD player

table of contents
new system features Around View ® Monitor (AVM) with Moving Object Detection (MOD)
(if so equipped) ................................................ 2
Snow Mode ................................................... 3
Blind Spot Warning (BSW) (if so equipped) ..........................4
essential information Tire Pressure Monitoring System (TPMS) ............................ 5
Loose Fuel Cap ................................................. 5
Fuel-filler Door ................................................. 6
Front Armrest/Center Console Storage Box .......................... 6
Clock Set/Adjustment ........................................... 6
first drive features INFINITI Intelligent Key System ................................... 7
Liftgate Release ................................................ 8
Power Seat Adjustments ......................................... 8
Heated Seats .................................................. 9
Automatic Drive Positioner (if so equipped) ......................... 9
Outside Mirror Control Switch .................................... 10
Headlight Control Switch ........................................ 10
Wiper and Washer Switch ....................................... 11
Starting/Stopping the Engine .................................... 12
Heater and Air Conditioner (automatic) ............................ 12
FM/AM/SiriusXM
® Satellite Radio with CD/DVD Player
(with Navigation System - if so equipped) ..........................14
USB (Universal Serial Bus) Connection Port and iPod
® Interface ........15
Conventional (Fixed Speed) Cruise Control ......................... 15
Intelligent Cruise Control (ICC) (if so equipped) .....................16
Power Outlets ................................................. 17
system guide Trip Computer ................................................. 18
Bluetooth® Hands-free Phone System ............................. 19
System Operating Tips ....................................... 19
Bluetooth
® System with Navigation (if so equipped) ................. 20
Bluetooth® System without Navigation (if so equipped) .............. 22
Bluetooth® Streaming Audio with Navigation (if so equipped) ..........23
Navigation System (if so equipped) ............................... 24
DVD Player ................................................... 25
HomeLink
® Universal Transceiver (if so equipped) ...................26
To view detailed instructional videos, go to
www.infinitiownersinfo.mobi/2016/qx50 or snap this barcode with an
appropriate barcode reader.
Please see your Owner’s Manual for important safety information
and system operation limitations.
• A cellular telephone should not be used for any purpose while
driving so full attention may be given to vehicle operation.
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
• Children 12 and under should always ride in the rear seat
properly secured in child restraints or seat belts according to
their age and weight.
• Do not drink and drive.
For more information, refer to the “Safety — Seats, seat belts and supplemental
restraint system (section 1)”, the “Monitor, climate, audio, phone and voice
recognition systems (section 4)” and the “Starting and driving (section 5)” of
your Owner’s Manual.
Additional information about your vehicle is also available in your Owne\
r’s Manual, Navigation System Owner’s Manual and at www.InfinitiUSA.com.
2128163_16b_QX50_US_pQRG_091515.indd 49/15/15 2:54 PM

14
first drive features
FM/AM/SiriusXM®* Satellite Radio with CD/DVD Player
(with Navigation System - if so equipped)
1 ON•OFF BUTTON/VOL (volume) CONTROL KNOB

Press the ON•OFF button to turn the system on or off.

Turn the VOL (volume) control knob right or left to increase or decrease the volum\
e.
2 SEEK•CAT AND TRACK BUTTONS

To scan quickly through each broadcasting station, press the SEEK•CAT button or the
TRACK button to stop at the next or previous broadcast station.

For satellite radio, press the SEEK•CAT button or the TRACK button to switch to
the first channel of the next or previous category.

Press the SEEK•CAT button or the TRACK button to change tracks on a CD.

Press and hold the SEEK•CAT button or the TRACK button to fast forward or rewind a
track on a CD.
3 AUDIO BUTTON/TUNE/FOLDER KNOB

Press the AUDIO button to go to the audio settings screen.

To manually tune the radio, turn the TUNE/FOLDER knob left or right.
4 STATION PRESET BUTTONS

Twelve stations can be set for the FM band, six for the AM band and 18 f\
or
satellite radio.

To store a station in a preset, you must first select a radio band by pr\
essing the
AM•FM/SAT button
5 then tune to the desired AM, FM or satellite radio station.

Next, press and hold the desired station preset button (1-6) until the preset number is
updated on the display and the sound is briefly muted. The channel indic\
ator will then
display, and the sound will resume. Programing is now complete.

To retrieve a previously set station, select the radio band where the pr\
eset was stored
then press the corresponding station select button (1-6).
*SiriusXM® Satellite Radio is only available on vehicles equipped with an optional\
satellite radio subscription service.
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (secti\
on 4)” of your
Owner’s Manual.
123
4
5
2128163_16b_QX50_US_pQRG_091515.indd 149/15/15 2:55 PM

23

3. After the next tone, say “Phone Number”.
4. After the next tone, say “123-456-7890”.
• You may also say the digits in groups of 3, 3 and 4, respectively. To use this group dialing
method, say only the first 3 digits of the phone number instead of all 1\
0 digits. After the
system recognizes the digits, it will request the next 3 digits and fina\
lly the last 4 digits.
5. After the system speaks the correct number and sounds the tone, say “\
Dial”.
RECEIVING/ENDING A CALL

To accept the call, press the button on the steering wheel.

To reject the call, press the button on the steering wheel.

To hang up, press the button on the steering wheel.
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (sect\
ion 4)” of your Owner’s
Manual or please visit www.InfinitiUSA.com/bluetooth.
Bluetooth® Streaming Audio with Navigation (if so equipped)
If you have a compatible Bluetooth® device with streaming audio (A2DP and AVRCP
profiles), you can set up the wireless connection between your Bluetoot\
h® device and your
vehicle’s audio system. This connection allows you to listen to audio\
from the Bluetooth®
device using your vehicle’s speakers.

A cellular telephone should not be used while driving so full attention \
may be given to
vehicle operation.*

To use your connected Bluetooth® device to
stream audio, it will need to be connected as an
audio device. The following procedure will initially
connect a Bluetooth
® device as an audio player and
allow you to switch between devices.
1. Press the SETTING button on the control panel
and touch the “Bluetooth” key on
the display.
2. Select “Connected Devices”.
3. Select “Audio Player”.
4. Select the name of the device that you are
attempting to connect as an audio player.
5. Select “Select”.
6. Verify that the system confirms that the device
has been selected as an audio player.

Once your Bluetooth® device has been connected
as an audio device, push the DISC•AUX button on
the control panel to select the Bluetooth
® Streaming
Audio player.

Bluetooth® connectivity issues can usually be
resolved with a reboot of your cellular phone if you
do not regularly turn off your cellular phone. Otherwise, try updating y\
our cellular phone
with the latest software.
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (section 4\
) ” of your Owner’s
Manual or visit www.InfinitiUSA.com/bluetooth.
*Some jurisdictions prohibit the use of cellular telephones while drivin\
g.
2128163_16b_QX50_US_pQRG_091515.indd 239/15/15 2:56 PM

25
DVD Player
With this DVD player, you can play video files via a
DVD or CD from the front display.

To view movies on the front display, stop the vehicle
in a safe location, move the shift lever to the
P (PARK) position and apply the parking brake.

To reduce driver distraction, movies will not be
shown on the front display while the vehicle is in
any drive position.
For more information, refer to the “Monitor, climate, audio, phone and voice
recognition systems (section 4)” of your Owner’s Manual.

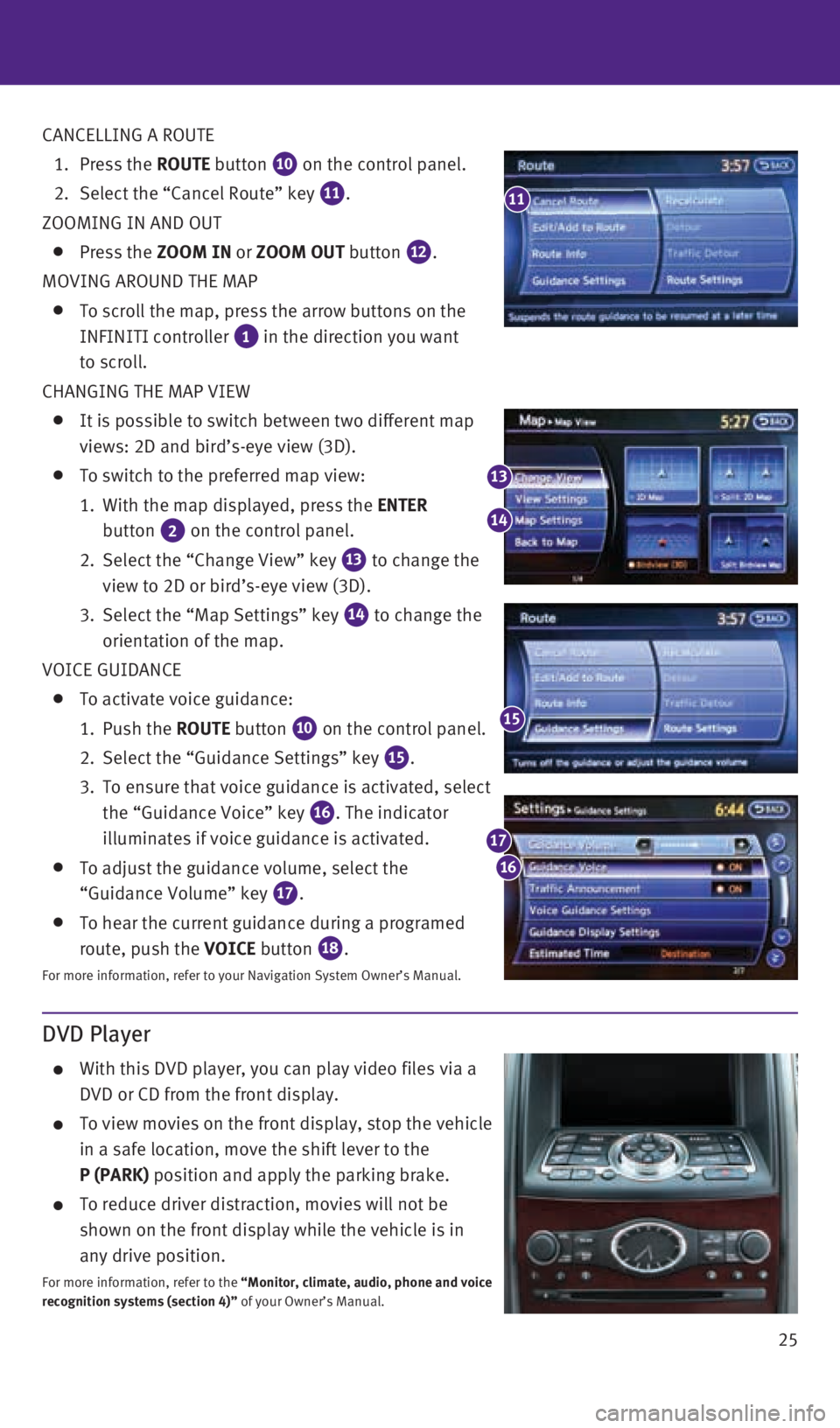

CANCELLING A ROUTE
1. Press the ROUTE button
10 on the control panel.
2. Select the “Cancel Route” key 11.
ZOOMING IN AND OUT

Press the ZOOM IN or ZOOM OUT button 12.
MOVING AROUND THE MAP

To scroll the map, press the arrow buttons on the
INFINITI controller
1 in the direction you want
to scroll.
CHANGING THE MAP VIEW

It is possible to switch between two different map
views: 2D and bird’s-eye view (3D).

To switch to the preferred map view:
1. With the map displayed, press the ENTER
button
2 on the control panel.
2. Select the “Change View” key
13 to change the
view to 2D or bird’s-eye view (3D).
3. Select the “Map Settings” key
14 to change the
orientation of the map.
VOICE GUIDANCE

To activate voice guidance:
1. Push the ROUTE button
10 on the control panel.
2. Select the “Guidance Settings” key
15.
3. To ensure that voice guidance is activated, select
the “Guidance Voice” key
16. The indicator
illuminates if voice guidance is activated.

To adjust the guidance volume, select the
“Guidance Volume” key
17.

To hear the current guidance during a programed
route, push the VOICE button
18.
For more information, refer to your Navigation System Owner’s Manual.\
11
15
13
14
16
17
2128163_16b_QX50_US_pQRG_091515.indd 259/15/15 2:57 PM
