7-18
Maintenance
Normal maintenance schedule (Cont.)
112,500 miles (180,000 km) or 90 months
❑Rotating tires
❑ Inspect air cleaner filter
❑ Inspect vacuum hose
❑ Inspect intercooler, in/out hose, air intake hose - Turbo GDI
(Every 6,200 miles (10,000 km))
❑ Inspect ecoshift dual clutch transmission fluid (if equipped)
❑ Inspect rear axle oil (AWD) * 3
❑ Inspect transfer case oil (AWD) * 3
❑ Replace engine oil and filter (Nu 2.0 GDI) * 6
(112,500 miles (180,000 km) or 180 months)
❑ Add fuel additive * 1
(112,500 miles (180,000 km) or 180 months)
(Continued)
❑ Add fuel additive * 1
(105,000 miles (168,000 km) or 168 months)
* 1
: If TOP TIER Detergent Gasoline is not available, one bottle
of additive is recommended. Additives are available from
your authorized HYUNDAI dealer along with information on
how to use them. Do not mix other additives.
* 5
: The drive belt should be replaced when cracks occur or ten-
sion is reduced
* 6
:Engine oil (Gamma 1.6 T-GDI) At first, replace at 3,000
miles (5,000 km) or 6 months, after that, every 5,000 miles
(8,000 km) or 6 months.
❈ Inspect : Inspect and if necessary, adjust, correct, clean or
replace. *1
: If TOP TIER Detergent Gasoline is not available, one bottle
of additive is recommended. Additives are available from
your authorized HYUNDAI dealer along with information on
how to use them. Do not mix other additives.
* 3
: Transfer case oil and rear axle oil should be changed any-
time they have been submerged in water.
* 6
:Engine oil (Gamma 1.6 T-GDI) At first, replace at 3,000
miles (5,000 km) or 6 months, after that, every 5,000 miles
(8,000 km) or 6 months.
❈ Inspect : Inspect and if necessary, adjust, correct, clean or
replace.
7-23
7
Maintenance
No check, No service required
❑Automatic transmission fluid
After 120 months or 150,000 miles (240,000 km) con-
tinue to follow the prescribed maintenance intervals.
NOTICE
Normal maintenance schedule
*3
: Transfer case oil and rear axle oil should be changed any-
time they have been submerged in water.
* 5
: The drive belt should be replaced when cracks occur or ten-
sion is reduced
* 6
:Engine oil (Gamma 1.6 T-GDI) At first, replace at 3,000
miles (5,000 km) or 6 months, after that, every 5,000 miles
(8,000 km) or 6 months.
❈ Inspect : Inspect and if necessary, adjust, correct, clean or
replace.

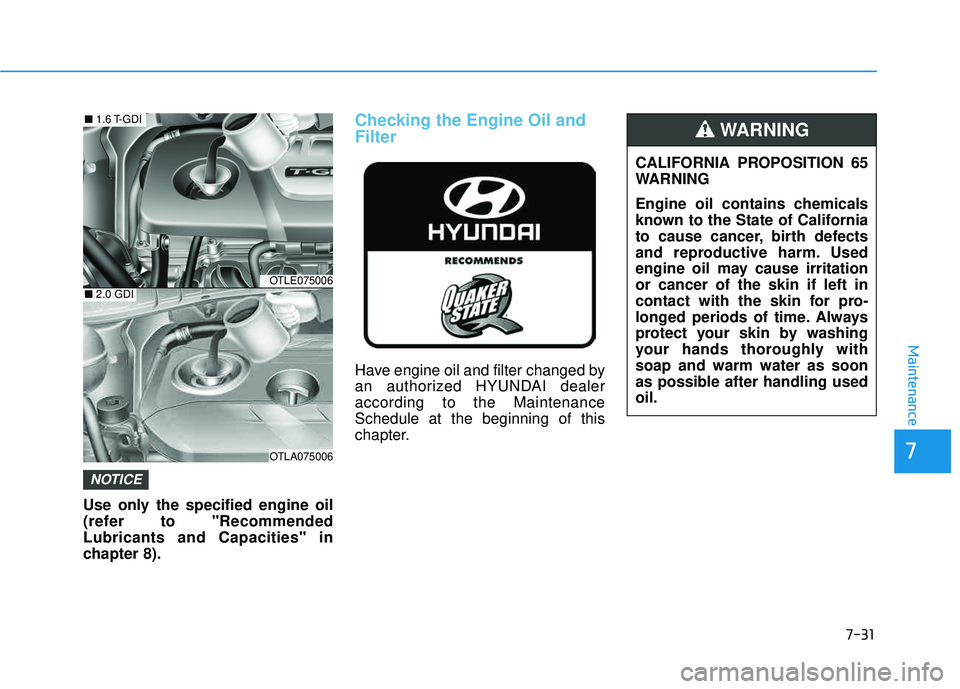

7-31
7
Maintenance
Use only the specified engine oil
(refer to "RecommendedLubricants and Capacities" in
chapter 8).
Checking the Engine Oil and Filter
Have engine oil and filter changed by
an authorized HYUNDAI dealeraccording to the MaintenanceSchedule at the beginning of this
chapter.
NOTICE
OTLE075006
OTLA075006
■1.6 T-GDI
■2.0 GDI
CALIFORNIA PROPOSITION 65
WARNING
Engine oil contains chemicals
known to the State of California
to cause cancer, birth defects
and reproductive harm. Used
engine oil may cause irritationor cancer of the skin if left in
contact with the skin for pro-
longed periods of time. Always
protect your skin by washing
your hands thoroughly withsoap and warm water as soon
as possible after handling usedoil.
WARNING
I-7
Jack and tools..................................................................6-15
Jack label.........................................................................6-22
Jump starting .....................................................................6-4
Keys ..................................................................................3-4
LabelAir conditioner compressor label ...............................8-11
Refrigerant label .........................................................8-11
Tire sidewall labeling .................................................7-54
Tire specification and pressure label ..........................8-11
Vehicle certification label ...........................................8-10
Lane Change Assist.........................................................5-52
Lane departure warning system(LDWS) ........................5-71
LCD display ....................................................................3-70 Information Mode ......................................................3-73
LCD modes ................................................................3-70
User Settings Mode ....................................................3-75
Warning Messages......................................................3-81
LCD Display Control......................................................3-64
LCD modes .....................................................................3-70
License plate light bulb replacement ..............................7-91 Lighting .........................................................................3-107
Auto light position....................................................3-107
Daytime running light ..............................................3-112
Exterior lights ...........................................................3-107
Front fog lamp ..........................................................3-110
Highbeam operation .................................................3-109
Interior lights ............................................................3-114
Turn signals ..............................................................3-110
Welcome system .......................................................3-113
Low tire pressure telltale.................................................6-11
Lubricants and capacities..................................................8-7
Luggage net (holder).....................................................3-161
Luggage tray .................................................................3-164
Luggage volume ...............................................................8-3
Main fuse ........................................................................7-67
Maintenance Explanation of scheduled maintenance items ............7-26
Maintenance services ...................................................7-5
Owner maintenance ......................................................7-6
Scheduled maintenance service....................................7-8
Tire maintenance ........................................................7-54
Maintenance schedule .......................................................7-8
Maintenance services ........................................................7-5
I
Index
L
K
M
J
