Page 617 of 642
7-104
Maintenance

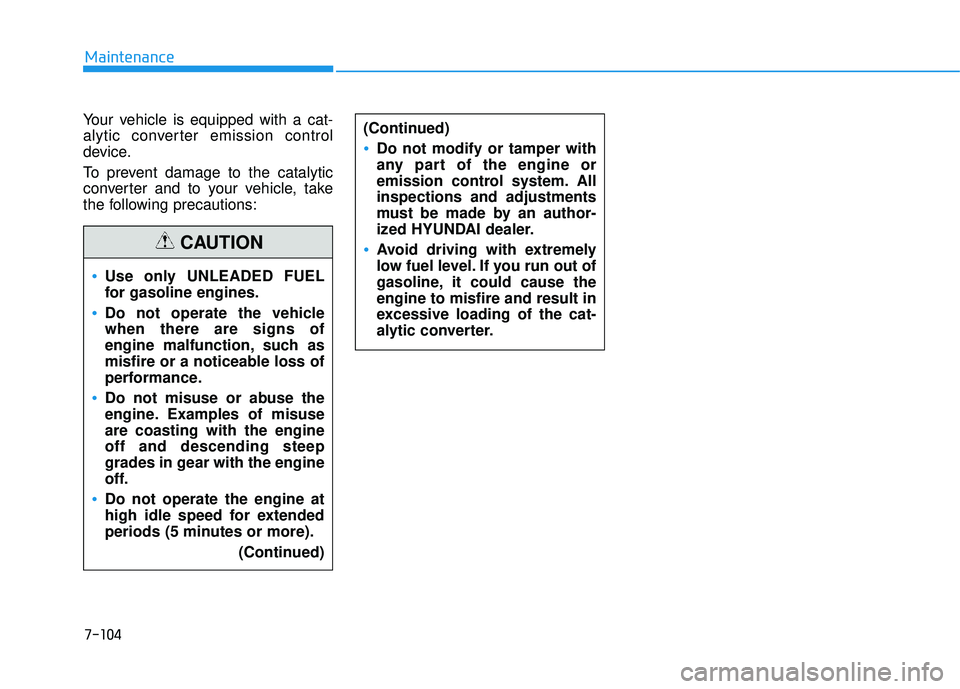

Your vehicle is equipped with a cat-
alytic converter emission control
device.
To prevent damage to the catalytic
converter and to your vehicle, take
the following precautions:
Use only UNLEADED FUEL
for gasoline engines.
Do not operate the vehicle when there are signs of
engine malfunction, such as
misfire or a noticeable loss of
performance.
Do not misuse or abuse the
engine. Examples of misuseare coasting with the engineoff and descending steep
grades in gear with the engine
off.
Do not operate the engine at
high idle speed for extended
periods (5 minutes or more).(Continued)
CAUTION
(Continued)
Do not modify or tamper with
any part of the engine or
emission control system. Allinspections and adjustments
must be made by an author-
ized HYUNDAI dealer.
Avoid driving with extremely
low fuel level. If you run out of
gasoline, it could cause theengine to misfire and result in
excessive loading of the cat-
alytic converter.
Page 618 of 642
7-105
7
Maintenance
CCAA LLIIFF OO RRNN IIAA PP EERR CCHH LLOO RRAA TTEE NN OO TTIICC EE
Perchlorate Material-special handling may apply, See: www.dtsc.ca.gov/hazardouswaste/perchlorate.
Notice to California Vehicle Dismantlers:
Perchlorate containing materials, such as air bag inflators, seatbelt pretensioners and keyless remote entry batteries,
must be disposed of according to Title 22 California Code of Regulations Section 67384.10 (a).
Page 619 of 642

Specifications, Consumer information and Reporting safety defects
8
Engine ......................................................................8-2
Dimensions ..............................................................8-2
Gross vehicle weight .............................................8-3
Luggage volume .....................................................8-3
Bulb Wattage ..........................................................8-4
Tires and Wheels ...................................................8-6
Air Conditioning System........................................8-6
Recommended Lubricants and Capacities ..........8-7
Recommended SAE Viscosity Number .........................8-9
Vehicle Identification Number (VIN) .................8-10
Vehicle Certification Label .................................8-10
Tire Specification and Pressure Label .............8-11
Engine Number .....................................................8-11
Refrigerant Label .................................................8-11
Consumer Information .........................................8-12
Reporting Safety Defects ...................................8-13
Page 620 of 642
DDIIMM EENN SSIIOO NNSS
8-2
Specifications, Consumer information and Reporting safety defects
EENN GGIINN EE
Itemsin (mm)
Overall length176.18 (4,475)
Overall width72.83 (1,850)
Overall height64.76 (1,645) / 66.34 (1,650) *1
Front tread225/60 R1763.31 (1,608)
245/45 R1963.15 (1,604)
Rear tread 225/60 R1763.78 (1,620)
245/45 R1963.58 (1,615)
Wheelbase105.12 (2,670)
Items Gamma 1.6 T-GDINu 2.0 GDI
Displacement
cu. in (cc)97.09 (1,591)121.99 (1,999)
Bore x Stroke in. (mm)3.03X3.36 (77X85.4)3.19X3.81 (81X97)
Firing order1-3-4-21-3-4-2
No. of cylinders4, In-line4, In-line
*1
: with roof rack
Page 621 of 642

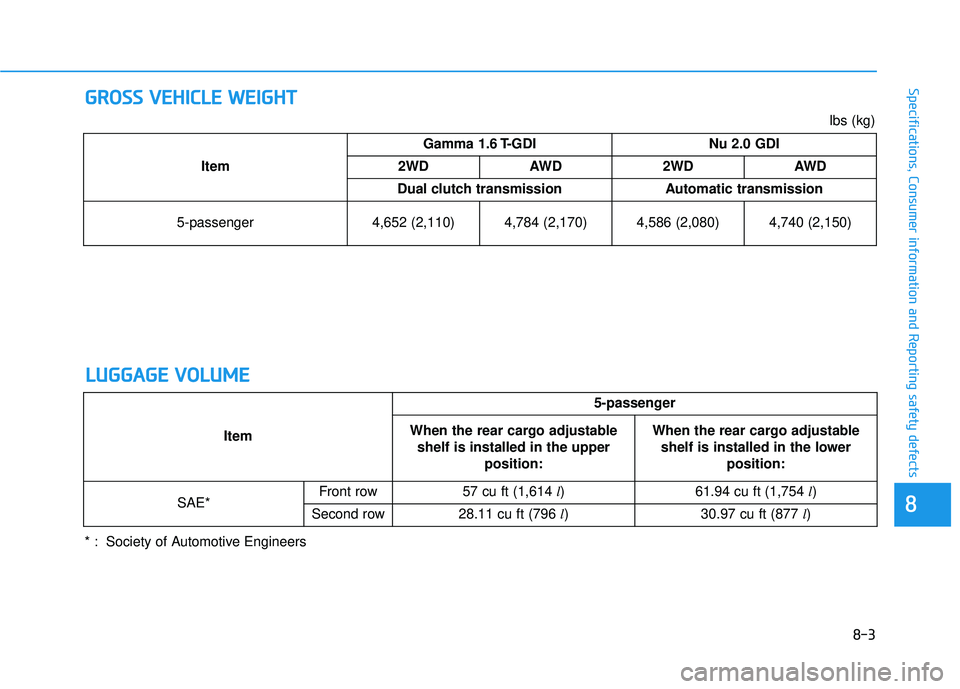

GGRROO SSSS VV EEHH IICC LLEE WW EEIIGG HH TT
8-3
88
Specifications, Consumer information and Reporting safety defects
LLUU GGGGAAGG EE VV OO LLUU MM EE
Item Gamma 1.6 T-GDI Nu 2.0 GDI
2WD AWD 2WD AWD
Dual clutch transmissionAutomatic transmission
5-passenger 4,652 (2,110) 4,784 (2,170) 4,586 (2,080) 4,740 (2,150)
Item 5-passenger
When the rear cargo adjustable shelf is installed in the upper position: When the rear cargo adjustable
shelf is installed in the lower position:
SAE* Front row
57 cu ft (1,614
l) 61.94 cu ft (1,754 l)
Second row 28.11 cu ft (796
l) 30.97 cu ft (877 l)
lbs (kg)
* : Society of Automotive Engineers
Page 622 of 642
8-4
Specifications, Consumer information and Reporting safety defects
BBUU LLBB WW AATTTTAA GG EE
Light Bulb Bulb type Wattage
Front Headlamp
LowType A H7L 55
Type B D3S 48
Type C LED LED
High H7L 55
Turn signal lamp PY28/8W 28
Parking Lamp LED LED
Side Marker Lamp Type A W5W 5
Type B, C LED LED
Fog lamp* H8L 35
Daytime running lamp (DRL)* LED LED
Side Repeater lamp (Outside mirror) LED LED
Rear Rear combination lamp Type A
Stop/Tail P28/8W 28/8
Tail P21/5W 10
Turn signal PY27W 27
Back up W16W 16
Side marker W5W 5
Type B Stop/Tail LED LED
Turn signal PY27W 27 Back up W16W 16
Side marker LED LED
High mounted stop lamp LED LED
License plate lamp W5W 5
* If equipped (Continued)
Page 623 of 642
8-5
88
Specifications, Consumer information and Reporting safety defects

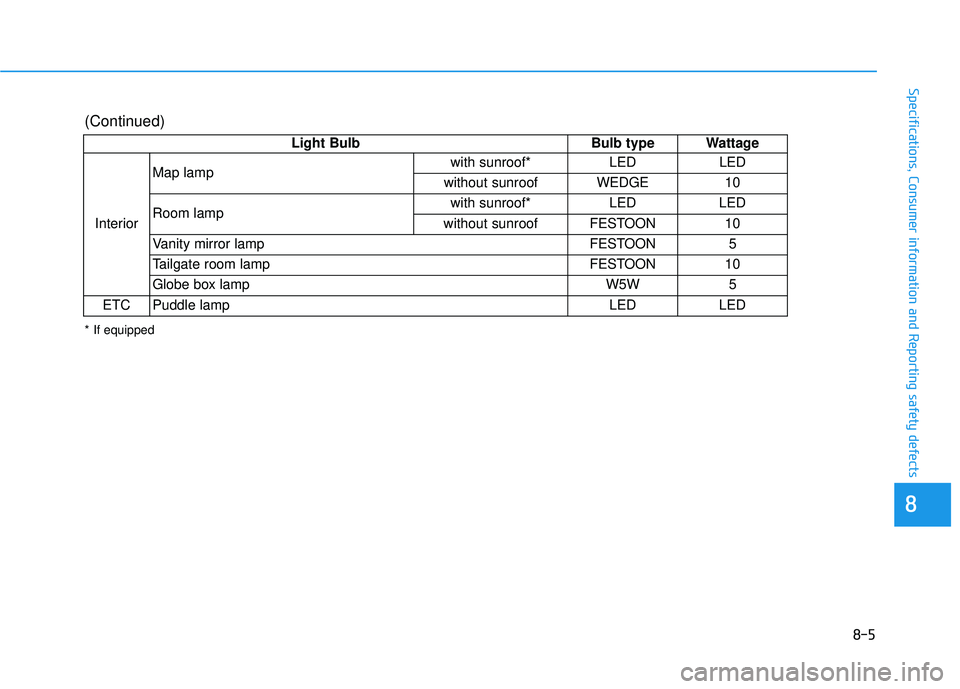

Light BulbBulb type Wattage
Interior Map lamp
with sunroof* LED LED
without sunroof WEDGE 10
Room lamp with sunroof* LED LED
without sunroof FESTOON 10
Vanity mirror lamp FESTOON 5
Tailgate room lamp FESTOON 10
Globe box lamp W5W 5
ETC Puddle lamp LED LED
* If equipped
(Continued)
Page 624 of 642
8-6
Specifications, Consumer information and Reporting safety defects
AAIIRR CC OO NNDDIITT IIOO NNIINN GG SS YY SSTT EEMM
Contact an authorized HYUNDAI dealer for more details.
ItemsWeight of VolumeClassification
Refrigerant
oz. (g) 19.4±0.88 (550±25)R-134a
Compressor lubricantoz. (cc) 4.23±0.35 (120±10)PAG 30
TTIIRR EESS AA NN DD WW HHEEEELLSS
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
CAUTION
Items Tire SizeWheel Size
Inflation pressure kPa (psi)Wheel lug nuttorque kg.m (lb.ft, N.m)
Normal LoadMaximum Load
FrontRearFrontRear
Full size tire225/60 R177.0J X 17240 (35)240 (35)240 (35)240 (35)9~11
(65~79, 88~107)245/45 R197.5J X 19
Compact spare tireT155/90 D164.0T X 16420 (60)420 (60)420 (60)420 (60)
