2016 HYUNDAI I800 Owners Manual

423
Features of your vehicle
Closing the bonnet
1. Before closing the bonnet, check the
following:
• All filler caps in engine compartment
must be correctly installed.
• Gloves, rags or any other com-
bustible material must be removed
from the engine compartment.
2. Return the support rod to its clip to
prevent it from rattling.
3. Lower the bonnet until it is about 1 ft.
(30 cm) above the closed position and
let it drop. Make sure that it locks into
place.WARNING - Bonnet
• Before closing the bonnet,
ensure that all obstructions are
removed from the bonnet open-
ing. Closing the bonnet with an
obstruction present in the bonnet
opening may result in property
damage or severe personal
injury.
• Do not leave gloves, rags or any
other combustible material in the
engine compartment. Doing so
may cause a heat-induced fire.
WARNING
• Always double check to be sure
that the bonnet is firmly latched
before driving away. If it is not
latched, the bonnet could fly
open whilst the vehicle is being
driven, causing a total loss of vis-
ibility, which might result in an
accident.
• The support rod must be inserted
completely into the hole provided
in the bonnet whenever you
inspect the engine compartment.
This will prevent the bonnet from
falling and possibly injuring you.
• Do not move the vehicle with the
bonnet in the raised position, as
vision is obstructed and the bon-
net could fall or be damaged.
procarmanuals.com

Features of your vehicle
24 4
D100100AUN
Opening the fuel filler lid
The fuel filler lid must be opened from
inside the vehicle by pushing the fuel
filler lid opener button located on the dri-
ver’s door.
✽NOTICE
If the fuel filler lid will not open because
ice has formed around it, tap lightly or
push on the lid to break the ice and
release the lid. Do not pry on the lid. If
necessary, spray around the lid with an
approved de-icer fluid (do not use radi-
ator anti-freeze) or move the vehicle to a
warm place and allow the ice to melt.
1. Stop the engine.
2. To open the fuel filler lid, push the fuel
filler lid opener button.
3. Pull the fuel filler lid (1) out to fully
open.
4. To remove the cap, turn the fuel tank
cap (2) counterclockwise.
5. Refuel as needed.
FUEL FILLER LID
OTQ047022R
CAUTION
The left sliding door cannot be
opened when the fuel filler lid is
open. However, if the fuel filler lid is
opened after the door is opened
slightly, the left sliding door can be
slide rearward. Close the left sliding
door to prevent possible damage to
the door or the fuel filler lid.
OTQ045414
procarmanuals.com

425
Features of your vehicle
Closing the fuel filler lid
1. To install the cap, turn it clockwise until
it “clicks”. This indicates that the cap is
securely tightened.
2. Close the fuel filler lid and push it light-
ly and make sure that it is securely
closed.
WARNING - Refuelling
• If pressurised fuel sprays out, it
can cover your clothes or skin
and thus subject you to the risk
of fire and burns. Always remove
the fuel cap carefully and slowly.
If the cap is venting fuel or if you
hear a hissing sound, wait until
the condition stops before com-
pletely removing the cap.
• Do not "top off" after the nozzle
automatically shuts off when
refuelling.
• Always check that the fuel cap is
installed securely to prevent fuel
spillage in the event of an acci-
dent.
(Continued)
• Do not get back into a vehicle
once you have begun refuelling
since you can generate static
electricity by touching, rubbing
or sliding against any item or fab-
ric (polyester, satin, nylon, etc.)
capable of producing static elec-
tricity. Static electricity discharge
can ignite fuel vapours resulting
in rapid burning. If you must re-
enter the vehicle, you should
once again eliminate potentially
dangerous static electricity dis-
charge by touching a metal part
of the vehicle, away from the fuel
filler neck, nozzle or other petrol
source.
• When using an approved
portable fuel container, be sure to
place the container on the
ground prior to refuelling. Static
electricity discharge from the
container can ignite fuel vapours
causing a fire. Once refuelling
has begun, contact with the vehi-
cle should be maintained until
the filling is complete. Use only
approved portable plastic fuel
containers designed to carry and
store fuel.
(Continued)WARNING - Refuelling
dangers
Automotive fuels are flammable
materials. When refuelling, please
note the following guidelines care-
fully. Failure to follow these guide-
lines may result in severe personal
injury, severe burns or death by fire
or explosion.
• Read and follow all warning at the
fuel station facility.
• Before refuelling note the loca-
tion of the Emergency Fuel Shut-
Off, if available, at the fuel station
facility.
• Before touching the fuel nozzle,
you should eliminate potentially
dangerous static electricity dis-
charge by touching another metal
part of the vehicle, a safe dis-
tance away from the fuel filler
neck, nozzle, or other gas source.
(Continued)
procarmanuals.com

Features of your vehicle
26 4
Emergency fuel filer lid release
If the fuel filler lid does not open using
the remote fuel filler lid release, you can
open it manually. Unsnap and remove the
panel in the cargo area. Pull the handle
outward slightly.
(Continued)
• Do not use mobile phones whilst
refuelling. Electric current and/or
electronic interference from
mobile phones can potentially
ignite fuel vapours causing a fire.
• When refuelling, always shut the
engine off. Sparks produced by
electrical components related to
the engine can ignite fuel
vapours causing a fire. Once
refuelling is complete, check to
make sure the filler cap and filler
door are securely closed, before
starting the engine.
• DO NOT use matches or a lighter
and DO NOT SMOKE or leave a lit
cigarette in your vehicle whilst at
a fuel station especially during
refuelling. Automotive fuel is
highly flammable and can, when
ignited, result in fire.
• If a fire breaks out during refu-
elling, leave the vicinity of the
vehicle, and immediately contact
the manager of the fuel station
and then contact the local fire
department. Follow any safety
instructions they provide.CAUTION
• Make sure to refuel your vehicle
according to the "Fuel require-
ments" suggested in section 1.
• If the fuel filler cap requires
replacement, please make sure
that you use parts designed for
replacement in your vehicle. An
incorrect fuel filler cap can result
in a serious malfunction of the
fuel system or emission control
system. For more detailed infor-
mation, we recommend that you
contact a HYUNDAI authorised
repairer.
• Do not spill fuel on the exterior
surfaces of the vehicle. Any type
of fuel spilled on painted surfaces
may damage the paint.
• After refuelling, make sure the
fuel cap is installed securely to
prevent fuel spillage in the event
of an accident.
CAUTION
Do not pull the handle excessively,
otherwise the luggage area trim or
release handle may be damaged.
OTQ047024G
procarmanuals.com

427
Features of your vehicle
If your vehicle is equipped with a sunroof,
you can slide or tilt your sunroof with the
sunroof control button located on the
overhead console.
The sunroof can only be opened, closed,
or tilted when the ignition switch is in the
ON position.• In cold and wet climates, the sunroof
may not work properly due to freezing
conditions.
• After the vehicle is washed or in a rain-
storm, be sure to wipe off any water that
is on the sunroof before operating it.
SUNROOF (IF EQUIPPED)
OTQ047025
OTQ047026
Rear (if equipped)
Front
CAUTION - Sunroof
control button
Do not continue to move the sun-
roof control button after the sunroof
is fully opened, closed, or tilted.
Damage to the motor or system
components could occur.
CAUTION
Make sure the sunroof is fully
closed when leaving your vehicle. If
the sunroof is opened, rain or snow
may leak through the sunroof and
wet the interior as well as cause
theft.
CAUTION - Sunroof motor
damage
To prevent damage to the sunroof,
periodically remove any dirt that
may accumulate on the guide rail.
WARNING
• Never adjust the sunroof or sun-
shade whilst driving. This could
result in loss of control and an
accident that may cause death,
serious injury, or property dam-
age.
• If you would like to carry items on
the roof using a cross bar, do not
operate the sunroof.
• When carrying cargo on the roof,
do not load heavy items above
the sunroof or glass roof.
• Do not allow children to operate
the sunroof.
CAUTION
Do not extend any luggage out side
the sunroof whilst driving.
procarmanuals.com

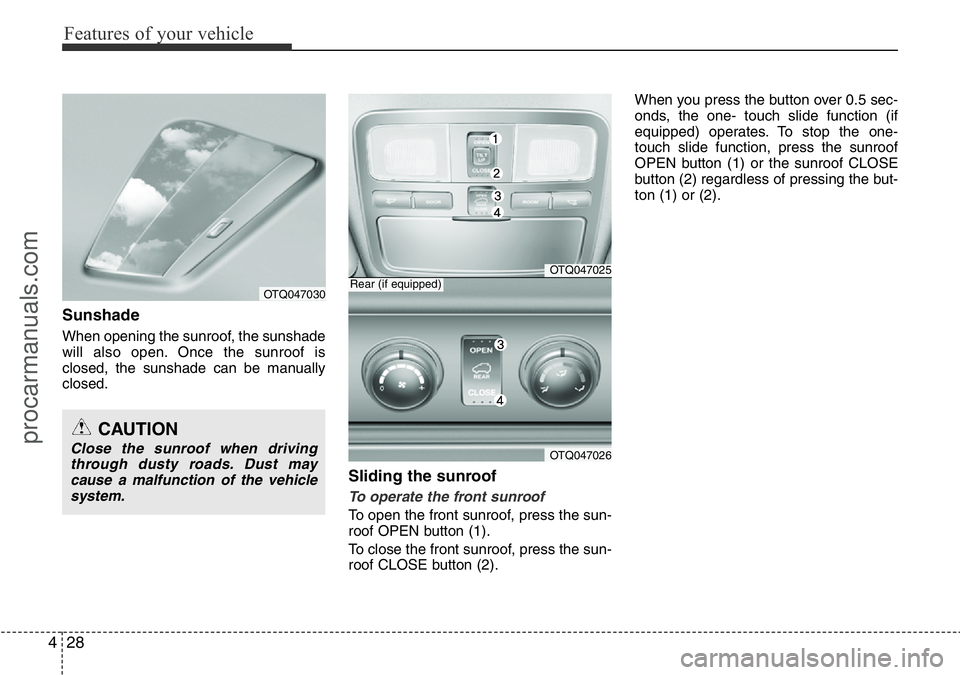

Features of your vehicle
28 4
Sunshade
When opening the sunroof, the sunshade
will also open. Once the sunroof is
closed, the sunshade can be manually
closed.
Sliding the sunroof
To operate the front sunroof
To open the front sunroof, press the sun-
roof OPEN button (1).
To close the front sunroof, press the sun-
roof CLOSE button (2).When you press the button over 0.5 sec-
onds, the one- touch slide function (if
equipped) operates. To stop the one-
touch slide function, press the sunroof
OPEN button (1) or the sunroof CLOSE
button (2) regardless of pressing the but-
ton (1) or (2).
CAUTION
Close the sunroof when driving
through dusty roads. Dust may
cause a malfunction of the vehicle
system.
OTQ047030
OTQ047025
OTQ047026
Rear (if equipped)
procarmanuals.com

429
Features of your vehicle
To operate the rear sunroof
To open the rear sunroof, press the sun-
roof OPEN button (3).
To close the rear sunroof, press the sun-
roof CLOSE button (4).
When you press the button over 0.5 sec-
onds, the one- touch slide function (if
equipped) operates. To stop the one-
touch slide function, press the sunroof
OPEN button (3) or the sunroof CLOSE
button (4) regardless of pressing the but-
ton (3) or (4).
The sunroof will stop once at the first
detent position (150mm from the second
detent position). Press again the sunroof
OPEN button (3) to open all the way. The
sunroof will slide until the second detent
position. Then, the sunroof operates
whilst pressing the button.
❈Whilst driving with the sunroof in an
open, open the sunroof at the first
detent position. It can slightly reduce the
wind buffeting or pulsation noise com-
pared to the second detent position.
Tilting the sunroof
(for front sunroof)
To tilt the sunroof when the sunroof com-
pletely closed, press the TILT UP but-
ton(1). When you press the TULT UP but-
ton over 0.5 seconds, the one-touch slide
function (if equipped) operates.
To close the sunroof, press the CLOSE
button (2).
OTQ045029
CAUTION - Sunroof motor
damage
If you try to open the sunroof when
the temperature is below freezing
or when the sunroof is covered with
snow or ice, the glass or the motor
could be damaged.
procarmanuals.com

Features of your vehicle
30 4
Automatic reversal (for rear sunroof)
When you press the sunroof CLOSE but-
ton (4) over 0.5 seconds, the one- touch
slide function (if equipped) operates. To
stop the one-touch slide function, press
the sunroof OPEN button (3) or the sun-
roof CLOSE button (4) regardless of
pressing the button (3) or (4).
If an object or part of the body is detect-
ed whilst the sunroof glass is closing
automatically (one-touch slide function),
it will reverse the direction, and then
open again as regular space. However,
when the detected resistance in the sun-
roof is below average standard or you
press and hold the sunroof CLOSE but-
ton (4). It is manually operated (NO one-
touch slide function).The automatic reversal function does not
work.
OTQ047028
WARNING - Sunroof
• Be careful that no head, hands
and body parts are obstructed by
a closing sunroof.
• Do not extend the face, neck,
arms or body outside the sunroof
whilst driving.
• Make sure your hands and head
are safely out of the way before
closing a sunroof.
• The sunroof, which is made of
glass, may break if the sufficient
impact is applied. In this case, in
an accident, any improperly-belt-
ed occupant may be tossed out
of the vehicle through the sun-
roof, possibly resulting injury. To
minimise all the possible acci-
dent risk, all occupants must be
properly belted and, in case of a
child, be fastened in a proper
child restraint.
CAUTION
• Periodically remove any dirt that
may accumulate on the guide rail.
• If you drive with the sunroof
opened right after a car wash or
rain, water may get inside the
vehicle.
WARNING- Roof cargo
Do not operate the sun roof whilst
using the roof rack to transport
cargo. This may cause the cargo to
come loose and distract the driver.
procarmanuals.com
