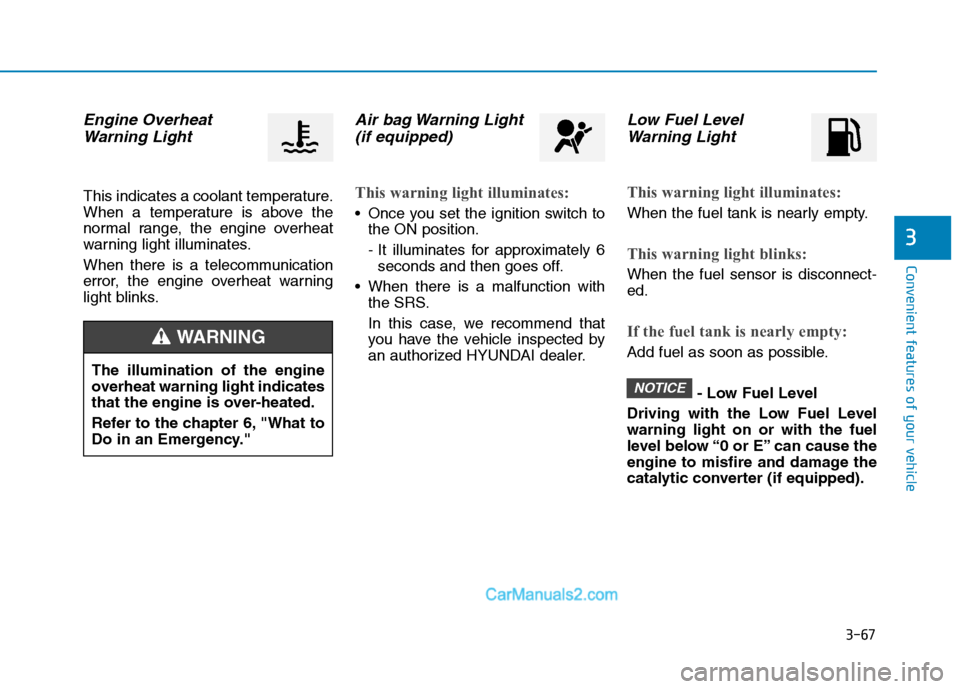

3-67
Convenient features of your vehicle
3
Engine OverheatWarning Light
This indicates a coolant temperature.
When a temperature is above the
normal range, the engine overheat
warning light illuminates.
When there is a telecommunication
error, the engine overheat warning
light blinks.
Air bag Warning Light(if equipped)
This warning light illuminates:
Once you set the ignition switch to the ON position.
- It illuminates for approximately 6seconds and then goes off.
When there is a malfunction with the SRS.
In this case, we recommend that
you have the vehicle inspected by
an authorized HYUNDAI dealer.
Low Fuel Level
Warning Light
This warning light illuminates:
When the fuel tank is nearly empty.
This warning light blinks:
When the fuel sensor is disconnect- ed.
If the fuel tank is nearly empty:
Add fuel as soon as possible.
- Low Fuel Level
Driving with the Low Fuel Level warning light on or with the fuel
level below “0 or E” can cause the
engine to misfire and damage the
catalytic converter (if equipped).
NOTICE
The illumination of the engine
overheat warning light indicates
that the engine is over-heated.
Refer to the chapter 6, "What to
Do in an Emergency."
WARNING

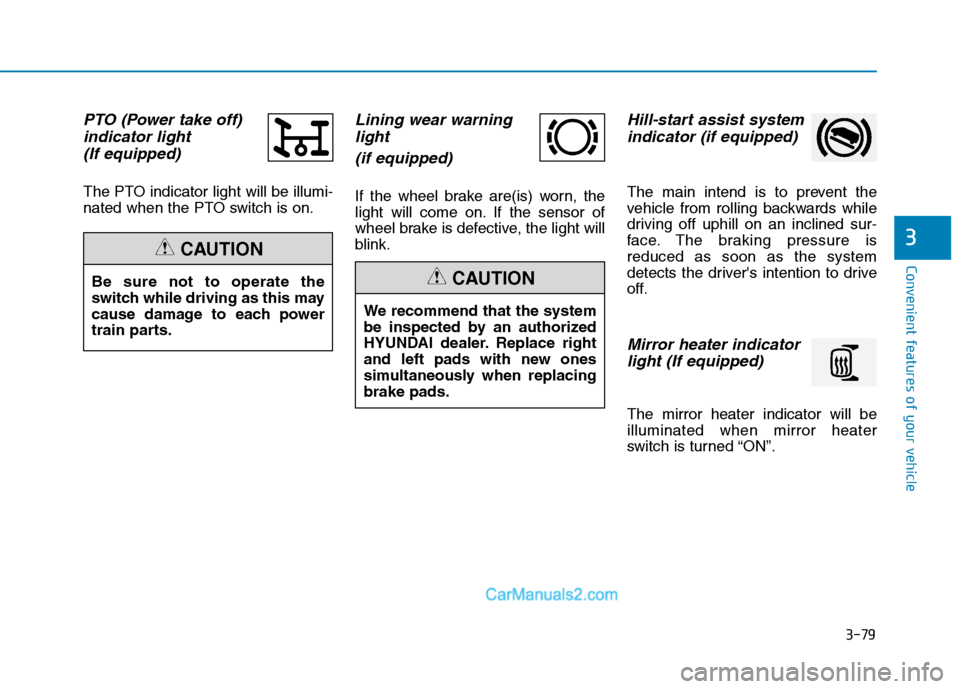

3-79
Convenient features of your vehicle
3
PTO (Power take off)indicator light
(If equipped)
The PTO indicator light will be illumi-
nated when the PTO switch is on.
Lining wear warning light
(if equipped)
If the wheel brake are(is) worn, the
light will come on. If the sensor of
wheel brake is defective, the light will
blink.
Hill-start assist systemindicator (if equipped)
The main intend is to prevent the
vehicle from rolling backwards while
driving off uphill on an inclined sur-
face. The braking pressure isreduced as soon as the system
detects the driver's intention to drive
off.
Mirror heater indicatorlight (If equipped)
The mirror heater indicator will beilluminated when mirror heater
switch is turned “ON”.
We recommend that the system
be inspected by an authorized
HYUNDAI dealer. Replace right
and left pads with new ones
simultaneously when replacingbrake pads.
CAUTIONBe sure not to operate the
switch while driving as this may
cause damage to each power
train parts.
CAUTION

3-88
Convenient features of your vehicle
This is the parking assist system to
warn the driver of object which are
detected by front, rear and side sen-
sors with range of distance of sen-
sors operation as warning sound or
indicator (LCD) when the vehicle is
moved back or forward. This system is a supplemental sys- tem and it is not intended to nor does
it replace the need for extreme care
and attention of the driver.
The sensing range and objects
detectable by the sensors are limit-ed.
Whenever getting forward or back-
ing-up, pay as much attention to
what is front or behind you as you
would in a vehicle without a parkingassist system.The parking assist system
should only be considered as a
supplementary function. The
driver must check the front and
rear view. The operational func-tion of the parking assist sys-
tem can be affected by many
factors and conditions of the
surroundings and can not be
operated normally, so the
responsibility rests always with
the driver.WARNING
PP
AA RRKK IINN GG AA SSSS IISS TT SS YY SSTT EEMM (( IIFF EE QQ UUIIPP PPEEDD ))
OEU044049
OEU044050
■Rear sensors (A type)
Sensors
Sensors
OEU044070
■ Rear sensors (B type)
■Front SensorsSensors

3-89
Convenient features of your vehicle
Rear parking assist system type (if equipped)
The rear sensor detects the distance
between vehicle and object. The rear
parking assist system assists the
driver during backward movement of
the vehicle by chiming if any object issensed within a distance of 120 cm
(47 in.) behind the vehicle.This system is a supplemental sys-tem and it is not intended to nor does
it replace the need for extreme care
and attention of the driver. The sens-
ing range and objects detectable by
the back sensors are limited.
Whenever backing-up, pay as much
attention to what is behind you as
you would in a vehicle without a rear
parking assist system.
Operating condition
This system will activate when
backing up with the ignition switchON.
If the vehicle is moving at a speed
over 10 km/h (6 mph), the system
may not be activated correctly.
This system will activate when the indicator on the rear parking assist
ON button. If you desire to deacti-
vate the rear parking assist sys-
tem, press the rear parking assist
button again. To turn the system
on, press the button again. (The
indicator on the button will go on.)
The sensing distance while the rear parking assist system is in
operation is approximately 120 cm(47 in.).
When more than two objects are sensed at the same time, the clos-
est one will be recognized first.
3
OEU044194 The rear parking assist system
is a supplementary function
only. The operation of the rearparking assist system can be
affected by several factors
(including environmental condi-
tions). It is the responsibility of
the driver to always check the
area behind the vehicle before
and while backing up.
WARNING

3-90
Convenient features of your vehicle
Types of warning sound
When an object is 120 cm to 61 cm(47.2 in. to 24 in.) from the rear
bumper:
Buzzer beeps intermittently.
When an object is 60 cm to 31 cm (23.6 in. to 12.2 in.) from the rear
bumper:
Buzzer beeps more frequently.
When an object is within 30 cm (11.8 in.) of the rear bumper:
Buzzer sounds continuously.
Non-operational conditions
The rear parking assist system may
not operate properly when:
1. Moisture is frozen to the sensor. (It will operate normally when the moisture has been cleared.)
2. The sensor is covered with foreign matter, such as snow or water, or
the sensor cover is blocked. (It will
operate normally when the materi-
al is removed or the sensor is no
longer blocked.)
3. Driving on uneven road surfaces. (unpaved roads, gravel, bumps,
gradient)
4. Objects generating excessive noise (vehicle horns, loud motor-
cycle engines, or truck air brakes)
are within range of the sensor.
5. Heavy rain or water spray exists.
6. Wireless transmitters or mobile phones are within range of the
sensor.
7. The sensor is covered with snow.
8. Trailer towing.
9. The place light the fluorescent lamp. The detecting range may decrease when:
1. The sensor is stained with foreign
matter such as snow or water.
(The sensing range will return to
normal when removed.)
2. Outside air temperature is extremely hot or cold.
The following objects may not be rec-
ognized by the sensor:
1. Sharp or slim objects such as ropes, chains or small poles.
2. Objects which tend to absorb the sensor frequency such as clothes,
spongy material or snow.
3. Undetectable objects smaller than 1 m (40 in.) in height and narrower
than 14 cm (6 in.) in diameter.

3-91
Convenient features of your vehicle
3
Rear parking assist system pre-cautions
The rear parking assist system may not sound sequentially depending on the speed andshapes of the objects detected.
The rear parking assist system may malfunction if the vehicle
bumper height or sensor installa-tion has been modified or dam-
aged. Any non-factory installed
equipment or accessories may
also interfere with the sensor per-
formance.
The sensor may not recognize objects less than 30 cm (11.8 in.)
from the sensor, or it may sense an
incorrect distance. Use caution.
When the sensor is frozen or stained with snow, dirt, or water,
the sensor may be inoperative until
the stains are removed using a softcloth.
Do not push, scratch or strike the sensor. Sensor damage could
occur. This system can only sense
objects within the range and loca-
tion of the sensors; It can notdetect objects in other areas
where sensors are not installed.
Also, small or slim objects, suchas poles or objects located
between sensors may not be
detected by the sensors.
Always visually check behind the
vehicle when backing up.
Be sure to inform any drivers of
the vehicle that may be unfamiliar
with the system regarding the sys-tems capabilities and limitations.
NOTICE
Pay close attention when the
vehicle is driven close to
objects on the road, particularly
pedestrians, and especially
children. Be aware that some
objects may not be detected by
the sensors, due to the object’s
distance, size or material, all of
which can limit the effective-
ness of the sensor. Always per-
form a visual inspection to
make sure the vehicle is clear of
all obstructions before moving
the vehicle in any direction.
WARNING

3-92
Convenient features of your vehicle
Self-diagnosis
If you don’t hear an audible warning
sound or if the buzzer sounds inter-mittently when shifting the gear to
the R (Reverse) position, this mayindicate a malfunction in the rear
parking assist system. If this occurs,
we recommend that the system be
checked by an authorized HYUNDAI
dealer.
Front/Rear parking assist sys- tem type (if equipped)
The front/rear parking assist system
detects the object distance by usingthe front/rear sensor and front side
sensor.
When you select the parking assist
system*, the front/rear parking assist
system will be operated.
Operating condition
This parking assist system acti-vates and the indicator on the but-
ton illuminates when the parking
assist button ( ) is pressed with
the ignition switch ON. And it oper-
ates in forward, reverse and neu-
tral position of the shift lever.
The parking assist button turns on
automatically and activates the
parking assist system when you
shift the gear to the R (Reverse)
position. If you drive the vehicle
above 10km/h, the warning will not
activate.
When more than two objects are sensed at the same time, warning
indicator is displayed all.
When more than two objects are sensed at the same time, the clos-
est one will be warned by warningsound.
While backing up, if the front and rear sensor recognizes an object at
the same distance, the rear will be
warned first.
The warnings by side sensors are operated when the shift lever is in
R (Reverse) position.
Your new vehicle warranty does
not cover any accidents or dam-
age to the vehicle or injuries toits occupants due to a rearparking assist system malfunc-
tion. Always drive safely and
cautiously.
WARNING
OEU044194

3-93
Convenient features of your vehicle
3
Types of warning sound
When driving forward
When an object is 100 cm to 61 cm (39 in. to 24 in.) from the bumper:
Buzzer beeps intermittently.
When an object is 60 cm to 31 cm (23 in. to 12 in.) from the bumper:
Buzzer beeps more frequently.
When an object is within 30 cm (11 in.) of the bumper:
Buzzer sounds continuously.
When driving rearward
When an object is 120 cm to 61 cm(47.2 in. to 24 in.) from the bumper:
Buzzer beeps intermittently.
When an object is 60 cm to 31 cm (23 in. to 12 in.) from the bumper:
Buzzer beeps more frequently.
When an object is within 30 cm (11 in.) of the bumper:
Buzzer sounds continuously.
This system can only sense
objects within the range and
location of the sensors; It can not detect objects in
other areas where sensors are
not installed. Also, small or
slim objects, such as poles orobjects located between sen-
sors may not be detected by
the sensors.
Always visually check front or
behind the vehicle when get-
ting forward or backing up.
Be sure to inform any drivers
of the vehicle that may beunfamiliar with the system
regarding the systems capa-bilities and limitations.
CAUTION
