Specifications
TYRES AND WHEELS
* Normal load : Up to 3 persons
I020000BTQ-EA
Inflation pressure bar (psi, kPa)
Wagon
Front Rear Front Rear Front Rear
215/70R16C 6.5Jx162.9 3.25 2.9 3.5 2.9 3.5
(42, 290) (47,325) (42, 290) (51,350) (42, 290) (51,350)
Full size tyreWheel nut torque
kg•m (lb•ft, N•m)
9~11
(65~79, 88~107) ItemTyre
sizeWheel size
Normal load *Maximum loadVa n

Specifications
4 9

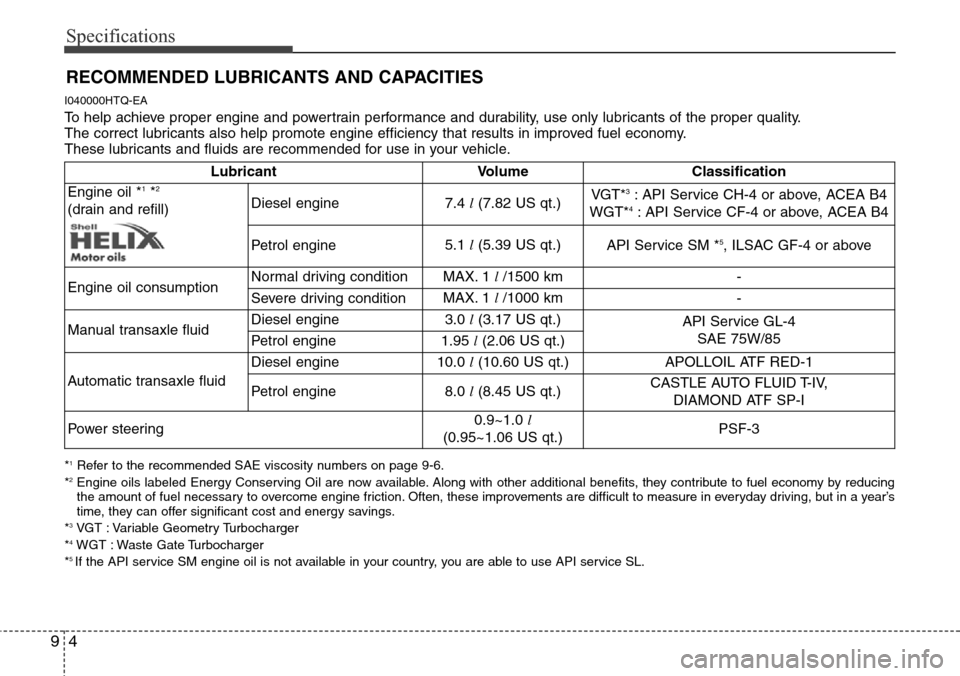

RECOMMENDED LUBRICANTS AND CAPACITIES
I040000HTQ-EA
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
*1Refer to the recommended SAE viscosity numbers on page 9-6.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*
3VGT : Variable Geometry Turbocharger
*4WGT : Waste Gate Turbocharger
*5 If the API service SM engine oil is not available in your country, you are able to use API service SL.
Lubricant Volume Classification
Engine oil *1*2
(drain and refill)Diesel engine7.4 l(7.82 US qt.)VGT*
3: API Service CH-4 or above, ACEA B4
WGT*4: API Service CF-4 or above, ACEA B4
Petrol engine5.1 l(5.39 US qt.)
API Service SM *
5, ILSAC GF-4 or above
Engine oil consumptionNormal driving conditionMAX. 1 l/1500 km
-
Severe driving conditionMAX. 1 l/1000 km
-
Manual transaxle fluidDiesel engine3.0 l(3.17 US qt.)
API Service GL-4
SAE 75W/85
Petrol engine1.95 l(2.06 US qt.)
Automatic transaxle fluidDiesel engine10.0 l(10.60 US qt.)
APOLLOIL ATF RED-1
Petrol engine8.0 l(8.45 US qt.)CASTLE AUTO FLUID T-IV,
DIAMOND ATF SP-I
Power steering0.9~1.0 l
(0.95~1.06 US qt.)PSF-3

95
Specifications
Lubricant Volume Classification

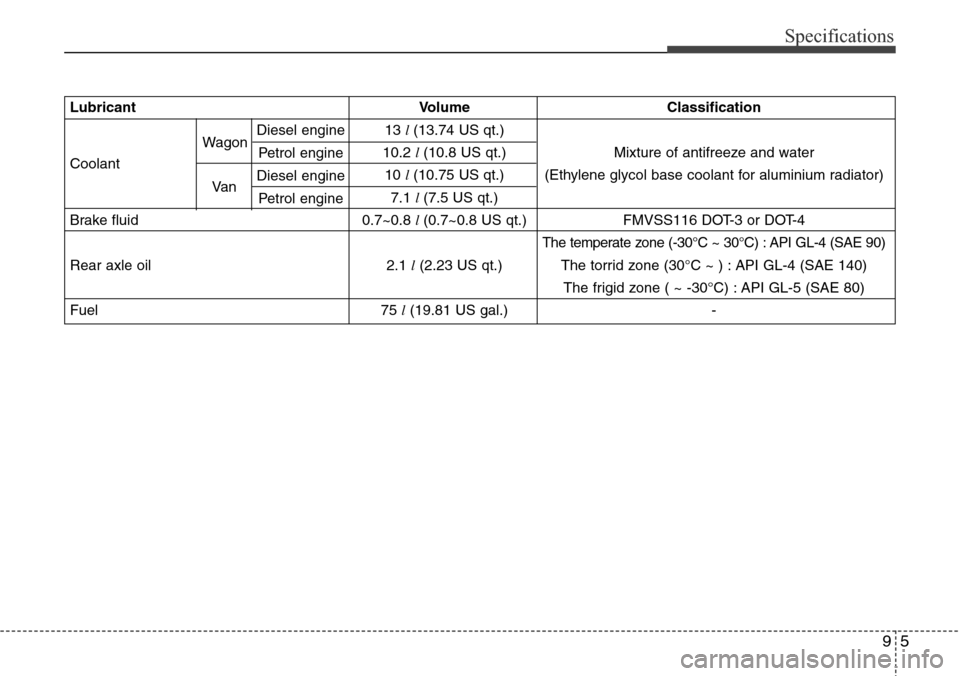

13 l (13.74 US qt.)
Coolant10.2 l (10.8 US qt.) Mixture of antifreeze and water
10 l (10.75 US qt.) (Ethylene glycol base coolant for aluminium radiator)
7.1 l (7.5 US qt.)
Brake fluid 0.7~0.8 l (0.7~0.8 US qt.) FMVSS116 DOT-3 or DOT-4
The temperate zone (-30°C ~ 30°C) : API GL-4 (SAE 90)
Rear axle oil 2.1 l(2.23 US qt.) The torrid zone (30°C ~ ) : API GL-4 (SAE 140)
The frigid zone ( ~ -30°C) : API GL-5 (SAE 80)
Fuel 75 l(19.81 US gal.) -
Diesel engine
Petrol engine
Diesel engine
Petrol engineWagon
Va n

Specifications
6 9
I040100CUN-EA

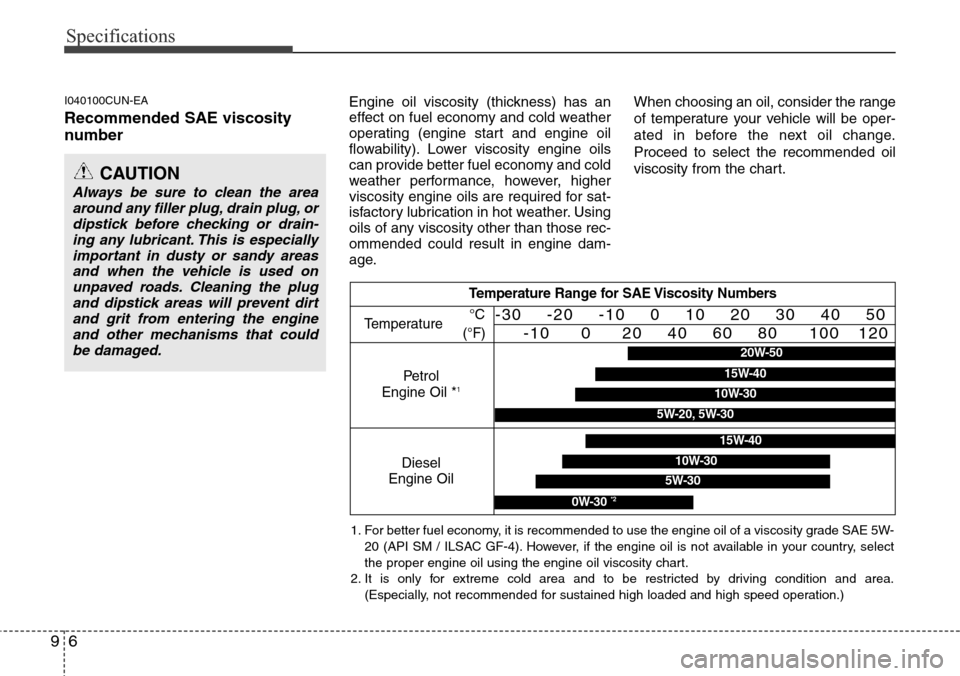

Recommended SAE viscosity
number
Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and cold
weather performance, however, higher
viscosity engine oils are required for sat-
isfactory lubrication in hot weather. Using
oils of any viscosity other than those rec-
ommended could result in engine dam-
age.When choosing an oil, consider the range
of temperature your vehicle will be oper-
ated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, or
dipstick before checking or drain-
ing any lubricant. This is especially
important in dusty or sandy areas
and when the vehicle is used on
unpaved roads. Cleaning the plug
and dipstick areas will prevent dirt
and grit from entering the engine
and other mechanisms that could
be damaged.
Temperature Range for SAE Viscosity Numbers
Temperature
Petrol
Engine Oil *
1
°C
(°F)-30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Diesel
Engine Oil
5W-30
15W-40
10W-30
0W-30 *2
1. For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W-
20 (API SM / ILSAC GF-4). However, if the engine oil is not available in your country, select
the proper engine oil using the engine oil viscosity chart.
2. It is only for extreme cold area and to be restricted by driving condition and area.
(Especially, not recommended for sustained high loaded and high speed operation.)
20W-50
10W-30
15W-40
5W-20, 5W-30
