Page 585 of 609

584
Information
Specifications
■Vehicle Specifications
*1: LX models
*2: Except LX models
ModelHonda Accord Sedan
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 4,200 lbs (1,905 kg)*1
4,321 lbs (1,960 kg)*2
Canada: 1,930 kg*1
1,980 kg*2
Gross Axle Weight
Rating (Front)U.S.: 2,249 lbs (1,020 kg)*1
2,315 lbs (1,050 kg)*2
Canada: 1,030 kg*1
1,065 kg*2
Gross Axle Weight
Rating (Rear)U.S.: 2,006 lbs (910 kg)*1
2,050 lbs (930 kg)*2
Canada: 910 kg*1
930 kg*2
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.0 – 16.8 oz (425 – 475 g)
Lubricant Type ND-OIL 8
4-cylinder models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement144 cu-in (2,356 cm3)
Spark Plugs NGK
DILKAR7G11GS
DILKAR7H11GS
DENSO DXE22HQR-D11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 17.2 US gal (65 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.85 ℓ
■ Light Bulbs
*3: Models with halogen headlights
*4: Models with LED headlights
*5: Models with bulb type parking lights
*6: Models with LED type parking/daytime running lights
*7: Models with bulb type brake lights
*8: Models with LED type brake lights
Headlights (Low Beam)55W (H11)*3
LED*4
Headlights (High Beam) 60W (HB3)*3
LED*4
Fog Lights*LEDFront Turn Signal/Side Marker/Parking Lights*3, *5
Front Turn Signal/Side Marker Lights*3, *628/8W (Amber)
Parking/Daytime Running Lights*6LED
Front Turn Signal Lights*4LEDFront Side Marker Lights*43CP
Side Turn Signal Lights
(on Door Mirrors)
*LED
Brake Lights21W*7
LED*8
Rear Turn Signal Lights 21W (Amber)Rear Side Marker LightsLED
Taillights (on Fenders) LED
Back-Up Lights16W
Taillights (on Trunk Lid) LED
High-Mount Brake LightLED
Rear License Plate Lights 5W
Trunk Light5WInterior LightsMap Lights8WCeiling Light8WVanity Mirror Lights1.4WCourtesy Lights*2CP
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 584 ページ 2015年9月25日 金曜日 午前10時38分
Page 586 of 609

585
uuSpecifications u
Continued
Information
■Brake/Clutch Fluid
■ Continuously Variable Transmission
(CVT) Fluid
■ Manual Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHCF-2
Capacity Change 3.9 US qt (3.7 ℓ)
SpecifiedHonda Manual Transmission Fluid
Capacity Change 2.0 US qt (1.9 ℓ)
■ Engine Oil
■ Engine Coolant
*1: Continuously variable transmission (CVT) models
*2: Manual transmission models
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.4 US qt (4.2 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.66 US gal (6.28 ℓ)*1
1.66 US gal (6.30 ℓ) *2
(change including the remaining
0.17 US gal (0.64 ℓ) in the reserve tank)
■ Tire
*3: U.S. LX models
*4: U.S. EX, EX-L models and Canadian LX, EX-L models
*5: U.S. Sport models and Canadian Sport, Touring models
Regular
Size205/65R16 95H*3
215/55R17 94V*4
235/40R19 96V*5
Pressure
psi (kPa [kgf/cm2])
Front33 (230 [2.3])*3, *5
33 (225 [2.3])*4
Rear32 (220 [2.2])*3, *5
33 (225 [2.3])*4
Compact
Spare Size
T135/90D16 102M
*3, *4
T135/80D17 103M*5
Pressure
psi (kPa [kgf/cm2])60 (420 [4.2])
Wheel SizeRegular16 x 7J*3
17 x 7 1/2J*4
19 x 8J*5
Compact Spare16 x 4T*3, *4
17 x 4T*5
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 585 ページ 2015年9月25日 金曜日 午前10時38分
Page 587 of 609

586
uuSpecifications u
Information
■Vehicle Specifications
ModelHonda Accord Sedan
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 4,542 lbs (2,060 kg)
Canada: 2,060 kg
Gross Axle Weight
Rating (Front)U.S.: 2,491 lbs (1,130 kg)
Canada: 1,130 kg
Gross Axle Weight
Rating (Rear)U.S.: 2,072 lbs (940 kg)
Canada: 940 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.0 – 16.8 oz (425 – 475 g)
Lubricant Type ND-OIL 8
6-cylinder models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement212 cu-in (3,471 cm3)
Spark Plugs NGK ILZKR7B11
DENSO SXU22HCR11
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 17.2 US gal (65 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.85 ℓ
■ Light Bulbs
*1: Models with halogen headlights
*2: Models with LED headlights
*3: Models with bulb type parking lights
*4: Models with LED type parking/daytime running lights
*5: Models with bulb type brake lights
*6: Models with LED type brake lights
Headlights (Low Beam)55W (H11)*1
LED*2
Headlights (High Beam) 60W (HB3)*1
LED*2
Fog LightsLEDFront Turn Signal/Side Marker/Parking Lights*1, *3
Front Turn Signal/Side Marker Lights*1, *428/8W (Amber)
Parking/Daytime Running Lights*4LED
Front Turn Signal Lights*2LEDFront Side Marker Lights*23CP
Side Turn Signal Lights
(on Door Mirrors) LED
Brake Lights21W*5
LED*6
Rear Turn Signal Lights
21W (Amber)Rear Side Marker LightsLED
Taillights (on Fenders) LED
Back-Up Lights16W
Taillights (on Trunk Lid) LED
High-Mount Brake LightLED
Rear License Plate Lights 5W
Trunk Light5WInterior LightsMap Lights8WCeiling Light8WVanity Mirror Lights1.4WCourtesy Lights2CP
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 586 ページ 2015年9月25日 金曜日 午前10時38分
Page 588 of 609

587
uuSpecifications u
Information
■Brake Fluid
■ Automatic Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF DW-1
(automatic transmission fluid)
Capacity Change 3.3 US qt (3.1 ℓ)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.5 US qt (4.3 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.72 US gal (6.5 ℓ)
(change including the remaining
0.17 US gal (0.64 ℓ) in the reserve tank)
■ Tire
*1: EX-L V6 models
*2: U.S. Touring models and Canadian V6 Touring models
Regular
Size215/55R17 94V*1
235/40R19 96V*2
Pressure
psi (kPa [kgf/cm2])33 (225 [2.3])*1
33 (230 [2.3])*2Front
Rear33 (225 [2.3])*1
32 (220 [2.2])*2
Compact
Spare Size
T135/90D16 102M
*1
T135/80D17 103M*2
Pressure
psi (kPa [kgf/cm2])
60 (420 [4.2])
Wheel SizeRegular17 x 7 1/2J*1
19 x 8J*2
Compact Spare16 x 4T*1
17 x 4T*2
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 587 ページ 2015年9月25日 金曜日 午前10時38分
Page 589 of 609
588
Information

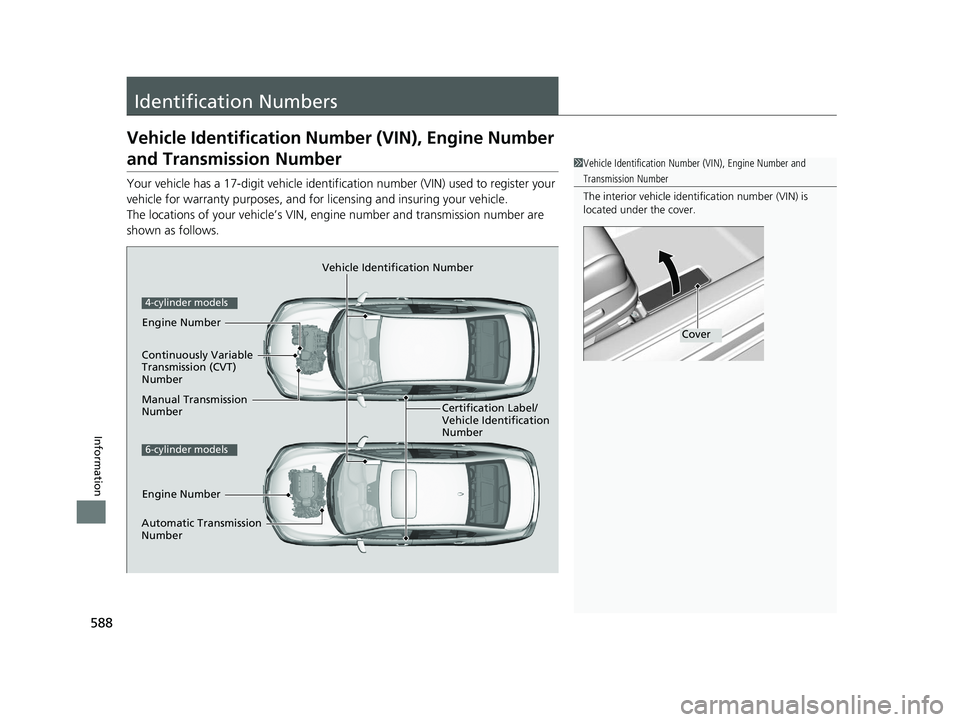

Identification Numbers
Vehicle Identification Number (VIN), Engine Number
and Transmission Number
Your vehicle has a 17-digit vehicle identifi cation number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number and transmission number are
shown as follows.
1 Vehicle Identification Number (VIN), Engine Number and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification
Number
Manual Transmission
Number Continuously Variable
Transmission (CVT)
Number
6-cylinder models
4-cylinder models
Engine Number
Automatic Transmission
Number
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 588 ページ 2015年9月25日 金曜日 午前10時38分
Page 590 of 609

589
Information
Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in
operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
This device complies with Industry Canada Standard RSS-Gen/210/251/310.
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Audio System
Bluetooth ® Audio
Bluetooth® HandsFreeLink ®
HomeLink® Universal Transceiver
Immobilizer System
Keyless Access System*
Remote Transmitter
Wireless Charger*
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 589 ページ 2015年9月25日 金曜日 午前10時38分
Page 591 of 609

590
Information
Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the Nati onal Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an inve stigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Ho tline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA , 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain othe r information about motor vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which c ould cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety .
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 590 ページ 2015年9月25日 金曜日 午前10時38分
Page 592 of 609

591Continued
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has “Readiness Codes,” as part of the onboard self diagnostic system.
Some States use these codes as a test to see if your vehicle's emissions components
are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON
(w*1, without starting the
engine. The malfunction indicator lamp will co me on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engi ne off for six hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P (automatic transmission/CVT) or (N (manual
transmission). Increase the engine speed to 2,000 rpm, and hold it there for about
three minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 591 ページ 2015年9月25日 金曜日 午前10時38分
