uuIndicator, Coming On/Blinking uIf the Brake System Indicator (Red) Comes On
Handling the Unexpected
If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Press the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action. If necessary, downshift the
transmission to slow the vehicle using engine braking.
If the Electric Power Steeri ng (EPS) System Indicator
Comes On
■Reasons for the indicator to come on
• Comes on if there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■What to do when the indicator comes on
Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
1 If the Brake System Indicator (Red) Comes On
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary, downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.U.S.
Canada
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 576 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

577
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/ TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS or the compact spare tire is installed,
the indicator blinks for about one minute, and then stays on.
■What to do when th e indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb.
u Calibrate the TPMS after the tire pressure is adjusted.
■What to do when the indicator blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indica tor to blink, change the tire to a full-size tire.
The indicator goes off after driving for a few miles (kilometers). u Calibrate the TPMS after a full-size tire is reinstalled.
1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 577 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

578
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
(0*1 and
check to see if any appl icable fuse is blown.
Located near the brake fluid reservoir. Push
the tabs to open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
*1:Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.
■Engine Compartment Fuse Box
■Circuit protected and fuse rating
*2:Models with LKAS
*3:Models without LKAS
*4:4-cylinder models
*5:6-cylinder models
Circuit ProtectedAmps
1Battery125 A
2
EPS70 A
Fuse Box Main 1 (60 A)
Fuse Box Option 1(40 A)
−−
−−
ABS/VSA FSR 20 A*2
40 A*3
ABS/VSA Motor
40 A*2
30 A*3
3
−−
−−
−−
−−
4 Front Fog Light*(10 A)
5Horn10 A
6 Stop Light 10 A
7FI Sub15 A
8 DRL (7.5 A)
9IG Coil15 A
10 Injector*4
−*5(20 A)*4
−*5
*6:Models with smart entry system
*7:Models without smart entry system
Circuit ProtectedAmps
11Hazard15 A
12 Fuse Box Main 2 60 A
Fuse Box Option 2 (40 A)
IG Main 1 30 A
*6
50 A*7
IG Main 2*6
−*730 A*6
−*7
Sub Fan Motor 20 A*4
30 A*5
Headlight Low Beam Main 30 A
Fuse Box 30 A
Wiper Motor 30 A
Main Fan Motor 30 A Starter Motor
*6
−*730 A*6
−*7
13Rear Defogger40 A
14 Heater Motor 40 A
15FI Main15 A
16 Heated Door Mirror*, *4
−*5(10 A)*4
−*5
17MG Clutch7.5 A
18 DBW 15 A
19Small Light20 A
20 Interior Light 7.5 A
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 578 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

579
uuFuses uFuse Locations
Continued
Handling the Unexpected
*2:Models with LKAS
*3:Models without LKAS
Circuit ProtectedAmps
21Back Up10 A
22 Audio 10 A
23Fan Timer7.5 A
24 Right Headlight Low Beam 10 A
25Left Headlight Low Beam10 A
26 ABS/VSA ECU*2
−*37.5 A*2
−*3
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 579 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

580
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■Circuit protected and fuse rating
■Interior Fuse Box
Fuse Label
Circuit ProtectedAmps
1A/C7.5 A
2DRL7.5 A
3−−
4−−
5Meter7.5 A
6SRS7.5 A
7Option(7.5 A)
8MISS SOL10 A
9Fuel Pump20 A
10ABS/VSA7.5 A
11−−
12Front Wiper7.5 A
13ACG15 A
14Rear Accessory Power Socket
(Console Compartment)(20 A)
15Driver’s Power Seat Reclining*(20 A)
16Moonroof*(20 A)
17Front Seat Heaters*(20 A)
18−−
19Passenger Side Door Unlock10 A
20Driver Side Rear Door
Unlock10 A
21Driver’s Door Lock10 A
22Passenger Side Door Lock10 A
23Driver’s Door Unlock10 A
24SRS10 A
25Illumination10 A
26Key Lock7.5 A
27Parking Lights10 A
28Lumbar Support*(10 A)
29Right Headlight High Beam10 A
30Washer15 A
31SMART*(10 A)
32Driver’s Power Window20 A
Circuit ProtectedAmps
33Front Passenger’s Power Window20 A
34Rear Driver Side Power Window20 A
35Rear Passenger Side Power Window20 A
36Driver’s Power Seat Sliding*(20 A)
37ACCESSORY7.5 A
38−−
39Left Headlight High Beam10 A
40Front Accessory Power Socket
(Console Panel)20 A
41Driver Side Rear Door Lock10 A
42Door Lock20 A
aAudio*(7.5 A)
bACM*(20 A)
cRear Seat Heaters*(15 A)
dPremium Amp*(20 A)
e−−
f−−
gPassenger’s Power Seat Reclining*(20 A)
hPassenger’s Power Seat Sliding*(20 A)
Circuit ProtectedAmps
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 580 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

581
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of
an ignition switch.
1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 578 to 580.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 581 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

582
Handling the Unexpected

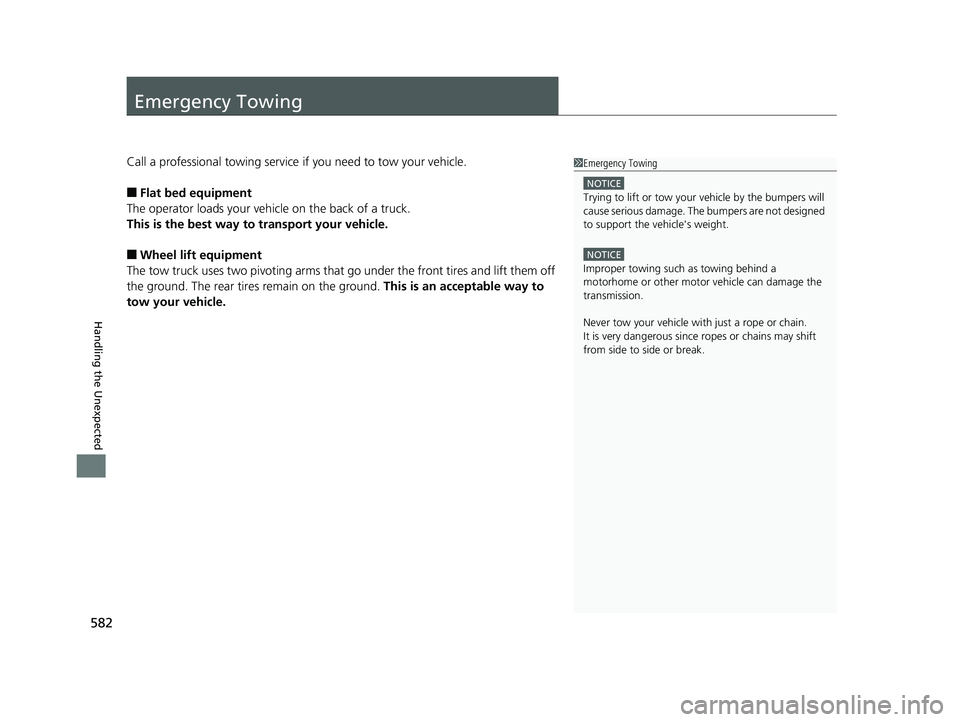

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 582 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

583
Information
