HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED
Learn about what to do in critical or emergency situations.
Smart Entry Remote Battery Strength*
If the battery life in your remote transmitter is weak, a beep sounds and the ENGINE 
START/STOP button indicator flashes. A message appears in the multi-information 
display with information on how to start the engine.*
1. Touch the back of the remote transmitter to the 
ENGINE START/STOP button while the indicator is 
flashing.
2. With the brake pedal or clutch pedal pressed, 
press the ENGINE START/STOP button within 10 
seconds.
Shift Lever Does Not Move*
Follow the procedure below if you cannot move the shift lever out of Park (P).
1. Set the parking brake.
2. remove the key from the ignition, or remove the
built-in key from the remote transmitter.
3. Wrap a cloth around the tip of a small flat-tip 
screwdriver. Put it into the shift lock release slot as
shown in the image, and remove the cover.
4. Insert the key into the shift lock release slot.
5. While pushing the key down, press the shift lever 
release button and place the shift lever into Neutral  
(N). The lock is now released. Have the shift lever
checked by a dealer as soon as possible.
*if equipped
Slo t
Cove r
Release button
Shift lock
release slot
FPO
Jump Starting
Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood.
1. Connect the first jumper cable to your vehicle’s 
battery (+) terminal.
2. Connect the other end of the first jumper cable 
to the booster battery (+) terminal. Use a 12-volt 
booster battery only.
3. Connect the second jumper cable to the booster 
battery (-) terminal.
4. Connect the other end of the second jumper cable 
to the engine mounting bolt as shown. Do not 
connect this jumper cable to any other part.
5. If your vehicle is connected to another vehicle, 
start the assisting vehicle’s engine and increase its
rpm slightly.
6. Attempt to start your vehicle’s engine. If it turns 
over slowly, make sure that the jumper cables have 
good metal-to-metal contact.
WARNING: Battery posts, terminals, and related accessories contain lead and lead\

compounds. Wash your hands after handling.
Booster battery
4-cylinder model s
6-cylinder models
Booster battery
4-cylinder
models
6-cylinder
models
A battery can explode if you do not follow the correct procedure, seriously 
injuring anyone nearby.
Keep all sparks, open flames, and smoking materials away from the battery.
WARNING

118 || 119
HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED
After the Engine Starts
Once your vehicle’s engine has started, remove the jumper cables in the following 
order:
1. Disconnect the jumper cable from your vehicle’s ground.
2. Disconnect the other end of the jumper cable from the booster battery’s (-) 
terminal.
3. Disconnect the jumper cable from your vehicle battery’s (+) terminal.
4. Disconnect the other end of the jumper cable from the booster battery’s (+) 
terminal.
5. Have your vehicle inspected by a nearby service station or a dealer.
Overheating
If the temperature gauge needle is at the H mark, the engine suddenly loses power, 
or steam or spray comes out from under the hood, your engine is overheat\
ing.
1. Immediately park the vehicle in a safe place. Turn 
off all accessories and turn on the hazard warning 
lights.
2. If steam or spray is not present: Keep the engine
running and open the hood.
 If steam or spray is present: Turn off the engine and
wait until it subsides. Then, open the hood.
3. Check that the cooling fan is operating and stop the engine once the tem\
perature
gauge needle goes down. If the cooling fan is not operating, immediately stop the 
engine.
4. once the engine has cooled down, inspect the coolant level and check the \
cooling system components for leaks. If the coolant level in the reserve tank 
is low, add coolant until it reaches the MAX mark. If there is no coolant in the 
reserve tank, make sure the radiator is cool, then cover the radiator ca\
p with a
heavy cloth and open the cap. If necessary, add coolant up to the base of the 
filler neck, and put the cap back on.
once the engine has cooled sufficiently, restart it and check the temperature gauge.
If the temperature gauge needle has gone down, resume driving. If it has not gone 
down, contact a dealer for repairs.
Reserve
tank
MAXMIN
Steam and spray from an overheated engine can seriously scald you.
Do not open the hood if steam is coming out.
WARNING
removing the radiator cap while the engine is hot can cause the coolant t\
o
spray out, seriously scalding you.
Always let the engine and radiator cool down before removing the radiator cap.
WARNING
Continuing to drive with the temperature gauge needle at the H mark may \
damage
the engine.
NOTICE

120 || 121
HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED
Emergency Engine Stop*
The ENGINE START/STOP button may be used to stop the engine due to an 
emergency situation even while driving. If you must stop the engine, choose one of 
the following operations:
• 
Press and hold the ENGINE START/STOP button for 
two seconds, or
• 
Firmly press the ENGINE START/STOP button two 
times.
The steering wheel will not lock. Because turning off the engine also disables the 
power assist the engine provides to the steering and braking systems, it will require 
significantly more physical effort and time to steer and slow the vehi\
cle. Downshift
gears and use both feet on the brake pedal, if necessary, to slow the vehicle and 
stop immediately in a safe place.
Do not press the button while driving unless it is absolutely necessary for the engine 
to be switched off.
*if equipped
Trying to lift or tow your vehicle by the bumpers will cause serious damage. The 
bumpers are not designed to support the vehicle’s weight.
Improper towing such as towing behind a motorhome or other motor vehicle can 
damage the transmission.
NOTICE
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
Flat bed equipment: The operator loads your vehicle on the back of a truck. This is
the best way to transport your vehicle.
Wheel lift equipment: The tow truck uses two pivoting arms that go under the front 
tires and lift them off the ground. The rear tires remain on the ground.\
This is an
acceptable way to tow your vehicle.
Tire Pressure Monitoring System (TPMS)
Monitors the tire pressure while you are driving.
If your vehicle’s tire pressure becomes significantly 
low, the low tire pressure indicator comes on and a
message appears on the multi-information display*.
What to Do
Stop your vehicle in a safe place. Check the tire
pressure and adjust the pressure to the specified
level on the label on the driver’s doorjamb.
*if equipped
TPMS CalibrationAny time you inflate, change, or rotate one or more of the tires, you \
need to
recalibrate the system. The calibration process requires approximately 30 minutes 
of cumulative driving at speeds between 30–60 mph (48–97 km/h). The vehicle 
must be steopped to begin calibration, and the process finishes automatically.
Using the TPMS button*
Press and hold the TPMS button near the steering 
wheel. The TPMS indicator blinks twice, and 
calibration begins.
Using the Settings menu*
Use the selector knob or the touchscreen to make and enter selections.
1. Models with one display: Press the SETTINGS 
button. Select Vehicle Settings.
Models with touchscreen: From the HoMe
screen, select Settings. Select vehicle.
2. Select TPMS Calibration.
3. Select Calibrate, and calibration begins.
Using the multi-information display*
Use the Info (p/q) and SEL/RESET buttons on the steering wheel to make and 
enter selections.
1. Scroll to the vehicle Settings screen, and select it.
2. Select TPMS Calibration.
3. Select Calibrate, and calibration begins.

122 || 123
HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED
Tire Pressure Monitoring System (TPMS) - Required Federal Explanation
U.S. models
Each tire, including the spare (if provided), should be checked monthly 
when cold and inflated to the inflation pressure recommended by the 
vehicle manufacturer on the vehicle placard or tire inflation pressure\

label.
(If your vehicle has tires of a different size than the size indicated on the 
vehicle placard or tire inflation pressure label, you should determine the 
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped 
with a tire pressure monitoring system (TPMS) that illuminates
a low tire pressure telltale when one or more of your tires is
significantly underinflated.
Accordingly, when the low tire pressure telltale illuminates, you should
stop and check your tires as soon as possible, and inflate them to the 
proper pressure.
Driving on a significantly underinflated tire causes the tire to ove\
rheat and
can lead to tire failure. Underinflation also reduces fuel efficienc\
y and tire
tread life, and may affect the vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for proper tire maintenance, 
and it is the driver’s responsibility to maintain correct tire pressure, even 
if underinflation has not reached the level to trigger illumination of\
the
TPMS low tire pressure telltale.
Your vehicle has also been equipped with a TPMS malfunction indicator 
to indicate when the system is not operating properly. The TPMS
malfunction indicator is combined with the low tire pressure telltale. 
When the system detects a malfunction, the telltale will flash for 
approximately one minute and then remain continuously illuminated. This \
sequence will continue upon subsequent vehicle start-ups as long as the 
malfunction exists.
When the malfunction indicator is illuminated, the system may not be able 
to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, including the
installation of replacement or alternate tires or wheels on the vehicle \
that
prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or more
tires or wheels on your vehicle to ensure that the replacement or altern\
ate
tires and wheels allow the TPMS to continue to function properly.
Driving on an extremely underinflated tire can cause it to overheat. A\
n overheated
tire can fail. Always inflate your tires to the specified pressure.
NOTICEChanging a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually 
to reduce speed. Then, stop in a safe place. replace the flat tire with the compact
spare tire. Go to a dealer as soon as possible to have the full-size tire repaired or 
replaced.
Getting Ready to Change the Tire
Park the vehicle on a firm, level, non-slippery surface. Apply the parking brake, 
shift to Park (P), and turn the vehicle off. Turn on the hazard warning lights.
1. open the trunk floor lid.
2. Take the tool case out of the trunk. Take the jack
and wheel nut wrench out of the tool case.
3. Unscrew the wing bolt, then remove the spacer 
cone. remove the spare tire.
4. Place the compact spare tire (wheel side up)
under the vehicle body, near the tire that needs 
to be replaced.
5. Loosen each wheel nut about one turn using the 
wheel nut wrench.
Tool case
Spare tire

150 || 151
CUSTOMER INFORMATION
SPECIFICATIONS
6-cylinder models
Vehicle
Engine and Fuel
Tires
Light Bulbs
Fluids
ModelHonda Accord SedanNo. of Passengers:
Front 2
Rear 3
Tota l5
Weights:Gross Vehicle
Weight Rating U.S.: 4,542 lbs (2,060 kg )
Canada: 2,060 kg
Gross Axle Weight
Rating (Front)U.S.: 2,491 lbs (1,130 kg )
Canada: 1,130 kg
Gross Axle Weight
Rating (Rear)U.S.: 2,072 lbs (940 kg )
Canada: 940 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantit y15.0 – 16.8 oz (425 – 475 g)
Lubricant Type ND-OIL 8
Engine
FuelDisplacement212 cu-in (3,471 cm3)
Spark Plugs NG
KI LZKR7B11
DENSO SXU22HCR11
Fuel:
TypeUnleaded gasoline
Pump octane number of 87 or higher
Fuel Tank Capacity 17.2 US gal (65 )
*1: EX-L V6 models*2: U.S. Touring models and Canadian V6 Touring models
Regular
Size215/55R17 94 V*1235/40R19 96V*2
Pressure
psi (kPa [kgf/cm2])33 (225 [2.3])*133 (230 [2.3])*2Front
Rear33 (225 [2.3])*132 (220 [2.2])*2
Compact
Spar e Size
T135/90D16 102M*1T135/80D17 103M*2Pressure
psi (kPa [kgf/cm2])
60 (420 [4.2])
Wheel SizeRegula
r17 x 7 1/2J*119 x 8J*2
Compact Spar e16 x 4T*117 x 4T*2
*1:Models with halogen headlights*2:Models with LED headlights*3:Models with bulb type parking lights*4:Models with LED type parking/daytime running lights*5:Models with bulb type brake lights*6: Models with LED type brake lights
Headlights (Low Beam)55W (H11)*1LED*2
Headlights (High Beam )60W (HB3
)*1LED*2Fog LightsLEDFront Turn Si gnal/Side Marker/Parki ng Ligh ts*1, *3Front Turn Signal/Side Marker Light s*1, *428/8W (Amber )
Parking/Daytime Running Lights*4LE D
Front Turn Signal Light s*2LEDFront Side Marker Lights*23CP
Side Turn Signal Lights
(on Door Mirrors ) LE
D
Brake Lights21W*5LED*6Rear Turn Signal Lights 21W (Amber)Rear Side Marker LightsLED
Taillights (on Fenders) LED
Back-Up Lights16W
Taillights (on Trunk Lid) LED
High-Mount Brake LightLED
Rear License Plate Lights5WTrunk Light5WIn terior Light sMap Lights8WCeiling Ligh t8WVanity Mirror Light s1.4WCourtesy Lights2CP
Brake Fluid
Automatic Transmission Fluid
SpeciedHonda Heavy Duty Brake Fluid DOT 3
SpeciedHonda ATF DW-1
(automatic transmission uid )
Capacit yC hange3 .3 US qt (3.1 )
Engine Oil
Engine Coolan
t
Recommended·Genuine Honda Motor Oil 0W-2 0
·API Premium-grade 0W-20 detergent oi l
Capacity Chang
e4 .2 US qt (4.0 )
Change
including
lter 4.5 US qt (4.3 )
Specie
dHonda Long-Life Anti freeze/Coolant Type 2
Ratio 50/50 with distilled wate r
Capacity1.72 US gal (6.5 )
(change including the remaining
0.17 US gal (0.64 ) in the reserve tank )
Washer Fluid
Tank CapacityU.S.: 2.6 US qt (2.5 )
Canada: 4.85
CUSTOMER INFORMATION
*if equipped
Learn about information specific to you as a Honda customer and how to get help.
Frequently Asked Questions/Troubleshooting
Below are some frequently asked questions and troubleshooting items that you may 
have about the vehicle.
Q: How do I set the vehicle clock?
A: For vehicles without navigation, see page 49. For vehicles with navigati\
on, the
time is automatically set using GPS signals.
Q: Why doesn’t the vehicle start when I press the ENGINE START/STOP button?*
A: The brake pedal (and/or clutch pedal*) must be pressed to start the engine.
Q: What is the AUTO setting on my headlight lever?
A: When in the AUTO position, the vehicle’ s exterior lights will automatically turn
 on or off depending on the ambient lighting.
Q: Why won’t the driver’s door unlock when I grab the door handle, even though 
 the keyless access remote is within range?*
A: If you pull the handle too quickly, the system may not have time to confirm the
 door is unlocked. Wait to hear a beep to confirm the door is unlocked. If you are
 wearing gloves, the system may be slow to respond.
Q: After my battery was disconnected or went dead, the audio system is asking for 
 a code. Where do I find this?
A: In most cases, you do not need to enter a code. T urn on the vehicle and the
 audio system, and press and hold the power button until the system reactivates.
Q: Why can’t I operate Pandora® through the audio system?*
A: Audio may be streaming through Bluetooth® Audio. Make sure Pandora mode
 is selected and the phone cable is properly connected to the USB adapter  
 cable (if using). Some phones may prompt you to “Allow” a connection.
Q: Is my phone compatible with Bluetooth features?
A: visit handsfreelink.com (U.S.) or www.handsfreelink.ca (Canada) to
 check phone compatibility for Bluetooth® Audio, Bluetooth® HandsFreeLink®,
and SMS text messaging.
Q: Every time I press the Talk button, the system gives me voice prompts. Can I turn 
 these off?*
A: From the Home screen, select SETTINGS. Select System, then select V oice 
Prompt. Select off.

152 || 153
CUSTOMER INFORMATION
CUSTOMER INFORMATION

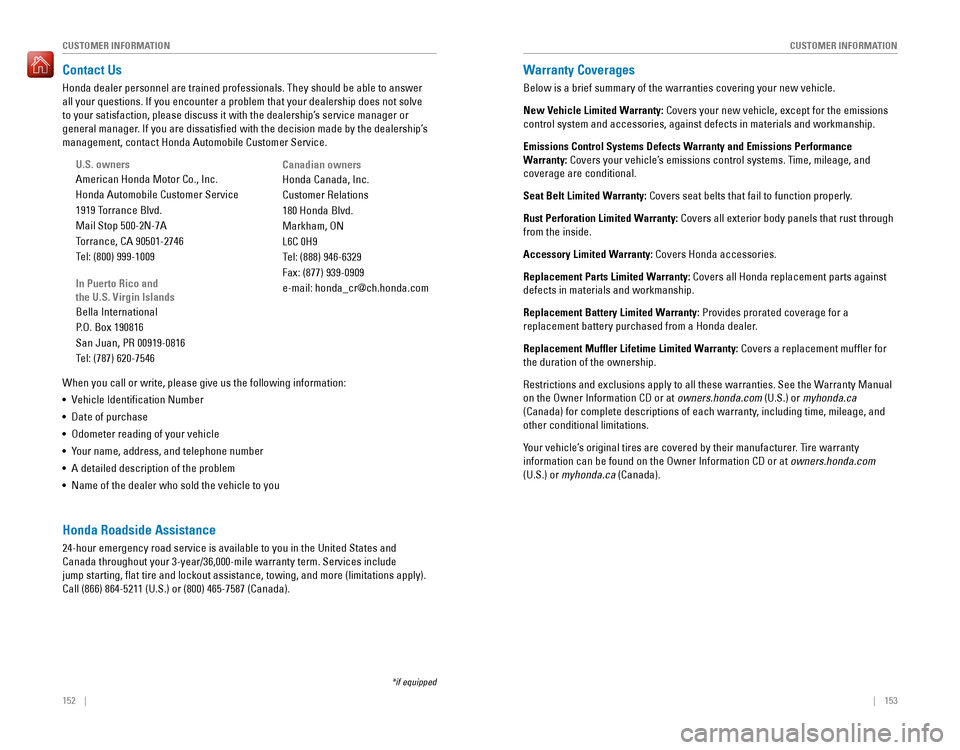

Contact Us
Honda dealer personnel are trained professionals. They should be able to answer 
all your questions. If you encounter a problem that your dealership does not solve 
to your satisfaction, please discuss it with the dealership’s service manager or
general manager. If you are dissatisfied with the decision made by the dealership’s 
management, contact Honda Automobile Customer Service.
U.S. owners
American Honda Motor Co., Inc.
Honda Automobile Customer Service
1919 Torrance Blvd.
Mail Stop 500-2N-7A
Torrance, CA 90501-2746
Tel: (800) 999-1009
In Puerto Rico and
the U.S. Virgin Islands
Bella International
P.o. Box 190816
San Juan, Pr 00919-0816
Tel: (787) 620-7546
When you call or write, please give us the following information:
• Vehicle Identification Number
•  Date of purchase
• 
odometer reading of your vehicle
• Your name, address, and telephone number
• A detailed description of the problem
•  Name of the dealer who sold the vehicle to you
Canadian owners
Honda
 Canada, Inc.
Customer
relations
180 Honda Blvd.
Markham,
oN
L6C 0H9
T

el: (888) 946-6329
Fax: (877) 939-0909
e-mail: [email protected]
*if equipped
Honda Roadside Assistance
24-hour emergency road service is available to you in the United States and
Canada throughout your 3-year/36,000-mile warranty term. Services include
jump starting, flat tire and lockout assistance, towing, and more (li\
mitations apply).
Call (866) 864-5211 (U.S.) or (800) 465-7587 (Canada).
Warranty Coverages
Below is a brief summary of the warranties covering your new vehicle. 
New Vehicle Limited Warranty: Covers your new vehicle, except for the emissions
control system and accessories, against defects in materials and workman\
ship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty: Covers your vehicle’s emissions control systems. Time, mileage, and
coverage are conditional.
Seat Belt Limited Warranty:
Covers seat belts that fail to function properly. 
Rust Perforation Limited Warranty: Covers all exterior body panels that rust through 
from the inside.
Accessory Limited Warranty: Covers Honda accessories.
Replacement Parts Limited Warranty: Covers all Honda replacement parts against
defects in materials and workmanship.
Replacement Battery Limited Warranty: Provides prorated coverage for a
replacement battery purchased from a Honda dealer. 
Replacement Muffler Lifetime Limited Warranty: Covers a replacement muffler for
the duration of the ownership.
Restrictions and exclusions apply to all these warranties. See the Warranty Manual 
on the Owner Information CD or at owners.honda.com (U.S.) or myhonda.ca
(Canada) for complete descriptions of each warranty, including time, mileage, and
other conditional limitations.
Your vehicle’s original tires are covered by their manufacturer. Tire warranty 
information can be found on the Owner Information CD or at owners.honda.com 
(U.S.) or myhonda.ca (Canada).

156 || 157
INDEX
INDEX
INDEX
ABS .....................................................24, 104ACC .......................................................24, 26
Accessory Power Socket ...............................50
Adaptive Cruise Control (ACC) ...............24, 107Address .............................................................89Advanced Airbags .............................................8Aha™ radio ......................................................64Airbags  ...............................................................8Airbag Care ...................................................13Airbag System Components .......................12Airbag System Indicators ...........................10Ambient Meter................................................ 105
Android Auto .....................................................66
Anti-Lock Brake System (ABS) ..............24, 104
Apple CarPlay ...................................................65Apps .............................................................62
Audio Commands ...........................................155Audio operation ...............................................50Aha™ radio ..................................................64
Android Auto .................................................66
Apple CarPlay .................................................5Auxiliary Input Jack .....................................50
Bluetooth® Audio ...................................59, 72
Compact Disc (CD) .................................56, 69FM/AM Radio ..........................................55, 67
HondaLink® ...................................................63
iPod® .......................................................57, 70one Display Audio operation .....................54
Pandora® .................................................60, 73
SiriusXM® radio ...........................................68Sound .............................................................53Steering Wheel Controls .............................52Touchscreen operation ..............................61
USB Flash Drive ......................................58, 71
USB Port ........................................................50Wi-Fi Connection ..........................................64Wireless Charger .........................................51
Auto High-Beam System .....................24, 26, 36
Automatic (AUTO) Rain-Sensing Wipers .....38Automatic Dimming rearview Mirror ...........44
AUX Commands .............................................. 155
Auxiliary Input Jack .........................................50Battery ...........................................................139
Bluetooth® Audio .......................................59, 72
Bluetooth® Audio Commands ......................155
Bluetooth® HandsFreeLink® (HFL) .................74
Call History ..............................................77, 83Dialing a Number ...................................76, 82e-Mail .............................................................84
HFL Controls ............................................74, 79
HondaLink® Assist .......................................85
Making a Call ..........................................76, 82
Pairing a Phone ......................................75, 81 Phonebook
..............................................77, 83Siri eyes Free ................................................86
SMS Text Messaging ............................78, 84
Speed Dial ...............................................76, 82
Talk Button Tips ............................................80
Brake Assist System ...................................... 104
Brake Fluid
......................................................138
Brake system ..............................................23, 24Braking ...........................................................104
Brightness Control ...........................................35
Call History ..................................................77, 83Carbon Monoxide Gas....................................... 4
Changing a Flat Tire .......................................123
Changing Settings ............................................48
Charging system ............................................... 23
Childproof Door Locks
.....................................32
Child Safety .......................................................14
Child Seat ..........................................................16
Adding Security with a Tether ...................19LATCH-Compatible Child Seat ....................17
Climate Control Commands ..........................154
Climate Control System ...................................46Clock .............................................................49
Clutch Fluid ...................................................... 138
Collision Mitigation Braking System™ (CMBS™)
.............................24, 26, 112
Compact Disc (CD) .....................................56, 69
Compact Disc (CD) Commands ....................155Condition Indicators ........................................25
Contact Us .......................................................152Continuously Variable Transmission (CVT)... 101
Cruise Control ...........................................26, 106Customer Information.................................... 151Customized Features .......................................48Dashboard and Other Controls ........................2
Destination ........................................................89Dialing a Number .......................................76, 82
Door Mirrors .....................................................44
Door open ..........................................................25Door operation ...........................................31, 32DoT Tire Quality Grading ..............................145Driving .............................................................94
Adaptive Cruise Control (ACC) .................107
Braking .........................................................104
Collision Mitigation Braking System™ (CMBS™)
.........................................112Continuously Variable Transmission (CvT) .................................................101
Cruise Control .............................................106eco Assist System ......................................105ENGINE START/STOP button ...................101
Ignition .........................................................100
Lane Keeping Assist System (LKAS) .......110 LaneWatch™
..............................................111
Manual Transmission ................................103
Maximum Load Limit ....................................96Multi-view rear Camera ..........................114
Paddle Shifters ...........................................102
Parking Sensor System .............................113
Power Mode ...............................................101refueling ......................................................115remote engine Start ....................................99road Departure Mitigation (rDM) ..........109
Shifting .........................................................101
Towing a Trailer ............................................98Vehicle Stability Assist (VSA®) ................105
Driving Position Memory System ..................43eco Assist System.......................................... 105eCoN Button ...................................................105eCoN mode .......................................................26electric Power Steering (ePS) .......................24Electronic Stability Control (ESC) ................105e-Mail .............................................................84emergency engine Stop ................................120emergency Towing ........................................120engine and Fuel ......................................148, 150engine Coolant................................................ 137engine oil......................................................... 134ENGINE START/STOP button .......................101exterior lights ..............................................26, 35
Fastening a Seat Belt ........................................7Flat Tire ...........................................................123
Floor Mats .........................................................40Fluids ...................................................149, 150FM/AM Radio ..............................................55, 67FM/AM Radio Commands .............................155
Fog lights ...........................................................26
Foot Brake .......................................................104Frequently Asked Questions ........................151Front Airbags (SRS) ...........................................8Front Door Inner Handle .................................32Fuel Information .............................................115
Fuse Locations ................................................ 126
Garage opener .................................................45Hazards  .............................................................26Headlight-Wiper Integration ..........................37Head restraints ................................................41High beams .......................................................26
High temperature .............................................24
Home Address ..................................................89
HomeLink® Garage opener ............................45
HondaLink® .......................................................63
HondaLink® Assist ...........................................85Honda roadside Assistance ........................152Hood ...........................................................132Ignition  ...........................................................100
Immobilizer ........................................................26Information Display.......................................... 27
Instrument Panel ..............................................23Interior Lights.................................................... 35Intermittent Wipers..........................................37
iPod® .......................................................57, 70
iPod® Commands ...........................................155
Jump Starting .................................................117Key .............................................................30
Lane Keeping Assist System (LKAS) ....25, 110
LaneWatch™ ..................................................111Lap/Shoulder Seat Belts ...................................5LATCH-Compatible Child Seat ........................17Light Bulbs............................................... 148, 150
Light control ......................................................24Lights .......................................................26, 35LKAS .......................................................25, 26Lock Tab .............................................................32Low fuel .............................................................25
Low oil pressure ...............................................23
Low temperature ..............................................24
Low tire pressure .............................................25
Maintenance ................................................... 129
Battery
.........................................................139
Brake Fluid ..................................................138
Clutch Fluid ..................................................138engine Coolant ............................................137engine oil .....................................................134
Maintenance Minder™ .............................130
Service Codes .............................................131
Under the Hood ..........................................132Window Washer Fluid ...............................139
Making a Call ..............................................76, 82
Malfunction indicator lamp ............................24Malfunction Indicators.................................... 23
Manual Seats .................................................... 40
Manual Transmission
....................................103
Map Legend ......................................................92
Master Door Lock Switch ...............................32
Maximum Load Limit ........................................ 96
Mirrors .............................................................44
Moonroof ...........................................................34Multi-Information Display (MID).................... 28Multi-view rear Camera ..............................114
Music search ..................................................155
Navigation .........................................................87
Display and Controls ....................................88entering a Destination .................................89
Home Address ..............................................89
Map Legend ..................................................92
Place Category .............................................90recent Places ...............................................90routing ...........................................................92
Saved Places ................................................91Steering Wheel Controls .............................87
Street Address ..............................................89System Guidance volume ...........................87
