VISUAL INDEX
1  Lights/turn signals/LaneWatch
      button*   p. 35, p. 38, p. 111
2  SEL/RESET knob   p. 27
Brightness control p. 35
3  Wipers/washers   p. 37
4  Cruise control buttons*   p. 106
Adaptive Cruise Control (ACC)
 buttons*   p. 107
Lane Keeping Assist System (LKAS)
 button*   p. 110
5 Horn
6  Voice recognition buttons   p. 74,
p. 79, p. 87
7  Instrument panel   p. 23
8 Information display*   p. 27
 Multi-information display*   p. 28
9 Info (p/q) buttons*   p. 28
 SEL/RESET button*   p. 28
10 Audio controls p. 52
11 Tire Pressure Monitoring System
 (TPMS) button*   p. 121
12 Lane Keeping Assist System (LKAS)
 button*   p. 110
13  ENGINE START/STOP button*   p. 101
14  Vehicle Stability Assist (VSA®) oFF
 button   p. 105
Collision Mitigation Braking System™
 (CMBS™) OFF button*   p. 112
road Departure Mitigation (rDM)
 button*   p. 109
Parking sensor system button* p. 113
15 ECON button*   p. 105
VISUAL INDEX
*if equipped*if equipped
Quickly locate items in the vehicle’s interior.
Steering Wheel and Nearby Controls
12
5
107415
116
38
9121314
SMS Text Messaging and E-Mail* ...84
HondaLink
® Assist ..............................85
Siri™ Eyes Free
...................................86
NAVIGATION*
......................................87
Basic Navigation Operation
.............87
Entering a Destination
.......................89
Routing
..................................................92
DRIVING
................................................94
Before Driving
.....................................94
Maximum Load Limit
..........................96
Towing a Trailer
..................................98
Remote Engine Start*
.........................99
Starting to Drive
................................100
Shifting
................................................101
Braking
...............................................104
Eco Assist System
.............................105
Vehicle Stability Assist (VSA
®), aka
Electronic Stability Control (ESC)
System
.................................................105
Cruise Control*
..................................106
Adaptive Cruise Control (ACC)*
.....107
Road Departure Mitigation
(RDM)*
................................................109
Lane Keeping Assist System
(LKAS)*
................................................110
LaneWatch™*
...................................111
Collision Mitigation Braking
System™ (CMBS™)*
........................112
Parking Sensor System*
..................113
Multi-View Rear Camera
.................114
Refueling
............................................115
HANDLING THE UNEXPECTED
.......116
Smart Entry Remote Battery
Strength*
............................................116 Shift Lever Does Not Move*
...........116
Jump Starting
....................................117
Overheating
........................................119
Emergency Engine Stop*
.................120
Emergency Towing
...........................120
Tire Pressure Monitoring System
(TPMS)
................................................121
Changing a Flat Tire
..........................123
Fuse Locations
...................................126
MAINTENANCE
.................................129
Safety Precautions
...........................129
Maintenance Minder™ ....................130
Under the Hood
..................................132
Engine Oil
...........................................134
Engine Coolant
..................................137
Brake Fluid
.........................................138
Clutch Fluid*
......................................138
Checking the Battery
........................139
Window Washer Fluid
.....................139
Changing Wiper Blades
...................140
Tire Information
.................................141
Tire Labeling
......................................144
DOT Tire Quality Grading
.................145
Testing of Readiness Codes
............147
SPECIFICATIONS
...............................148
CUSTOMER INFORMATION
.............151
Frequently Asked Questions/
Troubleshooting
................................151
Contact Us
..........................................152
Honda Roadside Assistance
...........152
Warranty Coverages
.........................153
VOICE COMMAND INDEX
................154
INDEX
..................................................156

4 || 5
SAFETYSAFETY
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless, 
odorless, and highly toxic gas. As long as you properly maintain your ve\
hicle and
follow the instructions set forth below, you will not accumulate dangerous levels 
of carbon monoxide gas in the vehicle interior.
Have the exhaust system inspected for leaks whenever:
•  The exhaust system is making an unusual noise.
• 
The exhaust system may have been damaged.
•  The vehicle is raised for an oil change.
When you operate a vehicle with the trunk open, airflow can pull exhaust gas 
into the interior and create a hazardous condition. If you must drive with the trunk 
open, open all the windows and set the climate control system as shown below.
1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the climate control system in the same manner if you sit in your \
parked
vehicle with the engine running.
An enclosed area such as a garage can quickly fill up with carbon monoxide gas. 
Do not run the engine with the garage door closed. even when the garage door is
open, drive out of the garage immediately after starting the engine.
Seat Belts
A seat belt is your best protection in all types of collisions. Airbags are designed to 
supplement seat belts, not replace them. So even though your vehicle is equipped 
with airbags, make sure you and your passengers always wear your seat belts and 
wear them properly.
Lap/Shoulder Seat Belts
All five seating positions are equipped with lap/shoulder seat belts with 
emergency locking retractors. In normal driving, the retractor lets you move 
freely while keeping some tension on the belt. During a collision or sudden stop, 
the retractor locks to restrain your body. The rear seat belts also have a lockable 
retractor for use with child seats.
The front seats are equipped with automatic seat belt tensioners to enhance 
safety. The tensioners automatically tighten the front seat belts during a moderate 
to severe frontal collision, sometimes even if the collision is not seve\
re enough to
inflate the front airbags.
Proper Use of Seat Belts
Follow these guidelines for proper use:
• 
All occupants should sit upright, well back in the seat, and remain in that 
position for the duration of the trip. Slouching and leaning reduce the \
effectiveness of the belt and can increase the chance of serious injury in a 
crash.
• 
Never place the shoulder part of a lap/shoulder seat belt under your arm or 
behind your back. This could cause very serious injuries in a crash.
• Two people should never use the same seat belt. If they do, they could be very 
seriously injured in a crash.
• 
Do not put any accessories on the seat belts. Devices intended to improve 
comfort or reposition the shoulder part of a seat belt can reduce the protective 
capability and increase the chance of serious injury in a crash.
• No one should sit in a seat with an inoperative seat belt or one that does not 
appear to be working correctly. Using a seat belt that is not working properly 
may not protect the occupant in a crash. Have a dealer check the belt as soon 
as possible.
Carbon monoxide gas is toxic. Breathing it can cause unconsciousness and 
even kill you.
Avoid any enclosed areas or activities that expose you to carbon monoxide.
WARNING
Not wearing a seat belt properly increases the chance of a serious injury or 
death in a crash, even though your vehicle has airbags.
Be sure you and your passengers always wear seat belts and wear them 
properly.
WARNING

22 || 23
INSTRUMENT PANELSAFETY

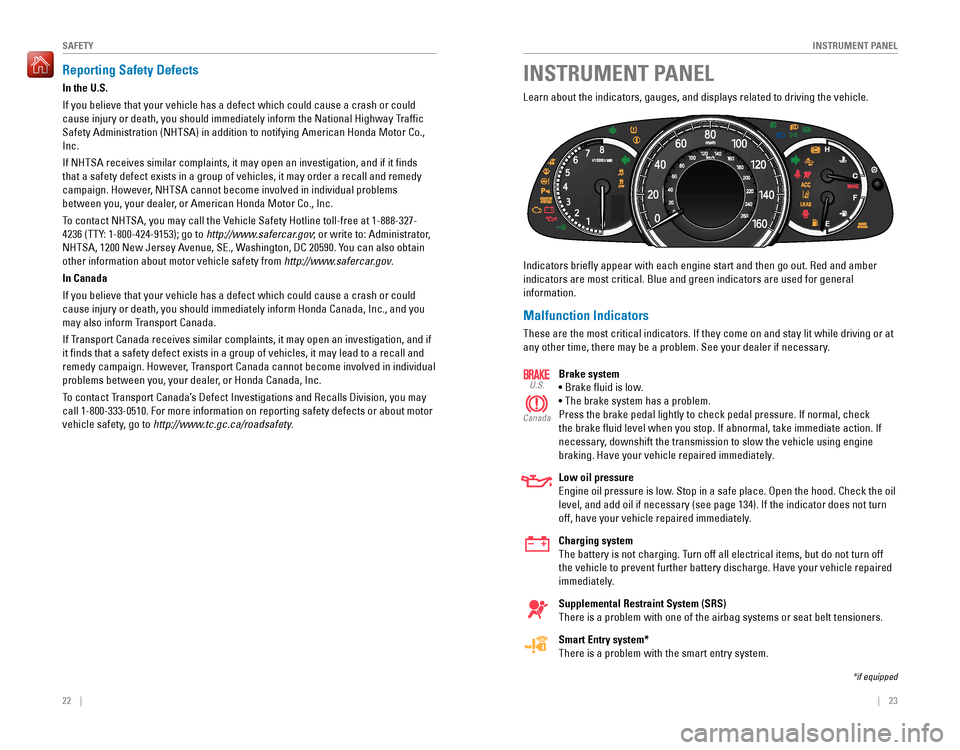

INSTRUMENT PANELReporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could 
cause injury or death, you should immediately inform the National Highway Traffic
Safety Administration (NHTSA) in addition to notifying American Honda \
Motor Co.,
Inc.
If NHTSA receives similar complaints, it may open an investigation, and if it finds 
that a safety defect exists in a group of vehicles, it may order a recal\
l and remedy
campaign. However, NHTSA cannot become involved in individual problems 
between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the vehicle Safety Hotline toll-free at 1-888-327-
4236 (TTY: 1-800-424-9153); go to http://www.safercar.gov; or write to: Administrator,
NHTSA, 1200 New Jersey Avenue, SE., Washington, DC 20590. You can also obtain 
other information about motor vehicle safety from http://www.safercar.gov.
In Canada
If you believe that your vehicle has a defect which could cause a crash or could 
cause injury or death, you should immediately inform Honda Canada, Inc., and you 
may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if 
it finds that a safety defect exists in a group of vehicles, it may le\
ad to a recall and
remedy campaign. However, Transport Canada cannot become involved in individual 
problems between you, your dealer, or Honda Canada, Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may 
call 1-800-333-0510. For more information on reporting safety defects or about motor 
vehicle safety, go to http://www.tc.gc.ca/roadsafety.
Learn about the indicators, gauges, and displays related to driving the vehicle.
Indicators briefly appear with each engine start and then go out. Red and amber 
indicators are most critical. Blue and green indicators are used for gen\
eral
information.
Malfunction Indicators
These are the most critical indicators. If they come on and stay lit while driving or at 
any other time, there may be a problem. See your dealer if necessary.
Brake system
• Brake fluid is low.
• The brake system has a problem.
Press the brake pedal lightly to check pedal pressure. If normal, check 
the brake fluid level when you stop. If abnormal, take immediate action. If 
necessary, downshift the transmission to slow the vehicle using engine
braking. Have your vehicle repaired immediately.
Low oil pressure
engine oil pressure is low. Stop in a safe place. open the hood. Check the oil
level, and add oil if necessary (see page 134). If the indicator does not turn 
off, have your vehicle repaired immediately.
Charging system
The battery is not charging. Turn off all electrical items, but do not turn off 
the vehicle to prevent further battery discharge. Have your vehicle repaired 
immediately.
Supplemental Restraint System (SRS)
There is a problem with one of the airbag systems or seat belt tensioners. 
Smart Entry system*
There is a problem with the smart entry system.
U.S.
Canada
*if equipped

24 || 25
INSTRUMENT PANELINSTRUMENT PANEL

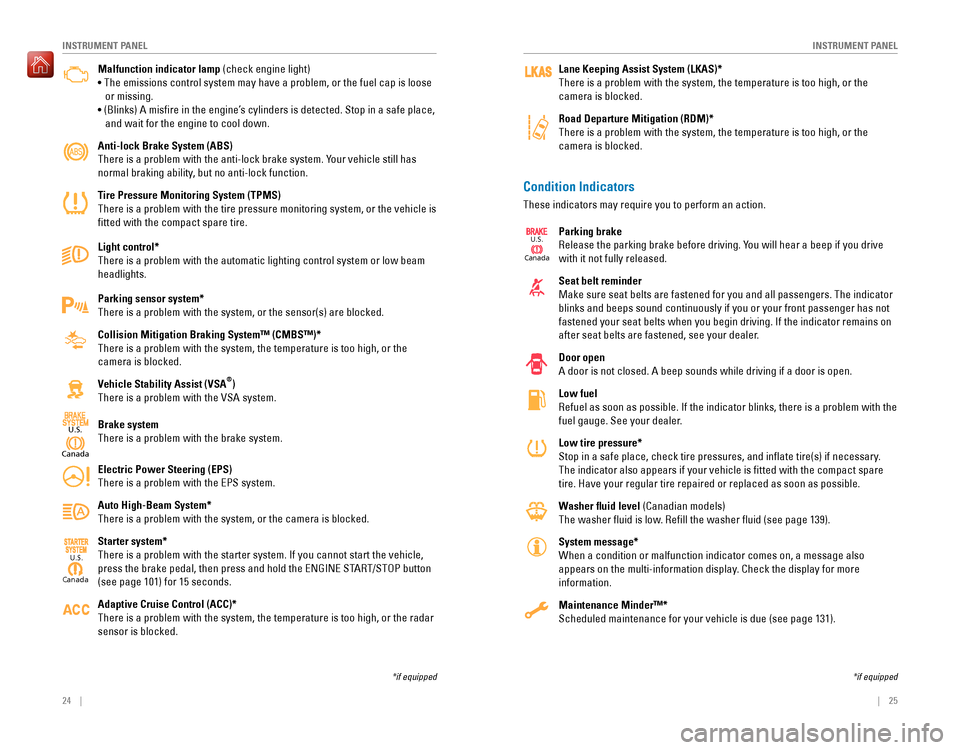

Malfunction indicator lamp (check engine light)
• The emissions control system may have a problem, or the fuel cap is loose  
or missing.
• (Blinks) A misfire in the engine’s cylinders is detected. Stop in a safe place, 
and wait for the engine to cool down.
Anti-lock Brake System (ABS)
There is a problem with the anti-lock brake system. Your vehicle still has 
normal braking ability, but no anti-lock function. 
Tire Pressure Monitoring System (TPMS)
There is a problem with the tire pressure monitoring system, or the vehicle is 
fitted with the compact spare tire.
Light control*
There is a problem with the automatic lighting control system or low beam 
headlights.
Parking sensor system*
There is a problem with the system, or the sensor(s) are blocked.
Collision Mitigation Braking System™ (CMBS™)*
There is a problem with the system, the temperature is too high, or the 
camera is blocked.
Vehicle Stability Assist (VSA®)
There is a problem with the VSA system.
Brake system
There is a problem with the brake system.
Electric Power Steering (EPS)
There is a problem with the EPS system.
Auto High-Beam System*
There is a problem with the system, or the camera is blocked.
Starter system*
There is a problem with the starter system. If you cannot start the vehicle, 
press the brake pedal, then press and hold the ENGINE START/STOP button 
(see page 101) for 15 seconds.
Adaptive Cruise Control (ACC)*
There is a problem with the system, the temperature is too high, or the radar 
sensor is blocked.
Canad a
U.S.
*if equipped
Condition Indicators
These indicators may require you to perform an action.
Parking brake
Release the parking brake before driving. You will hear a beep if you drive 
with it not fully released.
Seat belt reminder
Make sure seat belts are fastened for you and all passengers. The indicator 
blinks and beeps sound continuously if you or your front passenger has not 
fastened your seat belts when you begin driving. If the indicator remains on 
after seat belts are fastened, see your dealer.
Door open
A door is not closed. A beep sounds while driving if a door is open.
Low fuel
Refuel as soon as possible. If the indicator blinks, there is a problem with the 
fuel gauge. See your dealer.
Low tire pressure*
Stop in a safe place, check tire pressures, and inflate tire(s) if n\
ecessary.
The indicator also appears if your vehicle is fitted with the compact \
spare
tire. Have your regular tire repaired or replaced as soon as possible.
Washer fluid level (Canadian models)
The washer fluid is low. refill the washer fluid (see page 139).
System message*
When a condition or malfunction indicator comes on, a message also 
appears on the multi-information display. Check the display for more
information.
Maintenance Minder™*
Scheduled maintenance for your vehicle is due (see page 131).
*if equipped
Lane Keeping Assist System (LKAS)*
There is a problem with the system, the temperature is too high, or the 
camera is blocked.
Road Departure Mitigation (RDM)*
There is a problem with the system, the temperature is too high, or the 
camera is blocked.
Canada
U.S.
Canada
U.S.

98 || 99
DRIVING
DRIVING
Towing a Trailer
Your vehicle can tow a trailer if you carefully observe the load limits, use the proper 
equipment, and follow the towing guidelines. Check the load limits before driving 
(see page 96).
Total Trailer Weight
Maximum allowable weight of the trailer, cargo, and 
everything in or on it must not exceed 1,000 lbs (450 
kg). Towing loads in excess of this can seriously
affect vehicle handling and performance and can
damage the engine and drivetrain.
Tongue Load
The weight of the tongue with a fully loaded trailer
on the hitch should be approximately 10% of the 
total trailer weight.
• 
excessive tongue load reduces front tire traction
and steering control. Too little tongue load can
make the trailer unstable and cause it to sway.
• To achieve a proper tongue load, start by loading 
60% of the load toward the front of the trailer and 
40% toward the rear. Readjust the load as needed.
Pre-tow Checklist
When preparing to tow, and before driving away, ensure the following:
• The vehicle has been properly serviced, and the suspension and the cooling 
system are in good operating condition.
•  Avoid towing a trailer during your vehicle’s first 600 miles (1,000 km).
• 
The trailer has been properly serviced and is in good condition.
•  All weights and loads are within limits. Never exceed the gross weight r\
atings.
• 
Check if all loads are within limits at a public scale. If a public scale is not 
available, add the estimated weight of your cargo load to the weight of your 
trailer (as quoted by the manufacturer) and the tongue load.
•  The hitch, safety chains, and any other attachments are secure.
•  All items in or on the trailer are properly secured and cannot shift whi\
le you drive.
exceeding any load limit or improperly loading your vehicle and trailer c\
an
cause a crash in which you can be seriously hurt or killed.
Check the loading of your vehicle and trailer carefully before starting to drive.
WARNING
To ngue Load
Total load
Tongue LoadTongue load
Remote Engine Start*
Start your vehicle’s engine using the remote transmitter before you enter the vehicle.
Make sure the vehicle is in a safe location when using remote engine start (i.e., a
well-ventilated area, away from any flammable materials).
Starting the Engine
Press the Lock button, then press and hold the Engine button within 5 seconds to 
remotely start the engine.
The engine runs for up to 10 minutes. To extend the run time for another 10
minutes, repeat the procedure during the initial 10 minutes.
While the engine is running, the climate control system adjusts the cabin 
temperature, the security system remains on, and lights and accessories remain
off.
Stopping the Engine
Press and hold the Engine button.
The engine will also stop if it has been running for more than 10 minutes, or if any 
door is opened without using the remote or smart entry.
Engine exhaust contains toxic carbon monoxide gas.
Breathing carbon monoxide can kill you or cause unconsciousness.
Never use the remote engine starter when the vehicle is parked in a gara\
ge or
other area with limited ventilation.
WARNING
Lock button
Engine button
*if equipped

100 || 101
DRIVING
DRIVING
Starting to Drive
Turn on the vehicle and start the engine to begin driving.
Before Starting the Engine
Continuously Variable Transmission (CVT)
Check that the shift lever is in Park (P), then press
the brake pedal. Keep your foot firmly on the brake 
pedal when starting the engine.
Manual transmission
Check that the shift lever is in Neutral (N), then
press the brake pedal with your right foot and the 
clutch pedal with your left foot. The clutch must be 
fully pressed to start the engine.
The engine is harder to start in cold weather and in thinner air found a\
t altitudes
above 8,000 feet (2,400 m). When starting the engine in cold weather, turn off 
all electrical accessories such as the lights, climate control system, a\
nd rear
defogger in order to reduce battery drain.
Starting the Ignition*
Insert the key into the ignition and turn to turn on the vehicle or start the engine.
0 LOCK: Insert and remove the key in this position.
I ACCESSORY: operate the audio system and other
accessories in this position.
II ON: operate other electrical items, such as
wipers and power windows. This is also the position
when driving.
III START: This position is for starting the engine. The switch returns to oN when
you release the key.
Manual transmission models
*if equipped
Brake peda l
Brake pedal
Clutch pedal
removing the key from the ignition switch while driving locks the steerin\
g.
This can cause you to lose control of the vehicle.
remove the key from the ignition switch only when parked.
WARNING
Changing the Power Mode*
Use the
ENGINE START/STOP button to cycle through power modes or start the 
engine.
Accessory or On mode:
Press the ENGINE START/
STOP button once without pressing the brake pedal 
for Accessory mode. Press it again for on mode.
Starting the engine: Press and hold the brake pedal 
or clutch, then press the ENGINE START/STOP button. 
Keep your foot firmly on the brake pedal when starting 
the engine.
Turning the vehicle off:
Shift to Park (P) or apply the parking brake, then press the 
ENGINE START/STOP button. If you press the button and the shift lever is not in 
Park (P), the vehicle goes into Accessory mode.
*if equipped
Shifting
Change the shift position based on your driving needs.
Continuously Variable Transmission (CVT)*Park (P):
Used for parking or starting/stopping 
the engine. Press the brake pedal, then press the 
release button to shift.
Reverse (R): Used for reversing.
Neutral (N): Used for idling.
Drive (D): Used for normal driving.
Drive (S):
Used for better acceleration, increased 
engine braking, driving in hilly terrain, or paddle 
shifting*.
Low (L)*: Used for stronger engine power and
braking when driving in hilly terrain.
When you change the shift lever from D to R and vice versa, come to a complete 
stop and keep the brake pedal depressed. Operating the shift lever before the 
vehicle has come to a complete standstill can damage the transmission.
Do not operate the shift lever while pressing the accelerator pedal. You could
damage the transmission.
NOTICE
Release button

102 || 103
DRIVING
DRIVING
Paddle Shifters*
Use the paddle shifters to change gears without removing your hands from\
the
steering wheel.
When the shift lever is in D: The vehicle goes into manual shift mode temporarily,
and the gear number appears in the instrument panel. When you start traveling at 
a constant speed or accelerate, manual shift mode automatically turns of\
f, and the
gear number goes off.
To cancel manual shift mode, pull and hold the (+) paddle shifter for a\
few
seconds.
When the shift lever is in S: The vehicle goes into manual shift mode, and the
M indicator and gear number appear in the instrument panel. When the vehicle 
comes to a stop, it automatically shifts down into 1st gear. You can pull away only
in 1st gear. If the vehicle speed increases and the engine speed approaches the 
tachometer’s red zone, the transmission automatically shifts up.
To cancel manual shift mode, move the shift lever from S to D. The M indi\
cator and
gear number go off.
*if equipped
(-) Paddle shifter (+) Paddle shifter Recommended shift points
Shift up
1 to 2
2 to 3
3 to 4
4 to 5
5 to 6
6 to 7 Normal acceleration15 mph (24 km/h)25 mph (40 km/h)40 mph (64 km/h)45 mph (72 km/h)50 mph (80 km/h)56 mph (89 km/h)
Shift up1 to 2
2 to 3
3 to 4
4 to 5
5 to 6
Normal acceleration17 mph (27 km/h)29 mph (46 km/h)37 mph (60 km/h)43 mph (69 km/h)49 mph (79 km/h)
Recommended shift points
(LX models)
Manual Transmission*
Fully press the clutch pedal to operate the shift lever and change gears\
.
Do not shift to Reverse (R) before the vehicle comes to a complete stop. This can 
damage the transmission.
NOTICE
Shift up 1 to 2
2 to 3
3 to 4
4 to 5
5 to 6 Normal acceleration15 mph (24 km/h)25 mph (40 km/h)40 mph (64 km/h)47 mph (76 km/h)52 mph (84 km/h)
Recommended shift points
(except LX models)
Before downshifting, make sure the engine will not go into the tachomete\
r’s red
zone. This can severely damage your engine.
NOTICE
*if equipped

104 || 105
DRIVING
DRIVING
Braking
Slow down or stop your vehicle, and keep it from moving when parked.
Foot Brake
Press the brake pedal to slow down or stop your 
vehicle from moving.
Brake Assist System
During hard or emergency braking, the system 
increases braking force. The brake pedal may move 
slightly or make a noise; this is normal. Continue to
hold the brake pedal firmly down. 
Anti-Lock Brake System (ABS)
During hard or emergency braking, the system 
rapidly pumps the brakes to prevent wheel lockup 
and help you maintain steering control. The brake 
pedal may pulsate slightly during ABS operation;
this is normal. Do not pump the brake pedal, and 
continue to hold it firmly down.
Parking Brake
Keep the vehicle from moving when it is parked.
To apply: Pull the lever up fully without pressing the
release button. 
To release: Press and hold the release button, then 
lower the lever down all the way.
Brake peda l
Brake pedal
The ABS may not function correctly if you use an incorrect tire type and size. 
NOTICE
Release the parking brake fully before driving. The rear brakes and axle can be 
damaged if you drive with the parking brake applied. 
NOTICE
Eco Assist System
Can help improve fuel economy by adjusting the performance of the engine, 
transmission, climate control system, and cruise control.
ECON Button
Press the ECON button to turn the system on or off. 
The eCoN Mode indicator and a message in the
multi-information display* appear when the system 
is turned on.
Ambient Meter
Color-coded bars change based on your driving 
style and brake or accelerator pedal operation.
Green: Fuel-efficient driving
Light green:
 Moderate acceleration/deceleration
White: Aggressive acceleration/deceleration
Ambient meter
Vehicle Stability Assist (VSA®), aka Electronic Stability Control
(ESC) System
Helps to stabilize the vehicle during cornering if the vehicle turns more or less 
than what was intended. It assists in maintaining traction on slippery surfaces by 
regulating engine output and selectively applying the brakes.
Turning VSA On or Off
vSA is turned on every time you start the engine,
even if you previously turned it off. If you turn VSA 
off, your vehicle has normal braking and cornering 
ability, but VSA traction and stability enhancement 
become less effective.
Press and hold the VSA OFF button until you hear a 
beep to turn VSA on or off. The VSA OFF indicator 
appears when the system is off.
Traction control becomes less effective, which may make it easier when trying to 
free your vehicle if it is stuck in mud or snow.
VSA OFF indicator
*if equipped
