2016 HONDA ACCORD COUPE key

108
uuGauges and Displays uMulti-Information Display*
Instrument Panel
Exit
4
4
4
Door Setup
Maintenance Reset
Default All
SEL/RESET
4
SEL/RESET
4
Lighting SetupSEL/RESET
4
Key And Remote Unlock Mode
Auto Door Lock
Auto Door Unlock
Keyless Lock Answer Back
Security Relock Timer
Interior Light Dimming Time
Headlight Auto Off Timer
Auto Light Sensitivity
4
4
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 108 ページ ２０１５年７月２３日　木曜日　午後４時１１分

110
uuGauges and Displays uMulti-Information Display*
Instrument Panel
*1:Default SettingSetup Group Customizable Features Description Selectable Settings
Meter Setup
Language SelectionChanges the displayed language.English*1/
French /Spanish
Adjust Outside Temp.
DisplayAdjusts the temperature reading by a few degrees.
-5°F ~ ±0°F*1 ~ +5°F
(U.S.)
-3°C ~ ±0°C
*1 ~ +3°C
(Canada)
“Trip A” Reset Timing
Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and
elapsed time A.With Refuel /IGN Off /
Manually Reset*1
“Trip B” Reset Timing
Changes the setting of how to reset trip meter B,
average fuel economy B, average speed B, and
elapsed time B.With Refuel /IGN Off /
Manually Reset*1
Fuel Efficien cy BacklightTurns the ambient meter feature on and off.On*1/Off
Keyless Start Guidance
ScreensDisplays the push button start guidance when
conditions are met to change power mode.On*1/ Off
Driving
Position
Setup Memory Position Link
Changes the driver’s seat position to a stored
setting. On
*1/
Off
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 110 ページ ２０１５年７月２３日　木曜日　午後４時１１分

111
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel
*1: Default SettingSetup Group Customizable Features
Description Selectable Settings
Keyless
Access
Setup
Door Unlock ModeChanges which doors unlock when you grab the
driver’s door handle.Driver Door Only*1/All Doors
Keyless Access Light
FlashCauses some exterior lights to blink when you
unlock/lock the doors.On*1/ Off
Keyless Access BeepSets the beeper sound or not when you grab either
door handle.On*1/Off
Remote Start System
ON/OFF*Turns the remote engine start feature on and off.ON*1/OFF
Lighting
Setup Interior Light Dimming
Time
Changes the length of time the interior lights stay on
after you close the doors.
60sec
/30sec
*1/15sec
Headlight Auto Off
Timer Changes the length of time
the exterior lights stay
on after you close the driver’s door. 60sec
/30sec /15sec
*1/ 0sec
Auto Light Sensitivity Changes the timing for the headlights to come on. Max/High /Mid
*1/Low /Min
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 111 ページ ２０１５年７月２３日　木曜日　午後４時１１分

112
uuGauges and Displays uMulti-Information Display*
Instrument Panel
*1: Default SettingSetup Group Customizable Features Description Selectable Settings
Door Setup
Auto Door LockChanges the setting for when the doors
automatically lock.With Vehicle Speed*1/
Shift
from P /Off
Auto Door UnlockChanges the setting for when the doors
automatically unlock.
All Doors When Driver’s
Door Opens*1/All Doors
When Shifted To Park /All
Doors When Ignition
Switched Off/Off
Key And Remote Unlock
ModeSets up either the driver’s door or both doors to
unlock on the first operatio n of the remote or built-
in key.
Driver Door*1/ All Doors
Keyless Lock Answer
BackLOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.On*1/ Off
Security Relock Timer
Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening either door.
90sec /60sec /30sec*1
Maintenance
Reset—Resets/Cancels the engine oil life display when you
have performed the maintenance service. Cancel /Reset
Default All—Cancels/Resets all the customized settings as
default.Cancel /Set
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 112 ページ ２０１５年７月２３日　木曜日　午後４時１１分

115
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 116
Locking and Unlocking the Doors
Key Types and Functions .................. 118
Low Smart Entry Remote Signal Strength*... 120Locking/Unlocking the Doors from the Outside .......................................... 121
Locking/Unlocking the Doors from the
Inside ............................................. 126
Auto Door Locking/Unlocking .......... 128
Opening and Closing the Trunk ....... 129
Security System Immobilizer System .......................... 133
Security System Alarm ...................... 133
Opening and Closing the Windows ... 136
Opening and Closing the Moonroof*...139
Operating the Switches Around the
Steering Wheel
Ignition Switch
*............................... 140
ENGINE START/STOP Button*........... 141
Ignition Switch and Power Mode
Comparison ................................... 144
Turn Signals ..................................... 145
Light Switches.................................. 145
Fog Lights
*...................................... 147
Auto High-Beam (H igh Beam Support
System)
*........................................ 148
Daytime Running Lights ................... 151
Wipers and Washers ........................ 152
Brightness Control ........................... 154 Rear Defogger/Heated Door Mirror
*
Button ........................................... 155
Driving Position Memory System
*.... 156
Adjusting the Steering Wheel .......... 158
Adjusting the Mirrors
Interior Rearview Mirror ................... 159
Power Door Mirrors ......................... 160
Adjusting the Seats .......................... 161
Interior Lights/Interior Convenience Items ................................................ 169
Climate Control System
Using Automatic Climate Control .... 180
Synchronized Mode ......................... 182
Automatic Climate Control Sensors ... 183
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 115 ページ ２０１５年７月２３日　木曜日　午後４時１１分

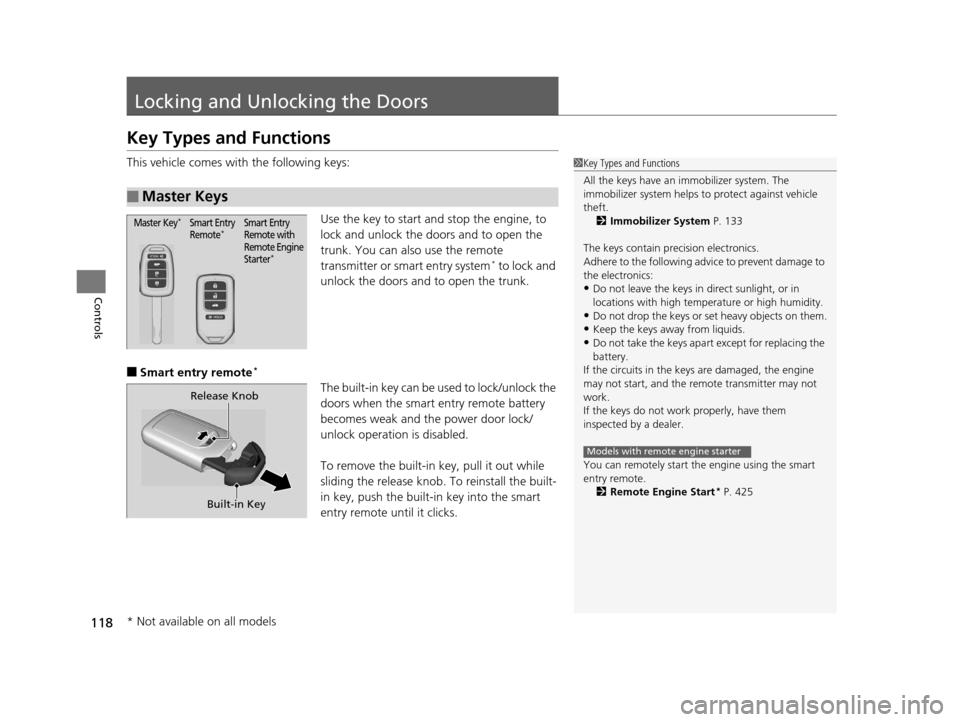

118
Controls
Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following keys:Use the key to start and stop the engine, to
lock and unlock the doors and to open the
trunk. You can also use the remote
transmitter or smart entry system
* to lock and
unlock the doors and to open the trunk.
■Smart entry remote*
The built-in key can be us ed to lock/unlock the
doors when the smart entry remote battery
becomes weak and th e power door lock/
unlock operation is disabled.
To remove the built-in key, pull it out while
sliding the release knob. To reinstall the built-
in key, push the built-in key into the smart
entry remote until it clicks.
■Master Keys
1 Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 133
The keys contain precision electronics.
Adhere to the following advi ce to prevent damage to
the electronics:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.
•Keep the keys away from liquids.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.
You can remotely start th e engine using the smart
entry remote.
2 Remote Engine Start
* P. 425
Models with remote engine starter
Master Key*Smart Entry
Remote*Smart Entry
Remote with
Remote Engine
Starter
*
Built-in Key
Release Knob
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 118 ページ ２０１５年７月２３日　木曜日　午後４時１１分

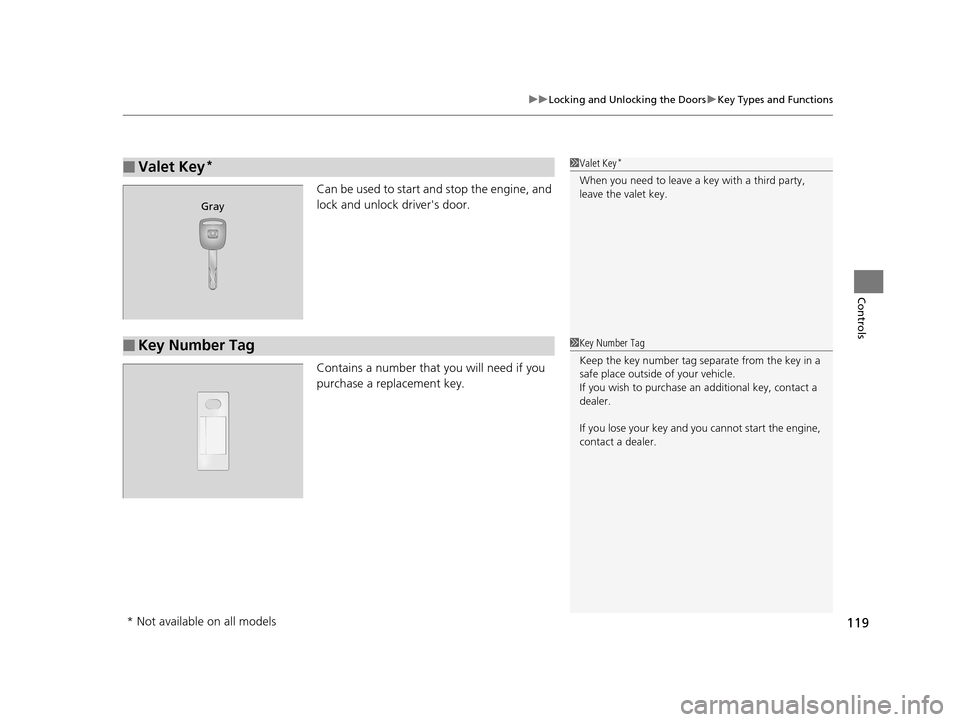

119
uuLocking and Unlocking the Doors uKey Types and Functions
Controls
Can be used to start an d stop the engine, and
lock and unlock driver's door.
Contains a number that you will need if you
purchase a replacement key.
■Valet Key*1 Valet Key*
When you need to leave a key with a third party,
leave the valet key.
Gray
■Key Number Tag1Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key and you cannot start the engine,
contact a dealer.
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 119 ページ ２０１５年７月２３日　木曜日　午後４時１１分

121
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Continued
Controls
Locking/Unlocking the Doors from the Outside
When you carry the sm art entry remote, you
can lock/unlock the doors and open the trunk.
You can lock/unlock the doors within a radius
of about 32 inches (80 cm) of the outside door
handle. You can open the trunk within about
32 inches (80 cm) radius from the trunk
release button.
■Locking the doors and the trunk Press the door lock button on either door.u Some exterior lights flash; the beeper
sounds; both doors and the trunk lock;
and the security system sets.
■Using the Smart Entry with Push Button Start System*
Door Lock Button
1Using the Smart Entry with Push Button Start System*
•Do not leave the smart entry remote in the vehicle
when you get out. Carry it with you.
•Even if you are not carrying the smart entry remote,
you can lock/unlock the doors while someone else
with the remote is within range.
•The door may be unlocked if the door handle is
covered with water in heavy rain or in a car wash if
the smart entry remote is within range.
•If you grip either door handle wearing gloves, the
door sensor may be slow to respond or may not
respond by unlocking the doors.
•You cannot unlock the door by gripping the handle
after two seconds of locking it.
•The door might not open if you pull it immediately
after gripping the door ha ndle. Grip the handle
again and confirm that th e door is unlocked before
pulling the handle.
•Even within the 32 inches (80 cm) radius, you may not
be able to lock/unlock the doors with the smart entry
remote if it is above or below the outside handle.
•The smart entry remote may not operate if it is too
close to the door and door glass.
If the distance at which the remote transmitter works
varies, the batter y is probably low.
If the LED does not come on when you press a
button, the battery is dead.
2 Replacing the Button Battery P. 547
You can customize the door lock mode and keyless
lock acknowledge ment setting.
2 Customized Features P. 106, 298, 316
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 121 ページ ２０１５年７月２３日　木曜日　午後４時１１分
