2016 HONDA ACCORD COUPE washer fluid

13
Quick Reference Guide
Turn Signals (P 145)
Lights (P 145)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P 152)
*1:Vehicle with auto wiper
*2:Vehicle without auto wiper
Wiper/Washer Control LeverAdjustment Ring
(-: Low Sensitivity*1
(- : Lower speed, fewer sweeps*2
(+: High Sensitivity*1
(+ : Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO : Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
Steering Wheel (P 158)
● To adjust, pull the adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Unlocking the Doors
from the Inside
(P 126)
●Pull either door inner handle to unlock
and open it at the same time.
● Unlocking and opening the driver’s door
from the inner handle unlocks the
passenger’s door.
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 13 ページ ２０１５年７月２３日　木曜日　午後４時１１分

23
Quick Reference Guide
Maintenance (P 501)
Under the Hood (P 513)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake fluid and clutch
* fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pull the lever up, and lift up
the hood.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P 529)
● Inspect all lights regularly.
Wiper Blades (P 535)
● Replace blades if they leave streaks
across the windshield.
Tires (P 537)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter driving.
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 23 ページ ２０１５年７月２３日　木曜日　午後４時１１分

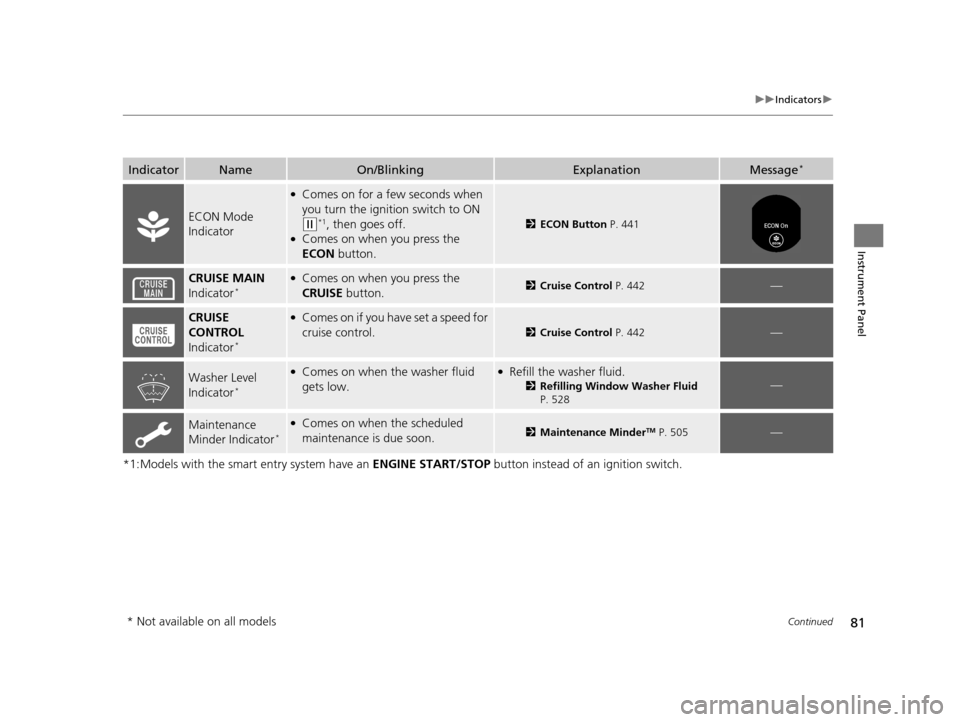

81
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
ECON Mode
Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.●Comes on when you press the
ECON button.
2ECON Button P. 441
CRUISE MAIN
Indicator*●Comes on when you press the
CRUISE button.2Cruise Control P. 442—
CRUISE
CONTROL
Indicator
*
●Comes on if you ha ve set a speed for
cruise control.
2 Cruise Control P. 442—
Washer Level
Indicator*
●Comes on when the washer fluid
gets low.●Refill the washer fluid.
2Refilling Window Washer Fluid
P. 528—
Maintenance
Minder Indicator*
●Comes on when the scheduled
maintenance is due soon.2Maintenance MinderTM P. 505—
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 81 ページ ２０１５年７月２３日　木曜日　午後４時１１分

91
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Continued
Instrument Panel
MessageConditionExplanation
●Appears if there is a problem with the auto high-
beam.●Manually operate the headlight switch.●If you are driving with th e high-beam headlights when
this happens, the headlights are changed to low beams.
●Appears when the area around the camera on the
windshield is blocked by dirt, mud, etc.●Stop your vehicle in a safe pl ace, and wipe it off with a
soft cloth.
●If the message does not disappear after cleaning the
lens, have your vehicl e checked by a dealer.
●Appears if there is a problem with the parking sensor
system. The beeper sounds.●Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If the indicator(s) stays on even
after you clean the area, have the system checked by a
dealer.
●Appears when the washer fluid is low.●Refill the washer fluid.
2 Refilling Window Washer Fluid P. 528
Models with
auto high-beam
Models with
auto high-beam
Models with
parking sensor
system
Canadian models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 91 ページ ２０１５年７月２３日　木曜日　午後４時１１分

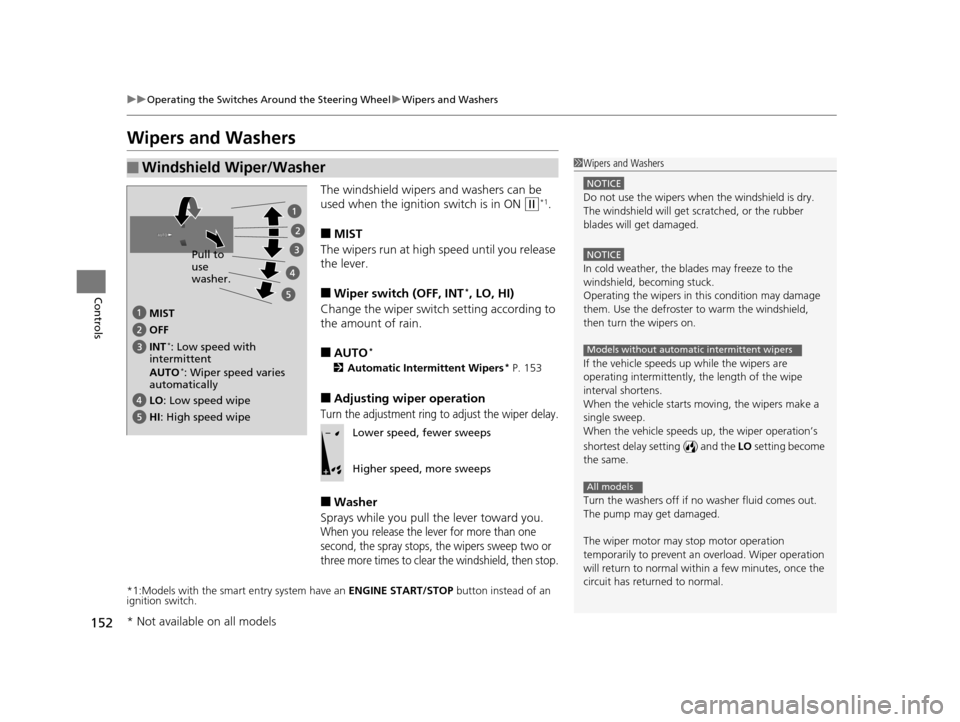

152
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Controls
Wipers and Washers
The windshield wipers and washers can be
used when the ignition switch is in ON
(w*1.
■MIST
The wipers run at high speed until you release
the lever.
■Wiper switch (OFF, INT*, LO, HI)
Change the wiper switch setting according to
the amount of rain.
■AUTO*
2 Automatic Intermittent Wipers* P. 153
■Adjusting wiper operation
Turn the adjustment ring to adjust the wiper delay.
■Washer
Sprays while you pull the lever toward you.
When you release the lever for more than one
second, the spray stops, the wipers sweep two or
three more times to clear the windshield, then stop.
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Windshield Wiper/Washer1 Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
NOTICE
In cold weather, the blades may freeze to the
windshield, becoming stuck.
Operating the wipers in this condition may damage
them. Use the defroster to warm the windshield,
then turn the wipers on.
If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens.
When the vehicle starts moving, the wipers make a
single sweep.
When the vehicle speeds up, the wiper operation’s
shortest delay se tting ( ) and the LO setting become
the same.
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.
Models without automatic intermittent wipers
All models
MIST
INT
*: Low speed with
intermittent OFF
LO: Low speed wipe
HI : High speed wipe Pull to
use
washer.
AUTO
*: Wiper speed varies
automatically
Lower speed, fewer sweeps
Higher speed, more sweeps
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 152 ページ ２０１５年７月２３日　木曜日　午後４時１１分

501
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 502
Safety When Performing Maintenance .... 503Parts and Fluids Used in Maintenance Service ........................................... 504
Maintenance Minder
TM..................... 505
Maintenance Under the Hood
Maintenance Items Un der the Hood .... 513Opening the Hood ........................... 515
Recommended Engine Oil ................ 517
Oil Check ......................................... 518
Adding Engine Oil ............................ 520
Changing the Engine Oil and Oil Filter..... 521
Engine Coolant ................................ 523
Transmission Fluid ............................ 525
Brake/Clutch Fluid ............................ 527
Refilling Window Washer Fluid......... 528
Replacing Light Bulbs ....................... 529
Checking and Maintaining Wiper
Blades .......................................... 535
Checking and Maintaining Tires
Checking Tires ................................. 537
Tire and Loading Information Label ..... 538Tire Labeling .................................... 538DOT Tire Quality Grading (U.S. Vehicles) ...... 540Wear Indicators................................ 542 Tire Service Life ................................ 542
Tire and Wheel Replacement ........... 543
Tire Rotation .................................... 544
Winter Tires ..................................... 545
Battery ............................................... 546
Remote Transmitter Care
Replacing the Button Battery ........... 547
Climate Control System Maintenance.... 549CleaningInterior Care .................................... 550
Exterior Care.................................... 552
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 501 ページ ２０１５年７月２３日　木曜日　午後４時１１分

513Continued
Maintenance
Maintenance Under the Hood
Maintenance Items Under the Hood
4-cylinder models
Brake Fluid
(Black Cap)
Engine Coolant
Reserve Tank Radiator Cap
Washer Fluid
(Blue Cap) Engine Oil Dipstick
(Orange)
Clutch Fluid
(Light Gray Cap)
Engine Oil Fill Cap
Battery
Manual transmission
models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 513 ページ ２０１５年７月２３日　木曜日　午後４時１１分

514
uuMaintenance Under the Hood uMaintenance Items Under the Hood
Maintenance
6-cylinder models
Engine Oil Dipstick
(Orange)
Washer Fluid
(Blue Cap)
Engine Coolant
Reserve Tank
Radiator Cap Brake Fluid
(Black Cap)
Engine Oil Fill Cap
Battery
Clutch Fluid
(Light Gray Cap)
Manual transmission
models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 514 ページ ２０１５年７月２３日　木曜日　午後４時１１分
