2016 HONDA ACCORD COUPE key

144
uuOperating the Switches Around the Steering Wheel uIgnition Switch and Power Mode Comparison
Controls

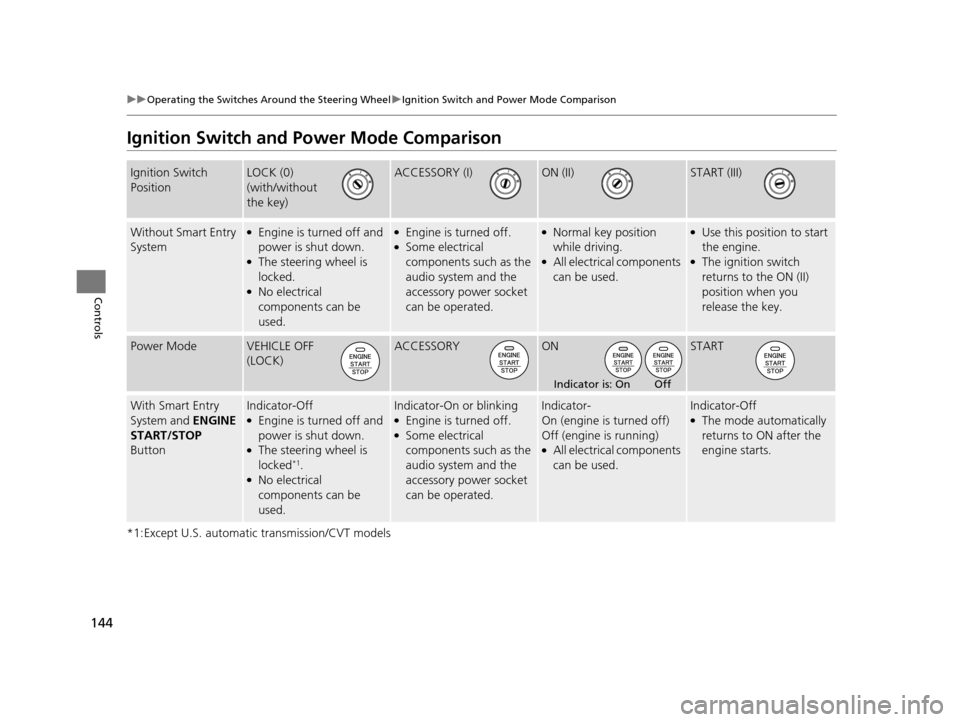

Ignition Switch and Power Mode Comparison
*1:Except U.S. automatic transmission/CVT models
Ignition Switch
PositionLOCK (0)
(with/without
the key)ACCESSORY (I)ON (II)START (III)
Without Smart Entry
System●Engine is turned off and
power is shut down.
●The steering wheel is
locked.
●No electrical
components can be
used.
●Engine is turned off.●Some electrical
components such as the
audio system and the
accessory power socket
can be operated.
●Normal key position
while driving.
●All electrical components
can be used.
●Use this position to start
the engine.
●The ignition switch
returns to the ON (II)
position when you
release the key.
Power ModeVEHICLE OFF
(LOCK)ACCESSORYONSTART
With Smart Entry
System and ENGINE
START/STOP
ButtonIndicator-Off●Engine is turned off and
power is shut down.
●The steering wheel is
locked*1.●No electrical
components can be
used.
Indicator-On or blinking●Engine is turned off.●Some electrical
components such as the
audio system and the
accessory power socket
can be operated.
Indicator-
On (engine is turned off)
Off (engine is running)
●All electrical components
can be used.
Indicator-Off●The mode automatically
returns to ON after the
engine starts.
Indicator is: On Off
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 144 ページ ２０１５年７月２３日　木曜日　午後４時１１分

145
uuOperating the Switches Around the Steering Wheel uTurn Signals
Continued
Controls

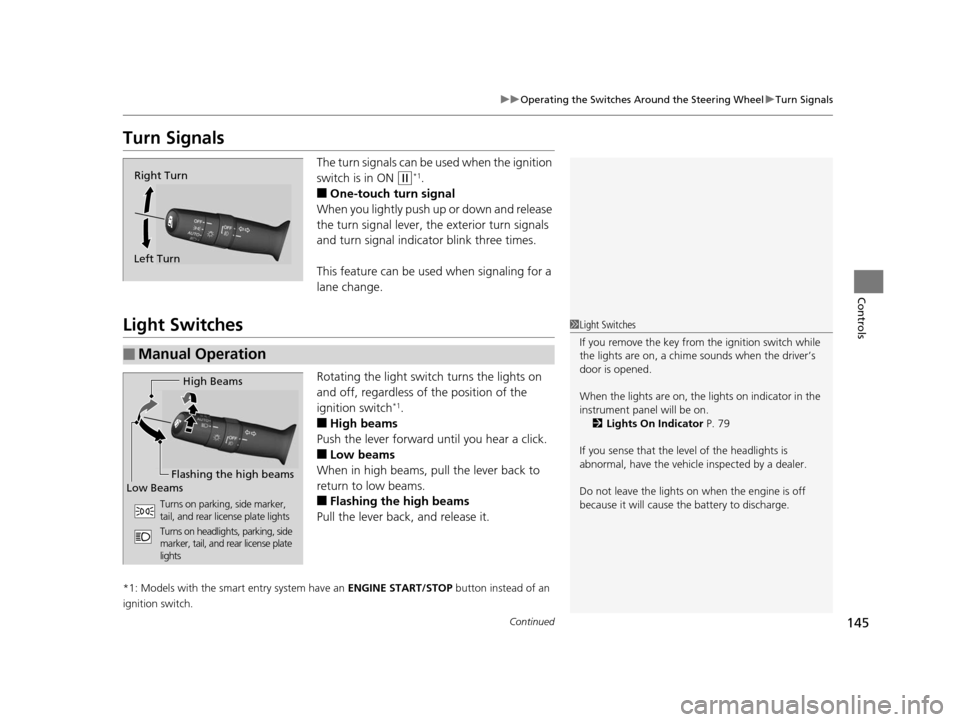

Turn Signals
The turn signals can be used when the ignition
switch is in ON
(w*1.
■One-touch turn signal
When you lightly push up or down and release
the turn signal lever, th e exterior turn signals
and turn signal indicator blink three times.
This feature can be used when signaling for a
lane change.
Light Switches
Rotating the light switch turns the lights on
and off, regardless of the position of the
ignition switch
*1.
■High beams
Push the lever forward until you hear a click.
■Low beams
When in high beams, pull the lever back to
return to low beams.
■Flashing the high beams
Pull the lever back, and release it.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Right Turn
Left Turn
■Manual Operation
1 Light Switches
If you remove the key from the ignition switch while
the lights are on, a chime sounds when the driver’s
door is opened.
When the lights are on, the lights on indicator in the
instrument pane l will be on.
2 Lights On Indicator P. 79
If you sense that the le vel of the headlights is
abnormal, have the vehicl e inspected by a dealer.
Do not leave the lights on when the engine is off
because it will cause the battery to discharge.
High Beams
Flashing the high beams
Low Beams
Turns on parking, side marker,
tail, and rear license plate lights
Turns on headlights, parking, side
marker, tail, and rear license plate
lights
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 145 ページ ２０１５年７月２３日　木曜日　午後４時１１分

147
uuOperating the Switches Around the Steering Wheel uFog Lights*
Controls

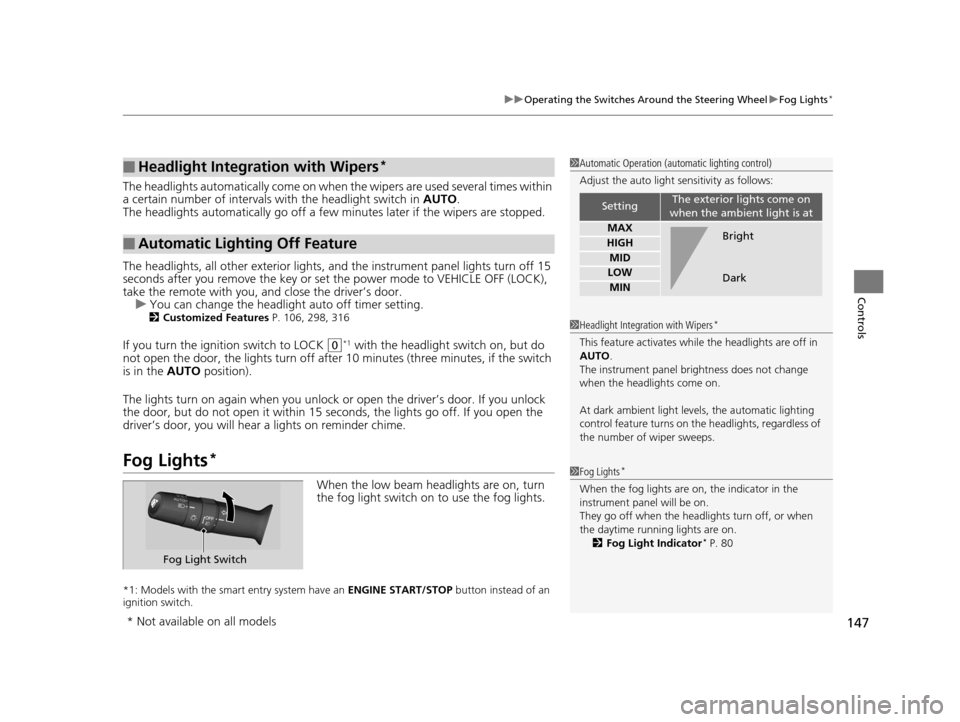

The headlights automatically come on when the wipers are used several times within
a certain number of intervals with the headlight switch in AUTO.
The headlights automatically go off a few mi nutes later if the wipers are stopped.
The headlights, all other exterior lights, and the instrument panel lights turn off 15
seconds after you remove the key or set the power mode to VEHICLE OFF (LOCK),
take the remote with you, and close the driver’s door.
u You can change the headlight auto off timer setting.
2Customized Features P. 106, 298, 316
If you turn the ignition switch to LOCK (0*1 with the headlight switch on, but do
not open the door, the lights turn off afte r 10 minutes (three minutes, if the switch
is in the AUTO position).
The lights turn on again when you unlock or open the driver’s door. If you unlock
the door, but do not open it within 15 seconds, the lights go off. If you open the
driver’s door, you will hear a lights on reminder chime.
Fog Lights*
When the low beam headlights are on, turn
the fog light switch on to use the fog lights.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Headlight Integration with Wipers*
■Automatic Lighting Off Feature
1 Automatic Operation (aut omatic lighting control)
Adjust the auto light sensitivity as follows:
SettingThe exterior lights come on
when the ambient light is at
MAX
HIGH
MID
LOW
MIN
Bright
Dark
1 Headlight Integration with Wipers*
This feature activates while the headlights are off in
AUTO .
The instrument panel brightness does not change
when the headlights come on.
At dark ambient light leve ls, the automatic lighting
control feature turns on the headlights, regardless of
the number of wiper sweeps.
1 Fog Lights*
When the fog lights are on, the indicator in the
instrument pane l will be on.
They go off when the headlights turn off, or when
the daytime running lights are on. 2 Fog Light Indicator
* P. 80
Fog Light Switch
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 147 ページ ２０１５年７月２３日　木曜日　午後４時１１分

169Continued
Controls

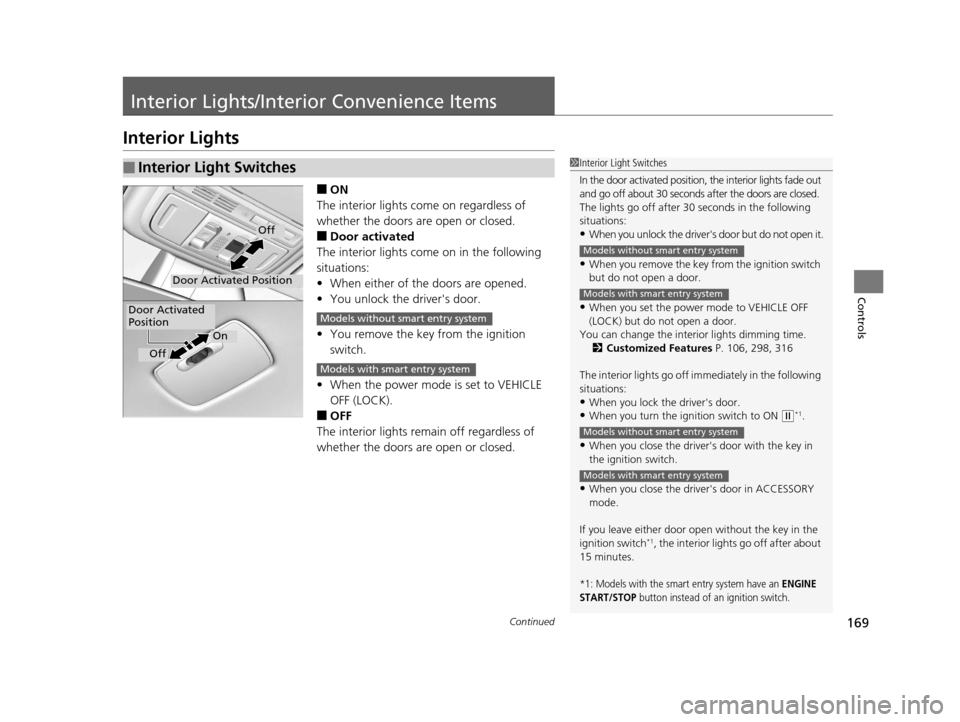

Interior Lights/Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless of
whether the doors are open or closed.
■Door activated
The interior lights come on in the following
situations:
• When either of the doors are opened.
• You unlock the driver's door.
• You remove the key from the ignition
switch.
• When the power mode is set to VEHICLE
OFF (LOCK).
■OFF
The interior lights remain off regardless of
whether the doors are open or closed.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade out
and go off about 30 seconds after the doors are closed.
The lights go off after 30 seconds in the following
situations:
•When you unlock the driver's door but do not open it.
•When you remove the key from the ignition switch
but do not open a door.
•When you set the power mode to VEHICLE OFF
(LOCK) but do not open a door.
You can change the interi or lights dimming time.
2 Customized Features P. 106, 298, 316
The interior lights go off i mmediately in the following
situations:
•When you lock the driver's door.•When you turn the ignition switch to ON ( w*1.
•When you close the driver's door with the key in
the ignition switch.
•When you close the driver's door in ACCESSORY
mode.
If you leave either door open without the key in the
ignition switch
*1, the interior light s go off after about
15 minutes.
*1: Models with the smart entry system have an ENGINE
START/STOP
button instead of an ignition switch.
Models without smart entry system
Models with smart entry system
Models without smart entry system
Models with smart entry system
Door Activated Position
Off
Door Activated
Position
On
Off
Models without smart entry system
Models with smart entry system
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 169 ページ ２０１５年７月２３日　木曜日　午後４時１１分

171
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls

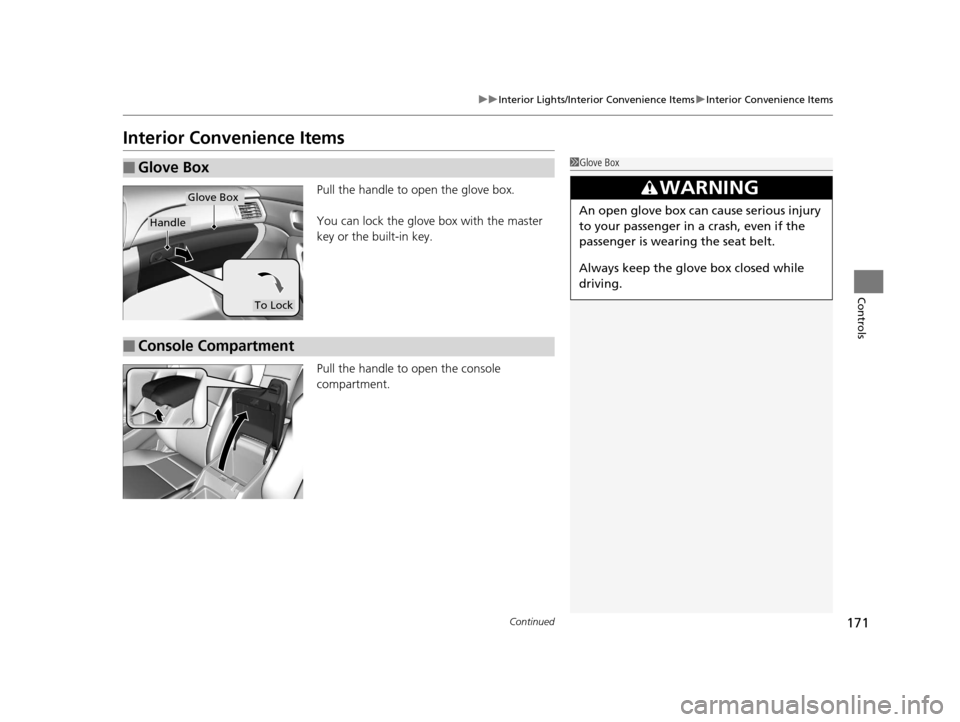

Interior Convenience Items
Pull the handle to open the glove box.
You can lock the glove box with the master
key or the built-in key.
Pull the handle to open the console
compartment.
■Glove Box1Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.Glove Box
Handle
To Lock
■Console Compartment
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 171 ページ ２０１５年７月２３日　木曜日　午後４時１１分

uuAudio System Basic Operation uAndroid Auto
282
Featuresa Maps (Navigation)
Display Google Maps and use the navigation function just as you would with your
Android phone. When the vehicle is in mo tion, it is not possible to make keyboard
entries. Stop the vehicle in a safe location to undertake a search or provide other
inputs.
b Phone (Communication)
Make and receive phone calls as well as listen to voicemail.
c Google Now (Home screen)
Display useful information organized by Andr oid Auto into simple cards that appear
just when they’re needed.
d Music and audio
Play Google Play Music and music apps that are compatible with Android Auto. To
switch between music apps, press this icon.
e Go back to the Home screen
f Voice
Operate Android Auto with your voice.
■Android Auto Menu1 Android Auto
For details on c ountries and regions where Android
Auto is available, as well as information pertaining to
function, refer to the Android Auto homepage.
Android Auto Operating Requirements &
Limitations
Android Auto requires a compatible Android phone
with an active cellular connection and data plan.
Your carrier’s rate plans will apply.
Changes in operating systems, hardware, software,
and other technology integral to providing Android
Auto functionality, as well as new or revised
governmental regulations, may result in a decrease or
cessation of Android Auto functionality and services.
Honda cannot and does not pr ovide any warranty or
guarantee of future Android Auto performance or
functionality.
It is possible to use 3r d party apps if they are
compatible with Android Auto. Refer to the Android
Auto homepage for informat ion on compatible apps.
Only one navigation system (pre-installed navigation
or Android Auto) can give di rections at a time. When
you are using one system, directions to any prior
destination set on the other system will be canceled,
and the system you are currently using will direct you
to your destination.
The audio/Information screen shows you turn-by-turn
driving directions to your destination.
Models with navigation system
: Go back to
the home screen.
Android Auto Icon
6
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 282 ページ ２０１５年７月２３日　木曜日　午後４時１１分

300
uuCustomized Features u
Features
“Trip B” Reset Timing
Adjust Outside Temp. Display
“Trip A” Reset Timing
Fuel Efficiency Backlight


Memory Position Link
Keyless Start Guidance Screens*
Vehicle
Settings
Meter Setup
TPMS Calibration
Driving Position Setup*
Remote Start System ON/OFF*

Driver
Assist
System
Setup
*
ACC Display Speed Unit*
Forward Collision Warning Distance*
ACC Forward Vehicle Detect Beep*
Road Departure Mitigation Setting*
Lane Keeping Assist Suspend Beep*
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 300 ページ ２０１５年７月２３日　木曜日　午後４時１１分

301
uuCustomized Features u
Continued
Features
Keyless Access Light Flash
Auto Light Sensitivity
Auto Door Lock
Auto Door Unlock
Door Unlock Mode
Interior Light Dimming Time
Headlight Auto Off Timer



Key And Remote Unlock Mode
Keyless Lock Answer Back
Security Relock Timer
Maintenance Reset
Default
Keyless
Access
Setup
*
Lighting Setup
Door
Setup
Maintenance Info.
Keyless Access Beep
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 301 ページ ２０１５年７月２３日　木曜日　午後４時１１分
