2016 HONDA ACCORD COUPE display

18
Quick Reference Guide
(Power) Button
(HOME ) Icon
VOL (Volume)
Icons
(MENU ) Icon
(BACK ) Icon
Audio/Information Touch Screen
Audio/Information Screen
App List
(P215)
For navigation system operation () See the Navigation System ManualModels with two displays
MAP* *
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 18 ページ ２０１５年７月２３日　木曜日　午後４時１１分

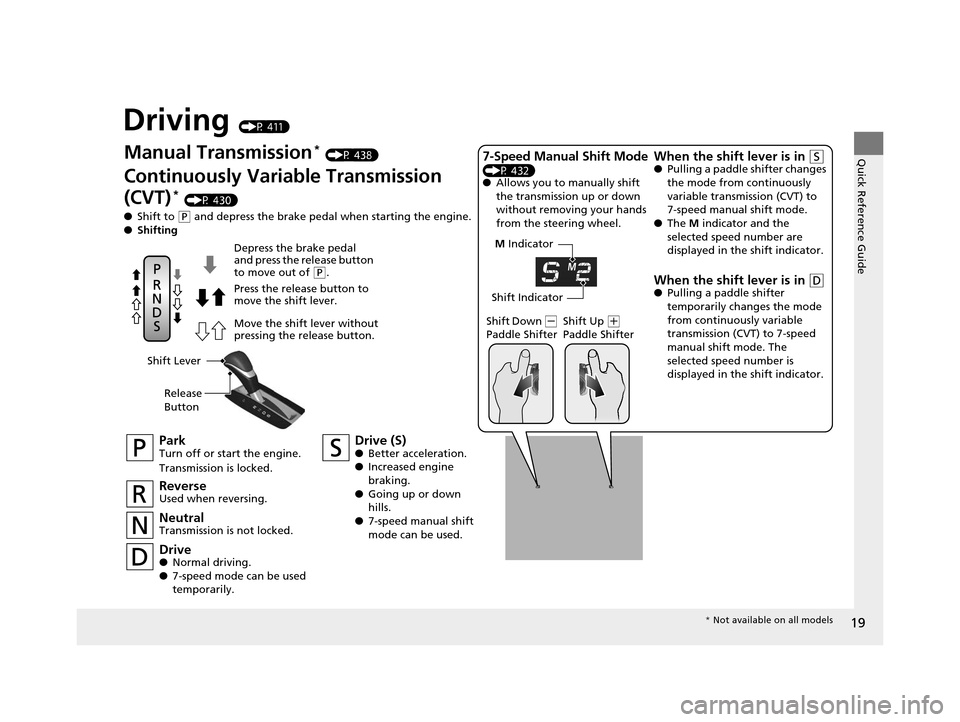

19
Quick Reference Guide
Driving (P 411)
M Indicator
Shift Indicator
Manual Transmission* (P 438)
Continuously Variable Transmission
(CVT)
* (P 430)
● Shift to
(P and depress the brake pedal when starting the engine.
● Shifting
ParkTurn off or start the engine.
Transmission is locked.
NeutralTransmission is not locked.
Drive (S)●Better acceleration.
● Increased engine
braking.
● Going up or down
hills.
● 7-speed manual shift
mode can be used.
Depress the brake pedal
and press the release button
to move out of
(P.
Press the release button to
move the shift lever.
Move the shift lever without
pressing the release button.
ReverseUsed when reversing.
Drive● Normal driving.
● 7-speed mode can be used
temporarily. Shift Down
(
-
Paddle Shifter Shift Up (
+
Paddle Shifter
7-Speed Manual Shift Mode
(P 432)
● Allows you to manually shift
the transmission up or down
without removing your hands
from the steering wheel.
When the shift lever is in (S●Pulling a paddle shifter changes
the mode from continuously
variable transmission (CVT) to
7-speed manual shift mode.
● The M indicator and the
selected speed number are
displayed in the shift indicator.
When the shift lever is in (D● Pulling a paddle shifter
temporarily changes the mode
from continuously variable
transmission (CVT) to 7-speed
manual shift mode. The
selected speed number is
displayed in the shift indicator.
Shift Lever
Release
Button
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 19 ページ ２０１５年７月２３日　木曜日　午後４時１１分

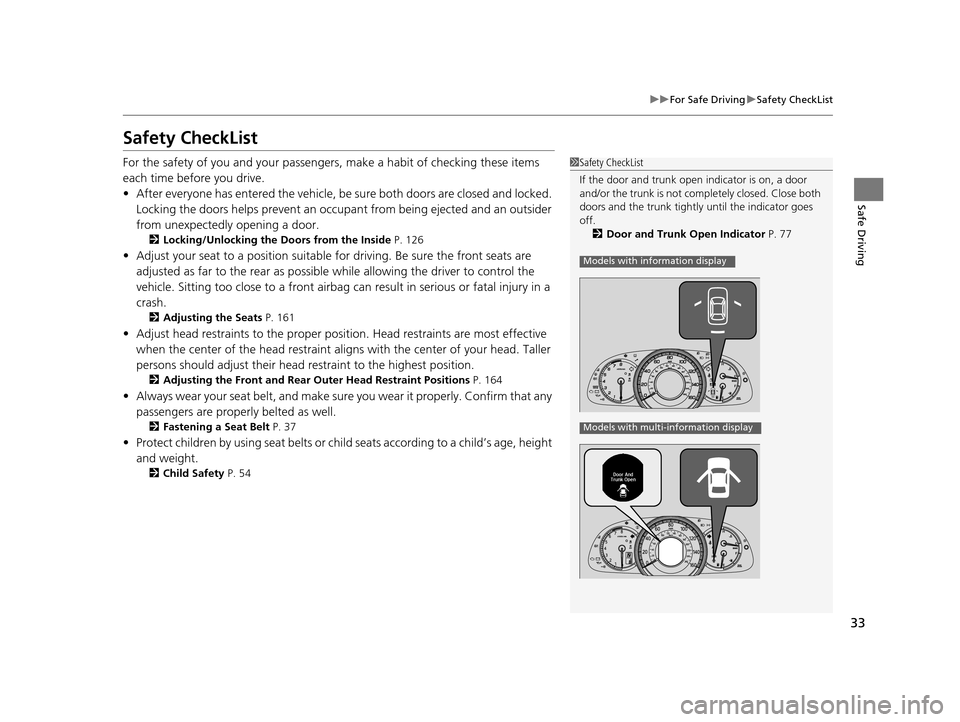

33
uuFor Safe Driving uSafety CheckList
Safe Driving
Safety CheckList
For the safety of you and your passengers, make a habit of checking these items
each time before you drive.
• After everyone has entered the vehicle, be sure both doors are closed and locked.
Locking the doors helps prevent an occupant from being ejected and an outsider
from unexpectedly opening a door.
2 Locking/Unlocking the Doors from the Inside P. 126
•Adjust your seat to a position suitable for driving. Be sure the front seats are
adjusted as far to the rear as possible while allowing the driver to control the
vehicle. Sitting too close to a front airbag can result in serious or fatal injury in a
crash.
2 Adjusting the Seats P. 161
•Adjust head restraints to the proper position. Head restraints are most effective
when the center of the head restraint aligns with the center of your head. Taller
persons should adjust their head restraint to the highest position.
2 Adjusting the Front and Rear Ou ter Head Restraint Positions P. 164
•Always wear your seat belt, and make sure you wear it properly. Confirm that any
passengers are properly belted as well.
2 Fastening a Seat Belt P. 37
•Protect children by using seat belts or chil d seats according to a child’s age, height
and weight.
2 Child Safety P. 54
1Safety CheckList
If the door and trunk open indicator is on, a door
and/or the trunk is not completely closed. Close both
doors and the trunk tightly until the indicator goes
off. 2 Door and Trunk Open Indicator P. 77
Models with information display
Models with multi-information display
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 33 ページ ２０１５年７月２３日　木曜日　午後４時１１分

Continued51
uuAirbags uAirbag System Indicators
Safe Driving
■When side curtain airbags deploy in a frontal collision
One or both side curtain airb ags may inflate in a moderate-to-severe angled frontal
collision.
Airbag System Indicators
If a problem occurs in the airbag system , the SRS indicator will come on and a
message appears on the multi-information display*.
■When the ignition switch is turned to
ON
(w*1
The indicator comes on for a few seconds,
then goes off. This tells you the system is
working properly.
If the indicator comes on at any other time , or does not come on at all, have the
system checked by a dealer as soon as po ssible. If you don’t, your airbags and seat
belt tensioners may not work properly when they are needed.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Supplemental Restraint System (SRS) Indicator1 Supplemental Restraint System (SRS) Indicator
3WARNING
Ignoring the SRS indi cator can result in
serious injury or death if the airbag systems
or tensioners do not work properly.
Have your vehicle checked by a dealer as
soon as possible if the SRS indicator alerts
you to a possible problem.
*
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 51 ページ ２０１５年７月２３日　木曜日　午後４時１１分

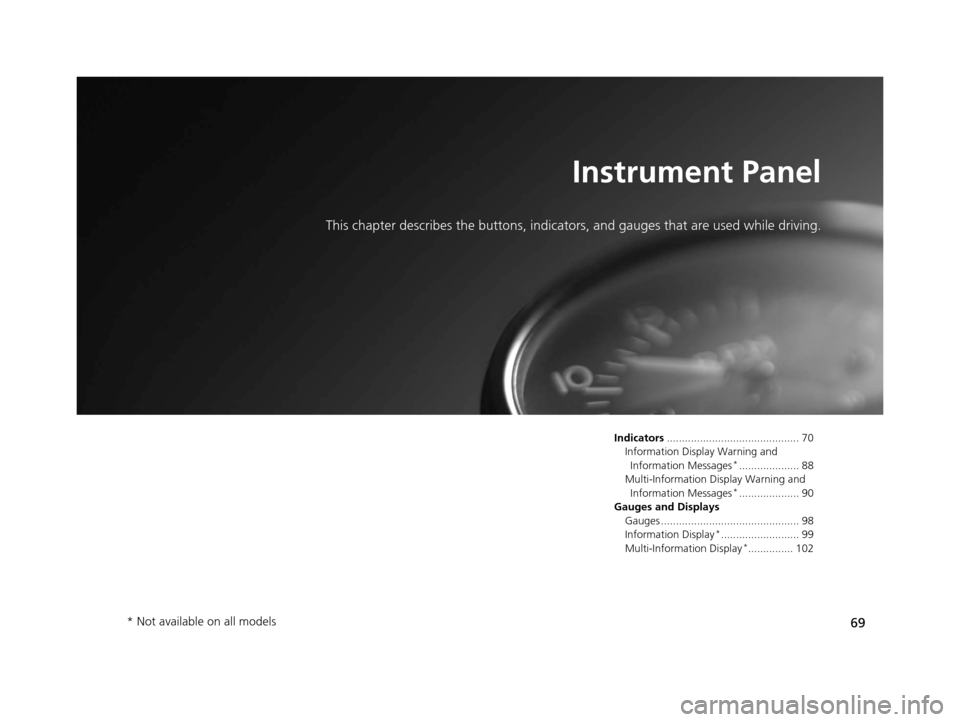

69
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 70
Information Display Warning and Information Messages
*.................... 88
Multi-Information Display Warning and Information Messages
*.................... 90
Gauges and Displays Gauges .............................................. 98
Information Display
*.......................... 99
Multi-Information Display*............... 102
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 69 ページ ２０１５年７月２３日　木曜日　午後４時１１分

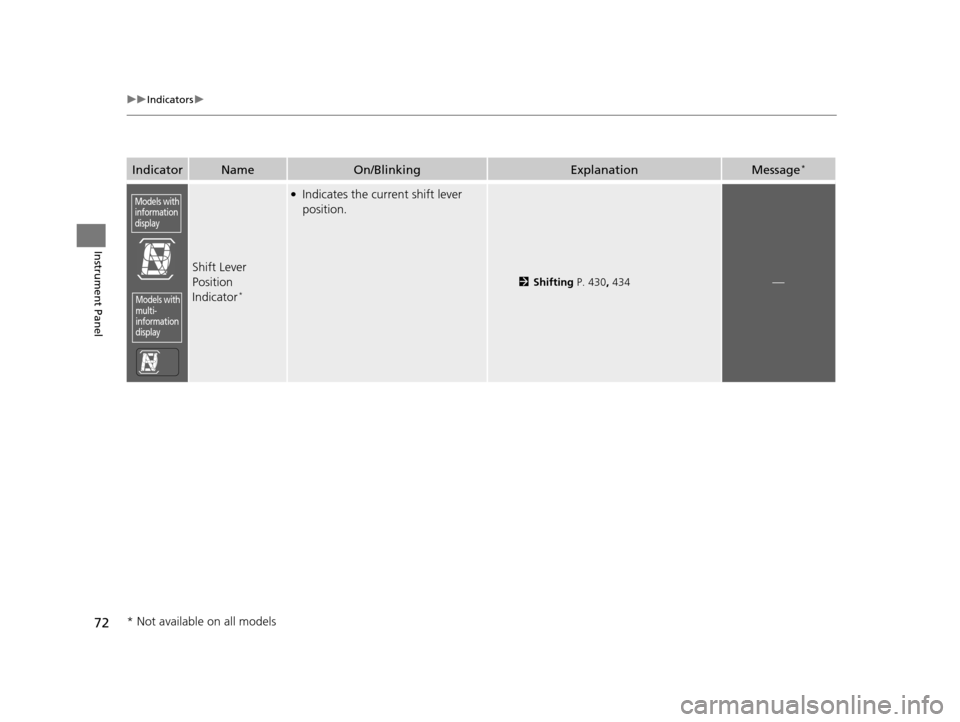

72
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage*
Shift Lever
Position
Indicator
*
●Indicates the current shift lever
position.
2Shifting P. 430, 434—
Models with
information
display
Models with
multi-
information
display
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 72 ページ ２０１５年７月２３日　木曜日　午後４時１１分

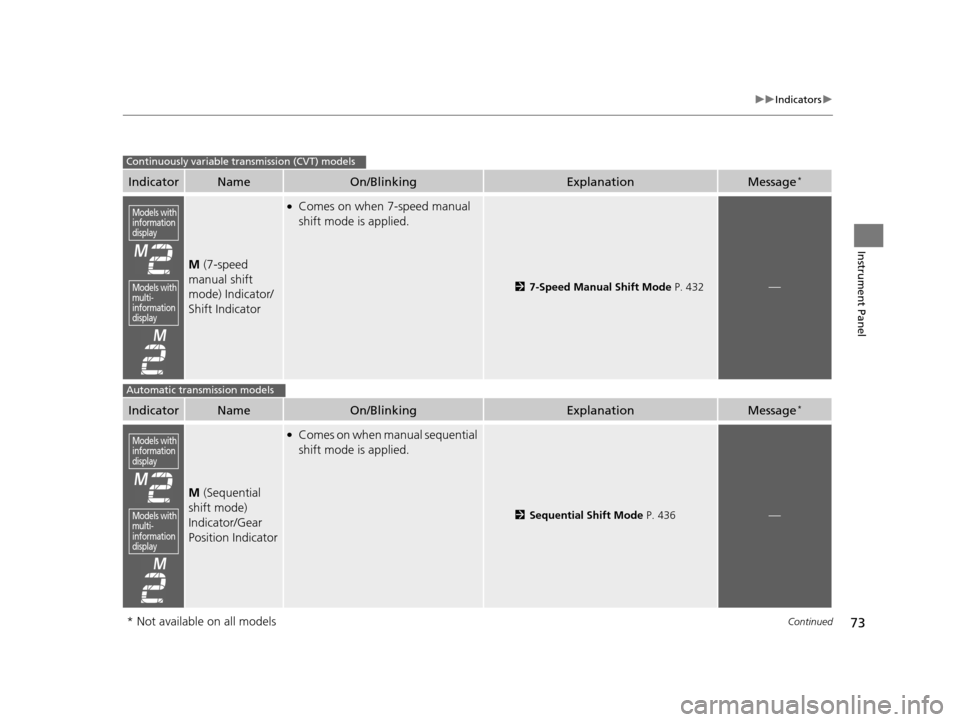

73
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage*
M (7-speed
manual shift
mode) Indicator/
Shift Indicator
●Comes on when 7-speed manual
shift mode is applied.
2 7-Speed Manual Shift Mode P. 432—
IndicatorNameOn/BlinkingExplanationMessage*
M (Sequential
shift mode)
Indicator/Gear
Position Indicator
●Comes on when manual sequential
shift mode is applied.
2 Sequential Shift Mode P. 436—
Continuously variable transmission (CVT) models
Models with
information
display
Models with
multi-
information
display
Automatic transmission models
Models with
information
display
Models with
multi-
information
display
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 73 ページ ２０１５年７月２３日　木曜日　午後４時１１分

74
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Transmission
Indicator*
●Blinks if the transmission system has
a problem.●Blinks while driving - Avoid sudden
starts and acceleration and have your
vehicle checked by a dealer
immediately.
Seat Belt
Reminder
Indicator
●Comes on and the beeper sounds if
you are not wearing a seat belt when
you turn the igniti on switch to ON
(w*1.●If the front passenger is not wearing
a seat belt, the indicator comes on a
few seconds later.
●Blinks while driving if either you or
the front passenger has not fastened
a seat belt. The beeper sounds and
the indicator blinks at regular
intervals.
●The beeper stops and the indicator goes
off when you and the front passenger
fasten their seat belts.
●Stays on after you or the front
passenger has fastened the seat
belt - A detection error may have
occurred in the sensor. Have your
vehicle checked by a dealer.
2Seat Belt Reminder P. 35
Models with
information
display
Models with
multi-
information
display
* Not available on all models
