2016 HONDA ACCORD COUPE display

109
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel
■List of customizable options
*1:Default Setting Setup Group Customizable Features
Description Selectable Settings
TPMS
Calibration—Calibrates the TPMS.Cancel/Calibrate
Driver Assist
System
Setup
Forward Collision
Warning DistanceChanges at which distance the CMBSTM alerts.Long /Normal*1/ Short
ACC Pre-Running Car
Detect BeepCauses the system to beep when the system detects a
vehicle, or when the vehicle goes out of ACC range.On /Off*1
ACC Display Speed UnitChanges the ACC display speed unit.
mph*1/km/h
(U.S.)
mph /km/ h
*1
(Canada)
Road Departure
Mitigation Setting Changes the setting fo
r the road departure
mitigation system. Normal
*1/
Wide /Warning
Only
Lane Keep Assist
Suspend Beep Causes the system to b
eep when the LKAS is
suspended. On
/Off
*1
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 109 ページ ２０１５年７月２３日　木曜日　午後４時１１分

110
uuGauges and Displays uMulti-Information Display*
Instrument Panel
*1:Default SettingSetup Group Customizable Features Description Selectable Settings
Meter Setup
Language SelectionChanges the displayed language.English*1/
French /Spanish
Adjust Outside Temp.
DisplayAdjusts the temperature reading by a few degrees.
-5°F ~ ±0°F*1 ~ +5°F
(U.S.)
-3°C ~ ±0°C
*1 ~ +3°C
(Canada)
“Trip A” Reset Timing
Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and
elapsed time A.With Refuel /IGN Off /
Manually Reset*1
“Trip B” Reset Timing
Changes the setting of how to reset trip meter B,
average fuel economy B, average speed B, and
elapsed time B.With Refuel /IGN Off /
Manually Reset*1
Fuel Efficien cy BacklightTurns the ambient meter feature on and off.On*1/Off
Keyless Start Guidance
ScreensDisplays the push button start guidance when
conditions are met to change power mode.On*1/ Off
Driving
Position
Setup Memory Position Link
Changes the driver’s seat position to a stored
setting. On
*1/
Off
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 110 ページ ２０１５年７月２３日　木曜日　午後４時１１分

111
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel
*1: Default SettingSetup Group Customizable Features
Description Selectable Settings
Keyless
Access
Setup
Door Unlock ModeChanges which doors unlock when you grab the
driver’s door handle.Driver Door Only*1/All Doors
Keyless Access Light
FlashCauses some exterior lights to blink when you
unlock/lock the doors.On*1/ Off
Keyless Access BeepSets the beeper sound or not when you grab either
door handle.On*1/Off
Remote Start System
ON/OFF*Turns the remote engine start feature on and off.ON*1/OFF
Lighting
Setup Interior Light Dimming
Time
Changes the length of time the interior lights stay on
after you close the doors.
60sec
/30sec
*1/15sec
Headlight Auto Off
Timer Changes the length of time
the exterior lights stay
on after you close the driver’s door. 60sec
/30sec /15sec
*1/ 0sec
Auto Light Sensitivity Changes the timing for the headlights to come on. Max/High /Mid
*1/Low /Min
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 111 ページ ２０１５年７月２３日　木曜日　午後４時１１分

112
uuGauges and Displays uMulti-Information Display*
Instrument Panel

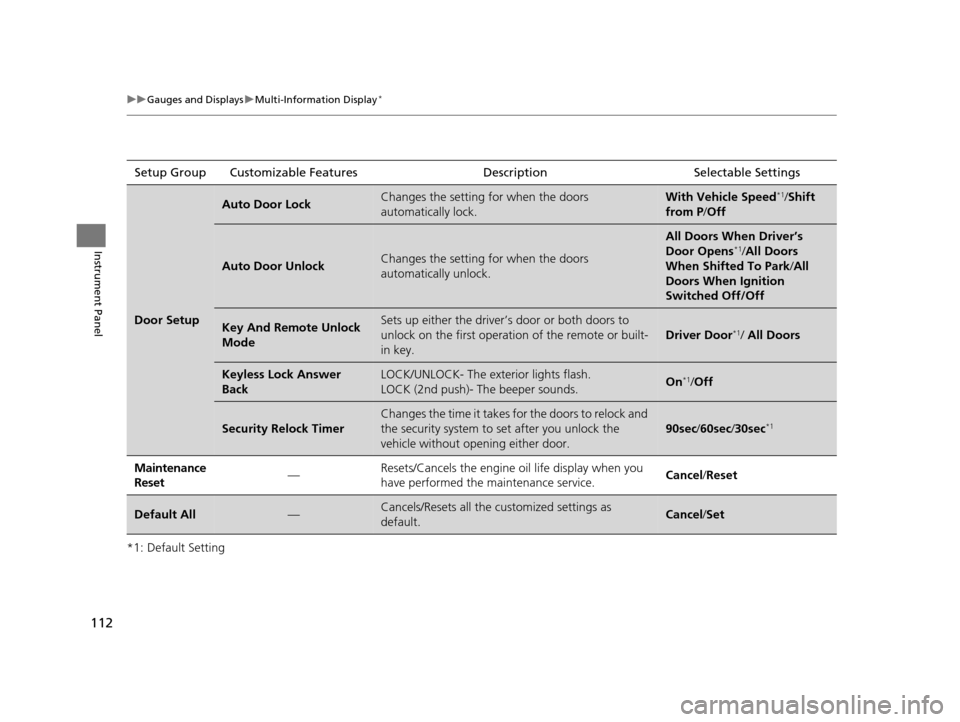

*1: Default SettingSetup Group Customizable Features Description Selectable Settings
Door Setup
Auto Door LockChanges the setting for when the doors
automatically lock.With Vehicle Speed*1/
Shift
from P /Off
Auto Door UnlockChanges the setting for when the doors
automatically unlock.
All Doors When Driver’s
Door Opens*1/All Doors
When Shifted To Park /All
Doors When Ignition
Switched Off/Off
Key And Remote Unlock
ModeSets up either the driver’s door or both doors to
unlock on the first operatio n of the remote or built-
in key.
Driver Door*1/ All Doors
Keyless Lock Answer
BackLOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.On*1/ Off
Security Relock Timer
Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening either door.
90sec /60sec /30sec*1
Maintenance
Reset—Resets/Cancels the engine oil life display when you
have performed the maintenance service. Cancel /Reset
Default All—Cancels/Resets all the customized settings as
default.Cancel /Set
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 112 ページ ２０１５年７月２３日　木曜日　午後４時１１分

113
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel
■Example of customization settings
The steps for changing the “Trip A” Reset Timing setting to With Refuel are
shown below. The default setting for “Trip A” Reset Timing is Manually Reset.
1. Press the button to select Vehicle
Settings , then press the SEL/RESET
button.
2. Press the button until Meter
Setup appears on the display.
3. Press the SEL/RESET button.
u Language Selection appears first in the
display.
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 113 ページ ２０１５年７月２３日　木曜日　午後４時１１分

114
uuGauges and Displays uMulti-Information Display*
Instrument Panel

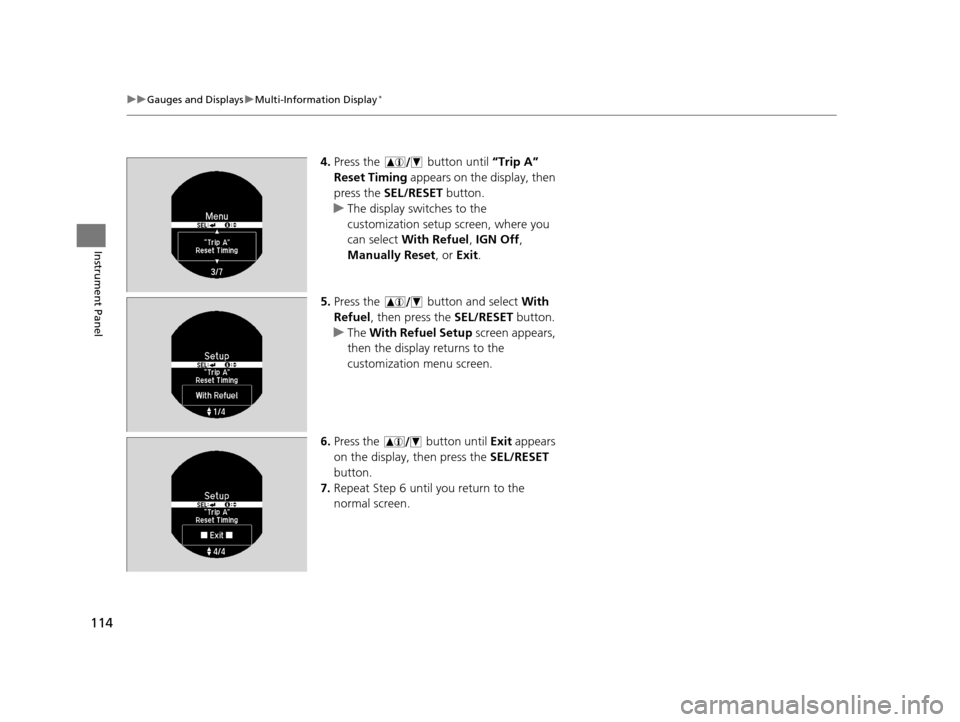

4. Press the button until “Trip A”
Reset Timing appears on the display, then
press the SEL/RESET button.
u The display switches to the
customization setup screen, where you
can select With Refuel , IGN Off ,
Manually Reset , or Exit .
5. Press the button and select With
Refuel , then press the SEL/RESET button.
u The With Refuel Setup screen appears,
then the display returns to the
customization menu screen.
6. Press the button until Exit appears
on the display, then press the SEL/RESET
button.
7. Repeat Step 6 until you return to the
normal screen.
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 114 ページ ２０１５年７月２３日　木曜日　午後４時１１分

116
Controls
Clock
Adjusting the Clock
You can adjust the time in the clock display with the ignition switch is in ON (w *1.
■Using the Settings menu on the audio/information screen1.Press the SETTINGS button.
2. Rotate to select System Settings, then
press .
u Repeat the procedure to select Clock,
then Clock Adjustment .
3. Rotate to change hour, then press .
4. Rotate to change minute, then press .
■Using the SETTINGS button
1.Press and hold the CLOCK (SETTINGS)
button until the clock display blinks.
2. Press Preset
(4 (Hour) or (5 (Minute) to
adjust the time.
3. Press the CLOCK button again to set the
time.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Adjusting the Time
1 Adjusting the Clock
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
You can customize the clock display to show the 12
hour clock or 24 hour clock. 2 Customized Features P. 298, 316
You can turn the clock display on and off. 2 Customized Features P. 298, 316
Models with one display
Models with one display
Models with one display
1Using the SETTINGS button
To set the time to the nearest hour: Press and hold
the CLOCK button until the clock display blinks, then
press the
( 6 (Reset) button.
Depending on the displayed time, the clock sets
forward or backward.
Example:
1:06 will reset to 1:00
1:53 will reset to 2:00
CLOCK (SETTINGS)
Button
( 6 (Reset) Button
(4 (Hour) Button
(5 (Minute) Button
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 116 ページ ２０１５年７月２３日　木曜日　午後４時１１分

117
uuClock uAdjusting the Clock
Controls
■Using the Settings menu on the audio/information touch screen
1.Select , then select Settings.
2. Select Clock/Info , then Clock
Adjustment .
3. Adjust the hours and minutes by selecting
/.
4. Select OK to set the time.
Models with two displays
1Using the Settings menu on the audio/information touch screen
The clock is automatically updated through the audio
system, so the time does not need to be adjusted.
Models with two displays
34
