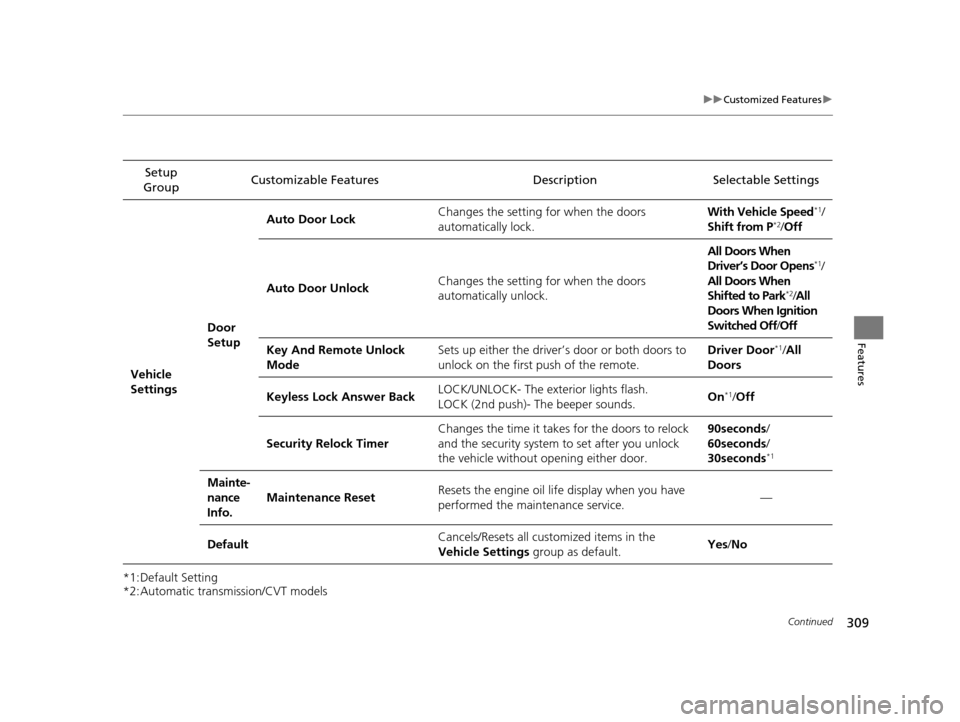

2016 HONDA ACCORD COUPE display

309
uuCustomized Features u
Continued
Features
*1:Default Setting
*2:Automatic transmission/CVT modelsSetup
Group Customizable Features Description Selectable Settings
Vehicle
Settings Door
SetupAuto Door Lock
Changes the setting
for when the doors
automatically lock. With Vehicle Speed
*1/
Shift from P*2/ Off
Auto Door Unlock Changes the setting
for when the doors
automatically unlock. All Doors When
Driver’s Door Opens
*1/
All Doors When
Shifted to Park
*2/ All
Doors When Ignition
Switched Off /Off
Key And Remote Unlock
Mode Sets up either the driver’s door or both doors to
unlock on the first push of the remote. Driver Door
*1/
All
Doors
Keyless Lock Answer Back LOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.
On
*1/
Off
Security Relock Timer Changes the time it takes for the doors to relock
and the security system to set after you unlock
the vehicle without opening either door. 90seconds
/
60seconds /
30seconds
*1
Mainte-
nance
Info. Maintenance Reset
Resets the engine oil life display when you have
performed the maintenance service. —
Default Cancels/Resets all customized items in the
Vehicle Settings
group as default. Yes
/No
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 309 ページ ２０１５年７月２３日　木曜日　午後４時１１分

310
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
Audio
Settings
SoundAdjusts the settings of the audio speaker’s sound.
2Adjusting the Sound P. 197
-6 ~ C*1 ~ +6 (Bass ,
Treble and SUBW*), -9
~ C*1 ~ +9 (Fader and
Balance ), Off/Low /
Mid
*1/ High (SVC)
Source Select Popup
Selects whether the list of selectable audio
sources comes on when the AUDIO button is
pressed.
On /Off*1
Cover ArtTurns on and off the cover art display.On*1/Off
Connect Audio
Connects, disconnects or pairs a Bluetooth®
Audio device to HFL.—
Bluetooth Device List
Edits or deletes a Bluetooth® Audio device paired
to HFL.—
DefaultCancels/Resets all cust omized items in the Audio
Settings group as default.Yes/No
iPod, USB, or Pandora ®* mode
Bluetooth® Audio or Pandora ®* mode
Bluetooth® Audio or Pandora ®* mode
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 310 ページ ２０１５年７月２３日　木曜日　午後４時１１分

315
uuCustomized Features uDefaulting All the Settings
Features
Defaulting All the Settings
Reset all the menu and customized settings as the factory defaults.
1.Press the SETTINGS button.
2. Rotate to select System Settings, then
press .
u Repeat the procedure to select Other,
then Factory Data Reset .
u The confirmation message will appear.
3. Rotate to select Yes, then press to
reset the settings.
4. Rotate to select Yes, then press
again to reset the settings.
u The confirmation message will appear.
Press to select OK.1Defaulting All the Settings
When you transfer the vehicle to a third party, reset
all settings to default a nd delete all personal data.
The following settings will be reset:
•Audio preset settings
•Phonebook entries
•Other display and ea ch item settings.
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 315 ページ ２０１５年７月２３日　木曜日　午後４時１１分

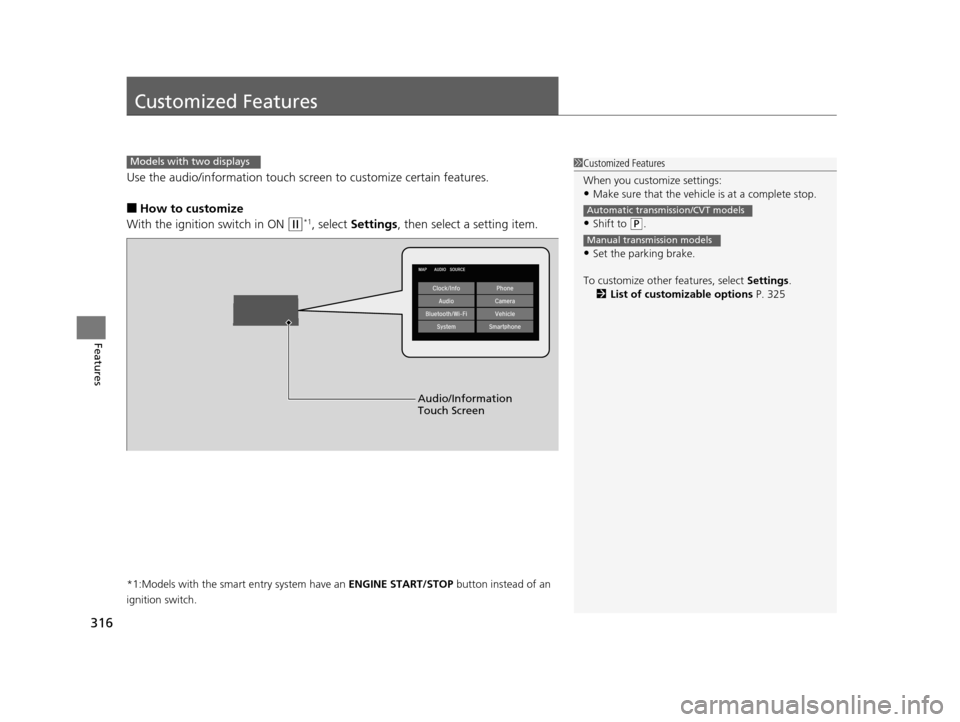

316
Features
Customized Features
Use the audio/information touch screen to customize certain features.
■How to customize
With the ignition switch in ON
(w*1, select Settings , then select a setting item.
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Customized Features
When you customize settings:
•Make sure that the vehicle is at a complete stop.
•Shift to (P.
•Set the parking brake.
To customize other features, select Settings.
2 List of customizable options P. 325
Automatic transmission/CVT models
Manual transmission models
Models with two displays
Audio/Information
Touch Screen
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 316 ページ ２０１５年７月２３日　木曜日　午後４時１１分

317
uuCustomized Features u
Continued
Features

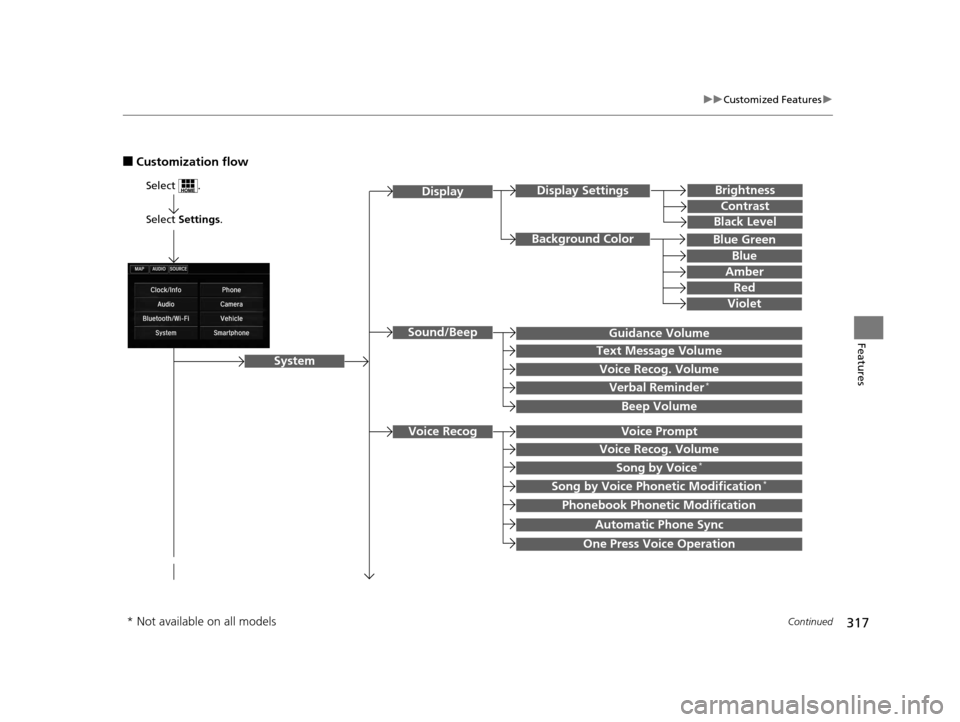

■Customization flow
Select Settings .
Brightness
Contrast
Black Level
Sound/Beep
System
DisplayDisplay Settings
Background Color
Guidance Volume
Text Message Volume
Select .
Voice RecogVoice Prompt
Blue
Amber
Red
Violet
Voice Recog. Volume
Beep Volume
Voice Recog. Volume
Song by Voice*
Song by Voice Phonetic Modification*
Phonebook Phonetic Modification
Automatic Phone Sync
One Press Voice Operation
Verbal Reminder*
Blue Green
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 317 ページ ２０１５年７月２３日　木曜日　午後４時１１分

318
uuCustomized Features u
Features
Language
Default
System
Others
Clock/Wallpaper Type
Clock Adjustment*
ClockClock
Wallpaper
Manual Time Zone*
Auto Daylight
Clock Display
Touch Panel Sensitivity
Clock Format
Auto Time Zone*
Detail Information
Factory Data Reset
Clock Reset
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 318 ページ ２０１５年７月２３日　木曜日　午後４時１１分

319
uuCustomized Features u
Continued
Features
Vehicle
Driver Assist
System Setup*Forward Collision Warning Distance*
ACC Forward Vehicle Detect Beep*
Road Departure Mitigation Setting*
Lane Keeping Assi st Suspend Beep*
Meter SetupLanguage Selection
Adjust Outside Temp Display
“Trip A” Reset Timing
“Trip B” Reset Timing
Fuel Efficiency Backlight
Keyless Start Guidance Screens*
Driving Position
Setup*Memory Position Link
TPMS Calibration
ACC Display Speed Unit*
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 319 ページ ２０１５年７月２３日　木曜日　午後４時１１分

322
uuCustomized Features u
Features
Clock/Wallpaper TypeClock
WallpaperClock Adjustment*
Clock Format
Auto Time Zone*
Manual Time Zone*
Auto Daylight
Clock Display
Clock Reset
OtherInfo Screen Preference
Default
Clock/Info
HondaLinkDiagnostic & Location Data
Clock
* Not available on all models
16 US ACCORD 2D (KA KC KL)-31T3L6300.book 322 ページ ２０１５年７月２３日　木曜日　午後４時１１分
