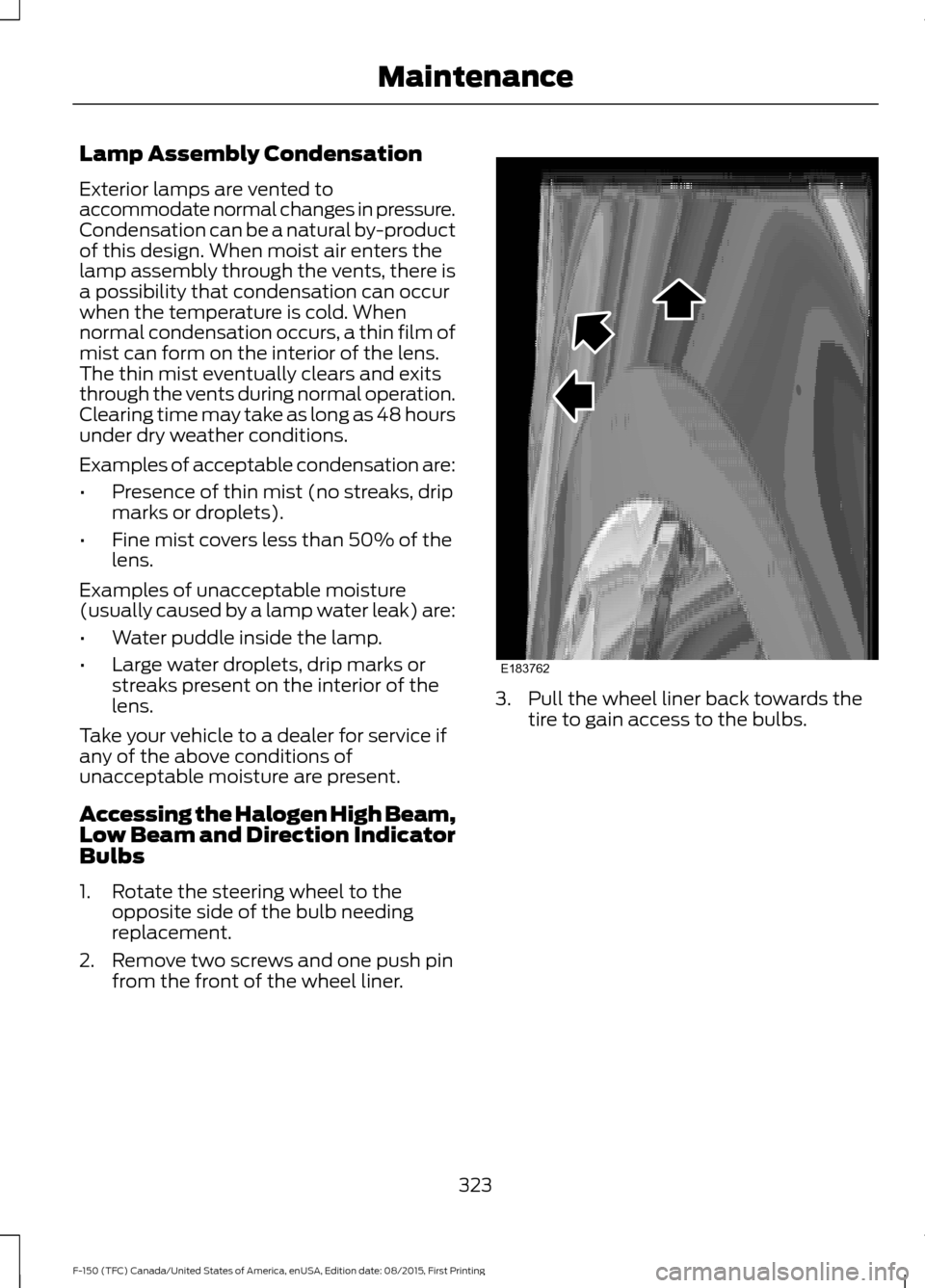

2016 FORD F150 service indicator

Lamp Assembly Condensation
Exterior lamps are vented to
accommodate normal changes in pressure.
Condensation can be a natural by-product
of this design. When moist air enters the
lamp assembly through the vents, there is
a possibility that condensation can occur
when the temperature is cold. When
normal condensation occurs, a thin film of
mist can form on the interior of the lens.
The thin mist eventually clears and exits
through the vents during normal operation.
Clearing time may take as long as 48 hours
under dry weather conditions.
Examples of acceptable condensation are:
•
Presence of thin mist (no streaks, drip
marks or droplets).
• Fine mist covers less than 50% of the
lens.
Examples of unacceptable moisture
(usually caused by a lamp water leak) are:
• Water puddle inside the lamp.
• Large water droplets, drip marks or
streaks present on the interior of the
lens.
Take your vehicle to a dealer for service if
any of the above conditions of
unacceptable moisture are present.
Accessing the Halogen High Beam,
Low Beam and Direction Indicator
Bulbs
1. Rotate the steering wheel to the opposite side of the bulb needing
replacement.
2. Remove two screws and one push pin from the front of the wheel liner. 3. Pull the wheel liner back towards the
tire to gain access to the bulbs.
323
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 08/2015, First Printing MaintenanceE183762

2.
Twist the bulb socket counterclockwise
and carefully pull to remove it from the
lamp assembly.
3. Pull the bulb straight out of the socket.
4. Install the new bulb in reverse order.
Replacing Exterior Mounted Mirror
Direction Indicator Lamp Bulbs
These lamps have LED bulbs. Contact an
authorized dealer. BULB SPECIFICATION CHART
Replacement bulbs are specified in the
chart below. Headlamp bulbs must be
marked with an authorized D.O.T. marking
for North America to make sure they have
the proper lamp performance, light
brightness, light pattern and safe visibility.
The correct bulbs will not damage the
lamp assembly or void the lamp assembly
warranty and will provide quality bulb
illumination time.
Exterior Lamps Power (Watt)
Specification
Lamp
21/5W
7444NA
Front direction indicator and parking lamps.
LED
LED
Daytime running lamps.
65W
9005
Headlamp high beam.
55W
H11
Headlamp low beam.
55W
9140
Front fog lamps.
5W
W5W
Front side marker lamps.
LED
LED
Side direction indicator.
LED
LED
Puddle lamp.
27/8W
3157
Rear lamps, brake lamps, rear direction indicator
and rear side marker lamps. *
16W
921
Central high mounted brake lamp. *
LED
LED
Central high mounted brake lamp. Vehicles with
cargo box.
27W
3156K
Reversing lamps.
5W
168
License plate lamp.
* May have optional LED lamps.
Note: LED lamps are not serviceable. See an authorized dealer if they fail.
327
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 08/2015, First Printing Maintenance

•
To reduce the chances of interference
from another vehicle, perform the
system reset procedure at least three
feet (one meter) away from another
Ford Motor Company vehicle
undergoing the system reset procedure
at the same time.
• Do not wait more than two minutes
between resetting each tire sensor or
the system will time-out and the entire
procedure will have to be repeated on
all four wheels.
• A double horn will sound indicating the
need to repeat the procedure.
Performing the System Reset Procedure
Read the entire procedure before
attempting.
1. Drive the vehicle above 20 mph (32 km/h) for at least two minutes, then
park in a safe location where you can
easily get to all four tires and have
access to an air pump.
2. Place the ignition in the off position and
keep the key in the ignition.
3. Cycle the ignition to the on position with the engine off.
4. Turn the hazard flashers on then off three times. You must accomplish this
within 10 seconds. If the reset mode
has been entered successfully, the horn
will sound once, the system indicator
will flash and a message is shown in
the information display. If this does not
occur, please try again starting at Step
2. If after repeated attempts to enter
the reset mode, the horn does not
sound, the system indicator does not
flash and no message is shown in the
information display, seek service from
your authorized dealer. 5. Train the tire pressure monitoring
system sensors in the tires using the
following system reset sequence
starting with the left front tire in the
following clockwise order: Left front
(driver's side front tire), Right front
(passenger's side front tire), Right rear
(passenger's side rear tire), Left rear
(driver's side rear tire).
6. Remove the valve cap from the valve stem on the left front tire. Decrease the
air pressure until the horn sounds.
Note: The single horn chirp confirms that
the sensor identification code has been
learned by the module for this position. If a
double horn is heard, the reset procedure
was unsuccessful, and you must repeat it.
7. Remove the valve cap from the valve stem on the right front tire. Decrease
the air pressure until the horn sounds.
8. Remove the valve cap from the valve stem on the right rear tire. Decrease the
air pressure until the horn sounds.
9. Remove the valve cap from the valve stem on the left rear tire. Decrease the
air pressure until the horn sounds.
Training is complete after the horn
sounds for the last tire trained (driver's
side rear tire), the system indicator
stops flashing, and a message is shown
in the information display.
10. Turn the ignition off. If two short horn
beeps are heard, the reset procedure
was unsuccessful and you must
repeat it. If after repeating the
procedure and two short beeps are
heard when the ignition is turned to
off, seek assistance from your
authorized dealer.
360
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 08/2015, First Printing Wheels and Tires

11.
Set all four tires to the recommended
air pressure as indicated on the
Safety Compliance Certification
Label (affixed to either the door hinge
pillar, door-latch post, or the door
edge that meets the door-latch post,
next to the driver's seating position)
or Tire Label located on the B-Pillar
or the edge of the driver's door.
CHANGING A ROAD WHEEL WARNINGS
The use of tire sealant may damage
your tire pressure monitoring system
and should only be used in roadside
emergencies. If you must use a sealant, the
Ford Tire Mobility Kit sealant should be
used. The tire pressure monitoring system
sensor and valve stem on the wheel must
be replaced by an authorized dealer after
use of the sealant. If the tire pressure monitor sensor
becomes damaged, it will no longer
function. See Tire Pressure
Monitoring System (page 356). Note:
The tire pressure monitoring system
indicator light will illuminate when the spare
tire is in use. To restore the full function of
the monitoring system, all road wheels
equipped with tire pressure monitoring
sensors must be mounted on this vehicle.
If you get a flat tire while driving, do not
apply the brake heavily. Instead, gradually
decrease your speed. Hold the steering
wheel firmly and slowly move to a safe
place on the side of the road. Have a flat serviced by an authorized
dealer in order to prevent damage to the
system sensors
See Tire Pressure
Monitoring System (page 356). Replace
the spare tire with a road tire as soon as
possible. During repairing or replacing of
the flat tire, have the authorized dealer
inspect the system sensor for damage.
Dissimilar Spare Wheel and Tire
Assembly Information WARNING
Failure to follow these guidelines
could result in an increased risk of
loss of vehicle control, injury or death.
If you have a dissimilar spare wheel and
tire, then it is intended for temporary use
only. This means that if you need to use it,
you should replace it as soon as possible
with a road wheel and tire assembly that
is the same size and type as the road tires
and wheels that were originally provided
by Ford. If the dissimilar spare tire or wheel
is damaged, it should be replaced rather
than repaired.
A dissimilar spare wheel and tire assembly
is defined as a spare wheel and tire
assembly that is different in brand, size or
appearance from the road tires and wheels
and can be one of three types:
1.
T-type mini-spare:
This spare tire
begins with the letter T for tire size and
may have Temporary Use Only molded in
the sidewall.
2. Full-size dissimilar spare with label
on wheel:
This spare tire has a label on
the wheel that states: THIS WHEEL AND
TIRE ASSEMBLY FOR TEMPORARY USE
ONLY
361
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 08/2015, First Printing Wheels and Tires

3
360 Degree Camera.....................................217
Camera Views...................................................... 218
Front Camera....................................................... 218
Side Camera......................................................... 219
4
4WD See: Four-Wheel Drive..................................... 188
A
A/C See: Climate Control......................................... 139
About This Manual...........................................7
ABS See: Brakes........................................................... 198
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes................................................................ 198
Accessories...................................................448 Exterior style....................................................... 448
Interior style......................................................... 448
Lifestyle................................................................. 448
Peace of mind.................................................... 448
Accessories See: Replacement Parts
Recommendation............................................. 11
ACC See: Using Adaptive Cruise Control.............221
Active Park Assist.........................................210 Automatic Steering into Parking
Space.................................................................. 212
Deactivating the Park Assist Feature..........212
Troubleshooting the System.......................... 213
Using Active Park Assist.................................... 211
Adjusting the Headlamps..........................321 Horizontal Aim Adjustment........................... 322
Vertical Aim Adjustment.................................. 321
Adjusting the Pedals......................................81
Adjusting the Steering Wheel....................78 Power Tilt and Telescope Steering
Column................................................................ 78
Airbag Disposal..............................................50
Air Conditioning See: Climate Control......................................... 139Air Filter
See: Changing the Engine Air Filter.............329
Alarm See: Anti-Theft Alarm......................................... 74
Ambient Lighting
.............................................91
Anti-Theft Alarm............................................74
Arming the Alarm................................................. 75
Disarming the Alarm........................................... 75
Full Guard ............................................................... 75
Reduced Guard...................................................... 74
Appendices.....................................................472
Audible Warnings and Indicators............107 Airbag Secondary Warning............................. 107
Beltminder Warning........................................... 107
Door Ajar Warning.............................................. 107
Headlamps On Warning................................... 107
Key in Ignition Warning..................................... 107
Keyless Warning Alert....................................... 107
Parking Brake On Warning.............................. 107
Rear Park Aid Warning...................................... 107
Service Advancetrac Warning........................ 107
Audio Control
...................................................79
Media........................................................................\
79
Seek, Next or Previous........................................ 79
Audio System
................................................392
General Information......................................... 392
Audio Unit - Vehicles With: AM/FM/CD/ SYNC/Satellite Radio............................400
Audio Unit - Vehicles With: AM/FM/ CD
...................................................................395
Audio Unit - Vehicles With: AM/FM/ SYNC.............................................................398
Audio Unit - Vehicles With: AM/ FM...................................................................393
Audio Unit - Vehicles With: Sony AM/ FM/CD..........................................................402
Autolamps........................................................84 Windshield Wiper Activated
Headlamps........................................................ 85
Automatic Climate Control........................141
Automatic High Beam Control.................86 Activating the System........................................ 87
Manually Overriding the System.................... 87
491
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 08/2015, First Printing Index

Changing a Road Wheel............................361
Dissimilar Spare Wheel and Tire Assembly
Information...................................................... 361
Location of the Spare Tire and Tools.........362
Tire Change Procedure.................................... 363
Changing the 12V Battery..........................318 Battery Management System...................... 320
Changing the Engine Air Filter................329
Changing the Wiper Blades.....................320
Checking MyKey System Status...............59
Checking the Wiper Blades
.....................320
Child Restraint and Seatbelt Maintenance..................................................41
Child Restraint Positioning
.........................30
Child Safety.......................................................15
General Information............................................. 15
Child Safety Locks...........................................31 Left-Hand Side...................................................... 32
Right-Hand Side................................................... 32
Cleaning Leather Seats.............................334 With King Ranch Edition................................. 334
Without King Ranch Edition.......................... 334
Cleaning Products
.......................................330
Cleaning the Alloy Wheels.......................335
Cleaning the Engine....................................332
Cleaning the Exterior..................................330 Exterior Chrome Parts....................................... 331
Exterior Plastic Parts......................................... 331
Stripes or Graphics............................................. 331
Underbody............................................................. 331
Cleaning the Instrument Panel and Instrument Cluster Lens.........................333
Cleaning the Interior...................................333
Cleaning the Windows and Wiper Blades...........................................................332
Clearing All MyKeys
.......................................58
Climate Control.............................................139
Climate Controlled Seats..........................155 Cooled Seats........................................................ 156
Collision Warning System........................238 Principle Of Operation..................................... 238
Coolant Check See: Engine Coolant Check............................. 313
Crash Sensors and Airbag Indicator.......49
Creating a MyKey
...........................................58
Programming/Changing Configurable
Settings............................................................... 58Cross Traffic Alert........................................234
False Alerts........................................................... 237
Switching the System Off and On...............237
System Errors....................................................... 237
System Lights, Messages and Audible Alerts................................................................. 236
System Limitations........................................... 236
Using the System............................................... 234
Cruise Control
.................................................80
Principle of Operation...................................... 220
Type 1........................................................................\
80
Type 2....................................................................... 80
Cruise control See: Using Cruise Control............................... 220
Customer Assistance..................................291
D
Data Recording
..................................................9
Event Data Recording........................................... 9
Service Data Recording........................................ 9
Daytime Running Lamps
............................86
Type 1 - Conventional
(Non-Configurable)....................................... 86
Type 2 - Configurable......................................... 86
Digital Radio
.................................................404
HD Radio Reception and Station
Troubleshooting........................................... 405
Direction Indicators
.......................................88
Lane Change.......................................................... 88
Driver Alert
......................................................228
Using Driver Alert............................................... 228
Driver and Passenger Airbags...................44 Children and Airbags.......................................... 44
Proper Driver and Front Passenger Seating Adjustment........................................................ 44
Driving Aids
....................................................228
Driving Hints...................................................281
Driving Through Water...............................282
DRL See: Daytime Running Lamps........................ 86
E
Economical Driving
......................................281
493
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 08/2015, First Printing Index

Electric Parking Brake.................................199
Applying the Electric Parking Brake............199
Applying the Electric Parking Brake When
the Vehicle is Moving.................................. 200
Battery With No Charge................................... 201
Releasing the Electric Parking Brake.........200
Electronic Locking Differential................196 Activating the Electronic Locking
Differential....................................................... 196
Electronic Tailgate..........................................67 With the Outside Control Button................... 67
With the Remote Control.................................. 67
Emission Control System...........................179
On-Board Diagnostics (OBD-II)................... 180
Readiness for Inspection/Maintenance (I/M) Testing.................................................... 181
End User License Agreement..................472 VEHICLE SOFTWARE END USER LICENSE
AGREEMENT (EULA) ................................. 472
Engine Block Heater
....................................170
Using the Engine Block Heater........................ 171
Engine Coolant Check.................................313 Adding Engine Coolant..................................... 314
Checking the Engine Coolant......................... 313
Recycled Engine Coolant................................. 314
Severe Climates.................................................. 315
What You Should Know About Fail-Safe Cooling............................................................... 315
Engine Immobilizer See: Passive Anti-Theft System...................... 72
Engine Oil Check...........................................312 Adding Engine Oil................................................ 312
Engine Oil Dipstick........................................312
Engine Specifications
................................370
Drivebelt Routing............................................... 370
Environment......................................................14
EPB See: Electric Parking Brake............................. 199Essential Towing Checks
..........................269
Before Towing a Trailer..................................... 275
Hitches................................................................... 270
Launching or Retrieving a Boat or Personal Watercraft (PWC).........................................276
Safety Chains........................................................ 271
Trailer Brakes......................................................... 271
Trailer Lamps....................................................... 275
Trailer Towing Connector................................ 270
Using a Step Bumper........................................ 275
When Towing a Trailer...................................... 275
Event Data Recording See: Data Recording.............................................. 9
Export Unique Options..................................13
Extended Service Plan (ESP)
..................451
EXTENDED SERVICE PLAN (CANADA
ONLY)................................................................ 452
EXTENDED SERVICE PLAN (U.S. Only)................................................................... 451
Exterior Mirrors
................................................93
360-Degree Camera........................................... 95
Auto-dimming Feature (if equipped)..........95
Blind Spot Information System...................... 96
Clearance Lamps ................................................ 95
Direction Indicator Mirrors ............................... 95
Fold-Away Exterior Mirrors............................... 93
Heated Exterior Mirrors ..................................... 95
Integrated Blind Spot Mirror (If Equipped).......................................................... 96
Memory Mirrors .................................................... 95
Power Exterior Mirrors........................................ 93
Power-Folding Mirrors........................................ 94
Puddle Lamps....................................................... 95
Spot Lamps............................................................ 95
F
Fastening the Seatbelts..............................34 Fastening the Cinch Tongue............................. 35
Rear Inflatable Safety Belt................................ 37
Safety Belt Extension Assembly.................... 38
Safety Belt Locking Modes............................... 36
Using Safety Belts During Pregnancy...........35
Using the Safety Belt with Cinch Tongue (Front Center Seat)........................................ 34
Floor Mats
.......................................................282
Fog Lamps - Front See: Front Fog Lamps........................................ 88
494
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 08/2015, First Printing Index

Seatbelt Warning Lamp and Indicator
Chime..............................................................39
Conditions of operation..................................... 39
Seats..................................................................147
Security
...............................................................72
Side Airbags......................................................47
Sitting in the Correct Position..................147
Sliding Windows
.............................................97
Power Sliding Back Window............................ 97
Snow Chains See: Using Snow Chains................................. 355
Snowplowing................................................283 Engine Temperature while Plowing............285
Installing the Snowplow................................. 283
Operating the Vehicle with the Snowplow Attached.......................................................... 284
Outside Air Temperature While Plowing............................................................. 285
Snowplowing with your Airbag Equipped Vehicle.............................................................. 284
Snowplow Mode................................................ 284
Transmission Operation while Plowing............................................................. 285
Special Notices................................................12 New Vehicle Limited Warranty......................... 12
Special Instructions.............................................. 12
Special Operating Conditions Scheduled Maintenance..............................................459
Exceptions............................................................. 461
Speed Control See: Cruise Control........................................... 220
Spot Lamps.....................................................88 Cargo and Trailer Hookup Lamps.................. 89
Stability Control
...........................................204
Principle of Operation..................................... 204
Starter Switch See: Ignition Switch........................................... 166
Starting a Gasoline Engine........................167 Automatic Engine Shutdown........................ 169
Failure to Start..................................................... 168
Guarding Against Exhaust Fumes................170
Important Ventilating Information...............170
Stopping the Engine When Your Vehicle is Moving............................................................... 169
Stopping the Engine When Your Vehicle is Stationary......................................................... 169
Vehicles with an Ignition Key.......................... 167
Vehicles with Keyless Start............................ 168Starting and Stopping the Engine.........166
General Information.......................................... 166
Steering............................................................237 Electric Power Steering.................................... 237
Steering Wheel................................................78
Storage Compartments
.............................164
Sunroof See: Moonroof...................................................... 98
Sun Visors
..........................................................97
Illuminated Vanity Mirror................................... 98
Supplementary Restraints System.........43 Principle of Operation........................................ 43
Symbols Glossary
.............................................7
SYNC™ Applications and Services
........................................................426
911 Assist............................................................... 426
SYNC Mobile Apps............................................ 428
SYNC™............................................................410 General Information.......................................... 410
SYNC™ Troubleshooting
.........................440
T
Tailgate Lock....................................................67 Manual Tailgate Lock ......................................... 67
Remote Control Tailgate Lock......................... 67
Tailgate Step
....................................................69
Closing the Step................................................... 69
Opening the Step................................................. 69
Tailgate...............................................................67
Technical Specifications See: Capacities and Specifications............370
Terrain Response
.........................................207
Principle of Operation...................................... 207
The Better Business Bureau (BBB) Auto Line Program (U.S. Only).......................293
Tire Care
.........................................................340
Glossary of Tire Terminology.......................... 341
Information About Uniform Tire Quality Grading............................................................. 340
Information Contained on the Tire Sidewall............................................................ 342
Temperature A B C............................................. 341
Traction AA A B C.............................................. 340
Treadwear............................................................ 340
499
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 08/2015, First Printing Index
