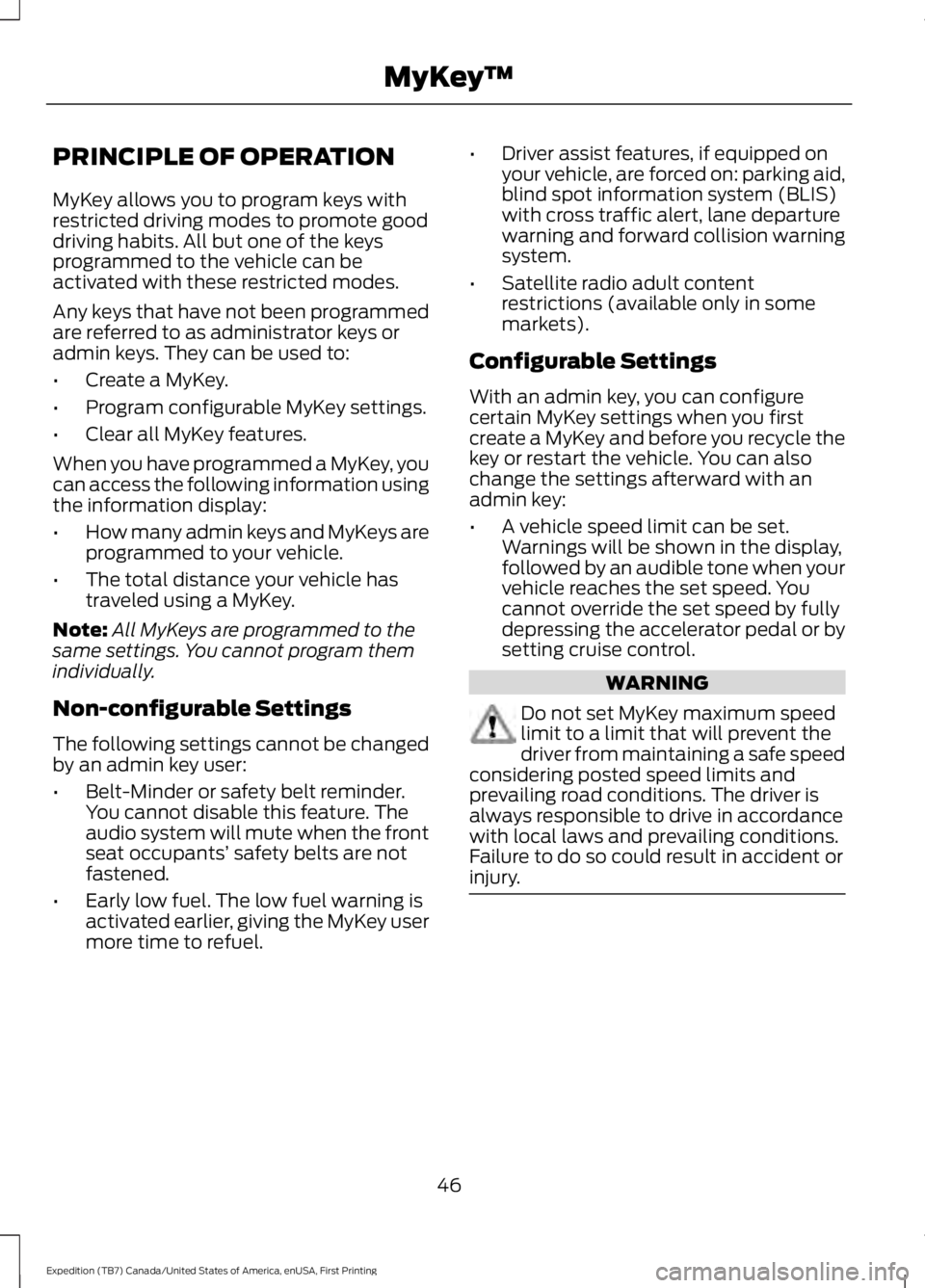

PRINCIPLE OF OPERATION
MyKey allows you to program keys withrestricted driving modes to promote gooddriving habits. All but one of the keysprogrammed to the vehicle can beactivated with these restricted modes.
Any keys that have not been programmedare referred to as administrator keys oradmin keys. They can be used to:
•Create a MyKey.
•Program configurable MyKey settings.
•Clear all MyKey features.
When you have programmed a MyKey, youcan access the following information usingthe information display:
•How many admin keys and MyKeys areprogrammed to your vehicle.
•The total distance your vehicle hastraveled using a MyKey.
Note:All MyKeys are programmed to thesame settings. You cannot program themindividually.
Non-configurable Settings
The following settings cannot be changedby an admin key user:
•Belt-Minder or safety belt reminder.You cannot disable this feature. Theaudio system will mute when the frontseat occupants’ safety belts are notfastened.
•Early low fuel. The low fuel warning isactivated earlier, giving the MyKey usermore time to refuel.
•Driver assist features, if equipped onyour vehicle, are forced on: parking aid,blind spot information system (BLIS)with cross traffic alert, lane departurewarning and forward collision warningsystem.
•Satellite radio adult contentrestrictions (available only in somemarkets).
Configurable Settings
With an admin key, you can configurecertain MyKey settings when you firstcreate a MyKey and before you recycle thekey or restart the vehicle. You can alsochange the settings afterward with anadmin key:
•A vehicle speed limit can be set.Warnings will be shown in the display,followed by an audible tone when yourvehicle reaches the set speed. Youcannot override the set speed by fullydepressing the accelerator pedal or bysetting cruise control.
WARNING
Do not set MyKey maximum speedlimit to a limit that will prevent thedriver from maintaining a safe speedconsidering posted speed limits andprevailing road conditions. The driver isalways responsible to drive in accordancewith local laws and prevailing conditions.Failure to do so could result in accident orinjury.
46
Expedition (TB7) Canada/United States of America, enUSA, First Printing
MyKey™

•Various vehicle speed minders can beset. Once you select a speed, it will beshown in the display, followed by anaudible tone when the preselectedvehicle speed is exceeded.
•Audio system maximum volume of45%. A message will be shown in thedisplay when you attempt to exceedthe limited volume. Also, thespeed-sensitive or compensatedautomatic volume control will bedisabled.
•Always on setting. When this isselected, you will not be able to turnoff Advance Trac or traction control,911 Assist or Emergency Assistance, orDo Not Disturb (if your vehicle isequipped with these features).
CREATING A MYKEY
Use the information display to create aMyKey:
1.Insert the key you want to program intothe ignition. If your vehicle is equippedwith a push-button start, place theremote control into the backup slot.The location of your backup slot is inanother chapter. See Starting aGasoline Engine (page 146).
2. Switch the ignition on.
3. Access the main menu on theinformation display controls. Use thearrow keys to get to the following menuselections:
Action and DescriptionMessage
Press the OK button or the right arrow key.Settings
Press the OK button or the right arrow key.MyKey
Press the OK button or the right arrow key.Create MyKey
When prompted, hold the OK button untilyou see a message informing you to labelthis key as a MyKey. The key will berestricted at the next start.
MyKey is successfully created. Make sureyou label it so you can distinguish it fromthe admin keys.
You can also program configurablesettings for the key(s). SeeProgramming/Changing ConfigurableSettings.
Programming/ChangingConfigurable Settings
Use the information display to access yourconfigurable MyKey settings.
1. Switch the ignition on using an adminkey or remote control.
2. Access the main menu on theinformation display controls. Use thearrow keys to get to the following menuselections:
Action and DescriptionMessage
Press the OK button or the right arrow key.Settings
Press the OK button or the right arrow key.MyKey
47
Expedition (TB7) Canada/United States of America, enUSA, First Printing
MyKey™

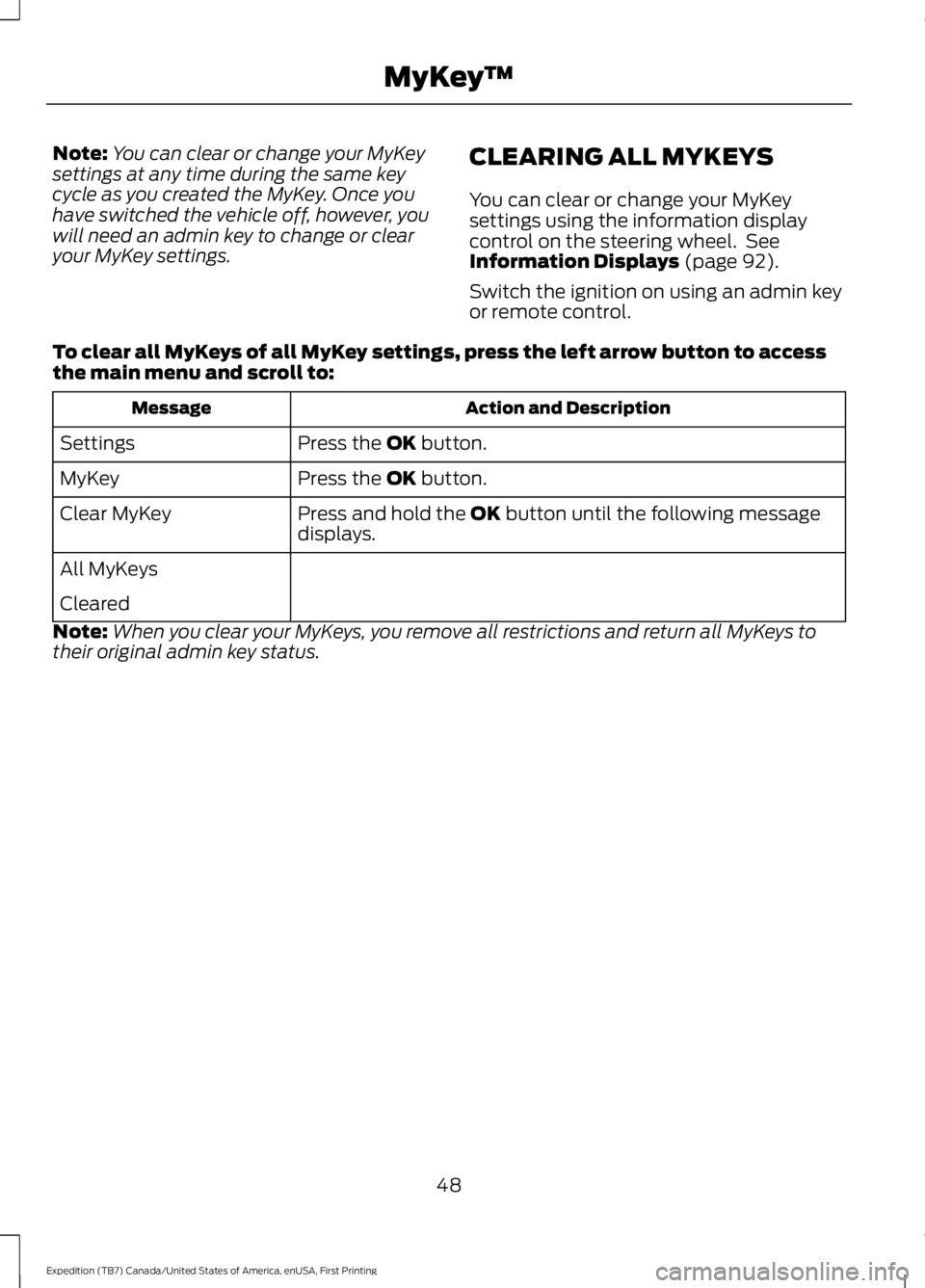

Note:You can clear or change your MyKeysettings at any time during the same keycycle as you created the MyKey. Once youhave switched the vehicle off, however, youwill need an admin key to change or clearyour MyKey settings.
CLEARING ALL MYKEYS
You can clear or change your MyKeysettings using the information displaycontrol on the steering wheel. SeeInformation Displays (page 92).
Switch the ignition on using an admin keyor remote control.
To clear all MyKeys of all MyKey settings, press the left arrow button to accessthe main menu and scroll to:
Action and DescriptionMessage
Press the OK button.Settings
Press the OK button.MyKey
Press and hold the OK button until the following messagedisplays.Clear MyKey
All MyKeys
Cleared
Note:When you clear your MyKeys, you remove all restrictions and return all MyKeys totheir original admin key status.
48
Expedition (TB7) Canada/United States of America, enUSA, First Printing
MyKey™

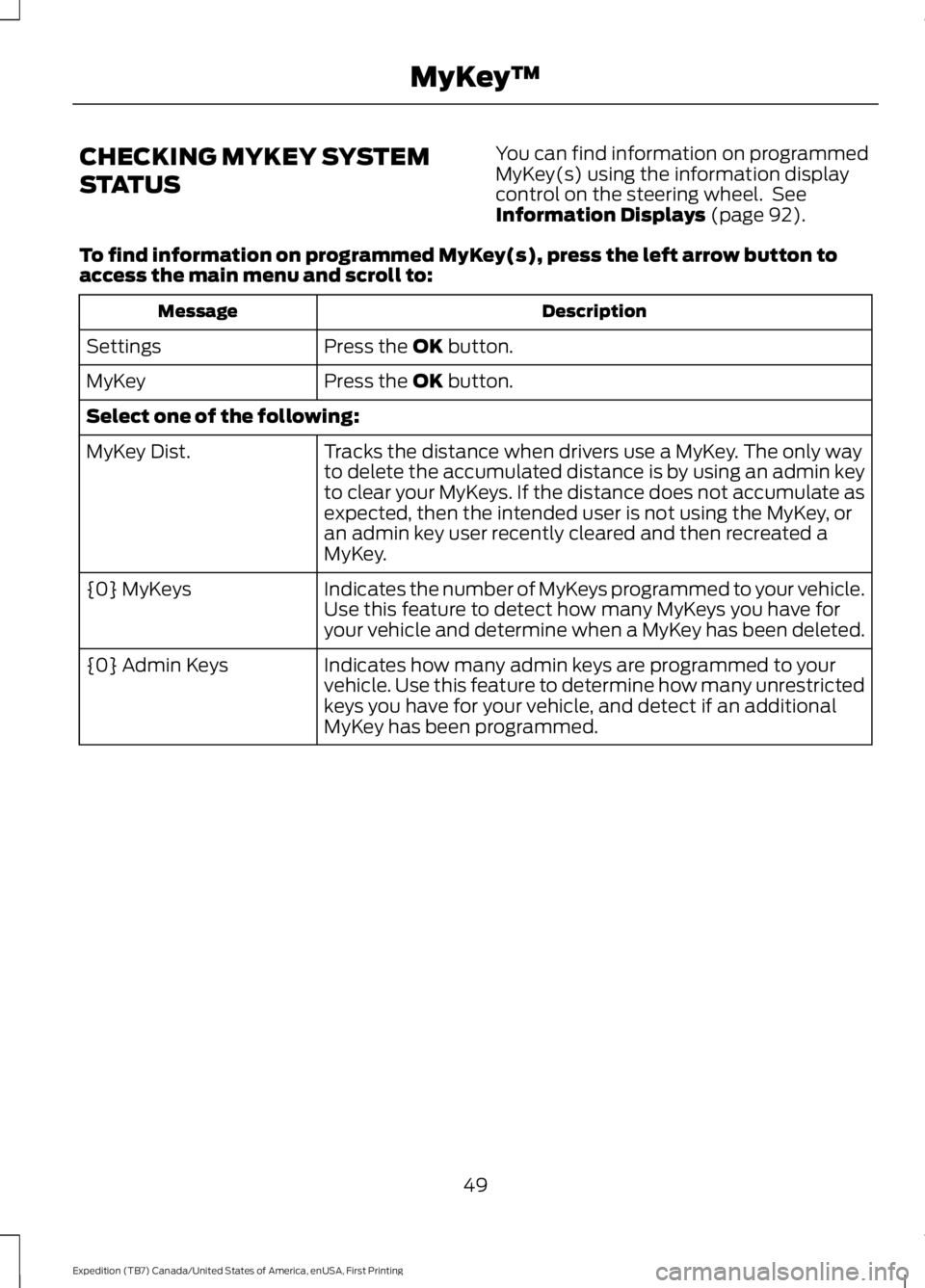

CHECKING MYKEY SYSTEM
STATUS
You can find information on programmedMyKey(s) using the information displaycontrol on the steering wheel. SeeInformation Displays (page 92).
To find information on programmed MyKey(s), press the left arrow button toaccess the main menu and scroll to:
DescriptionMessage
Press the OK button.Settings
Press the OK button.MyKey
Select one of the following:
Tracks the distance when drivers use a MyKey. The only wayto delete the accumulated distance is by using an admin keyto clear your MyKeys. If the distance does not accumulate asexpected, then the intended user is not using the MyKey, oran admin key user recently cleared and then recreated aMyKey.
MyKey Dist.
Indicates the number of MyKeys programmed to your vehicle.Use this feature to detect how many MyKeys you have foryour vehicle and determine when a MyKey has been deleted.
{0} MyKeys
Indicates how many admin keys are programmed to yourvehicle. Use this feature to determine how many unrestrictedkeys you have for your vehicle, and detect if an additionalMyKey has been programmed.
{0} Admin Keys
49
Expedition (TB7) Canada/United States of America, enUSA, First Printing
MyKey™

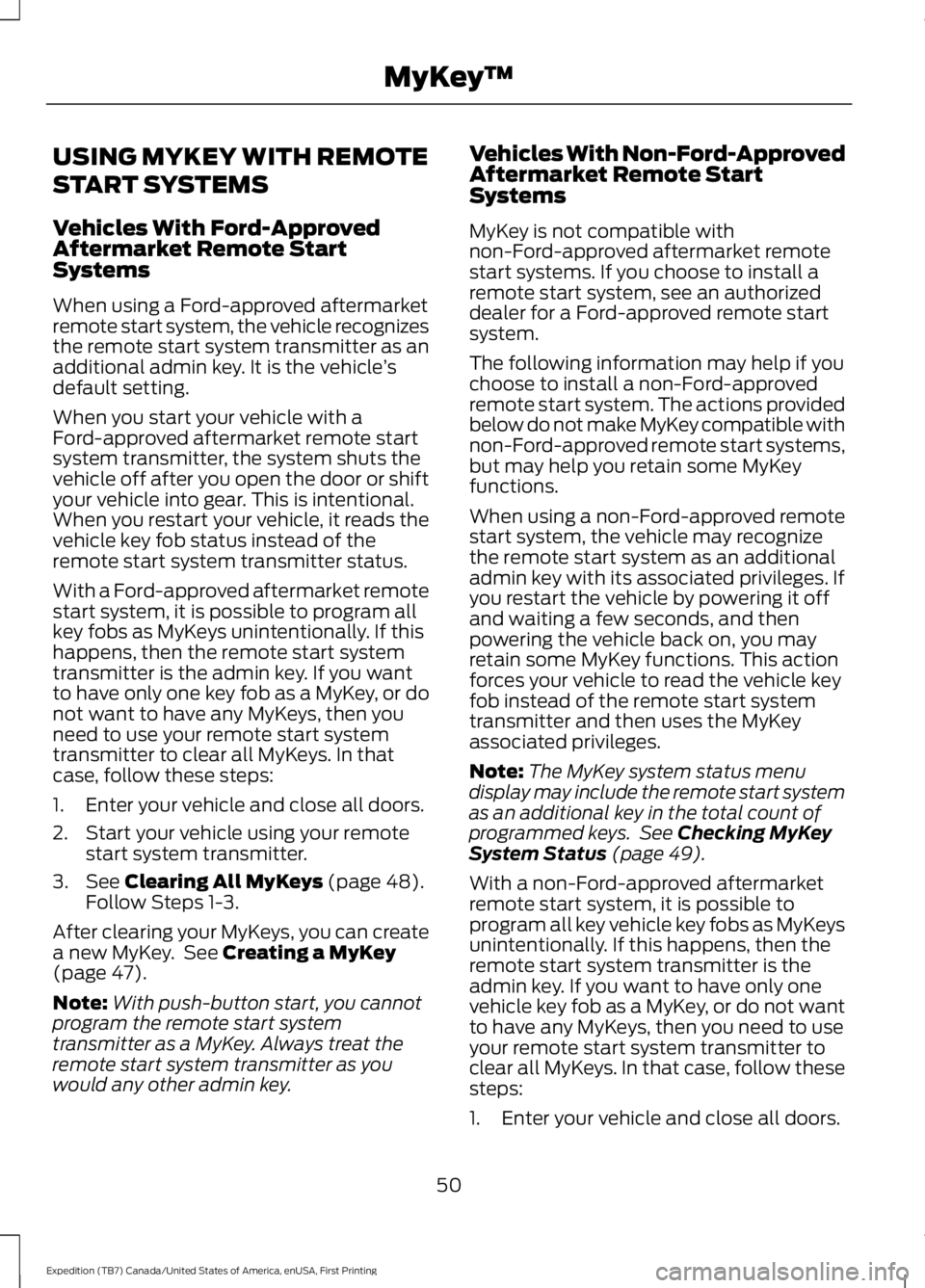

USING MYKEY WITH REMOTE
START SYSTEMS
Vehicles With Ford-ApprovedAftermarket Remote StartSystems
When using a Ford-approved aftermarketremote start system, the vehicle recognizesthe remote start system transmitter as anadditional admin key. It is the vehicle’sdefault setting.
When you start your vehicle with aFord-approved aftermarket remote startsystem transmitter, the system shuts thevehicle off after you open the door or shiftyour vehicle into gear. This is intentional.When you restart your vehicle, it reads thevehicle key fob status instead of theremote start system transmitter status.
With a Ford-approved aftermarket remotestart system, it is possible to program allkey fobs as MyKeys unintentionally. If thishappens, then the remote start systemtransmitter is the admin key. If you wantto have only one key fob as a MyKey, or donot want to have any MyKeys, then youneed to use your remote start systemtransmitter to clear all MyKeys. In thatcase, follow these steps:
1. Enter your vehicle and close all doors.
2. Start your vehicle using your remotestart system transmitter.
3. See Clearing All MyKeys (page 48).Follow Steps 1-3.
After clearing your MyKeys, you can createa new MyKey. See Creating a MyKey(page 47).
Note:With push-button start, you cannotprogram the remote start systemtransmitter as a MyKey. Always treat theremote start system transmitter as youwould any other admin key.
Vehicles With Non-Ford-ApprovedAftermarket Remote StartSystems
MyKey is not compatible withnon-Ford-approved aftermarket remotestart systems. If you choose to install aremote start system, see an authorizeddealer for a Ford-approved remote startsystem.
The following information may help if youchoose to install a non-Ford-approvedremote start system. The actions providedbelow do not make MyKey compatible withnon-Ford-approved remote start systems,but may help you retain some MyKeyfunctions.
When using a non-Ford-approved remotestart system, the vehicle may recognizethe remote start system as an additionaladmin key with its associated privileges. Ifyou restart the vehicle by powering it offand waiting a few seconds, and thenpowering the vehicle back on, you mayretain some MyKey functions. This actionforces your vehicle to read the vehicle keyfob instead of the remote start systemtransmitter and then uses the MyKeyassociated privileges.
Note:The MyKey system status menudisplay may include the remote start systemas an additional key in the total count ofprogrammed keys. See Checking MyKeySystem Status (page 49).
With a non-Ford-approved aftermarketremote start system, it is possible toprogram all key vehicle key fobs as MyKeysunintentionally. If this happens, then theremote start system transmitter is theadmin key. If you want to have only onevehicle key fob as a MyKey, or do not wantto have any MyKeys, then you need to useyour remote start system transmitter toclear all MyKeys. In that case, follow thesesteps:
1. Enter your vehicle and close all doors.
50
Expedition (TB7) Canada/United States of America, enUSA, First Printing
MyKey™

2. Start your vehicle using yournon-Ford-approved remote startsystem transmitter.
3. See Clearing All MyKeys (page 48).Follow Steps 1-3.
After clearing your MyKeys, you can createa new MyKey. See Creating a MyKey(page 47).
Note:With push-button start, you cannotprogram the remote start systemtransmitter as a MyKey. Always treat theremote start system transmitter as youwould any other admin key.
MYKEY TROUBLESHOOTING
Potential CausesCondition
The transmitter used to start the vehicle is notan admin key.I cannot create a MyKey.
The transmitter used to start the vehicle is theonly admin key. There always has to be at leastone admin key.The transmitter is not in its backup position.See Starting a Gasoline Engine (page 146).The passive anti-theft system is disabled or inunlimited mode.The vehicle has been started using a remotestart system transmitter that is not an adminkey. See Using MyKey With Remote StartSystems (page 50).
The transmitter used to start your vehicle is notan admin key.I cannot program the configurablesettings.There are no MyKeys programmed to yourvehicle. See Creating a MyKey (page 47).The vehicle has been started using a remotestart system transmitter that is not an adminkey. See Using MyKey With Remote StartSystems (page 50).
The transmitter used to start your vehicle is notan admin key.I cannot clear the MyKeys.
There are no MyKeys programmed to yourvehicle. See Creating a MyKey (page 47).The vehicle has been started using a remotestart system transmitter that is not an adminkey. See Using MyKey With Remote StartSystems (page 50).
Purchase a new transmitter from an authorizeddealer.I lost the only admin key.
51
Expedition (TB7) Canada/United States of America, enUSA, First Printing
MyKey™

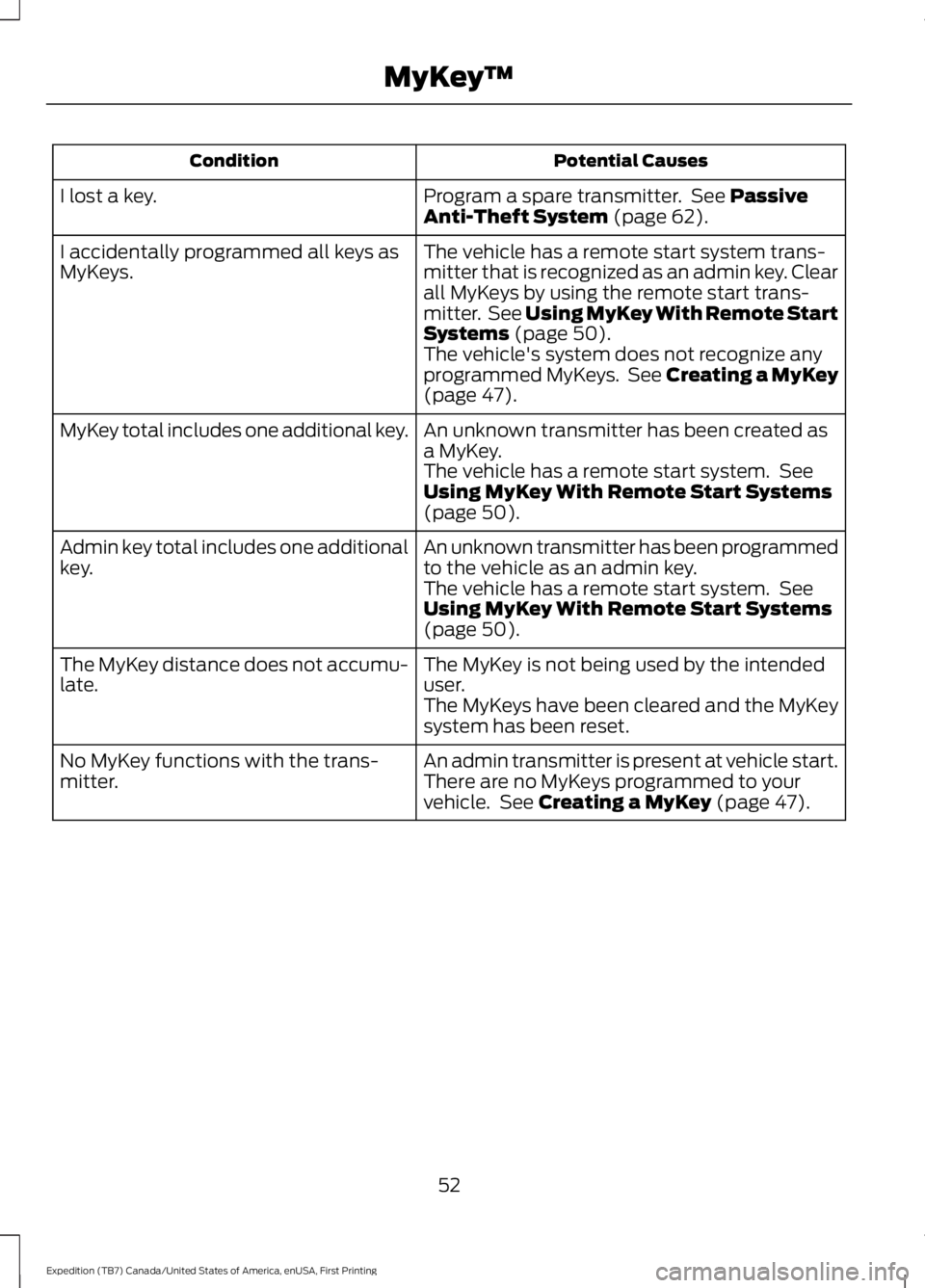

Potential CausesCondition
Program a spare transmitter. See PassiveAnti-Theft System (page 62).I lost a key.
The vehicle has a remote start system trans-mitter that is recognized as an admin key. Clearall MyKeys by using the remote start trans-mitter. See Using MyKey With Remote StartSystems (page 50).
I accidentally programmed all keys asMyKeys.
The vehicle's system does not recognize anyprogrammed MyKeys. See Creating a MyKey(page 47).
An unknown transmitter has been created asa MyKey.MyKey total includes one additional key.
The vehicle has a remote start system. SeeUsing MyKey With Remote Start Systems(page 50).
An unknown transmitter has been programmedto the vehicle as an admin key.Admin key total includes one additionalkey.The vehicle has a remote start system. SeeUsing MyKey With Remote Start Systems(page 50).
The MyKey is not being used by the intendeduser.The MyKey distance does not accumu-late.The MyKeys have been cleared and the MyKeysystem has been reset.
An admin transmitter is present at vehicle start.No MyKey functions with the trans-mitter.There are no MyKeys programmed to yourvehicle. See Creating a MyKey (page 47).
52
Expedition (TB7) Canada/United States of America, enUSA, First Printing
MyKey™

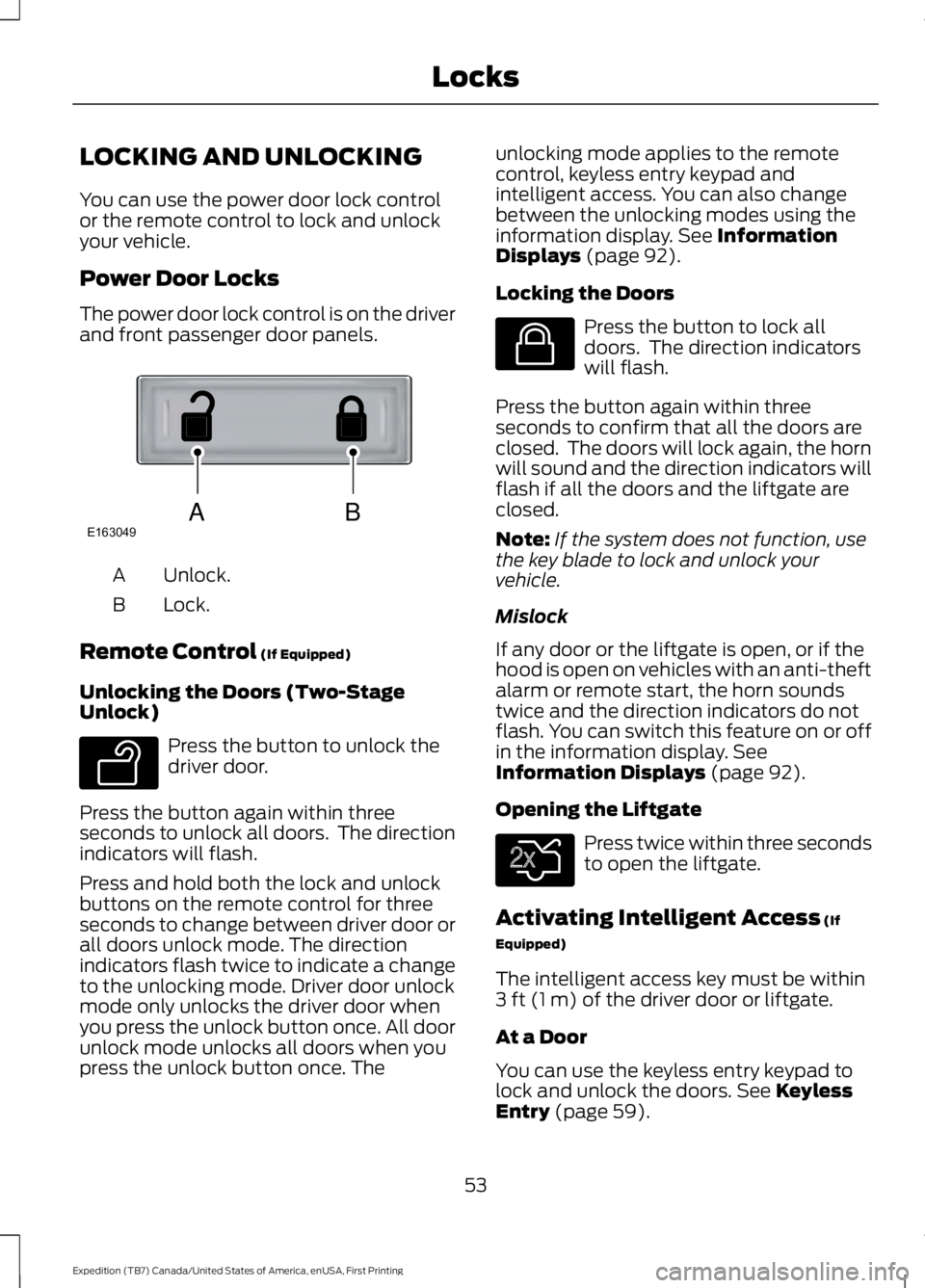

LOCKING AND UNLOCKING
You can use the power door lock controlor the remote control to lock and unlockyour vehicle.
Power Door Locks
The power door lock control is on the driverand front passenger door panels.
Unlock.A
Lock.B
Remote Control (If Equipped)
Unlocking the Doors (Two-StageUnlock)
Press the button to unlock thedriver door.
Press the button again within threeseconds to unlock all doors. The directionindicators will flash.
Press and hold both the lock and unlockbuttons on the remote control for threeseconds to change between driver door orall doors unlock mode. The directionindicators flash twice to indicate a changeto the unlocking mode. Driver door unlockmode only unlocks the driver door whenyou press the unlock button once. All doorunlock mode unlocks all doors when youpress the unlock button once. The
unlocking mode applies to the remotecontrol, keyless entry keypad andintelligent access. You can also changebetween the unlocking modes using theinformation display. See InformationDisplays (page 92).
Locking the Doors
Press the button to lock alldoors. The direction indicatorswill flash.
Press the button again within threeseconds to confirm that all the doors areclosed. The doors will lock again, the hornwill sound and the direction indicators willflash if all the doors and the liftgate areclosed.
Note:If the system does not function, usethe key blade to lock and unlock yourvehicle.
Mislock
If any door or the liftgate is open, or if thehood is open on vehicles with an anti-theftalarm or remote start, the horn soundstwice and the direction indicators do notflash. You can switch this feature on or offin the information display. SeeInformation Displays (page 92).
Opening the Liftgate
Press twice within three secondsto open the liftgate.
Activating Intelligent Access (If
Equipped)
The intelligent access key must be within3 ft (1 m) of the driver door or liftgate.
At a Door
You can use the keyless entry keypad tolock and unlock the doors. See KeylessEntry (page 59).
53
Expedition (TB7) Canada/United States of America, enUSA, First Printing
LocksABE163049 E138629 E138623 E138630
