• Mode (for versions/markets, where provided)
Press the Mode button on the touchscreen to change
this display. When in this display you may select one of
the auto display settings. To change Mode status press
and release the Day, Night or Auto button on the
touchscreen followed by pressing the arrow back but-
ton on the touchscreen.
• Language
Press the Language button on the touchscreen to
change this display. When in this display you may select
a different language for all display nomenclature, includ-
ing the trip functions and the navigation system (for
versions/markets, where provided). Press the German,
French, Spanish, Italian, Dutch or English button to
select the language preferred followed by pressing the
arrow back button on the touchscreen. Then, as you
continue, the information will display in the selected
language.
• Units
Press the Units button on the touchscreen to change
this display. When in this display you may select to have
the EVIC, odometer, and navigation system (for
versions/markets, where provided) changed between
US and Metric units of measure. Press US or Metric
followed by pressing the arrow back button on the
touchscreen. Then, as you continue, the information
will display in the selected units of measure.• Voice Response (for versions/markets, where
provided)
Press the Voice Response button on the touchscreen
to change this display. When in this display you may
change the Voice Response Length settings. To change
the Voice Response Length press and release the Brief
or Long button on the touchscreen followed by press-
ing the arrow back button on the touchscreen.
• Touchscreen Beep
Press the Touchscreen Beep button on the touch-
screen to change this display. When in this display you
may turn on or shut off the sound heard when a
touchscreen button is pressed. To change the Touch-
screen Beep setting press and release the On or Off
button on the touchscreen followed by pressing the
arrow back button on the touchscreen.
Clock
•SetTime
Press the Set Time button on the touchscreen to
change this display. When in this display you may select
the time display settings. To make your selection, press
the Set Time button on the touchscreen, adjust the
hours and minutes using the up and down buttons on
the touchscreen, select AM or PM, select 12 hr or 24
hr followed by pressing the arrow back button on the
touchscreen when all selections are complete.
33
KNOWING
YOUR
VEHICLE
SAFETY
STAR

TING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

• Show Time Status (for versions/markets, where
provided)
Press the Show Time Status button on the touchscreen
to change this display. When in this display you may
turn on or shut off the digital clock in the status bar. To
change the Show Time Status setting press and release
the On or Off button on the touchscreen followed by
pressing the arrow back button on the touchscreen.
• Sync Time (for versions/markets, where pro-
vided)
Press the Sync Time button on the touchscreen to
change this display. When in this display you may
automatically have the radio set the time. To change
the Sync Time setting press and release the On or Off
button on the touchscreen followed by pressing the
arrow back button on the touchscreen.
Safety / Assistance
• Park Assist (for versions/markets, where pro-
vided)
Press the Park Assist button on the touchscreen to
change this display. The Rear Park Assist system will
scan for objects behind the vehicle when the transmis-
sion shift lever is in REVERSE and the vehicle speed is
less than 11 km/h. The system can be enabled with
Sound Only, Sound and Display, or turned OFF. To
change the Park Assist status press and release the Off,Sound Only or Sounds and Display button followed by
pressing the arrow back button on the touchscreen.
• Hill Start Assist (for versions/markets, where
provided)
Press the Hill Start Assist button on the touchscreen
to change this display. When this feature is selected,
the Hill Start Assist (HSA) system is active. Refer to
“Electronic Brake Control System” in “Starting And
Driving” for system function and operating informa-
tion. To make your selection, press the Hill Start Assist
button on the touchscreen, select On or Off followed
by pressing the arrow back button on the touchscreen.
Lights
• Headlight Off Delay
Press the Headlight Off Delay button on the touch-
screen to change this display. When this feature is
selected, the driver can choose to have the headlights
remain on for 0, 30, 60, or 90 seconds when exiting the
vehicle. To change the Headlight Off Delay status press
the 0, 30, 60 or 90 button on the touchscreen followed
by pressing the arrow back button on the touchscreen.
34
KNOWING
YOUR
VEHICLE
SAFETY
STAR
TINGAND
DRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENCY
SERVICINGAND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

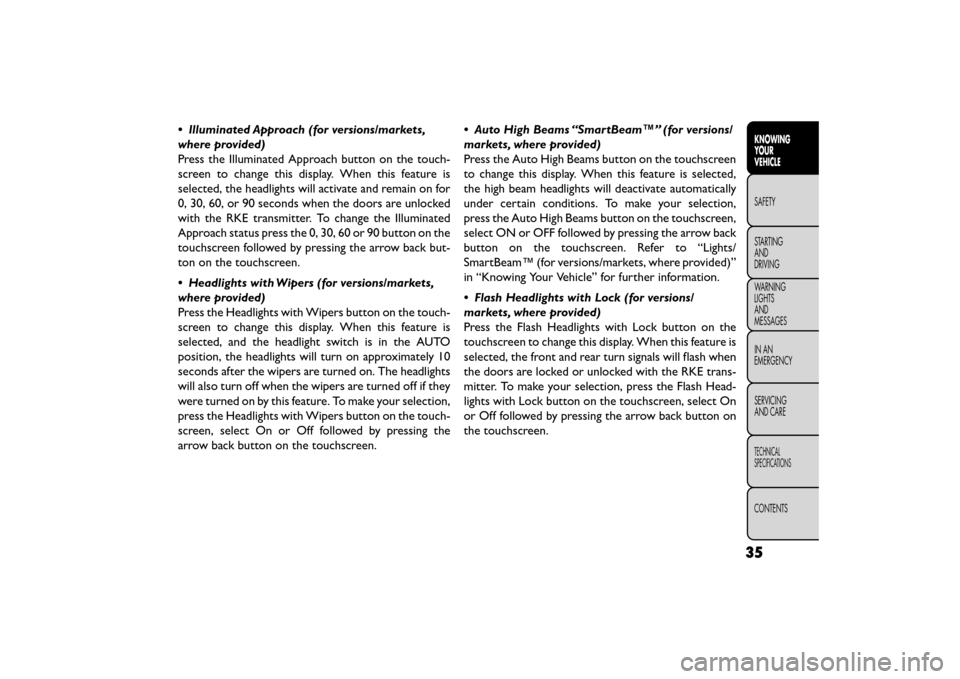

• Illuminated Approach (for versions/markets,
where provided)
Press the Illuminated Approach button on the touch-
screen to change this display. When this feature is
selected, the headlights will activate and remain on for
0, 30, 60, or 90 seconds when the doors are unlocked
with the RKE transmitter. To change the Illuminated
Approach status press the 0, 30, 60 or 90 button on the
touchscreen followed by pressing the arrow back but-
ton on the touchscreen.
• Headlights with Wipers (for versions/markets,
where provided)
Press the Headlights with Wipers button on the touch-
screen to change this display. When this feature is
selected, and the headlight switch is in the AUTO
position, the headlights will turn on approximately 10
seconds after the wipers are turned on. The headlights
will also turn off when the wipers are turned off if they
were turned on by this feature. To make your selection,
press the Headlights with Wipers button on the touch-
screen, select On or Off followed by pressing the
arrow back button on the touchscreen.• Auto High Beams “SmartBeam™” (for versions/
markets, where provided)
Press the Auto High Beams button on the touchscreen
to change this display. When this feature is selected,
the high beam headlights will deactivate automatically
under certain conditions. To make your selection,
press the Auto High Beams button on the touchscreen,
select ON or OFF followed by pressing the arrow back
button on the touchscreen. Refer to “Lights/
SmartBeam™ (for versions/markets, where provided)”
in “Knowing Your Vehicle” for further information.
• Flash Headlights with Lock (for versions/
markets, where provided)
Press the Flash Headlights with Lock button on the
touchscreen to change this display. When this feature is
selected, the front and rear turn signals will flash when
the doors are locked or unlocked with the RKE trans-
mitter. To make your selection, press the Flash Head-
lights with Lock button on the touchscreen, select On
or Off followed by pressing the arrow back button on
the touchscreen.
35
KNOWING
YOUR
VEHICLE
SAFETY
STAR

TING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

Doors & Locks
• Auto Lock (for versions/markets, where pro-
vided)
When this feature is selected, all doors will lock auto-
matically when the vehicle reaches a speed of 24 km/h.
To make your selection, press the Auto Lock button on
the touchscreen, until a check-mark appears next to
setting, indicating that the setting has been selected.
Press the back arrow button on the touchscreen to
return to the previous menu.
• Auto Unlock on Exit (for versions/markets,
where provided)
Press the Auto Unlock on Exit button on the touch-
screen to change this display. When this feature is
selected, all doors will unlock when the vehicle is
stopped and the transmission is in the PARK or NEU-
TRAL position and the driver's door is opened. To
make your selection, press the Auto Unlock on Exit
button on the touchscreen, select On or Off followed
by pressing the arrow back button on the touchscreen.
• Flash Lights with Lock (for versions/markets,
where provided)
Press the Flash Lights with Lock button on the touch-
screen to change this display. When this feature is
selected, the front and rear turn signals will flash when
the doors are locked or unlocked with the RKE trans-
mitter. To make your selection, press the Flash Lightswith Lock button on the touchscreen, select On or Off
followed by pressing the arrow back button on the
touchscreen.
• Remote Door Unlock Order (for versions/
markets, where provided)
Press the Remote Door Unlock Order button on the
touchscreen to change this display. When
Unlock
Driver Door Only On 1st Press is selected, only the
driver's door will unlock on the first press of the RKE
transmitter UNLOCK button. When Driver Door 1st
Press is selected, you must press the RKE transmitter
UNLOCK button twice to unlock the passenger's
doors. When Unlock All Doors On 1st Press is
selected, all of the doors will unlock on the first press
of the RKE transmitter UNLOCK button.
NOTE: If the vehicle is equipped with Keyless Enter-
N-Go™ (Passive Entry) and the EVIC is programmed
to Unlock All Doors 1st Press, all doors will unlock no
matter which Passive Entry equipped door handle is
grasped. If Driver Door 1st Press is programmed, only
the driver’s door will unlock when the driver’s door is
grasped. With Passive Entry, if Driver Door 1st Press is
programmed pressing the handle more than once will
only result in the driver’s door opening. If driver door
first is selected, once the driver door is opened, the
interior door lock/unlock switch can be used to unlock
all doors (or use RKE transmitter).
36
KNOWING YOUR
VEHICLE
SAFETY
STAR
TINGAND
DRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENCY
SERVICINGAND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

• Passive Entry (Keyless Enter-N-Go™) (for
versions/markets, where provided)
Press the Passive Entry button on the touchscreen to
change this display. This feature allows you to lock and
unlock the vehicle’s door(s) without having to press the
RKE transmitter lock or unlock buttons. To make your
selection, press the Passive Entry button on the touch-
screen, select ON or OFF followed by pressing the
arrow back button on the touchscreen. Refer to “Key-
less Enter-N-Go™” in “Knowing Your Vehicle”.
Heated Seats (for versions/markets, where
provided)
• Auto Heated Seats (for versions/markets, where
provided)
Press the Auto Heated Seats button on the touch-
screen to change this display. When this feature is
selected the driver's heated seat will automatically turn
on when temperatures are below 4.4° C. To make your
selection, press the Auto Heated Seats button on the
touchscreen, select On or Off followed by pressing the
arrow back button on the touchscreen.Engine Off Options
• Headlight Off Delay
Press the Headlight Off Delay button on the touch-
screen to change this display. When this feature is
selected, the driver can choose to have the headlights
remain on for 0, 30, 60, or 90 seconds when exiting the
vehicle. To change the Headlight Off Delay status press
the 0, 30, 60 or 90 button on the touchscreen followed
by pressing the arrow back button on the touchscreen.
• Engine Off Power Delay (for versions/markets,
where provided)
Press the Engine Off Power Delay button on the
touchscreen to change this display. When this feature is
selected, the power window switches, radio,
Uconnect® phone system (for versions/markets,
where provided), DVD video system (for versions/
markets, where provided), power sunroof (for
versions/markets, where provided), and power outlets
will remain active for up to 10 minutes after the ignition
is cycled to OFF. Opening either front vehicle door will
cancel this feature. To change the Engine Off Power
Delay status press the 0 seconds, 45 seconds, 5 min-
utes or 10 minutes button on the touchscreen followed
by pressing the arrow back button on the touchscreen.
37
KNOWING
YOUR
VEHICLE
SAFETY
STAR

TING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

Compass Settings
• Variance (for versions/markets, where provided)
Press the Variance button on the touchscreen to
change this display. Compass Variance is the difference
between Magnetic North and Geographic North. To
compensate for the differences the variance should be
set for the zone where the vehicle is driven, per the
zone map. Once properly set, the compass will auto-
matically compensate for the differences, and provide
the most accurate compass heading.NOTE:
Keep magnetic materials away from the top of
the instrument panel, such as iPod's, Mobile Phones,
Laptops and Radar Detectors. This is where the com-
pass module is located, and it can cause interference
with the compass sensor, and it may give false readings.
(fig. 17)
(fig. 17)
Compass Variance Map
38
KNOWINGYOUR
VEHICLE
SAFETY
STAR
TINGAND
DRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENCY
SERVICINGAND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

• Calibration (for versions/markets, where pro-
vided)
Press the Calibration button to change this setting.
This compass is self-calibrating, which eliminates the
need to manually reset the compass. When the vehicle
is new, the compass may appear erratic and the EVIC
will display CAL until the compass is calibrated. You
may also calibrate the compass by pressing the ON
button on the touchscreen and completing one or
more 360–degree turns (in an area free from large
metal or metallic objects) until the CAL indicator
displayed in the EVIC turns off. The compass will now
function normally.
NOTE:A good calibration requires a level surface and
an environment free from large metallic objects such as
buildings, bridges, underground cables, railroad tracks,
etc.
Audio
• Equalizer (for versions/markets, where provided)
Press the Equalizer button on the touchscreen to
change this display. When in this display you may adjust
the Bass, Mid and Treble settings. Adjust the settings
with the + and – setting buttons on the touchscreen or
by selecting any point on the scale in between the + and
– buttons on the touchscreen followed by pressing the
arrow back button on the touchscreen. NOTE:
Bass/mid/treble allow the you to simply slide
your finger up/down to change the setting as well as
press directly on the desired setting.
• Balance / Fade (for versions/markets, where pro-
vided)
Press the Balance / Fade button on the touchscreen to
change this display. When in this display you may adjust
the Balance and Fade settings.
• Speed Adjusted Volume (for versions/markets,
where provided)
Press the Speed Adjusted Volume button on the touch-
screen to change this display. Decreases volume rela-
tive to vehicle speed. To change the Speed Adjusted
Volume press the Off, 1, 2 or 3 button on the touch-
screen followed by pressing the arrow back button on
the touchscreen.
• Surround Sound (for versions/markets, where
provided)
Press the Surround Sound button on the touchscreen
to change this display. Provides simulated surround
sound mode. To make your selection, press the Sur-
round Sound button on the touchscreen, select ON or
OFF followed by pressing the arrow back button on the
touchscreen.
39
KNOWING
YOUR
VEHICLE
SAFETY
STAR

TING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

Phone/Bluetooth®
• Paired Devices
This feature shows which phones are paired to the
Phone/Bluetooth® system. For further information,
refer to the Uconnect® Supplement.
CUSTOMER PROGRAMMABLE FEATURES
— Uconnect® 8.4 SETTINGS
In this mode the Uconnect® system allows you to
access programmable features that may be equipped
such as Display, Clock, Safety/Assistance, Lights, Doors
& Locks, Auto-On Comfort, Engine Off Operation,
Compass Settings, Audio and Phone/Bluetooth® set-
tings.
NOTE:Only one touchscreen area may be selected at
a time.
When making a selection, scroll up or down until the
preferred setting is highlighted, then press and release
the preferred setting until a check-mark appears next
to the setting, showing that setting has been selected.
Display
• Display Mode (for versions/markets, where pro-
vided)
When in this display you may select one of the auto
display settings. To change Mode status press and
release the Day, Night or Auto button on the touch- screen followed by pressing the arrow back button on
the touchscreen.
NOTE:
The usage of the Parade Mode feature will
cause the radio to activate the “Display Brightness
With Headlights OFF” control even though the head-
lights are on.
• Display Brightness with Headlights ON (for
versions/markets, where provided)
When in this display you may select display brightness
with the headlights on and the headlights off. Adjust the
brightness with the + and – setting buttons on the
touchscreen or by selecting any point on the scale in
between the + and – buttons on the touchscreen
followed by pressing the arrow back button on the
touchscreen.
• Display Brightness with Headlights OFF (for
versions/markets, where provided)
When in this display you may select display brightness
with the headlights on and the headlights off. Adjust the
brightness with the + and – setting buttons on the
touchscreen or by selecting any point on the scale in
between the + and – buttons on the touchscreen
followed by pressing the arrow back button on the
touchscreen.
40
KNOWING YOUR
VEHICLE
SAFETY
STAR
TINGAND
DRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENCY
SERVICINGAND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
