2016 FIAT 500X mirror controls

wheel has only one temperature setting. Once the heated
steering wheel switch
has been turned on, it will
operate for up to 80 minutes before automatically
shutting off. The heated steering wheel can shut off
early or may not turn on when the steering wheel is
already warm. The heated steering wheel control
button is located on the center of the instrument panel
below the climate controls.
Auto On Comfort — If Equipped
If the external temperature is below 41 °F (5 °C) at each
start-up of the vehicle the heated steering wheel func-
tionality is turned on.
WARNING!
• Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
(Continued)
WARNING! (Continued)
spinal cord injury, medication, alcohol use, exhaus-
tion, or other physical conditions must exercise
care when using the steering wheel heater. It may
cause burns even at low temperatures, especially if
used for long periods.
• Do not place anything on the steering wheel that
insulates against heat, such as a blanket or steering
wheel covers of any type and material. This may
cause the steering wheel heater to overheat.
MIRRORS
Inside Day/Night Mirror
The mirror can be adjusted up, down, left, and right. The
mirror should be adjusted to center on the view through
the rear window. Headlight glare from vehicles behind
you can be reduced by moving the lever under the mirror
to the night position (toward the rear of the vehicle). The
78 GETTING TO KNOW YOUR VEHICLE

when MAX Defrost mode is selected, the air conditioning
compressor is turned ON, both driver and passenger
temperature controls are set to (HI), defrost mode is
selected (LED ON), rear defroster is turned ON (LED
ON) and the air recirculation is turned OFF (LED OFF). If
the MAX Defrost mode is turned OFF, the climate system
will return to the previous setting.
4. Blower Control Indicator LEDs
A total of eight LEDs illuminate to visually indicate
blower speeds.
5. Rear Defrost Button
Push the Rear Defrost button to turn ON the rear window
defroster and the heated outside mirrors (if equipped).
An indicator will illuminate when the rear window
defroster is ON. The rear window defroster automatically
turns OFF after 20 minutes.6. AUTO Button
Pushing this button will automatically control the inte-
rior cabin temperature by adjusting airflow distribution
and amount. Performing this function will cause the
automatic climate controls to change between manual
mode and automatic modes.
7. Passenger Temperature Control
Provides the passenger with independent temperature
control. Rotate the adjustment knob to set desired tem-
perature shown in the Temperature Display.
NOTE:
Rotating the Passenger Temperature Control
knob while in Sync mode will automatically exit Sync.
8. Passenger Temperature Display
Rotate the Passenger Temperature Control dial clockwise
or counter-clockwise to adjust the air temperature in the
front right (Passenger Temperature Control) zone of the
passenger compartment. The set temperature is shown
4
GETTING TO KNOW YOUR VEHICLE 115

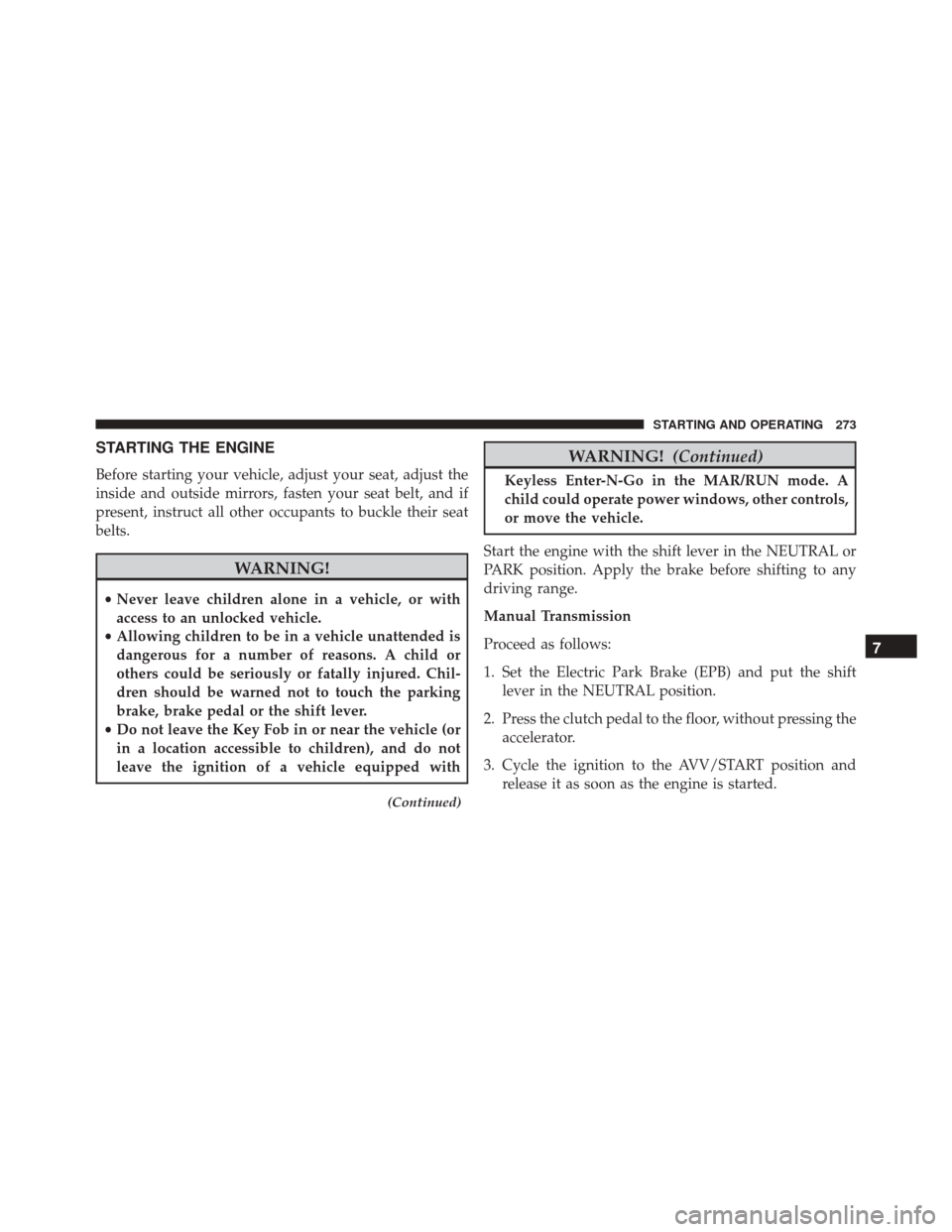

STARTING THE ENGINE
Before starting your vehicle, adjust your seat, adjust the
inside and outside mirrors, fasten your seat belt, and if
present, instruct all other occupants to buckle their seat
belts.
WARNING!
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the shift lever.
• Do not leave the Key Fob in or near the vehicle (or
in a location accessible to children), and do not
leave the ignition of a vehicle equipped with
(Continued)
WARNING! (Continued)
Keyless Enter-N-Go in the MAR/RUN mode. A
child could operate power windows, other controls,
or move the vehicle.
Start the engine with the shift lever in the NEUTRAL or
PARK position. Apply the brake before shifting to any
driving range.
Manual Transmission
Proceed as follows:
1. Set the Electric Park Brake (EPB) and put the shift lever in the NEUTRAL position.
2. Press the clutch pedal to the floor, without pressing the accelerator.
3. Cycle the ignition to the AVV/START position and release it as soon as the engine is started.
7
STARTING AND OPERATING 273

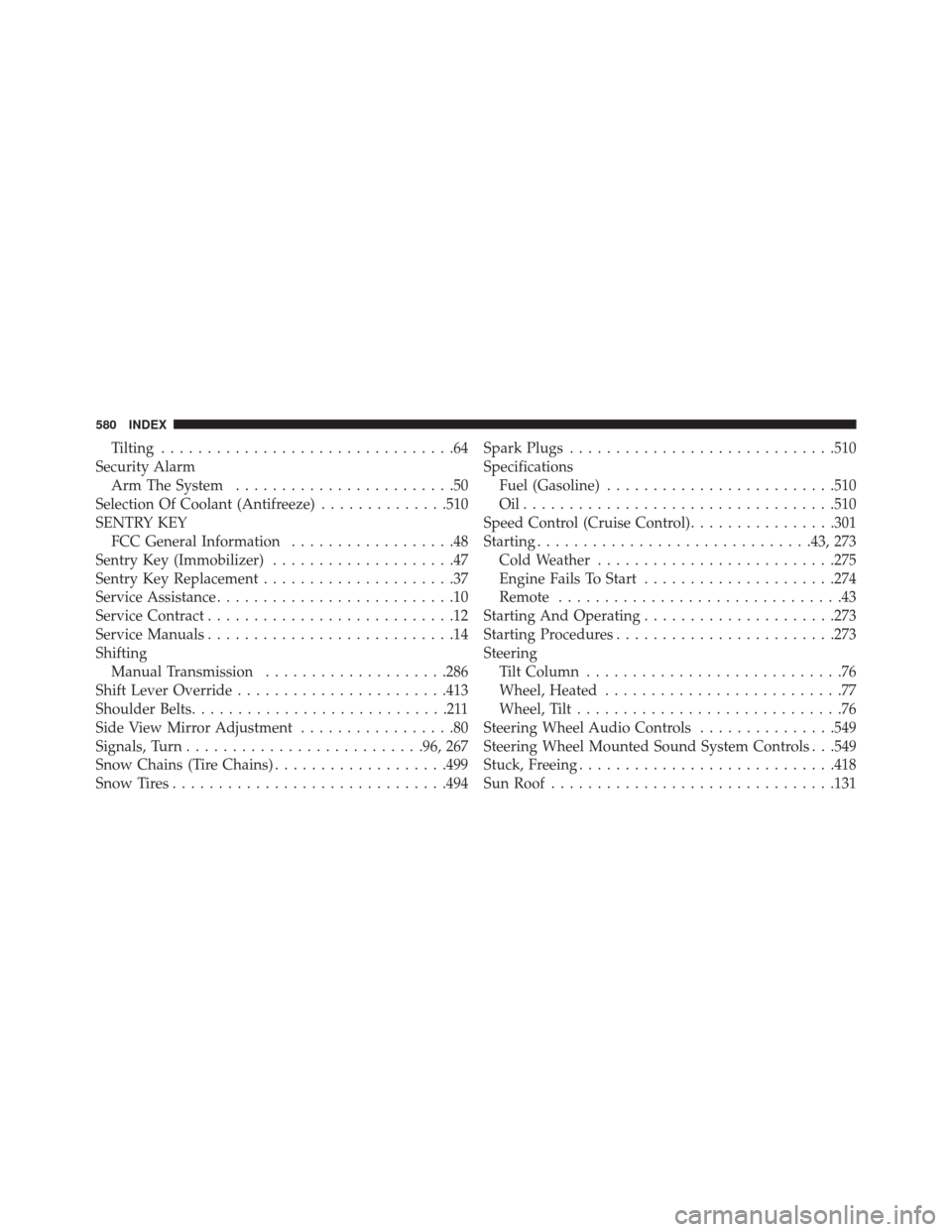

Tilting................................64
Security Alarm Arm The System ........................50
Selection Of Coolant (Antifreeze) ..............510
SENTRY KEY FCC General Information ..................48
Sentry Key (Immobilizer) ....................47
Sentry Key Replacement .....................37
Service Assistance ..........................10
Service Contract ...........................12
Service Manuals ...........................14
Shifting Manual Transmission ....................286
Shift Lever Override ...................... .413
Shoulder Belts ............................211
Side View Mirror Adjustment .................80
Signals, Turn ......................... .96, 267
Snow Chains (Tire Chains) ...................499
Snow Tires ............................. .494Spark Plugs
............................ .510
Specifications Fuel (Gasoline) ........................ .510
Oil................................. .510
Speed Control (Cruise Control) ................301
Starting ............................. .43, 273
Cold Weather ......................... .275
Engine Fails To Start .....................274
Remote ...............................43
Starting And Operating .....................273
Starting Procedures ....................... .273
Steering Tilt Column ............................76
Wheel, Heated ..........................77
Wheel, Tilt .............................76
Steering Wheel Audio Controls ...............549
Steering Wheel Mounted Sound System Controls . . .549
Stuck, Freeing ........................... .418
Sun Roof .............................. .131
580 INDEX
