WARNING LIGHTS AND MESSAGES
The EVIC display consists of three sections:
1. The reconfigurable top line where compass, direction,and outside temperature are displayed.
• Right side default to Ignition Status for those with
push button ignition.
2. The main display area where the menus and pop up messages are displayed.
3. The reconfigurable telltales section.
The main display area will normally display the main
menu or the screens of a selected feature of the main
menu. The main display area also displays pop up
messages that consist of approximately 60 possible warn-
ing or information messages. These pop up messages fall
into several categories:
• Five Second Stored Messages
When the appropriate conditions occur, this type of
message takes control of the main display area for five seconds and then returns to the previous screen. Most of
the messages of this type are then stored (as long as the
condition that activated it remains active) and can be
reviewed from the
Messagesmain menu item. As long
as there is a stored message, an iwill be displayed in the
compass/outside temp line. Examples of this message
type are Right Front Turn Signal Lamp Out andLow
Tire Pressure.
• Unstored Messages
This message type is displayed indefinitely or until the
condition that activated the message is cleared. Examples
of this message type are Turn Signal On(if a turn signal
is left on) and Lights On(if driver leaves the vehicle).
• Unstored Messages Until RUN
These messages deal primarily with the Remote Start
feature. This message type is displayed until the ignition
is in the MAR/RUN state. Examples of this message type
are Remote Start Aborted - Door Ajar andPress Brake
Pedal and Push Button to Start.
5
GETTING TO KNOW YOUR INSTRUMENT CLUSTER 175

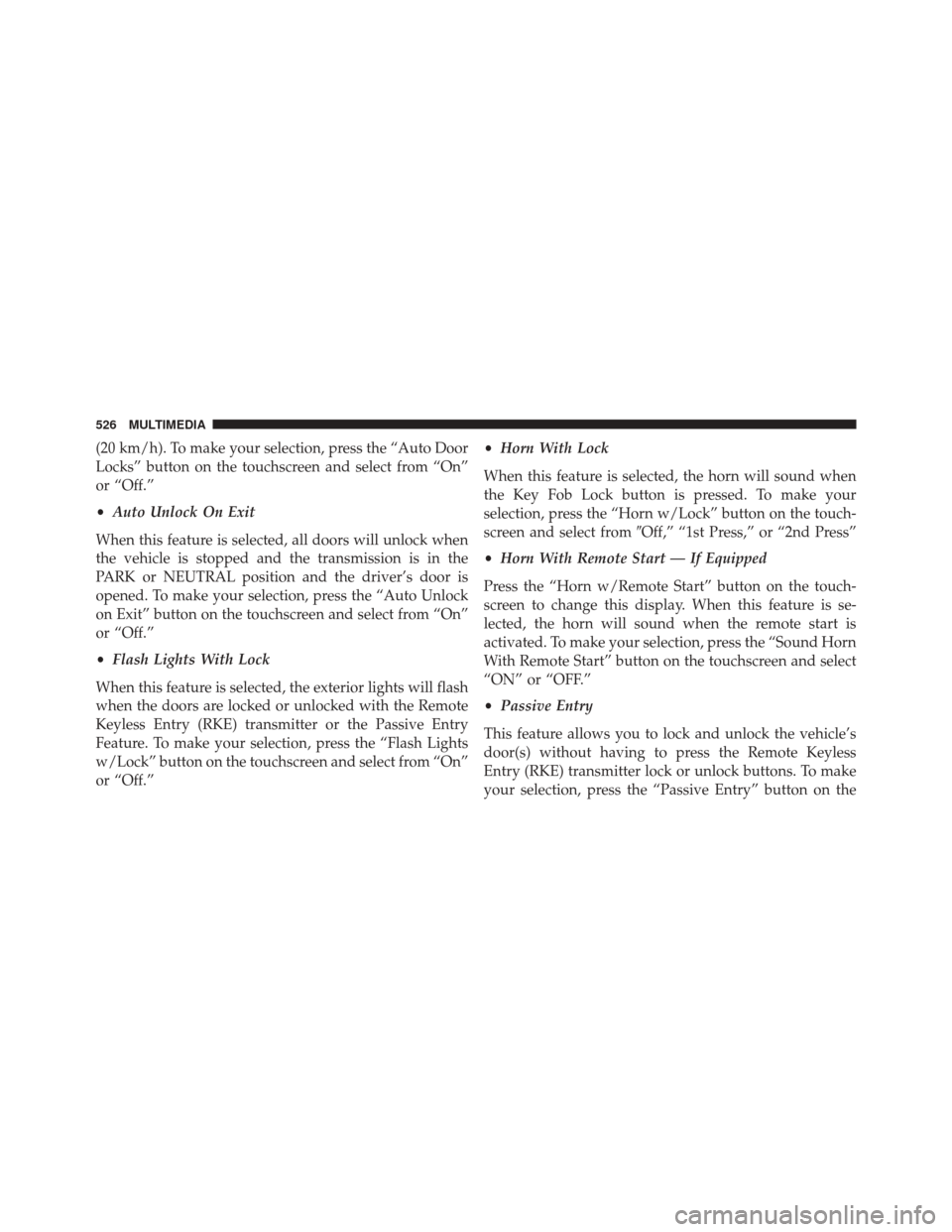

(20 km/h). To make your selection, press the “Auto Door
Locks” button on the touchscreen and select from “On”
or “Off.”
•Auto Unlock On Exit
When this feature is selected, all doors will unlock when
the vehicle is stopped and the transmission is in the
PARK or NEUTRAL position and the driver’s door is
opened. To make your selection, press the “Auto Unlock
on Exit” button on the touchscreen and select from “On”
or “Off.”
• Flash Lights With Lock
When this feature is selected, the exterior lights will flash
when the doors are locked or unlocked with the Remote
Keyless Entry (RKE) transmitter or the Passive Entry
Feature. To make your selection, press the “Flash Lights
w/Lock” button on the touchscreen and select from “On”
or “Off.” •
Horn With Lock
When this feature is selected, the horn will sound when
the Key Fob Lock button is pressed. To make your
selection, press the “Horn w/Lock” button on the touch-
screen and select from Off,” “1st Press,” or “2nd Press”
• Horn With Remote Start — If Equipped
Press the “Horn w/Remote Start” button on the touch-
screen to change this display. When this feature is se-
lected, the horn will sound when the remote start is
activated. To make your selection, press the “Sound Horn
With Remote Start” button on the touchscreen and select
“ON” or “OFF.”
• Passive Entry
This feature allows you to lock and unlock the vehicle’s
door(s) without having to press the Remote Keyless
Entry (RKE) transmitter lock or unlock buttons. To make
your selection, press the “Passive Entry” button on the
526 MULTIMEDIA

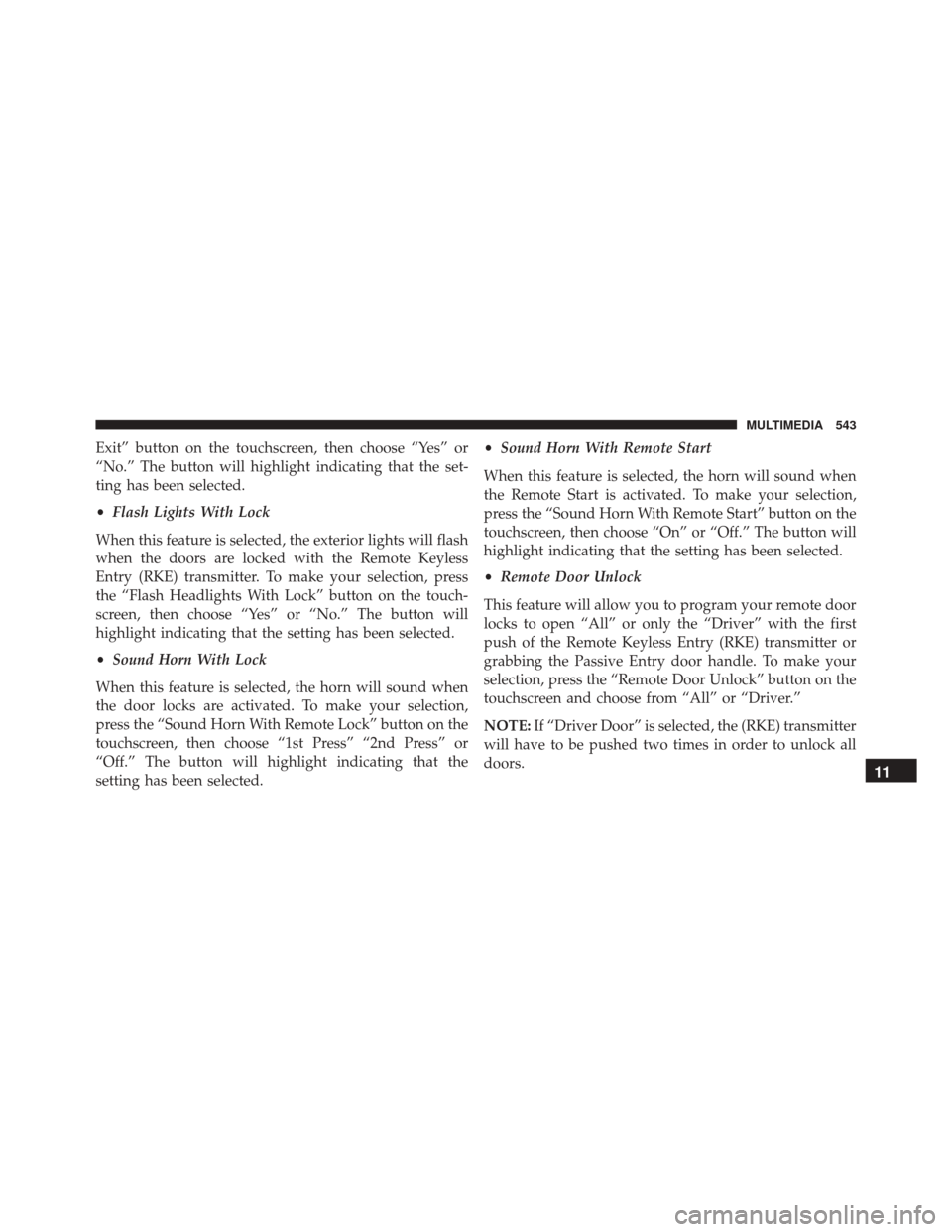

Exit” button on the touchscreen, then choose “Yes” or
“No.” The button will highlight indicating that the set-
ting has been selected.
•Flash Lights With Lock
When this feature is selected, the exterior lights will flash
when the doors are locked with the Remote Keyless
Entry (RKE) transmitter. To make your selection, press
the “Flash Headlights With Lock” button on the touch-
screen, then choose “Yes” or “No.” The button will
highlight indicating that the setting has been selected.
• Sound Horn With Lock
When this feature is selected, the horn will sound when
the door locks are activated. To make your selection,
press the “Sound Horn With Remote Lock” button on the
touchscreen, then choose “1st Press” “2nd Press” or
“Off.” The button will highlight indicating that the
setting has been selected. •
Sound Horn With Remote Start
When this feature is selected, the horn will sound when
the Remote Start is activated. To make your selection,
press the “Sound Horn With Remote Start” button on the
touchscreen, then choose “On” or “Off.” The button will
highlight indicating that the setting has been selected.
• Remote Door Unlock
This feature will allow you to program your remote door
locks to open “All” or only the “Driver” with the first
push of the Remote Keyless Entry (RKE) transmitter or
grabbing the Passive Entry door handle. To make your
selection, press the “Remote Door Unlock” button on the
touchscreen and choose from “All” or “Driver.”
NOTE: If “Driver Door” is selected, the (RKE) transmitter
will have to be pushed two times in order to unlock all
doors.
11
MULTIMEDIA 543

TIP:To start a POI search, push the VR button.
After the beep, say: “ Find nearestcoffee shop.” Mobile App (6.5AN)
Securely link your mobile device to your vehicle with the
Uconnect Access App. Once you have downloaded the
App, you may start your vehicle or lock it from virtually
any distance. (Vehicle must be properly equipped with
factory-installed Remote Start.)
Uconnect 6.5AN Navigation
Mobile App
11
MULTIMEDIA 563

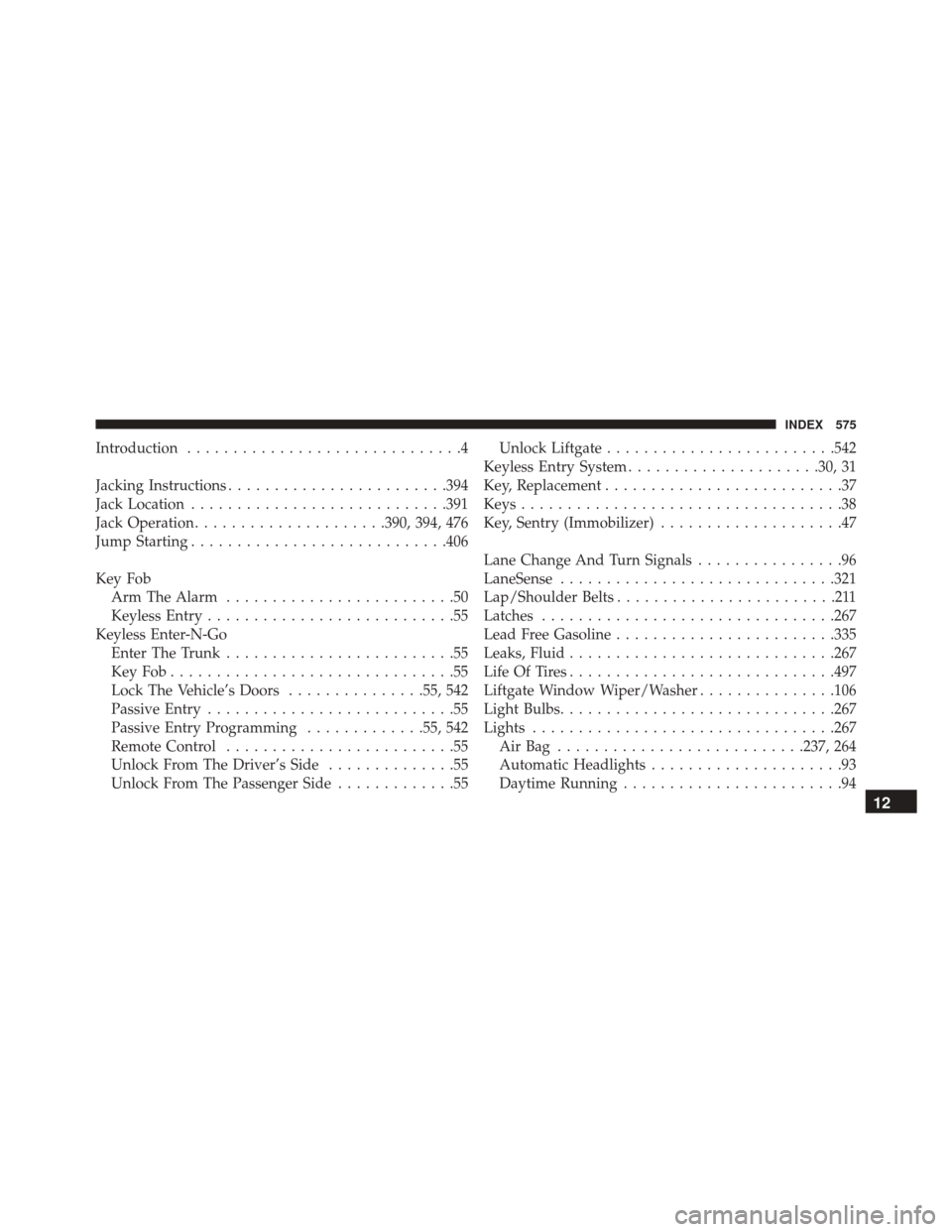

Introduction..............................4
Jacking Instructions ....................... .394
Jack Location ........................... .391
Jack Operation .....................390, 394, 476
Jump Starting ........................... .406
Key Fob Arm The Alarm .........................50
Keyless Entry ...........................55
Keyless Enter-N-Go Enter The Trunk .........................55
KeyFob...............................55
Lock The Vehicle’s Doors ...............55, 542
Passive Entry ...........................55
Passive Entry Programming .............55, 542
Remote Control .........................55
Unlock From The Driver’s Side ..............55
Unlock From The Passenger Side .............55Unlock Liftgate
........................ .542
Keyless Entry System .....................30, 31
Key, Replacement ..........................37
Keys ...................................38
Key, Sentry (Immobilizer) ....................47
Lane Change And Turn Signals ................96
LaneSense ............................. .321
Lap/Shoulder Belts ........................211
Latches ............................... .267
Lead Free Gasoline ....................... .335
Leaks, Fluid ............................ .267
Life Of Tires ............................ .497
Liftgate Window Wiper/Washer ...............106
Light Bulbs ............................. .267
Lights ................................ .267
AirBag ...........................237, 264
Automatic Headlights .....................93
Daytime Running ........................94
12
INDEX 575

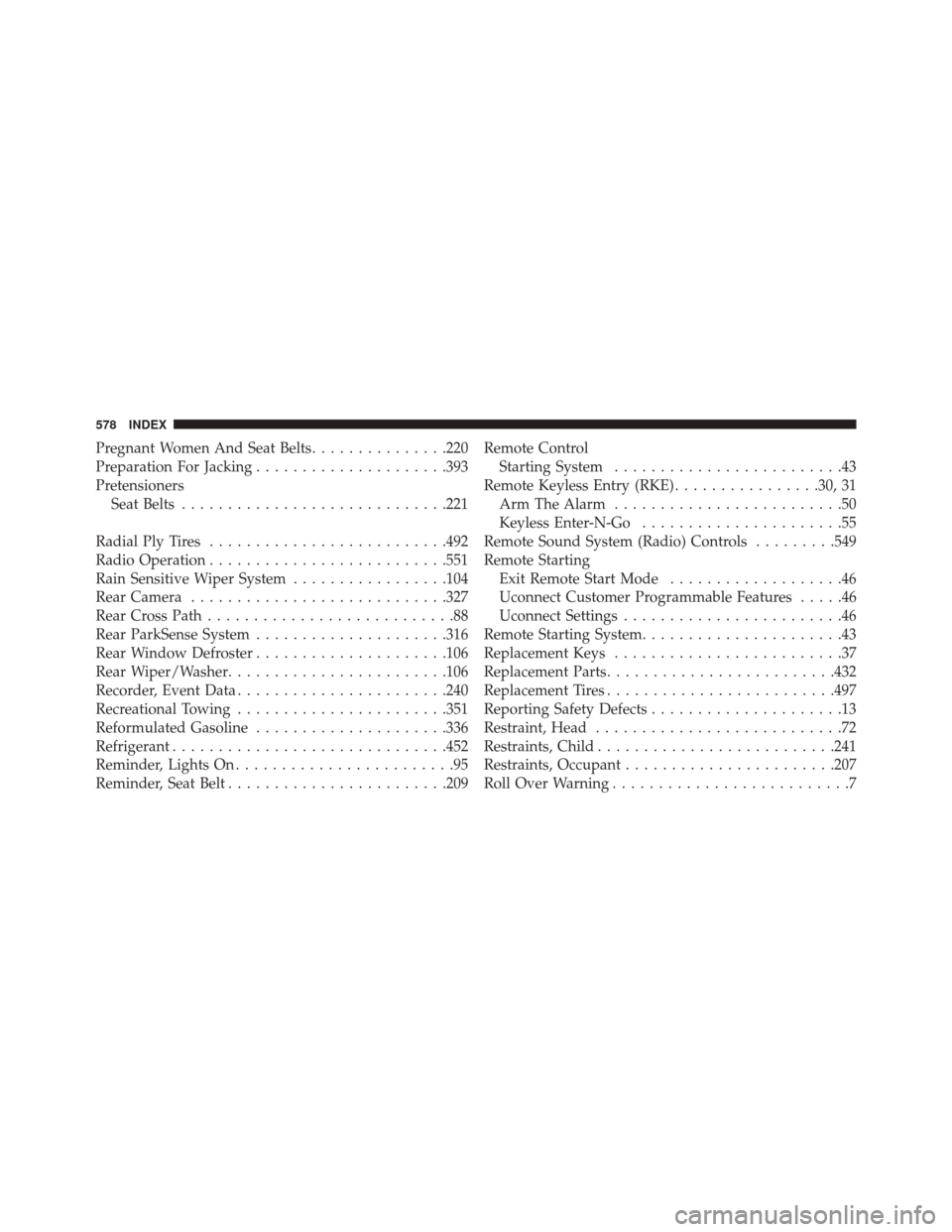

Pregnant Women And Seat Belts...............220
Preparation For Jacking .....................393
Pretensioners Seat Belts ............................ .221
Radial Ply Tires ......................... .492
Radio Operation ......................... .551
Rain Sensitive Wiper System .................104
Rear Camera ........................... .327
Rear Cross Path ...........................88
Rear ParkSense System .....................316
Rear Window Defroster .....................106
Rear Wiper/Washer ....................... .106
Recorder, Event Data ...................... .240
Recreational Towing ...................... .351
Reformulated Gasoline .....................336
Refrigerant ............................. .452
Reminder, Lights On ........................95
Reminder, Seat Belt ....................... .209Remote Control
Starting System .........................43
Remote Keyless Entry (RKE) ................30, 31
Arm The Alarm .........................50
Keyless Enter-N-Go ......................55
Remote Sound System (Radio) Controls .........549
Remote Starting Exit Remote Start Mode ...................46
Uconnect Customer Programmable Features .....46
Uconnect Settings ........................46
Remote Starting System ......................43
Replacement Keys .........................37
Replacement Parts ........................ .432
Replacement Tires ........................ .497
Reporting Safety Defects .....................13
Restraint, Head ...........................72
Restraints, Child ......................... .241
Restraints, Occupant ...................... .207
Roll Over Warning ..........................7
578 INDEX

Tilting................................64
Security Alarm Arm The System ........................50
Selection Of Coolant (Antifreeze) ..............510
SENTRY KEY FCC General Information ..................48
Sentry Key (Immobilizer) ....................47
Sentry Key Replacement .....................37
Service Assistance ..........................10
Service Contract ...........................12
Service Manuals ...........................14
Shifting Manual Transmission ....................286
Shift Lever Override ...................... .413
Shoulder Belts ............................211
Side View Mirror Adjustment .................80
Signals, Turn ......................... .96, 267
Snow Chains (Tire Chains) ...................499
Snow Tires ............................. .494Spark Plugs
............................ .510
Specifications Fuel (Gasoline) ........................ .510
Oil................................. .510
Speed Control (Cruise Control) ................301
Starting ............................. .43, 273
Cold Weather ......................... .275
Engine Fails To Start .....................274
Remote ...............................43
Starting And Operating .....................273
Starting Procedures ....................... .273
Steering Tilt Column ............................76
Wheel, Heated ..........................77
Wheel, Tilt .............................76
Steering Wheel Audio Controls ...............549
Steering Wheel Mounted Sound System Controls . . .549
Stuck, Freeing ........................... .418
Sun Roof .............................. .131
580 INDEX

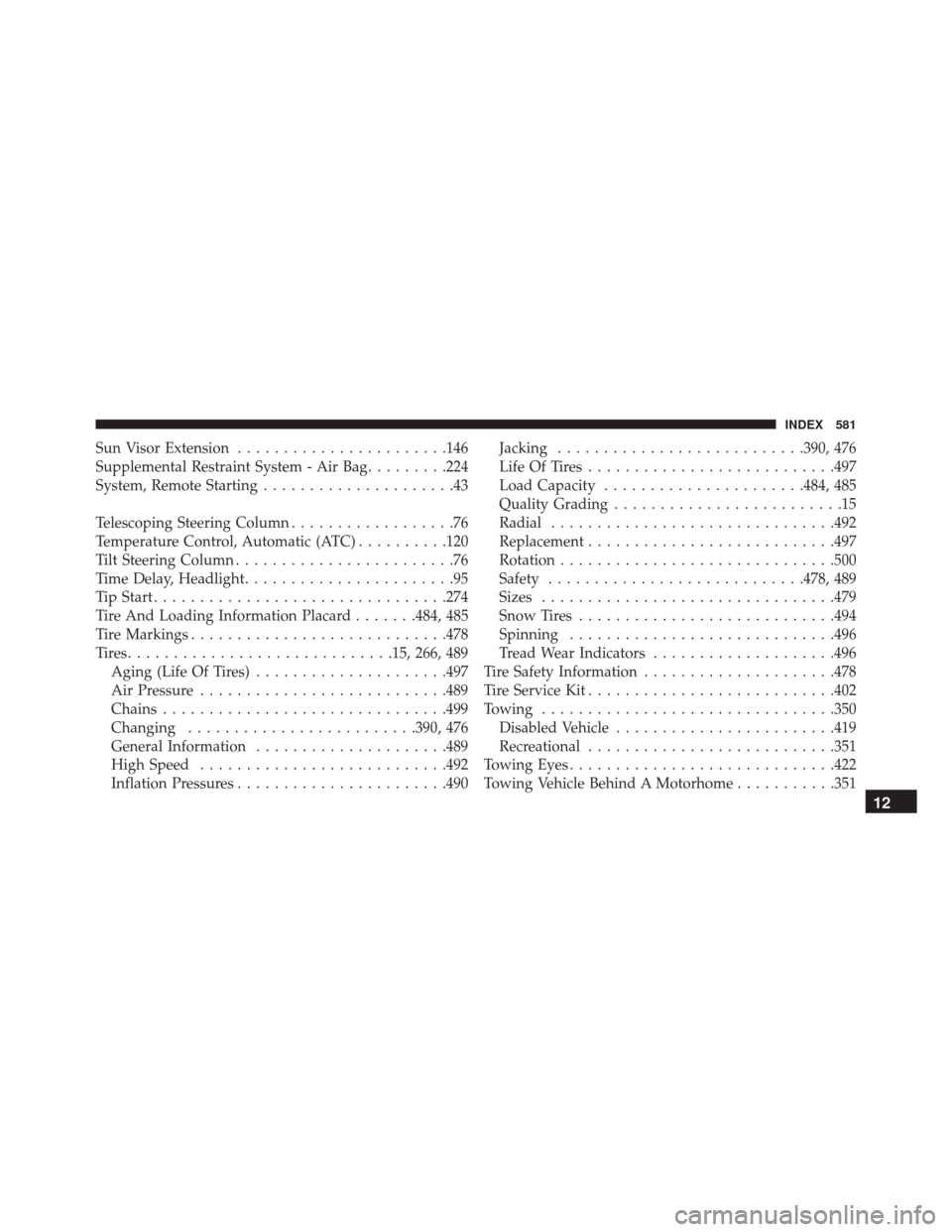

Sun Visor Extension...................... .146
Supplemental Restraint System - Air Bag .........224
System, Remote Starting .....................43
Telescoping Steering Column ..................76
Temperature Control, Automatic (ATC) ..........120
Tilt Steering Column ........................76
Time Delay, Headlight .......................95
Tip Start ............................... .274
Tire And Loading Information Placard .......484, 485
Tire Markings ........................... .478
Tires............................ .15, 266, 489
Aging (Life Of Tires) .....................497
Air Pressure .......................... .489
Chains .............................. .499
Changing ........................ .390, 476
General Information .....................489
High Speed .......................... .492
Inflation Pressures ...................... .490Jacking
.......................... .390, 476
Life Of Tires .......................... .497
Load Capacity ..................... .484, 485
Quality Grading .........................15
Radial .............................. .492
Replacement .......................... .497
Rotation ............................. .500
Safety ........................... .478, 489
Sizes ............................... .479
Snow Tires ........................... .494
Spinning ............................ .496
Tread Wear Indicators ....................496
Tire Safety Information .....................478
Tire Service Kit .......................... .402
Towing ............................... .350
Disabled Vehicle ....................... .419
Recreational .......................... .351
Towing Eyes ............................ .422
T

owing Vehicle Behind A Motorhome ...........351
12
INDEX 581
