2016 Citroen JUMPY ESP

142
Jumpy _en_Chap03_ergonomie-et-confort_ed01-2016
Individual reading lamp
RearCourtesy lampsAutomatic operation
The front courtesy lamp comes on when the
key is removed from the ignition switch.
All of the courtesy lamps come on when
the vehicle is unlocked, when one of the
corresponding doors is opened and for location
of the vehicle using the remote control.
They go off gradually after the ignition is
switched on and when the vehicle is locked.
Front
Permanently off. Row 2 and row 3: comes on when
one of the rear doors or the boot
is opened (sliding side door and
depending on equipment, the left
hand side-hinged door or the tailgate). Front: comes on when one of
the front or rear doors is opened
(sliding side door and depending on
equipment, the left hand side-hinged
door or the tailgate).
Permanently on, ignition on. Take care not to leave anything in
contact with the courtesy lamp.If fitted to the vehicle, these are
operated by means of a manual
switch.
With the ignition on, operate the
corresponding switch.
Ease of use and comfort

143
Jumpy _en_Chap04_eclairage-et-visibilite_ed01-2016
F Move switch A to the right or to the left to select the corresponding mirror.
F

M
ove knob B in all four directions to adjust.
F

R
eturn switch A to the centre position.
Electric unfolding
The electric unfolding of the mirrors is possible
with the remote control or the key on unlocking
the vehicle, unless folding was selected using
switch A . In this case, pull the switch rear wards
from the centre position again.
MirrorsElectric adjustments Electric folding
If your vehicle is fitted with this function, the
mirrors can be folded electrically from the inside,
with the vehicle parked and the ignition on:
F

P
lace switch A in the
centre position.
F

P
ull switch A rearwards.
From the outside, lock the vehicle using the
remote control or the key.
The folding / unfolding on locking /
unlocking can be deactivated. Contact
a CITROËN dealer or a qualified
workshop.
It is possible to unfold the mirrors
manually if necessary.
Door mirrors
Move the lever in all four directions to adjust.
When the vehicle is parked, the door mirrors
can be folded back manually.
If the mirror casing has come out of its initial
location, with the vehicle stationary, reposition
the mirror casing manually or use the electric
folding control.
There is no risk of breakage even in the
presence of ice.
Manual adjustment
4
Lighting and visibility

144
Jumpy _en_Chap04_eclairage-et-visibilite_ed01-2016
Heated mirrors
OrAs a safety measure, the mirrors should
be adjusted to reduce the blind spots.
The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of vehicles
approaching from behind.
For more information on Rear

screen demist - defrost , refer to the
corresponding section.
F
P
ress the heated rear window
button.
F
P
ress the heated mirror button.
If your vehicle has heated door mirrors:
Lighting and visibility

146
Jumpy _en_Chap04_eclairage-et-visibilite_ed01-2016
Model without AUTO lighting
Model with AUTO lighting
Main lighting selection ringLighting off (ignition off) / Front daytime
running lamps (engine running).
Automatic illumination of headlamps.
Sidelamps only.
Dipped or main beam headlamps.Dipping the headlamps
In the lighting off and sidelamps modes, the
driver can switch on the main beam headlamps
temporarily ("headlamp flash") by maintaining a
pull on the stalk.
Operation of the selected lighting is
confirmed by the illumination of the
corresponding indicator lamp.
Pull the stalk to switch between dipped and
main beam headlamps.
Lighting control stalk
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
Turn the ring to align the desired symbol with
the marking.
Lighting and visibility

148
Jumpy _en_Chap04_eclairage-et-visibilite_ed01-2016
Direction indicators
F Left: lower the lighting stalk, passing the point of resistance.
F

R
ight: raise the lighting stalk, passing the
point of resistance.
Three flashes of the direction
indicators
F Press briefly upwards or downwards, without going beyond the point of
resistance; the direction indicators will
flash 3 times.
In good or rainy weather, both day
and night, the front foglamps and the
rear foglamps are prohibited. In these
situations, the power of their beams
may dazzle other drivers. They should
only be used in fog or snow.
In these weather conditions, it is your
responsibility to switch on the foglamps
and dipped headlamps manually as the
sunshine sensor may detect sufficient
light.
Do not forget to switch off the front
foglamps and the rear foglamps when
they are no longer needed.
Lighting left on audible
signal
An audible signal when a front door
is opened warns the driver that the
vehicle's exterior lighting is on, with the
ignition off and in manual lighting mode.
In this case, switching off the lighting
stops the audible signal.
Travelling abroad
If using your vehicle in a country that
drives on the other side of the road, the
headlamps must be adjusted to avoid
dazzling on-coming drivers.
Contact a CITROËN dealer or a
qualified workshop. The lighting goes off when you switch
off the ignition, but you can always
switch it on again using the lighting
control stalk.
Lighting and visibility

152
Jumpy _en_Chap04_eclairage-et-visibilite_ed01-2016
In the vehicle settings menu, activate/
deactivate "Driving lighting ".
With the touch screen
With the audio system
In the "
Personalisation-configuration " menu,
activate/deactivate " Driving lighting".
The system is activated or deactivated in the
vehicle configuration menu.
The system is activated by default.

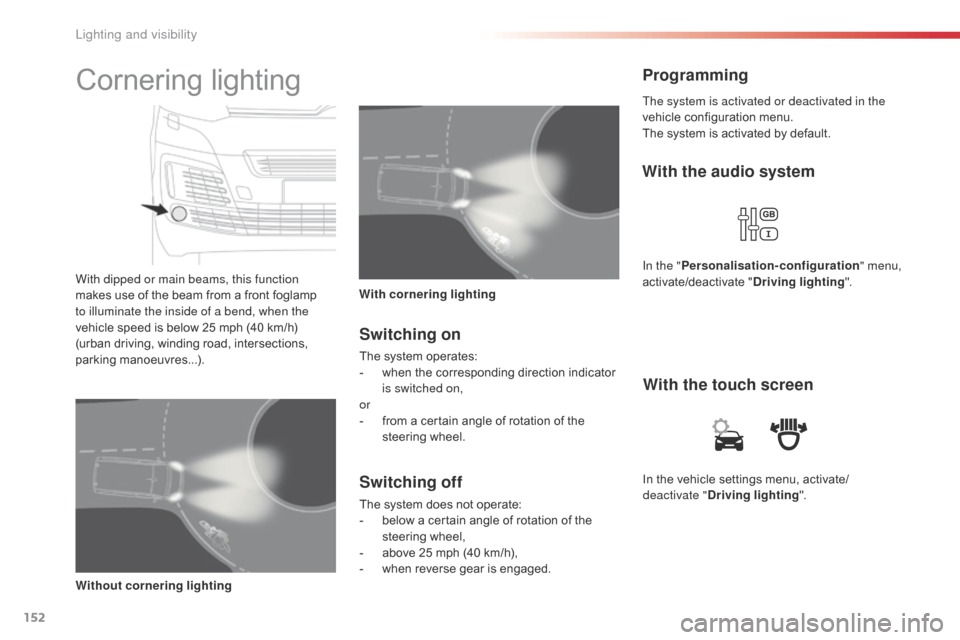

ProgrammingCornering lighting
With dipped or main beams, this function
makes use of the beam from a front foglamp
to illuminate the inside of a bend, when the
vehicle speed is below 25 mph (40 km/h)
(urban driving, winding road, intersections,
parking manoeuvres...).
With cornering lighting
Without cornering lighting
Switching on
The system operates:
- w hen the corresponding direction indicator
is switched on,
or
-

f
rom a certain angle of rotation of the
steering wheel.
Switching off
The system does not operate:
- b elow a certain angle of rotation of the
steering wheel,
-

a
bove 25 mph (40 km/h),
-

w
hen reverse gear is engaged.
Lighting and visibility

153
Jumpy _en_Chap04_eclairage-et-visibilite_ed01-2016
Automatic headlamp dipping
System which automatically changes between
dipped and main beam according to the
ambient light level and the driving conditions,
using a camera located at the top of the
windscreen.
Activation / deactivation
F Put the lighting control stalk ring in the "AUTO" or dipped/main beam position.
This automatic headlamp dipping
system is a driving aid.
The driver remains responsible for the
vehicle's lighting and for adapting its
settings to the levels of brightness and
visibility and the traffic conditions.
The system will be operational as soon
as you have exceeded 15 mph (25


km/h).
If the speed drops below 9 mph
(15

km/h), the system no longer
operates. The driver can intervene at any time
if the circumstances dictate by pulling
on the lighting control stalk to switch
between main and dipped beam.
Flashing the headlamps does not
deactivate the system.
The state of the system stays
in memory when the ignition is
switched off.
Pause
The driver can intervene at any time if the
situation requires a change in the state of the
headlamps.
F

F
lashing the headlamps
pauses the function
and the lighting system
changes to "automatic
illumination of headlamps".
4
Lighting and visibility

160
Jumpy _en_Chap05_securite_ed01-2016
Automatic operation of
hazard warning lamps
Hazard warning lamps
When braking in an emergency, depending on
the rate of deceleration, as well as when the
ABS regulation is invoked or in the event of an
impact, the hazard warning lamps come on
automatically.
They switch off automatically the first time you
accelerate.
F
Y
ou can also switch them off by pressing
the button.
Visual warning with all of the direction
indicators flashing to alert other road users to a
vehicle breakdown, towing or accident.
Emergency or
assistance call
This system allows you to make an emergency
or assistance call to the emergency services or
to the dedicated CITROËN service.
For more information on Audio and
telematics and in particular the
use of this equipment, refer to the
corresponding section.
F

P

ress this button, all of the direction
indicators flash.
They can operate with the ignition off.
Safety
