2016 Citroen DS4 Owner's Manual

15
DS4_en_Chap00c_eco-conduite_ed03-2015
Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance (roof
bars, roof rack, bicycle carrier, trailer...). Use a roof box in preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit your summer tyres.
Observe the recommendations on
maintenance
Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:
-
b
efore a long journey,
-

a
t each change of season,
-

a
fter a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.
Have your vehicle serviced regularly (engine oil, oil filter, air filter,
passenger compartment filter...) and observe the schedule of
operations recommended in the manufacturer's service schedule.
With a BlueHDi Diesel engine, if the SCR system is faulty your vehicle
becomes polluting; go to a CITROËN dealer or a qualified workshop
without delay to have the emissions of nitrous oxides brought back to
the legal level.
When refuelling, do not continue after the third cut-off of the nozzle to
avoid any over flow.
At the wheel of your new vehicle, it is only after the first 1 800 miles
(3
000 kilometres) that you will see the fuel consumption settle down to
a consistent average.
Eco-driving

DS4_en_Chap01_controle-de-marche_ed03-2015

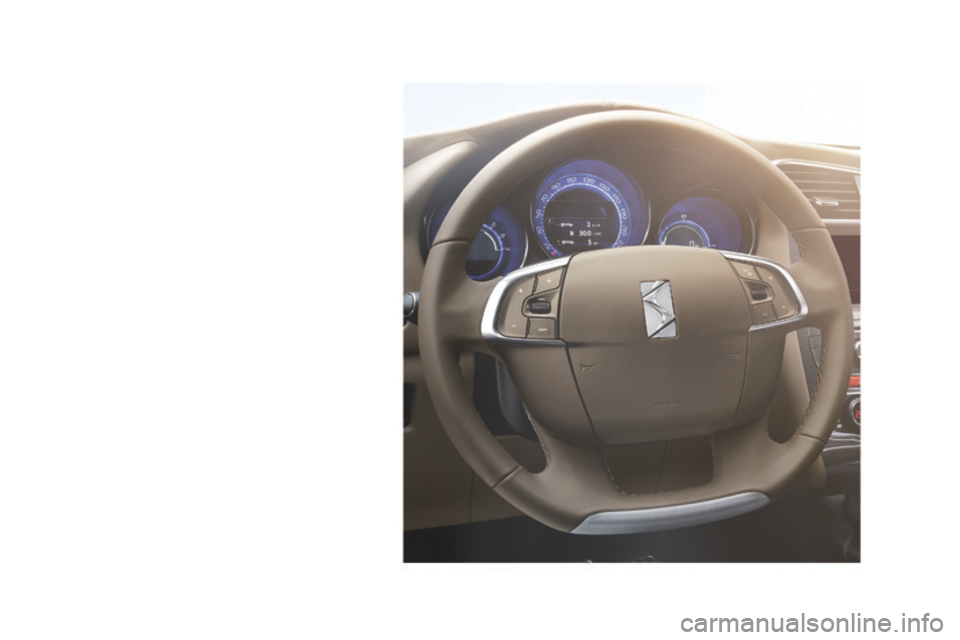

Instruments and controls
0

DS4_en_Chap01_controle-de-marche_ed03-2015

DS4_en_Chap01_controle-de-marche_ed03-2015
Customisable colour instrument panel - Type 1
1. Rev counter (x 1 000 rpm or tr/min).
2. Gear shift indicator or gear lever position
and gear for an automatic gearbox.
3.
A

nalogue speedometer (mph or km/h).
4.
C

ruise control or speed limiter setting.
5.
D

igital speedometer (mph or km/h).
6.
E

ngine oil level indicator*.
dials and screens Control buttons
7. Service indicator (
miles or km) then,
t

otal mileage recorder.
T

hese two functions are displayed
successively on switching on the ignition.
L

ighting dimmer setting (when making an
adjustment).
8.
T

rip mileage recorder (miles or km).
9.
F

uel gauge and associated low fuel
warning lamp.
10.
R

ange (miles or km) for the fuel (a) or the
AdBlue additive and SCR system (b) .A. D
ial COLOUR: customisation of the
background colour of the dials.
B.
S

creen COLOUR: customisation of the
background colour of the screens.
C.
L

ighting dimmer (available in night mode).
d

.
R
eset the service indicator or the trip
mileage recorder.
*

Depending on version.

19
DS4_en_Chap01_controle-de-marche_ed03-2015
1. Rev counter (x 1 000 rpm or tr/min).
2. Gear shift indicator or gear lever position
and gear for an automatic gearbox.
3.
S

peedometer (mph or km/h).
4.
C

entral screen.
5.
F

uel gauge and associated low fuel level
warning lamp.
dials and screens
6. Trip mileage recorder (miles or km).
7. S ervice spanner (if a service is due or
missed),
t

otal mileage recorder (miles or km).
Control buttons
Customisable colour instrument panel - Type 2
A. Dial COLOUR: customisation of the background colour of the dials.
B.
S

creen COLOUR: customisation of the
background colour of the screens.
C.
D

ashboard lighting dimmer (in night mode).
d

.
S
tart a manual test (procedure for checking
the status of systems and display of vehicle
a l e r t s).
R

eset service indicator or trip mileage
recorder.
Monitoring

DS4_en_Chap01_controle-de-marche_ed03-2015
Type 2 instrument panel central screen and controls
display zones
1. Speed limiter or cruise control settings.
2. Engine oil level indicator*.
S

ervice indicator.
R

ange indicators (miles or km) related to
the AdBlue additive and the SCR system
(BlueHDi).
T

rip computer.
C

urrent audio source playing.
R

epeat of the navigation instruction.
R

epeat of the vehicle's speed.
Control
Press the button on the end of the wiper control
stalk to cycle through the different active
functions available (trip computer, current audio
source, navigation...). Approaching the maximum engine speed, the
bars flash to indicate to you the need to change
up a gear.
Rev counter
When switching the ignition on or off,
the speedometer needle and the bars
of the rev counter and fuel gauge carry
out a full sweep and then return to 0.
* Depending on version.
Alert or information messages can also be
displayed temporarily.

21
DS4_en_Chap01_controle-de-marche_ed03-2015
Visual indicators which inform the driver of the
occurrence of a malfunction (warning lamp)
or of the operation of a system (operation or
deactivation indicator lamp).
Warning and indicator lamps
When the ignition is switched on
Certain warning lamps come on for a
few seconds when the ignition is switched on.
When the engine is started, these warning
lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp in question.
Associated warnings
The illumination, fixed or flashing, of certain
warning lamps may be accompanied by
an audible signal and a message in the
multifunction screen or in the type 2 instrument
panel central screen.
Monitoring

DS4_en_Chap01_controle-de-marche_ed03-2015
Warning lamps
When the engine is running or the vehicle is being
driven, the illumination of one of the following warning
lamps indicates a malfunction which requires action
on the part of the driver.
The warning comes on in the instrument panel or
appears in the type 2 instrument panel central screen.If your vehicle has a screen, a warning lamp coming on is always accompanied by the
display of an additional message, to assist you in identifying the problem.
If you encounter any problems, do not hesitate to contact a CITROËN dealer or a qualified
workshop.
Warning /indicator lampis on Cause Action/Observations
STOP fixed, alone or
associated with
another warning lamp,
accompanied by an
audible signal and a
message in the screen. Illumination of this warning lamp is
associated with a serious fault with
the braking system, power steering,
engine lubrication system or cooling
system.
Stop as soon as it is safe to do so as there is a risk that
the engine will cut out while driving.
Park, switch off the ignition and contact a CITROËN
dealer or a qualified workshop.
Maximum coolant
temperature fixed.
The temperature of the cooling system
is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before topping
up the level, if necessary.
If the problem persists, contact a CITROËN dealer or
qualified workshop.
Engine oil
pressure fixed.
There is a fault with the engine
lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a CITROËN
dealer or a qualified workshop.
